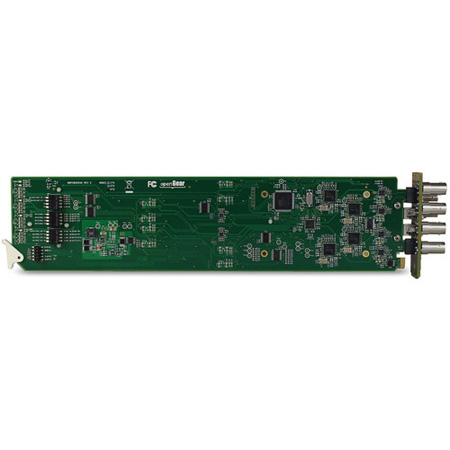

Multidyne HD-4400OG-FTX-50 4 Channel 3.0 Gbps HD-SDI Fiber Optic Transmitter Card

Name: Multidyne HD-4400OG-FTX-50 4 Channel 3.0 Gbps HD-SDI Fiber Optic Transmitter Card
Brand: Multidyne
SKU: HD-4400OG-FTX-50
Price: 2789.00 USD
Availability: PreSale

ITEM #: HD-4400OG-FTX-50 MFG #: HD-4400OG-FTX-50

Multidyne

Options:

Options

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$3,146.00

Our Price:

$2,789.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HD-4400OG-FTX-50 - Overview

The Multidyne HD-4400OG-FTX-50 HD-4000 series of modules for the openGear platform provides unprecedented flexibility in how you handle your SDI signal transport. Capable of handling SDI rates from 5 Mb/sec all the way up to 3 Gb/sec uncompressed, these cards will automatically detect the incoming signal and give you full control over re-clocking and routing.

Applications:
Studio Links
Signal Trunking
Signal distribution
Campus interconnects
Transmission links
Telco circuits
Outside Broadcast "B-Unit" interconnects

PLEASE NOTE! This is the Transmitterr Fiber Card ONLY! Rear Module is required and sold separately.

Features:
- Supports SMPTE 424M, 292M, 310M & 259M
- Reclocking @ 270Mbps, 1.483Gbps, 2.970 Gbps & DVB-ASI
- Auto-detect of incoming data rate
- Card-edge LEDs for signal presence, rate & other key parameters
- Blind-mating SC fiber connectors
- 4x4 Matrix/cross-point
- 1,2,3 or 4 signals/card
- Up to 18 signals/fiber
- Up to 40 signals in 2RU
- Dashboard enabled
- Supports embedded audio and data
Specifications:
- General
- Fiber Compatibility: singlemode
- Optical Connector: ST, LC, SC or FC
- Distance limit: Up to 40 km @ SD, Up to 24 km @ HD
- Dimensions (LxWxH): 13" x 3"
- Weight: 6 oz
- Temperature Range: -0° to +70°C
- Humidity Range: 0 to 95% RH Noncondensing
- Power Requirement: 12 VDC @ 10w

  SDI Video In
- Input Type: BNC
- Input Impedance: 75 Ohms
- Optical Sensitivity (w/HD-SDI Signal): -20 dBm
- Output Return Loss: >15 dB up to 1.5GHz, >10dB up to 3 GHz
- Added Jitter: <0.03UI under 1MHz
- Wavelength: 1310nm Std CWDM 1271-1611 DFB
- Optical Power: -5 dBm to 0 dBm
- Laser Strength: Laser Class 1
- Standards: SMPTE 259M-C, 292M, 425M, 297M & DVB/ASI
Item Includes:
- 1x Multidyne HD-4400OG-FTX-50 4 Channel 3.0 Gbps HD-SDI Fiber Optic Transmitter Card
