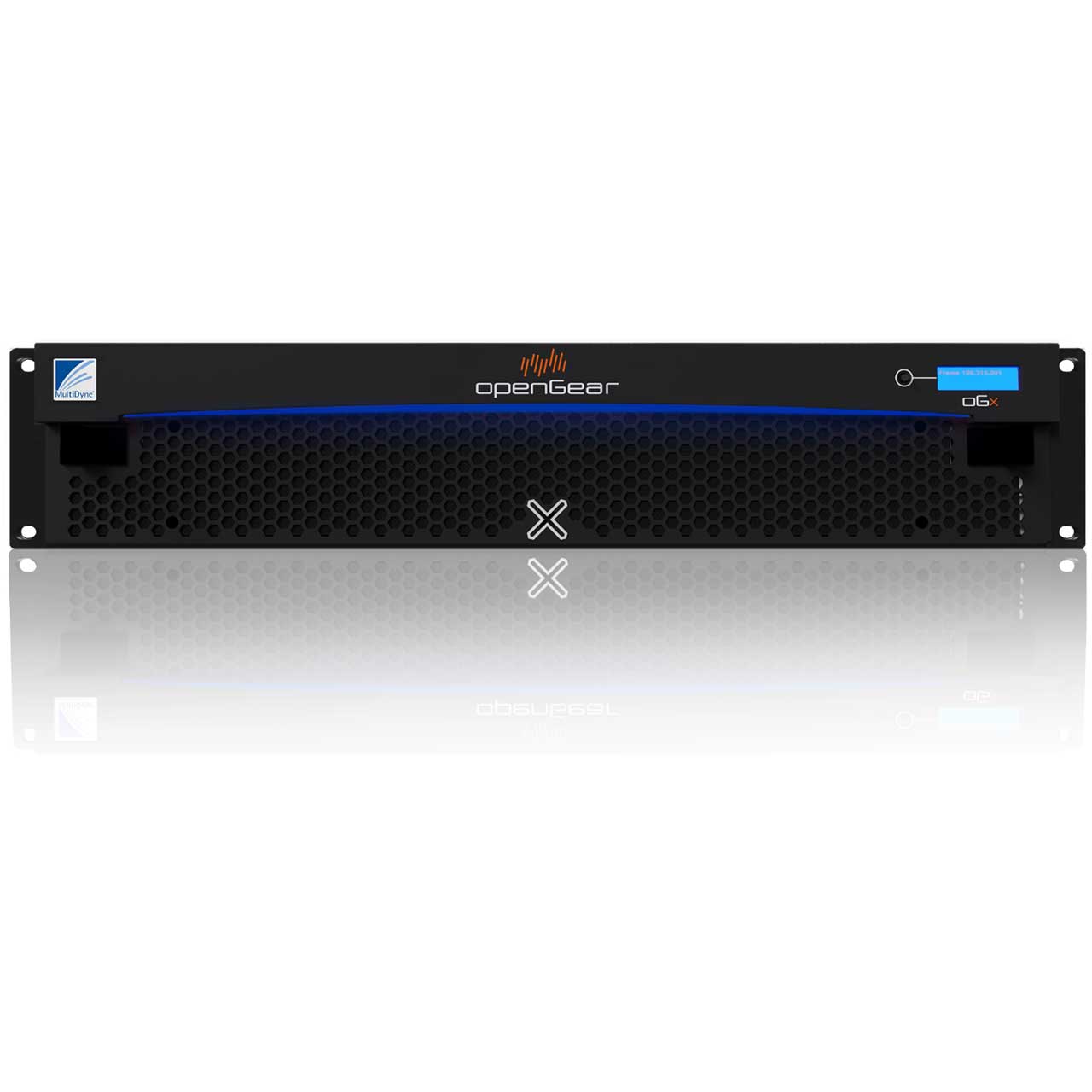

MultiDyne OGX-FR-CN-P openGear Frame with 1 PS - Cooling and Advanced Networking - 2RU

OGX-FR-CN-P - Overview

• Features:

  • Two independent looping reference inputs feed all card slots
  • Can house any mix of analog, digital, video and audio cards in the same frame
  • Available with individual card specific modules for connector flexibility
  • Optional redundant power supply is hot-swappable for 24/7 operation
  • Power switch is accessible from front of the rack frame
  • Power supplies are replaceable from the front of the frame without requiring rear-frame access
  • Separate power cords to each supply for power feed redundancy
  • PowerLock cord retainer mechanism guards against accidental power loss
  • Durable powder-coat paint finish
  • Removable hinged front door for easy card insertion and removal, and flexibility in servicing the cooling fans
  • Aluminum and steel construction to reduce weight and increase strength
  • 2RU frame houses up to 20 cards
  • Robust 500W power supply with two integral cooling fans per power supply
  • Comes standard with the Cooling Fan Module for increased ventilation and enhanced reliability
  • Supports Gigabit ethernet connectivity to each openGear card in the frame (requires the MFC-OG3-N Network
    Controller Card)
  • Provides a system alarm LED on the frame front door
  • Provides an LCD Diagnostic Panel on frame front that reports the frame name, and IP address; provides the
  • ability to scroll through these reported error conditions
  • Removable door with durable powder-coat paint finish
  • 5-year transferable warranty


• Specifications:

  • Item Specifications:
  • Number of RU: 2
  • Height: 3.5" (8.89cm)
  • Width: 19" (48.26cm)
  • Depth: 17.7" (45cm)
  • Weight: (two PS-OGX installed) 20lb (9.07kg)

    Power:
  • Input: 6.3A (650W)
  • Output 1: 12V 41.6A, 500W maximum
  • Output 2: -7.5V 5A, 37.5W maximum
  • Total Sum of both outputs not to exceed 500W

    Card Slots:
  • Number of Slots: 20
  • Total Power Available: 450W

    Frame Controller and Fans
  • Max. Power: +12V Rail 4A, 48W
  • Max. Power: -7.5V Rail 0.2A (1.5W)
  • Total 50W Maximum

    GFC-8322
  • Max. Power: +12V Rail 0.2A (2.4W)
  • Max. Power: -7.5V Rail 0.2A (1.5W)
  • Total 3.9W Maximum

    Reference Inputs
  • Number of Inputs: 2 looping
  • Level 1: VPP nominal
  • Impedance: 75ohm terminating
  • Return Loss: >30dB to 30MHz
  • Maximum DC on REF Input: +/-1V

    Environment
  • Maximum Ambient Temperature: 0°C to 40°C (32°F to 104°F)
  • Humidity, non-condensing: <95%"


• Warranty:

  • 5-Year Transferable Warranty
