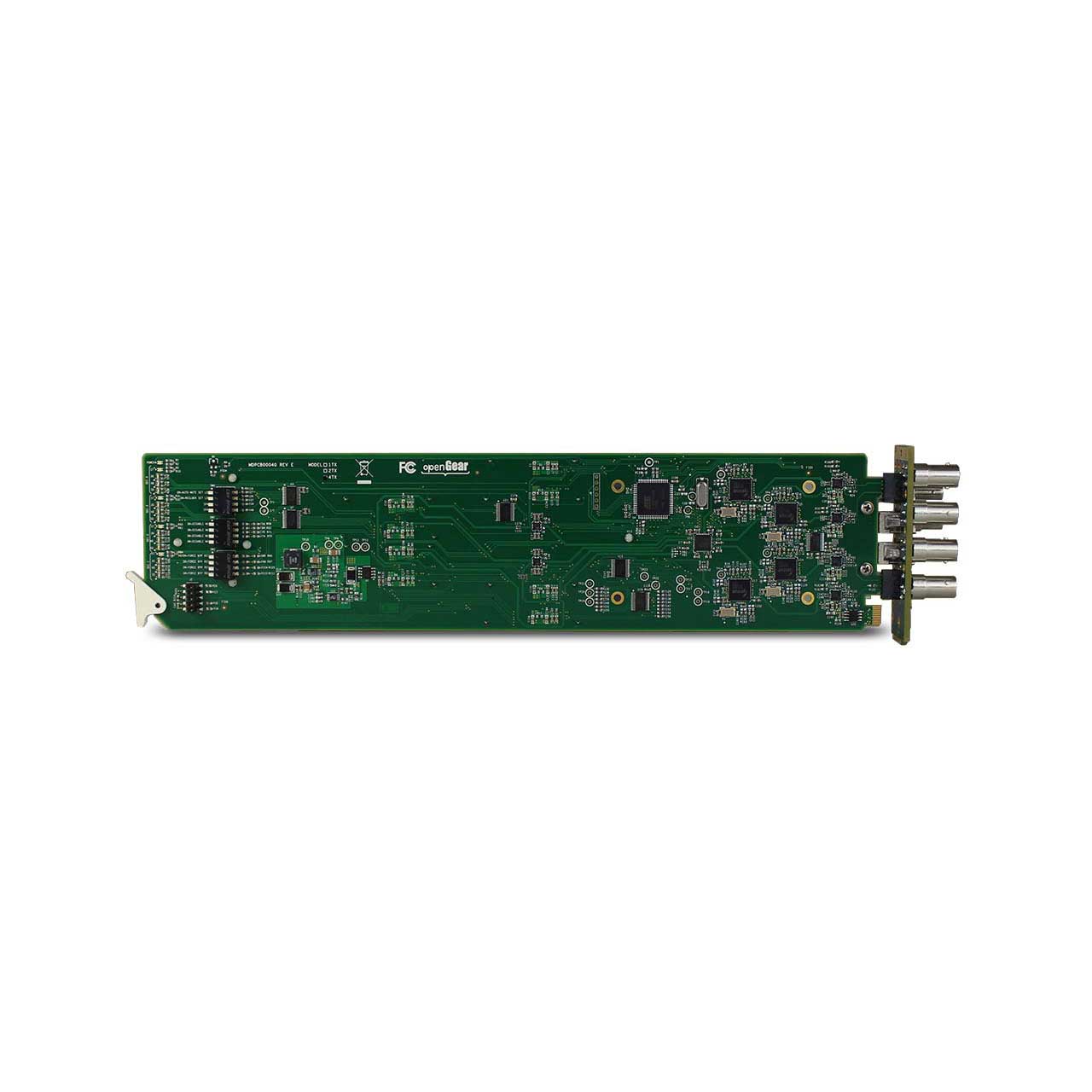

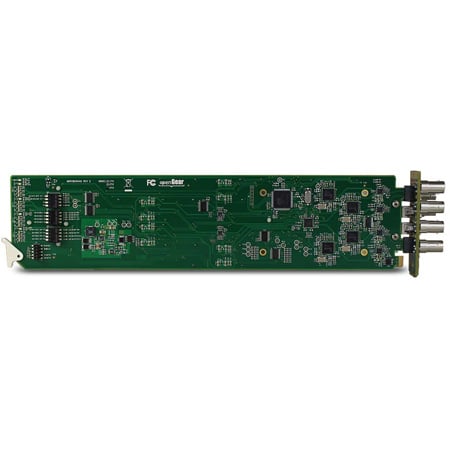

Multidyne R2-4400-4T-ST HD-4000 series of modules for the openGear platform provides flexibility in how you handle your SDI signal transport. Capable of handling SDI rates from 5 Mb/sec all the way up to 3 Gb/sec uncompressed, these cards will automatically detect the incoming signal and give you full control over reclocking and routing.
The HD-4000's also incorporate an integrated cross-point matrix that allows not only the ability to assign a given input signal to one or more outputs, but also to enable and disable outputs should the need arise. There's also an automatic fail-over mode that, when selected, will switch to another input should the signal in the first input somehow fail. Embeded audio is fully supported. All outputs are non-inverting and ASI capable.
The HD-4000 is the cost effective way to move all of your HD signals along with the convenience of a built-in switcher, remote monitoring and automatic fail-over protection switching. Designed and manufactured in New York.
Applications
Studio links
Signal trunking
Signal distribution
Campus interconnects
Transmission links
Telco circuits
Outside Broadcast "B-Unit" interconnects
PLEASE NOTE! This is the Rear Module ONLY! Receiver Fiber Card is required and sold separately.
