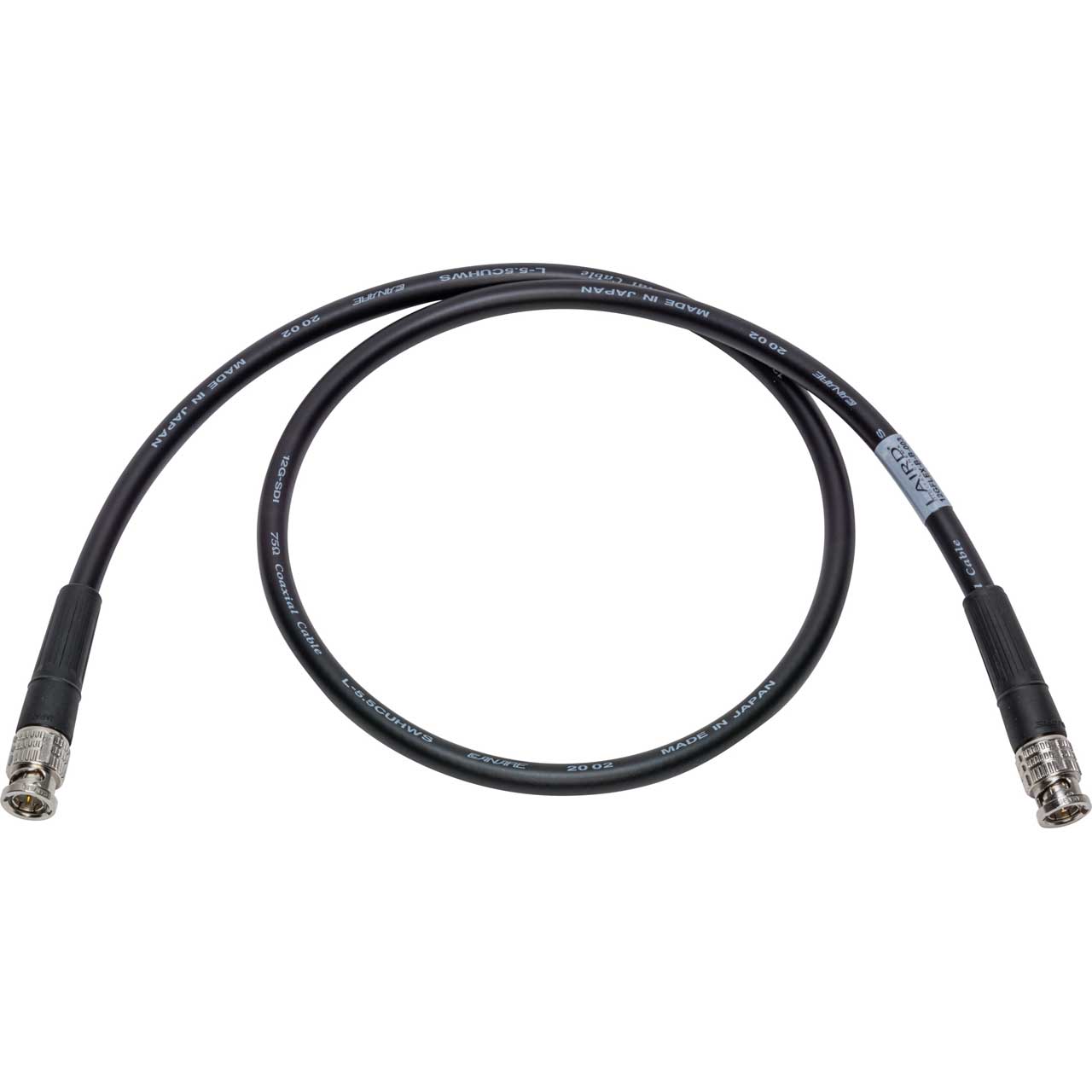

Laird Canare L-5.5CUHWS 12G-SDI Flexible 4K UHD Mobile Video Coax BNC Cable- 6 Foot

ITEM #: 12GFLEX-B-B-006 MFG #: 12GFLEX-B-B-006

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$44.49

Our Price:

$39.95

Availability: In Stock
iAvailability Description Popup


12GFLEX-B-B-006 - Overview

The power of 12G-SDI bandwidth meets the ruggedness & flexibility requirements of mobile truck and field use with the Laird 12GFLEX series of BNC cables. This RG7 type BNC coax cable is incredibly flexible for its size making it easy to deploy and recoil. It is designed to meet the demands of outdoor broadcast, news & media and on-location production users and deliver guaranteed 12G performance up to 150 Feet.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 150 Feet for 12G-SDI even though Canare may show this distance as 225 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

  • Features:

    • Min Bend Radius: 48.6mm (6x 8.1mm O.D.)
    • Great Flexibility for Repeated Bending and Coiling
    • Rugged Canare Video Coaxial RG7 Equivalent Cable
    • Low Loss Canare BNC Connectors
    • Superior Cable Pull Strength

  • Specifications:

    • Canare Certified Max Transmission Distance: 225 Feet for 12G/4K
    • Laird Certified Max Transmission Distance: 150 Feet for 12G/4K
    • 16 AWG Canare L-5.5CUHWS Cable
    • Jacket: PVC
    • Solid Compressed Annealed Copper Center Conductor
    • Foamed Polyethylene Insulation
    • Cable Nom. O.D.: 0.318 inch/ 8.1 mm
    • Connectors Impedance: 75 Ohm

      ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

  • Warranty:

    • 1 Year
