My Custom Shop 12-Port Unloaded Rack Panel for 12 D-Series Connectors with Vertical Hinge- 1RU

Name: My Custom Shop 12-Port Unloaded Rack Panel for 12 D-Series Connectors with Vertical Hinge- 1RU
Brand: My Custom Shop
SKU: 12X-1-H
Price: 94.95 USD
Availability: InStock

ITEM #: 12X-1-H MFG #: 12X-1-H

My Custom Shop

Sizes:

Sizes

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$108.49

Our Price:

$94.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

12X-1-H - Overview

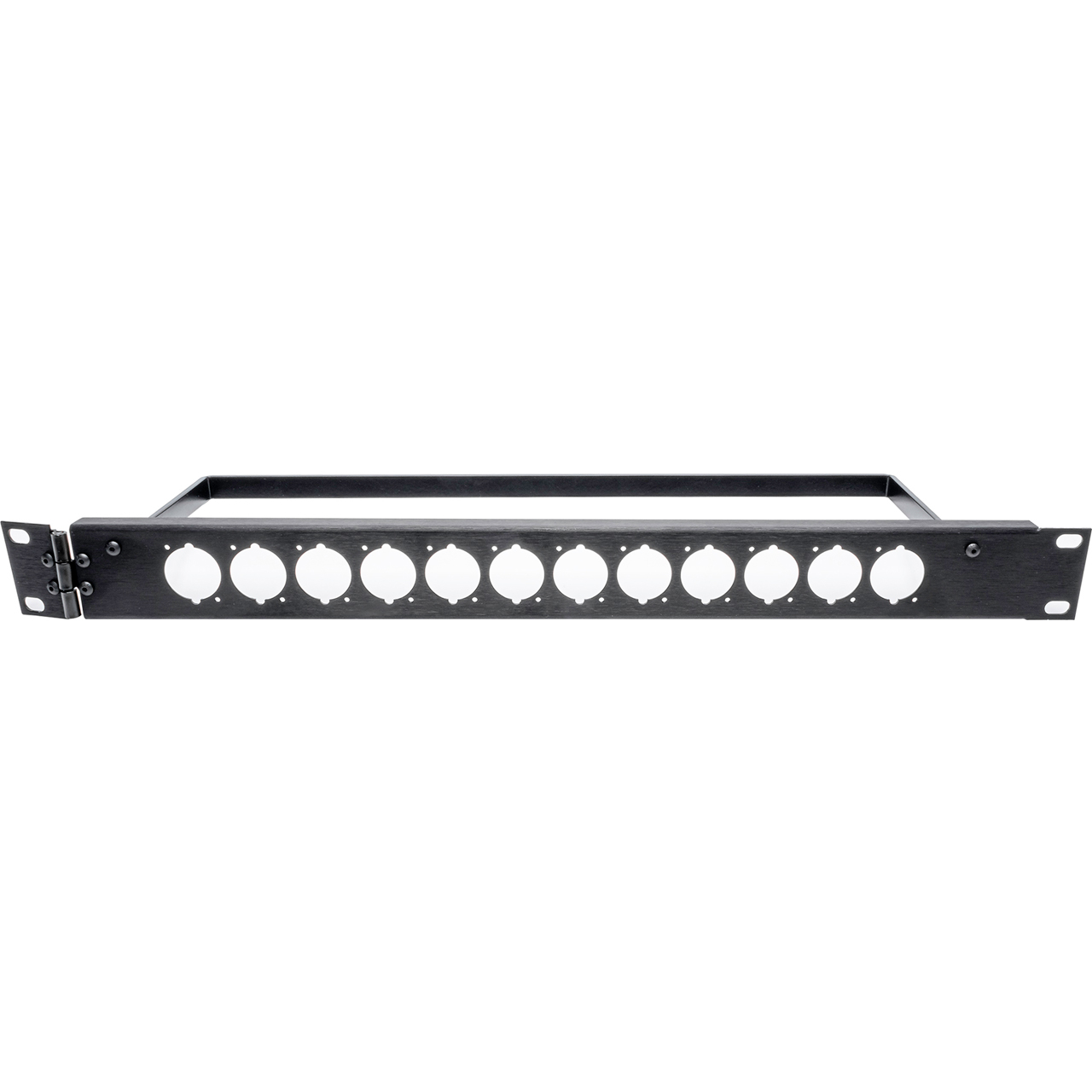

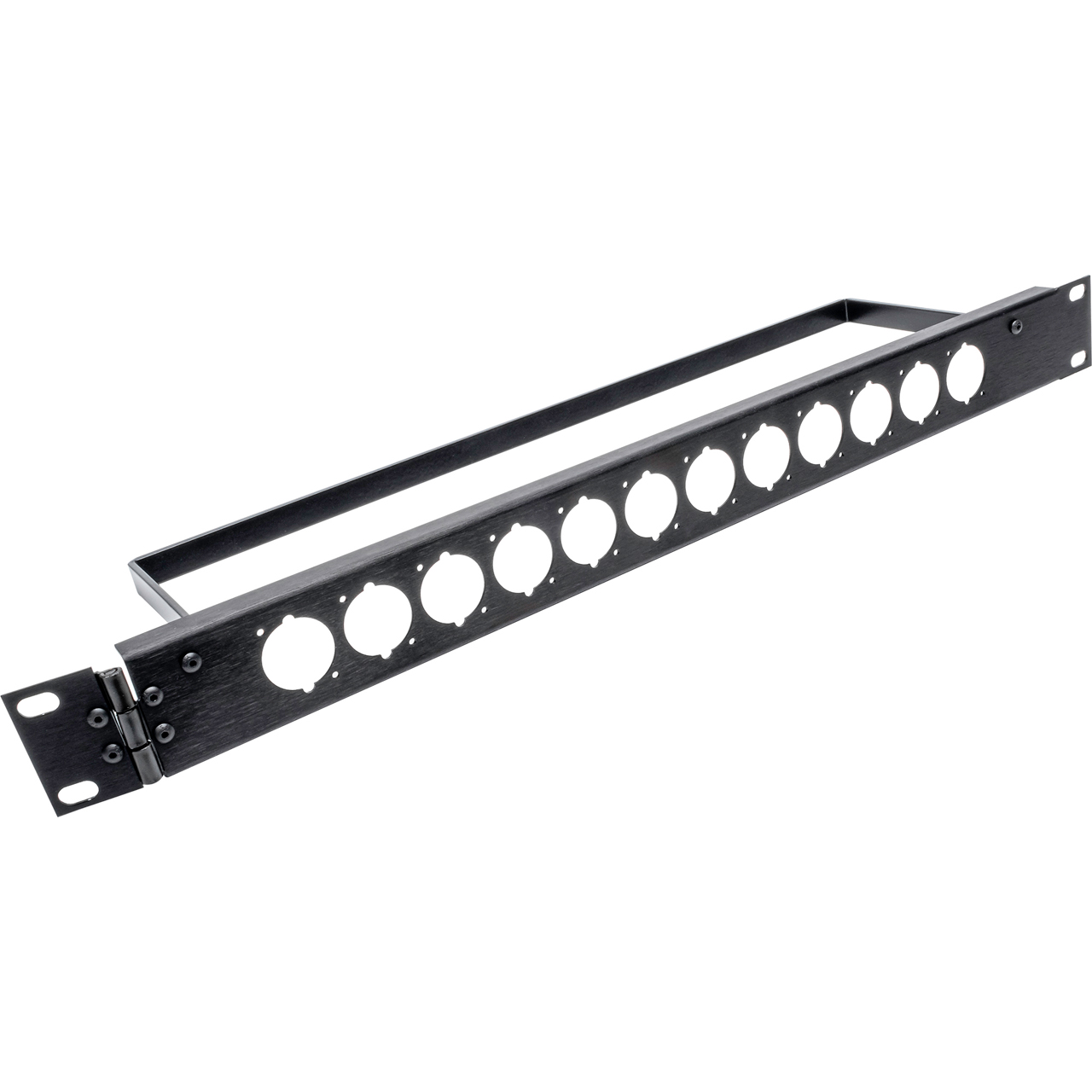

The My Custom Shop 12X-1-H Hinged Rack Panel is a 1RU panel pre-punched for D-Series connectors. The Hinge allows for easy access to the rear of the panel after installation while the lacing bar helps with cable organization and strain relief. Proudly built in our USA facility.

Features:
- Flanged panels for added Strength

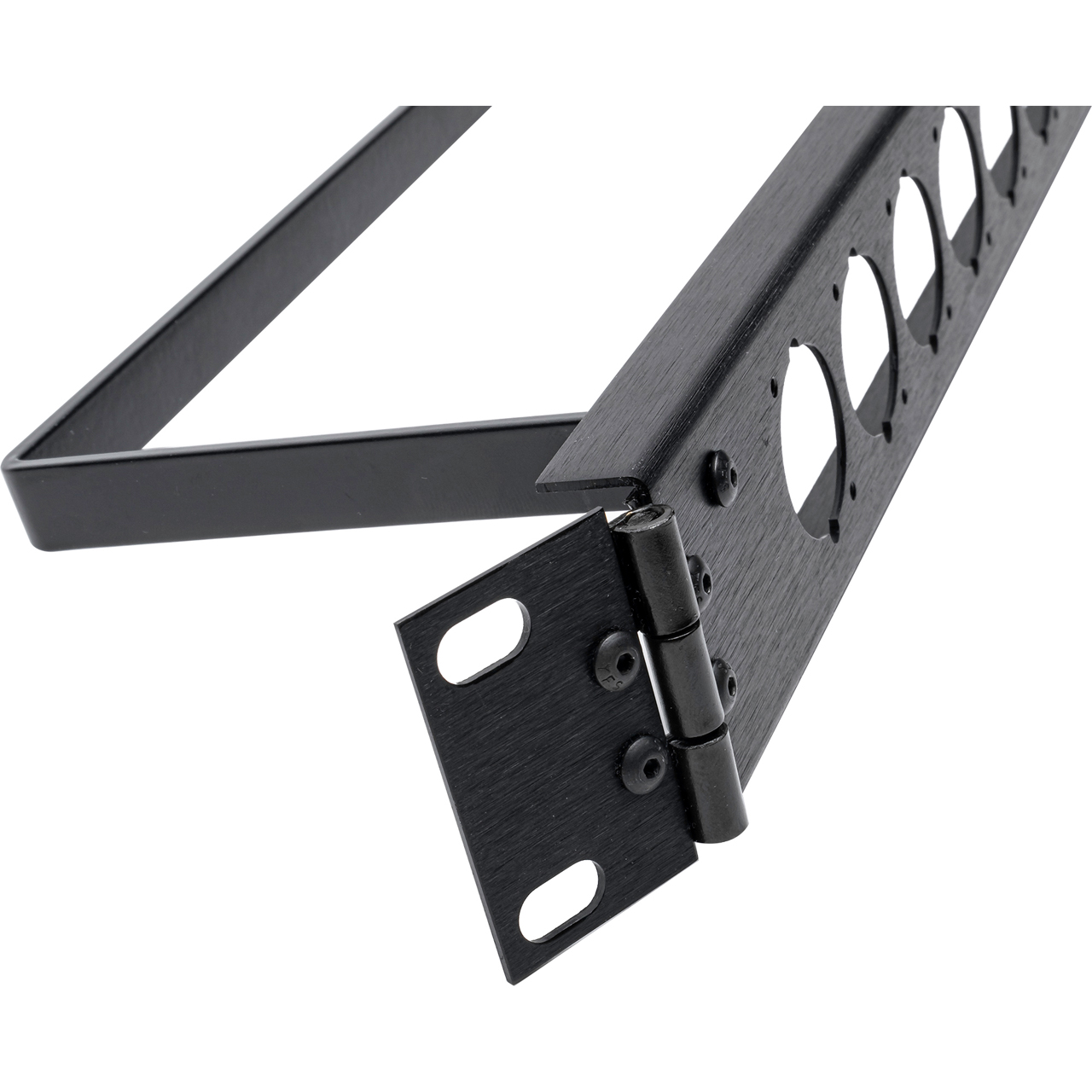

- Hinged for easy access to rear of panel

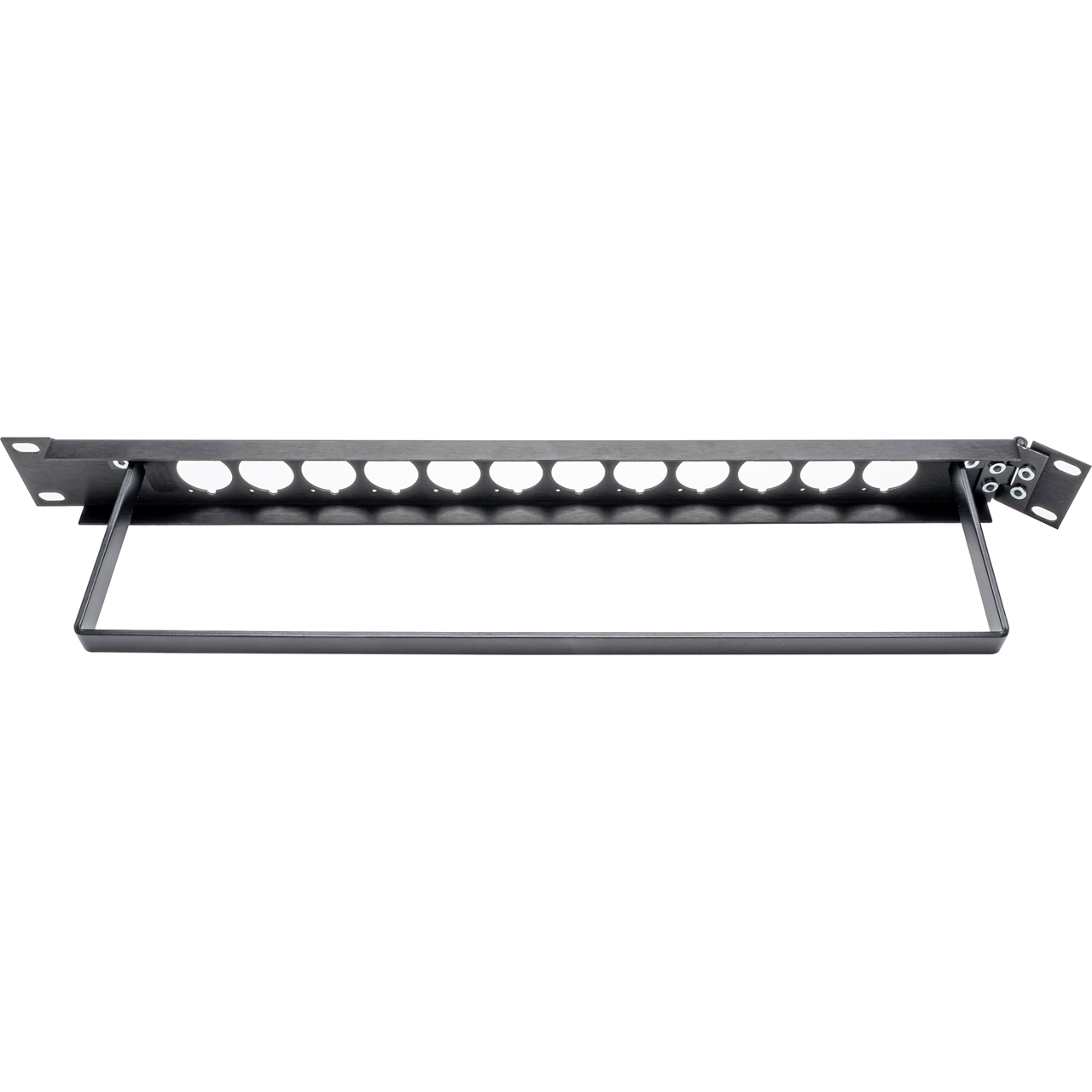

- 4" lacing bar for cable management and strain relief
- 12 D-Series Punched holes

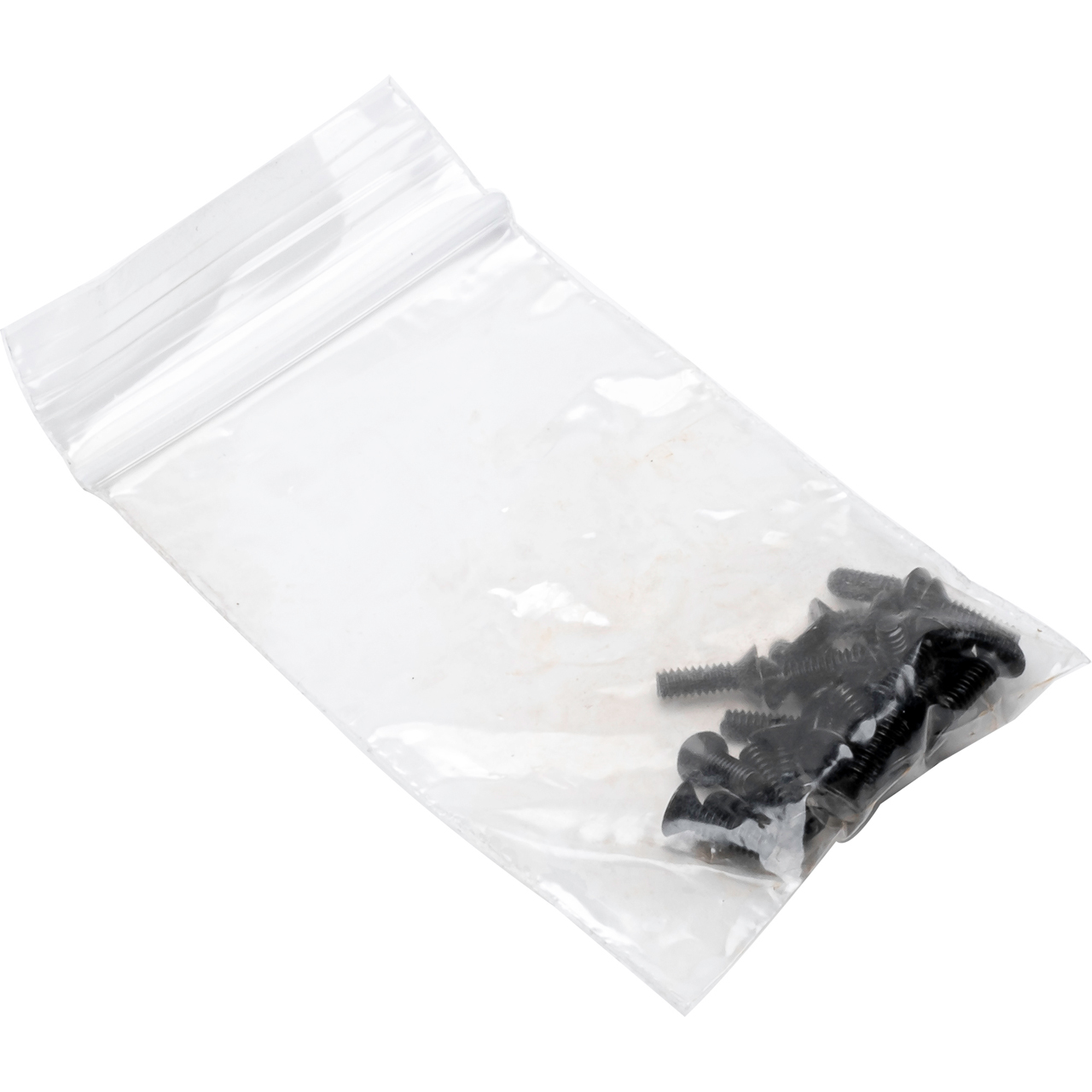

- Hardware for D-Series Chassis connectors included
Specifications:
- Size:1RU
- Ports: 12
- Dimensions:1RU 12 Port: 1.75in (44.45mm) x 19in (482.6mm)
- Cutouts: D-Series
- Panel Material: 1/16" Black Anodized Aluminum
- 4-40 tapped mounting holes, 4-40 x 3/8" flat head Phillips screws
