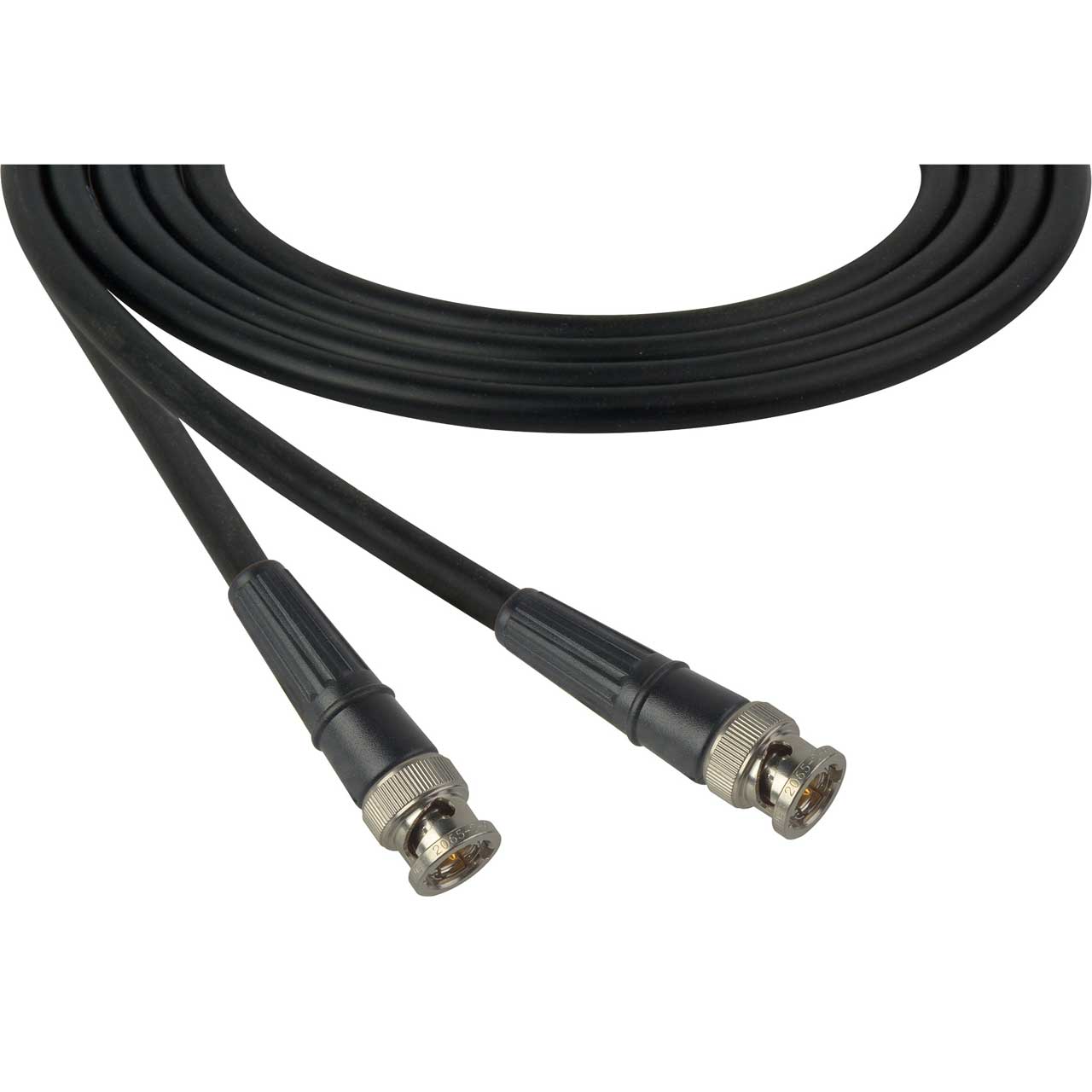

Laird Belden 1505F 3G-SDI/HDTV RG59 BNC Cable - 6 Foot Black

ITEM #: 1505F-B-B-6 MFG #: 1505F-B-B-6

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$30.95

Our Price:

$26.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1505F-B-B-6 - Overview

Broadcast quality 3G-SDI/HDTV BNC male to BNC male cables featuring Belden 1505F flexible stranded center conductor RG59 cable with and Kings 2065-2-9 connectors.

  • Features:

    • Belden 1505F Cable
    • Kings 2065-2-9 75 Ohm BNC Connectors
    • Flexible cable sleeve provides abrasion resistance & its high quality connectors provide strain relief
    • SMPTE ST-2081 6G-SDI compliant


  • Specifications:

    • RG Type: 59
    • Conductor AWG: 22
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Overall Cable Diameter (Nominal): 0.242 in (6.15 mm)
    • Bend Radius Install. Min.: 2.4 in
    • Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
    • Flammability / Reaction to Fire: UL1685 UL Loading
    • Non-UL Temp Rating: 75°C
    • UL Temp Rating: 60°C
    • Operating Temp Range: -35°C To +75°C
    • NEC/CEC Compliance: CM


  • Warranty:

    • 1 Year
