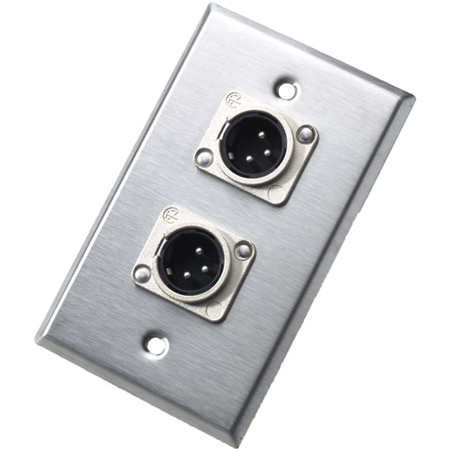

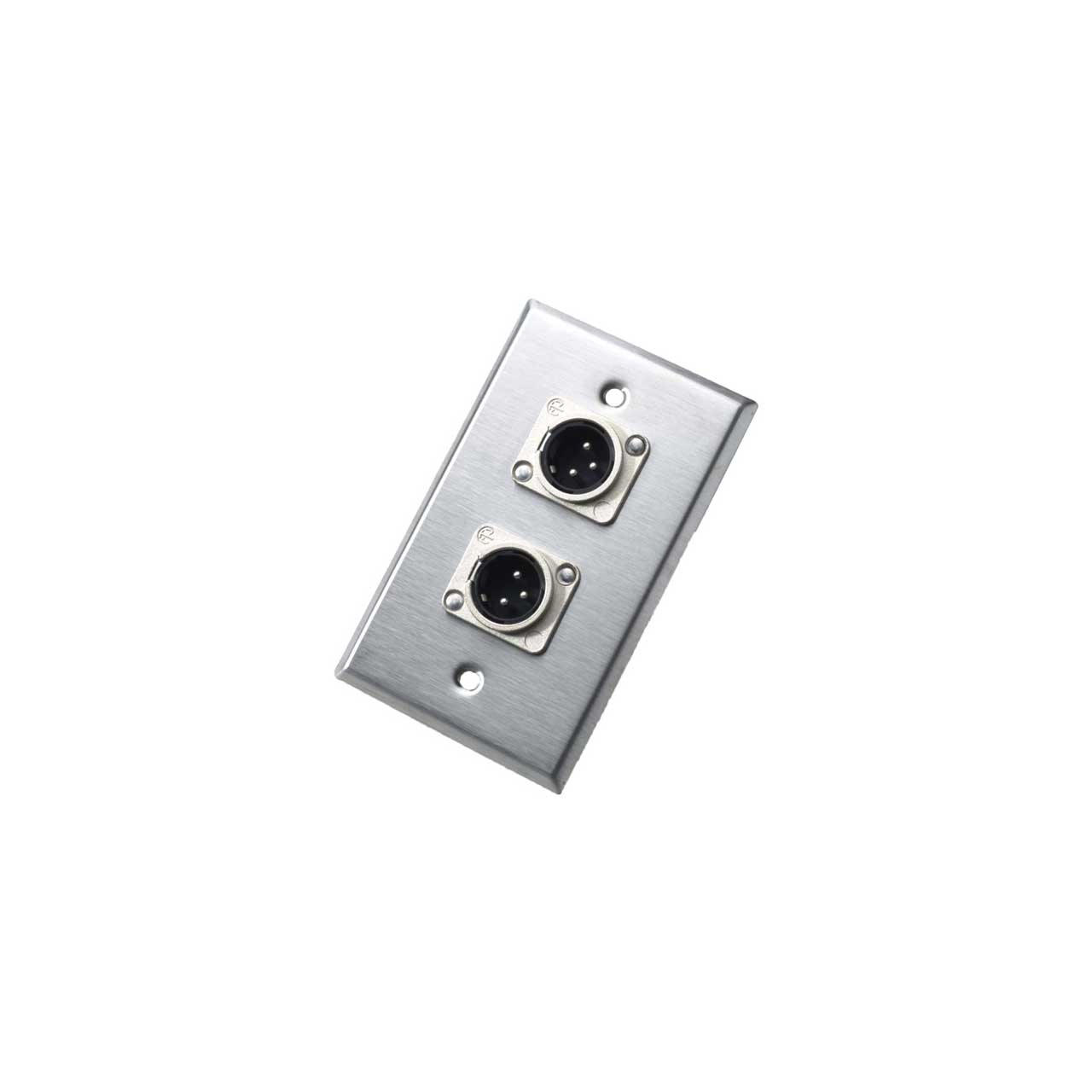

Neutrik 203m Brushed Stainless Steel Wallplate with two NC3MD-L-1 XLR male connectors

203M - Overview

• Specifications:

  • Connection Type: XLR
  • Gender: male
    Electrical
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 5 m
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 G (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
    Mechanical
  • Insertion force: = 20 N
  • Withdrawal force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Mounting direction: Front mounting
  • Chassis shape: D
    Material
  • Contact plating: 2 æm Ag over 2 æm Ni
  • Contacts: Brass (CuZn35Pb2)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
    Environmental
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
