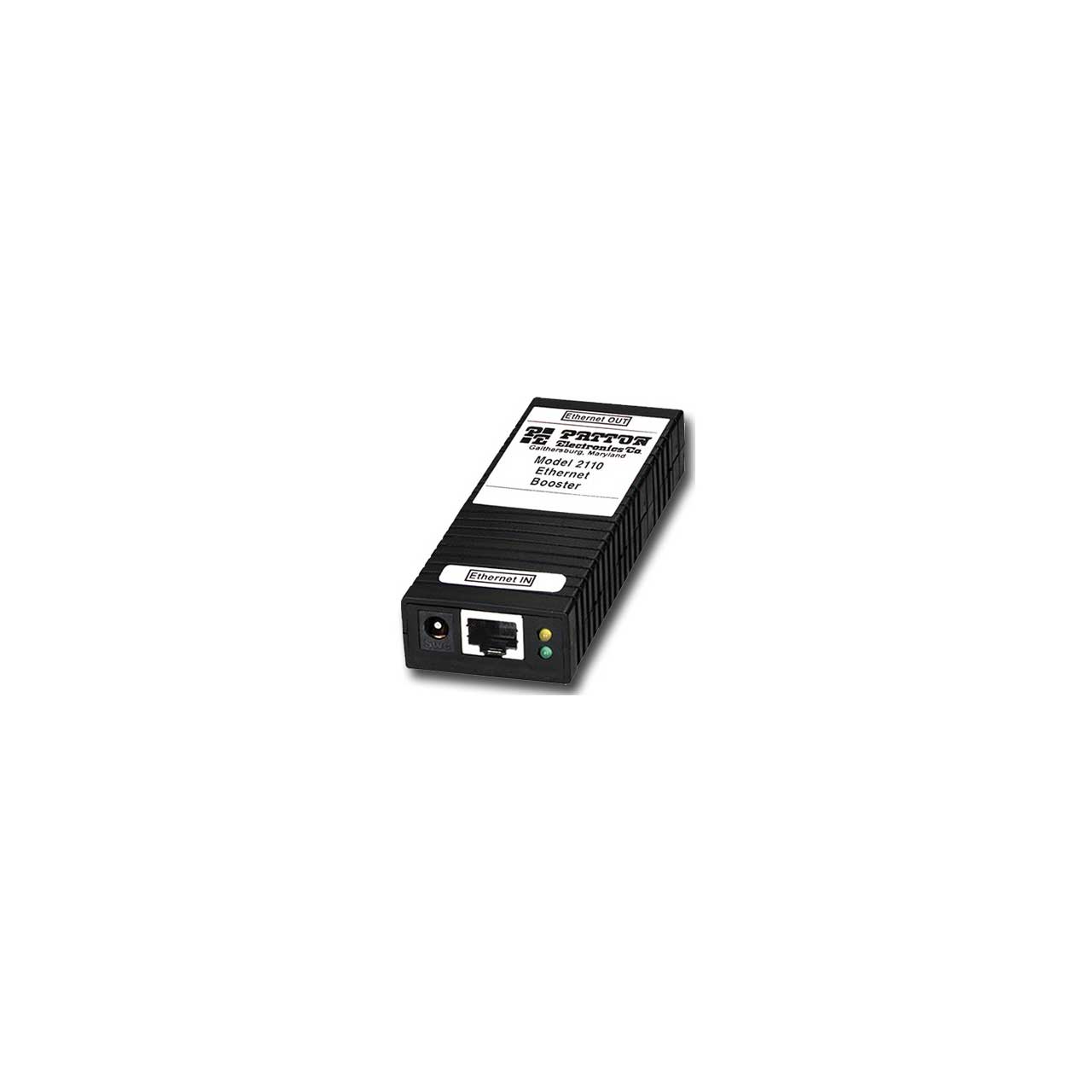

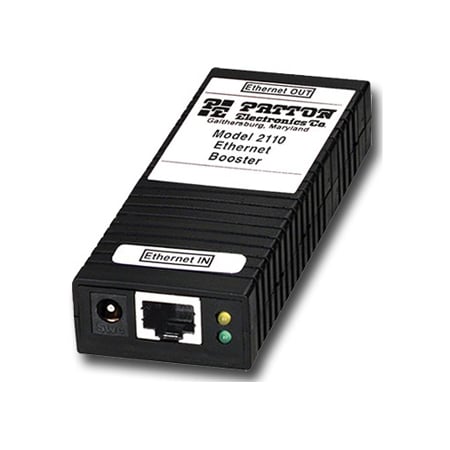

Patton 2110/PSE/EUI CopperLink 10/100 Mbps Ethernet Booster -54V PoE Injector

ITEM #: 2110-PSE-EUI MFG #: 2110-PSE-EUI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$248.90

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


2110-PSE-EUI - Overview

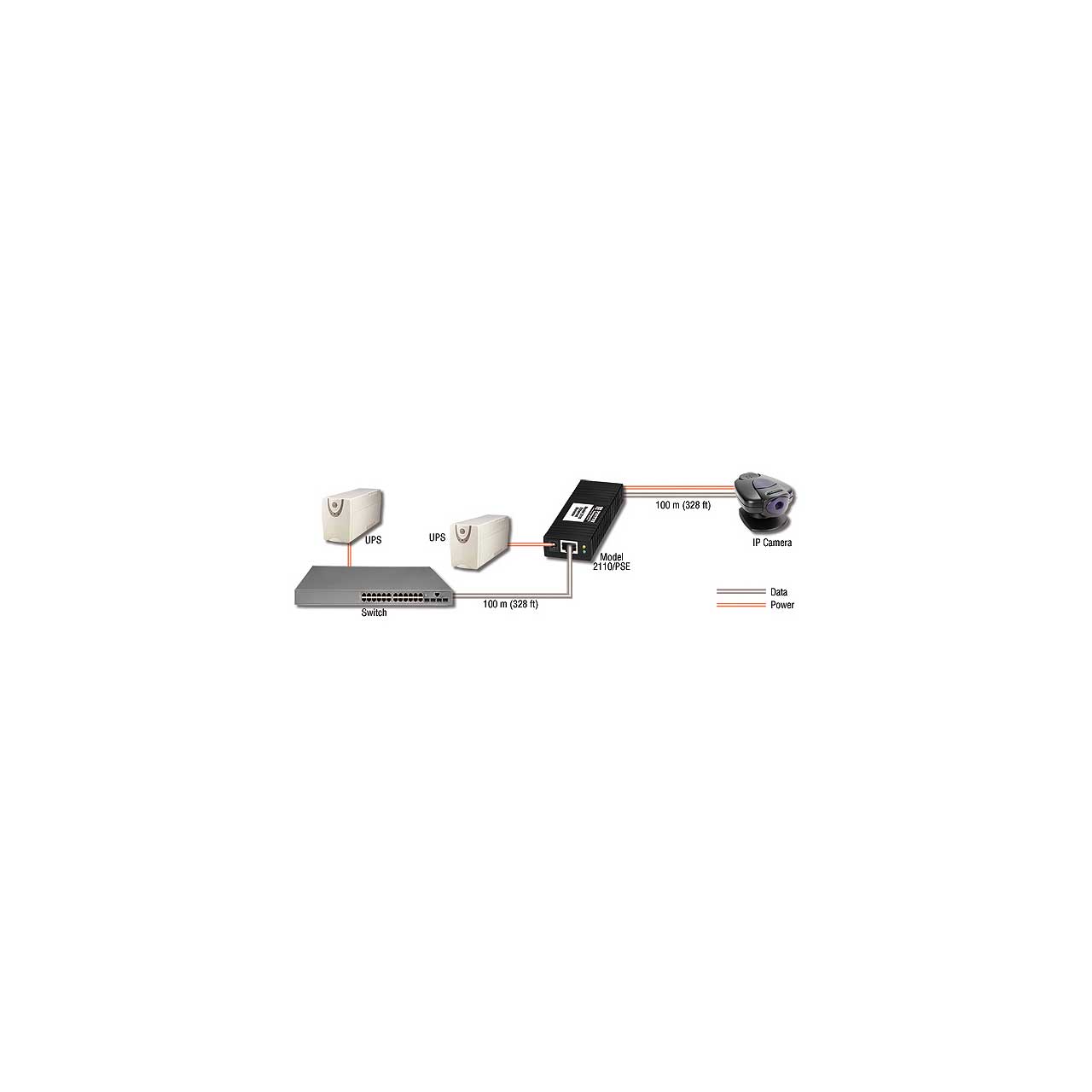

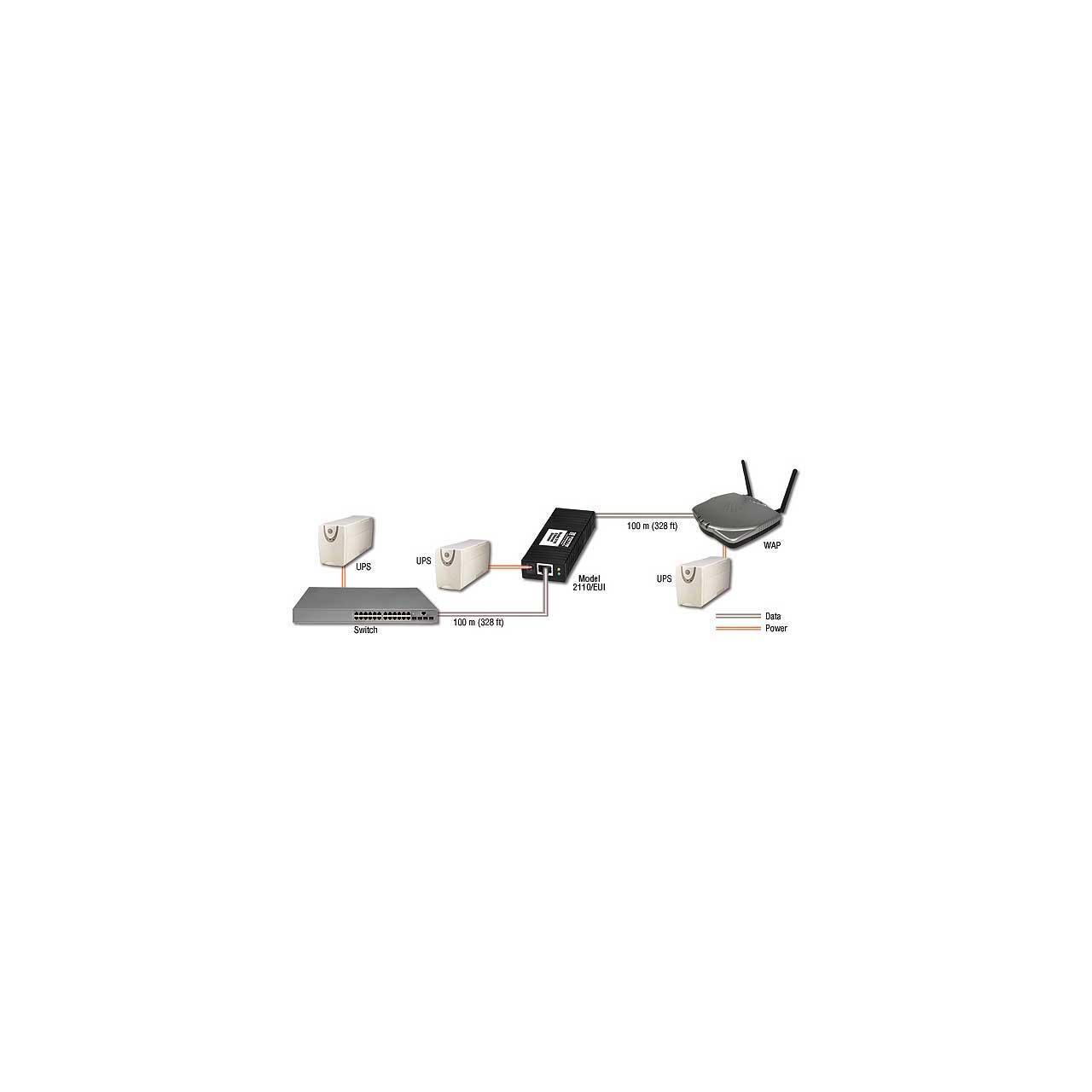

The Patton CopperLink™ Model 2110 doubles Ethernet distance limitations of 328 feet (100 meters). Multiple Model 2110 Ethernet Boosters can be placed in-line to further extend both Ethernet and PoE up to 1,640 ft (500 m), eliminating the need for additional switches, hubs, wireless access points, and expensive fiber installations. The Model 2110 is completely transparent to protocol making them true plug-and-play devices, completely interoperable with any network enabled device. The Model 2110 will not cause latency or degradation on your network connections, ensuring the maximum 100-Mbps full-duplex line rate.

  • Features:

    • Ethernet & PoE Extension
    • Operates over CAT5
    • Plug and Play
    • Transparent LAN Operation
    • No External Power Required
    • Made in the USA

  • Specifications:

    • Temperature Operating: -40 to 167°F (-40 to 75°C), Storage: -40 to 185°F (-40 to 85°C)
    • Ambient Relative Humidity: 5 to 95%, (non-condensing
    • Housing: Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
    • Dimensions (WxDxH): 2.12 x 3.89 x 5.59" (54 x 99 x 142 mm)
    • Unit Weight: 2.5 lbs (1.1 kg)
    • Shipping Weight: 3.0 lbs (1.4 kg)
    • Certifications: FCC, CE, UL 61010-1, UL 61010-2-201 Class 1 Div 2
    • EMI: FCC Class A
    • EMS: IEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, IEC61000-6-2, 6-4
    • Ethernet Connection: Two Ethernet ports 10/100Base-TX; 802.3af; Auto-Negotiating 10/100 ;Supports Flow Control (IEEE803.X) for full duplex operation ; Supports back pressure for half-duplex operation ;Store and forward ;Auto MDI-X ; 802.3af pass through
    • LED Status Indicators: PoE/Power (Green): Glows solid when there is power to the unit ;Ethernet (Green): Flashes when passing traffic
    • Power
    • Rated Voltage: 12 VDC (/EUI) or 57 VDC (/PSE or /P) ;Rated Current: 700 mA
    • Operating Temperature: 32-122°F (0-50°C)
    • Operating Humidity: Up to 90%, non-condensing
    • Dimensions(LxWxH): 3.88 x 1.75 x 0.75in. (9.8 x 4.4x 1.9cm)
    • Weight: 0.13 lbs (0.06 kg)

  • Item Includes:

    • 1x 2110-EUI CopperLink 10/100 Mbps Ethernet Booster - 802.3af Injector 54VDC Source

  • Warranty:

    • 1 Year


2110-PSE-EUI - Required Accessories
