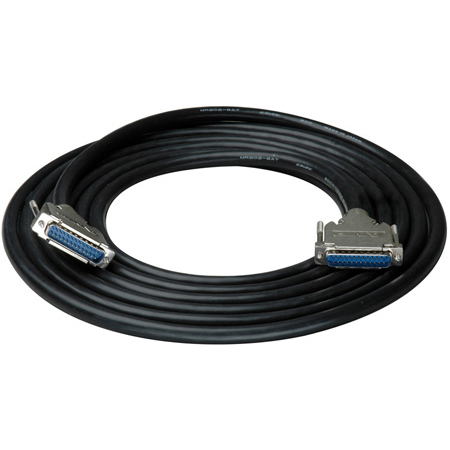

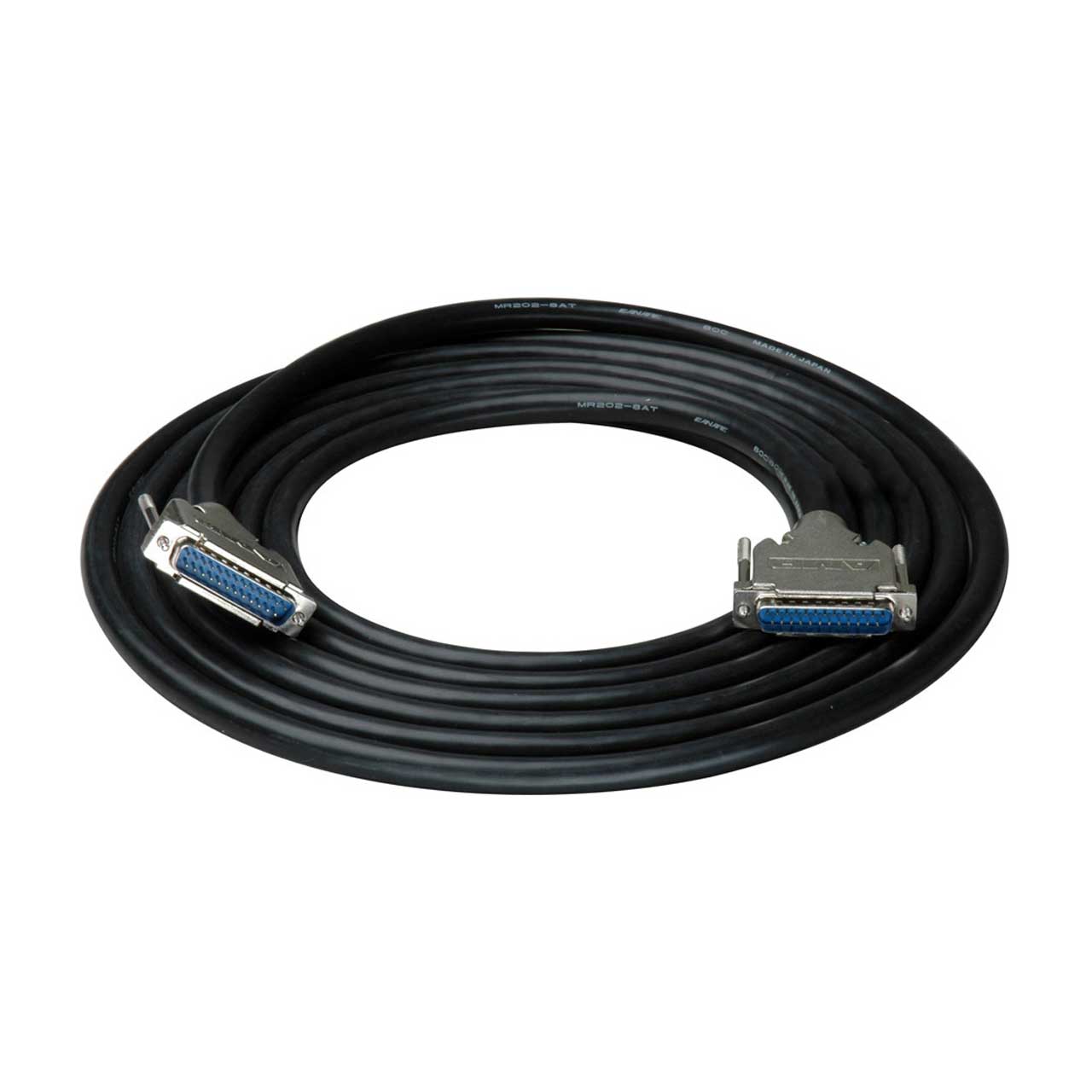

Sescom DB25 DA-88 Audio Cable Mogami Analog 25-Pin D-Sub Male to 25-Pin D-Sub Male - 15 Foot

ITEM #: 25MA-25M-M15 MFG #: 25MA-25M-M15

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$158.49

Our Price:

$142.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


25MA-25M-M15 - Overview

DB25 male to DB25 male with 8 channels analog audio in or out. Cables are crafted with Mogami super flexible 2932 cable. All channels are individually shielded twisted pairs of #26 AWG gauge conductors, with #25 AWG drain. Cables are designed with Industry standard AMP DSub cable hoods for the best RF rejection. Wired Pin to Pin straight thru for analog connections. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.

  • Features:

    • DB25 Male to DB25 Male with 8 Channels Analog Audio In or Out
    • Crafted with Mogami Super Flexible 2932 Cable
    • All Channels are Individually Shielded & Twisted Pairs with #26 AWG Gauge Conductors, and #25 AWG Drain
    • Wired Pin to Pin for Analog Connections
    • Cables are Designed with Industry Standard AMP DSub Cable Hoods for the Best RF Rejection
    • Industry Standard AMP 25pin Metal Hoods for Durability
    • Straight-through Wired Cables
    • Made in the USA

  • Specifications:

    • DC Resistance at 20°C Inner Pair Conductor: 0.13ohm/m(0.040ohm/ft)
    • Capacitance at 1kHz, 20°C (Partial Capacitance Value): 130pF/m(40pf/ft)
    • Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake.
    • Compatible with Panasonic, Radar, Digi, Tascam, and other equipment

  • Warranty:

    • 1 Year
