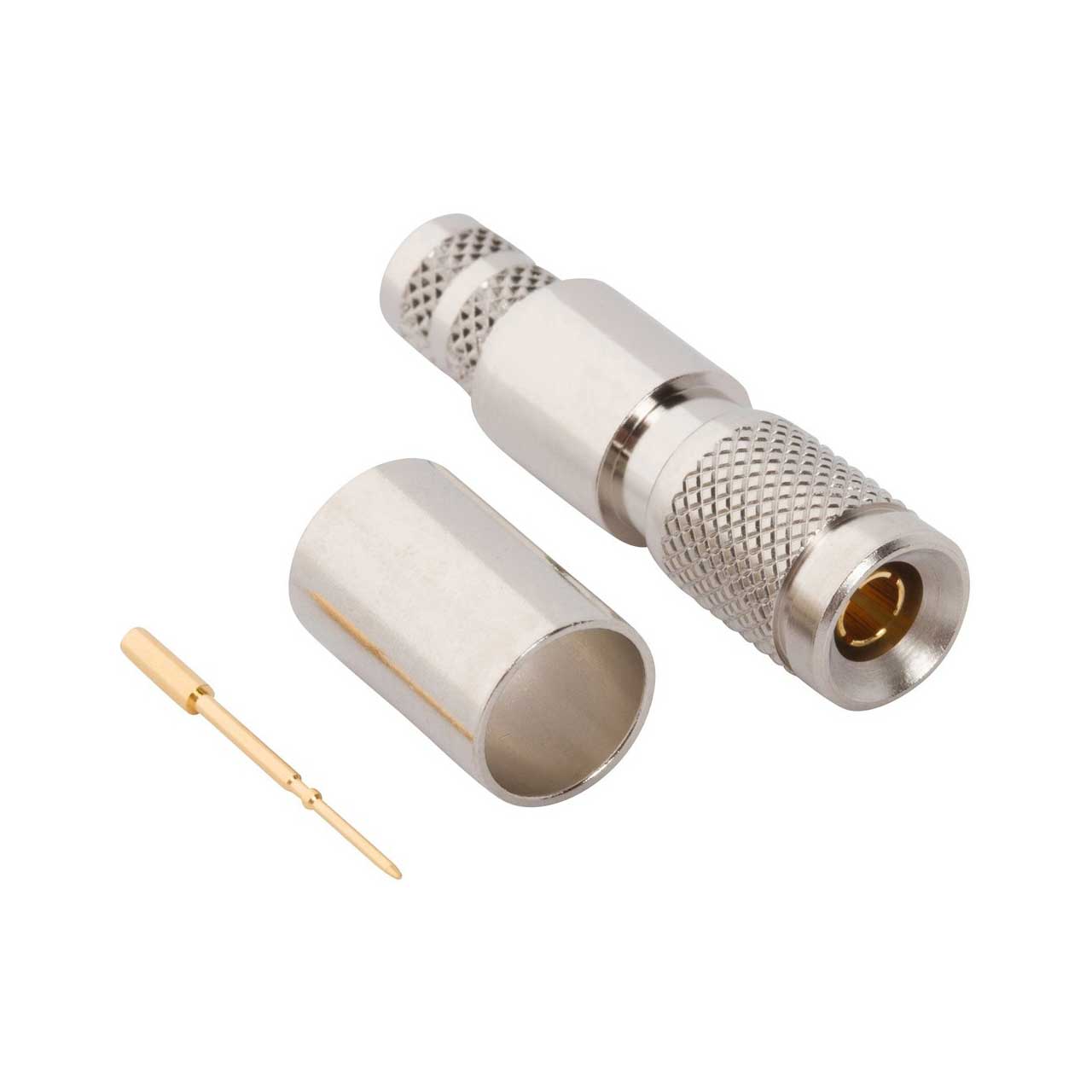

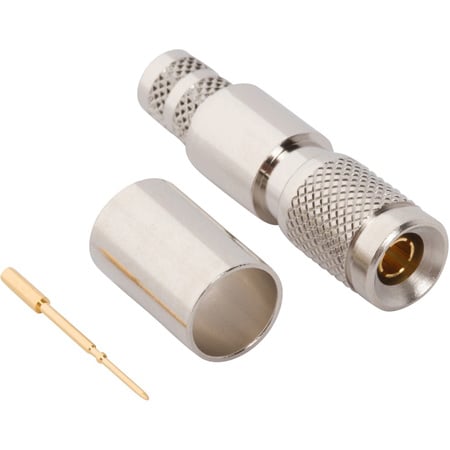

75 Ohm 1.0/2.3 DIN Plug for Belden 1505A Cable

ITEM #: 282135-75 MFG #: 282135-75

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$10.00

Our Price:

$9.49

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

282135-75 - Overview

1.0/2.3 Straight Crimp Plug for 734A, B1505A, 75 Ohm

  • Specifications:

    • Gender: Plug
    • Orientation: Straight
    • Cable Group: 18
    • Insulator Material: PTFE
    • Body Material: Brass
    • Body Finish: Nickel
    • Contact Material: Beryllium Copper
    • Contact Finish: Gold
    • Termination Style: Cable - Crimp
    • Crimp Tool: N
    • Impedance: 75 Ohm
    • Contact Termination: Crimp
    • Coupling Mechanism: Push-Pull
    • Polarity: Standard
    • Max Freq (Ghz): 4.0
    • Ext Dielectric: No
    • Isolated: No
    • Low PIM: No
    • RoHS Compliant: Yes
    • REACH Compliant: Yes
