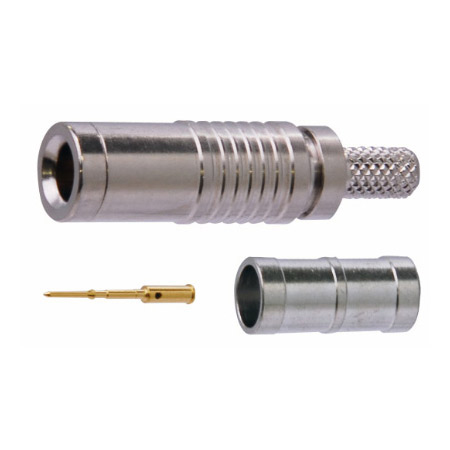

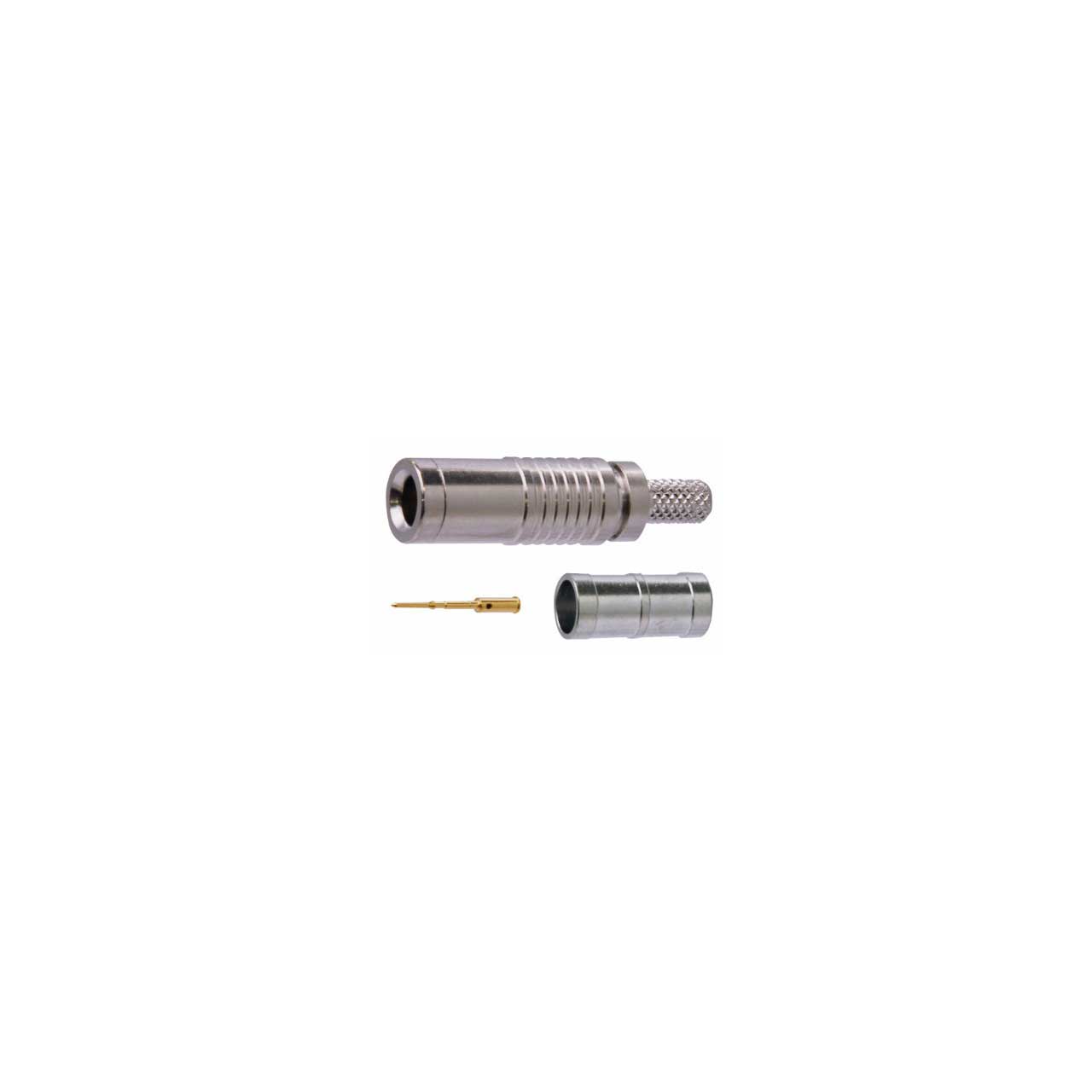

Canare DCP-C25HD DIN 1.0/2.3 Crimp Connector - L-2.5CHD / 1855A

DCP-C25HD - Overview

• Features:

  • IEC 61169-29 and DIN 47 297 compatible
  • Ball bearing locking mechanism. Smooth action and reliable connection (Patent Pending)
  • Canare's original enlongated sleeve design
  • Superior cable pull strength and bending performance
  • Captive Contact Pin
  • True 75 ohm


• Specifications:

  • Applicable Standards: IEC-61169-29m DIN 47 297
  • Nominal Impedance: 75 Ohms Unbalanced
  • Return Loss: 26dB or greater (0-2.0GHz)
  • 20dB or greater (0-3.0GHz)
  • Center Pin: Gold Pating
  • Cable Connecting Force: 150N or More
  • Operating Temperature: -40 to +85 Deg C
  • Weight: Approx. 7.0g each
  • Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
