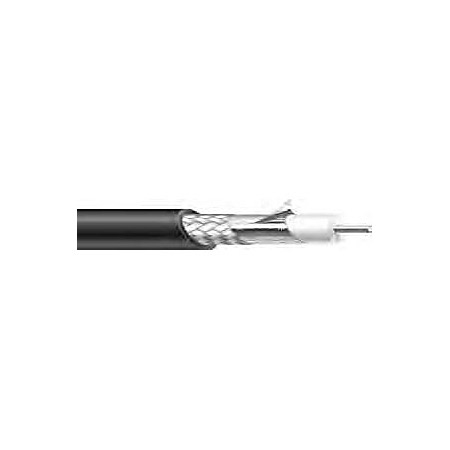

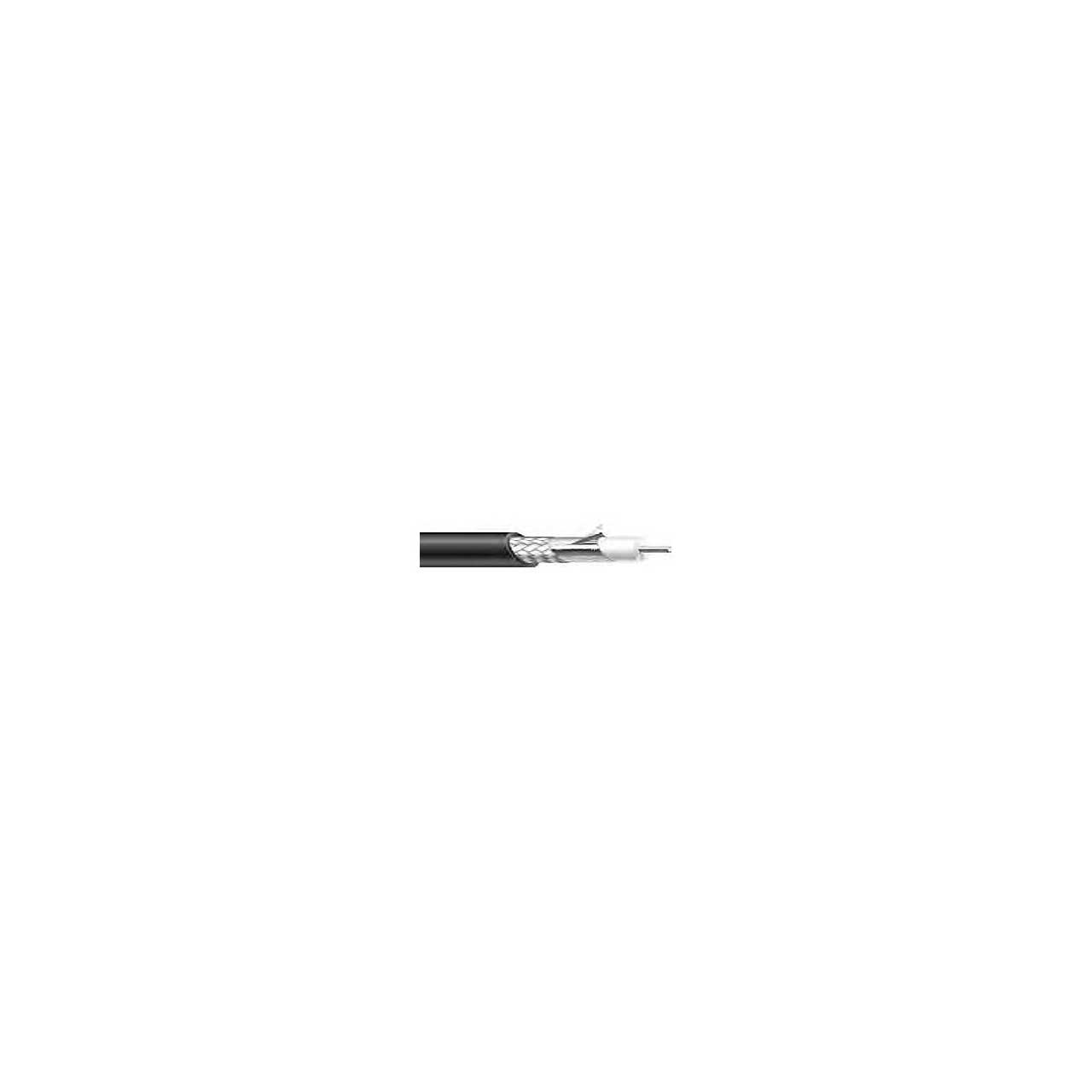

Canare L-2.5CHD 75 Ohm Mini-RG59 12G-SDI Digital Video Coaxial Cable - 300 Meter / 984 Foot Roll - Black

L-2.5CHD-984 - Overview

75 Ohm Digital Video Coaxial Cable - 984 Feet - Black

• Features:

  • HD-Serial Digital Video
  • Satellite Head Ends
  • HDTV Upgrades
  • Broadband Facilities
  • SMPTE 259M, 292M,424M
  • Sweep test up to 12GHz
  • Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
  • Right angle connector specifically designed for L-2.5CHD
  • Highly-foamed PE insulation allows further improvement in the attenuation characteristics
  • Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength
  • Tinned copper braid with aluminum foil brings excellent shielding
  • L-2.5CHD is ideal for internal rack wiring


• Specifications:

  • Nom. O.D.: 0.17"
  • Wt Std. Lng.: 5.73 lbs
  • Inner Cond Conductor Comp. (AWG): 23
  • Inner Cond O.D.: 0.02"
  • Insulation O.D.: 0.10"
  • Outer Conductors Shield Coverage & Comp: 0.12TA/7/16 (95% or more)
  • Inner Cond. Resistance Ohm/Mile: 39.95
  • Outer Cond. Resistance Ohm/Mile: 10.5
  • Static Capacity (pF/m): 53
  • Characteristic Impendence Ohm: 75
  • Attenuation dB/100m (328ft): 30.2
  • Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
