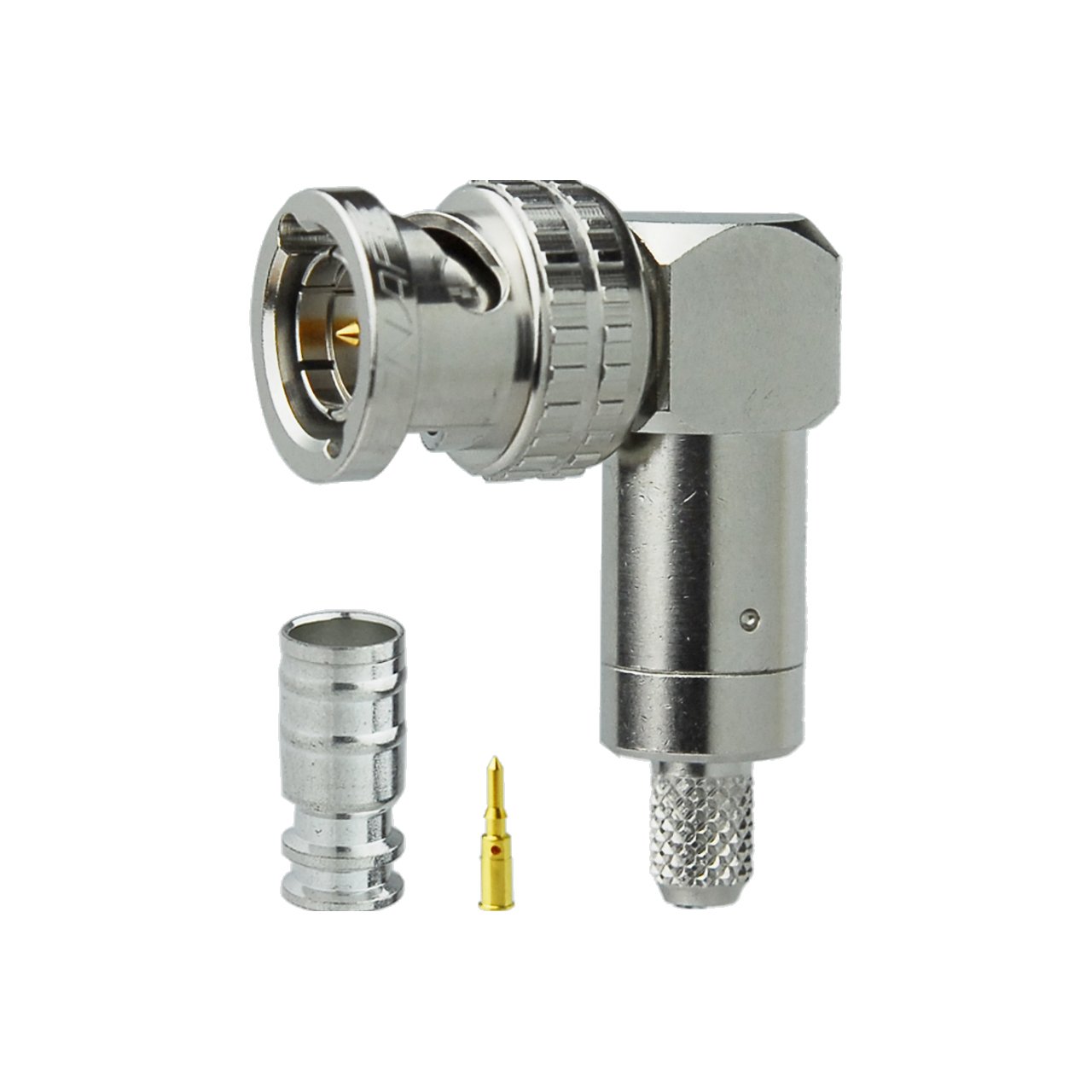

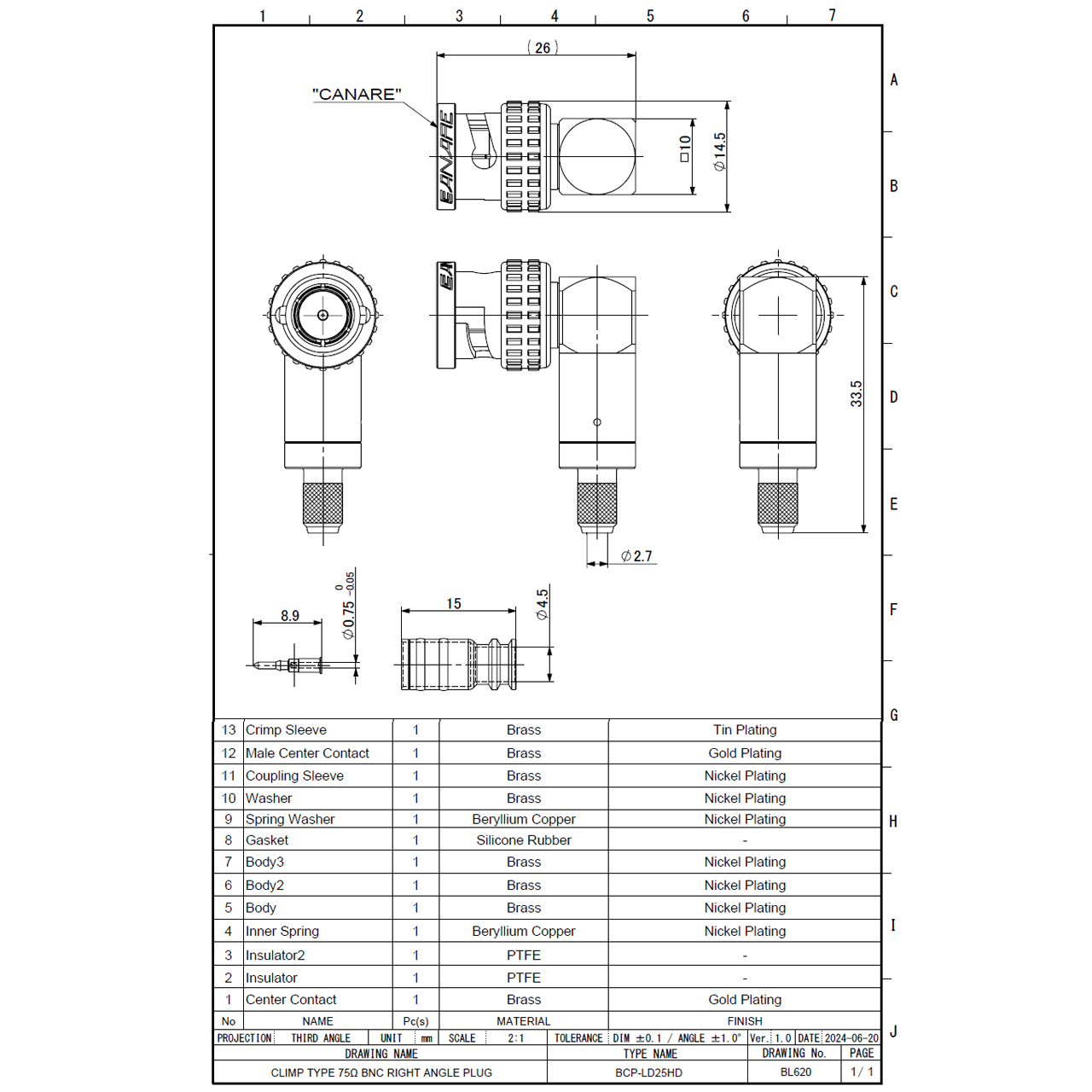

Canare BCP-LD25HD 12G 75 Ohm Right Angle BNC Plug for L-2.5CHD - 20/Pack

BCP-LD25HD - Overview

• Features:

  • Specifically engineered for L-2.5CHD
  • Fit for the TCD-35CA die set and the TC1 crimp tool
  • Gold plated "snap-lock" center pin and beryllium copper inner spring
  • Right angle configuration allows for space-saving installations in tight spaces and complex setups


• Specifications:

  • Applicable Standard: JIS* C 5412 (*Japanese Industrial Standard) / IEC 169 - 8
  • Nominal Impedance: 75Ω unbalanced
  • Applicable Cable: L-2.5CHD
  • Crimp Tool: Hand crimp tool: TC-1 / Die: TCD-35CA
  • Operating Temperature: -40°F - 248°F (-40°C - 120°C)
  • Operating Humidity: ~90%

    Insulation Resistance
  • 1000Ω or more
  • Measurement shall be made between the contacts, after an electrification time of 1 min with a d.c. voltage of 500V.

    Voltage Proof
  • Without any damage such as electric breakdown etc.
  • 1500 V a.c. shall be applied for 1 min between the contacts. Trip current :0.5mA.

    Contact Resistance
  • Between external contacts: 3 mΩ or less
  • Between center contacts: 6 mΩ or less

    Return Loss
  • 26.4 dB or more (~3 GHz)
  • 20 dB or more (~6 GHz)
  • 10 dB or more (~12 GHz)

    Cable Connecting Force
  • 200 N or more for L-2.5CHD
  • An applied cable shall be attached to the plug, after which tensile strength shall be applied. Mechanical operation (repeated)

    Mechanical Operation (repeated)
  • Contact resistance: 10 m Ω or less
  • The endurance test consists of repeated engagement and separation of connector pairs.
  • The measurement shall be made after 5000 cycles.
  • Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m


• Item Includes:

  • 1x Canare BCP-LD25HD 12G 75 Ohm Right Angle BNC Plug for L-2.5CHD - 20/Pack
