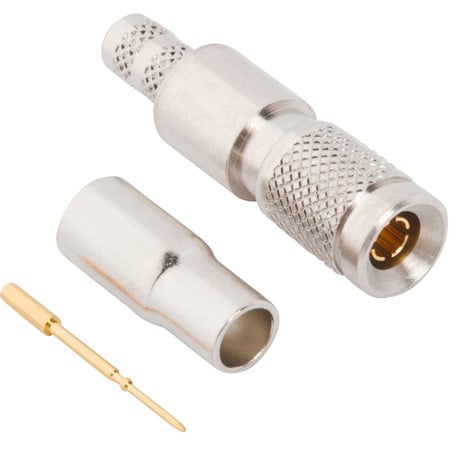

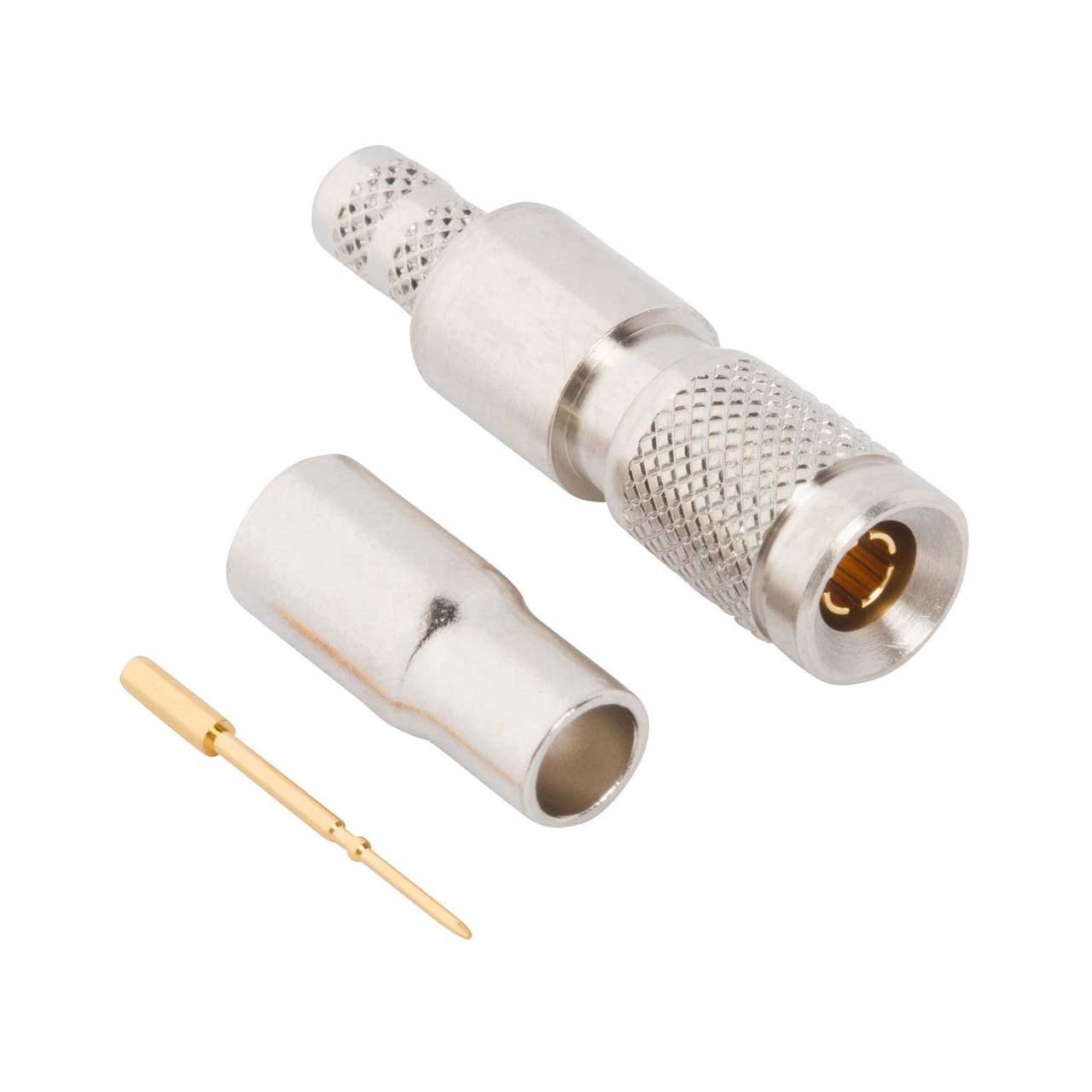

Amphenol 282138-75 RF Connector 1.0/2.3 Din Straight Crimp Plug for RG-180/RG-195 & Belden 1855A/8218 75 Ohm Cable

ITEM #: AMPH-282138-75 MFG #: 282138-75

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$14.00

Our Price:

$12.35

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

282138-75 - Overview

The Amphenol 282138-75 is an RF Din Connector, 1.0/2.3 Straight Crimp Plug for RG-180, RG-195, Belden 1855A & 8218 as well as Belden 1865A, RG-122, RG-180A, RG-180B, 75 Ohm

  • Specifications:

    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Beryllium Copper
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Cable Type: Belden 1855A, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
    • Coupling Mechanism: Push-Pull
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 7.022
    • Package Type: BAG
