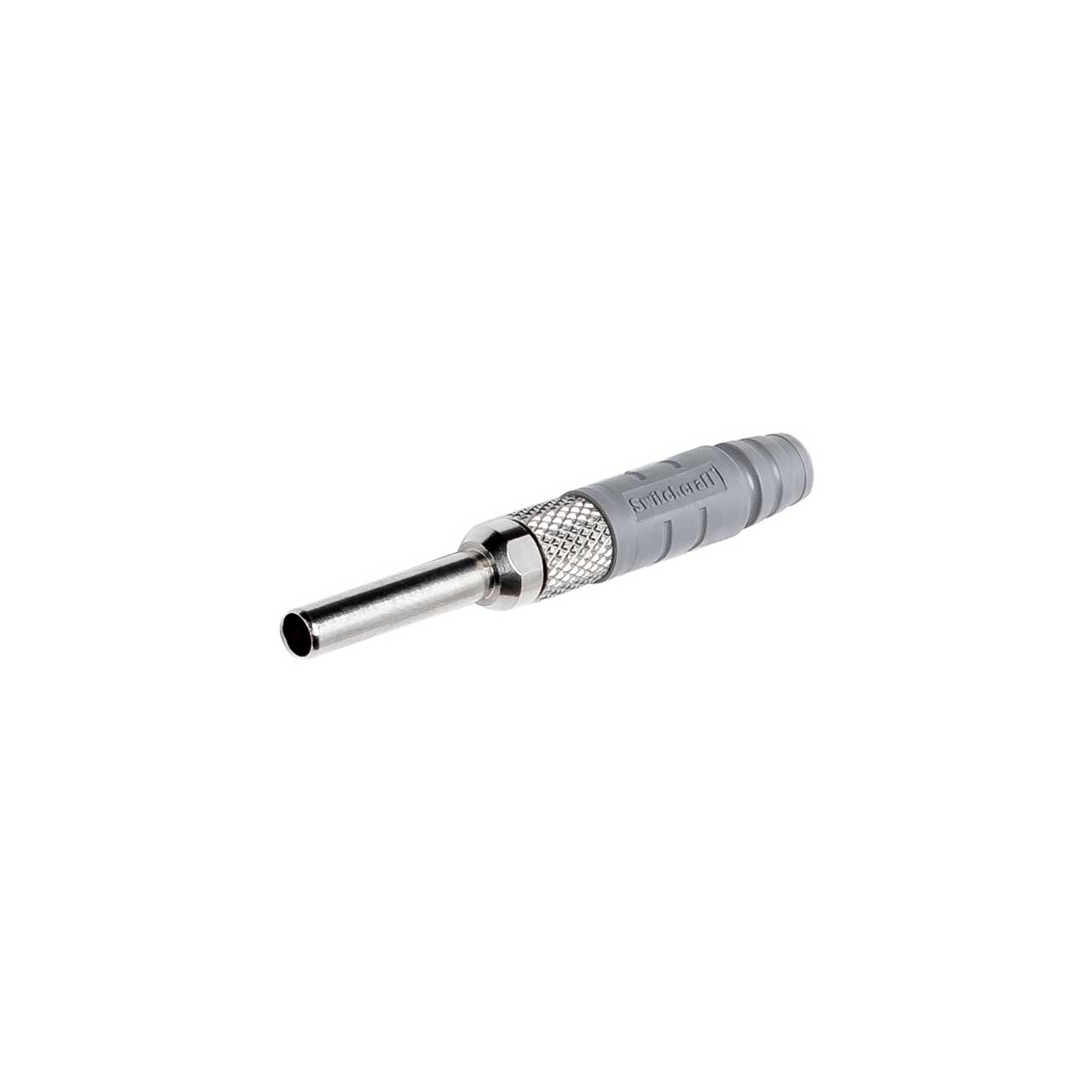

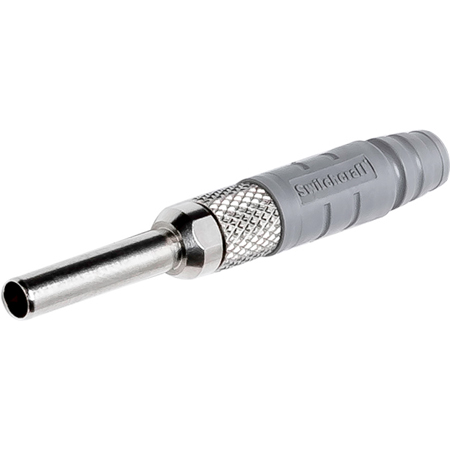

Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Crimp Patch Plug for Belden 4505R Cable

ITEM #: 2P7032 MFG #: 2P7032

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Switchcraft
Free Shipping with $49 Minimum Order

List Price:

$13.16

Our Price:

$11.96

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

2P7032 - Overview

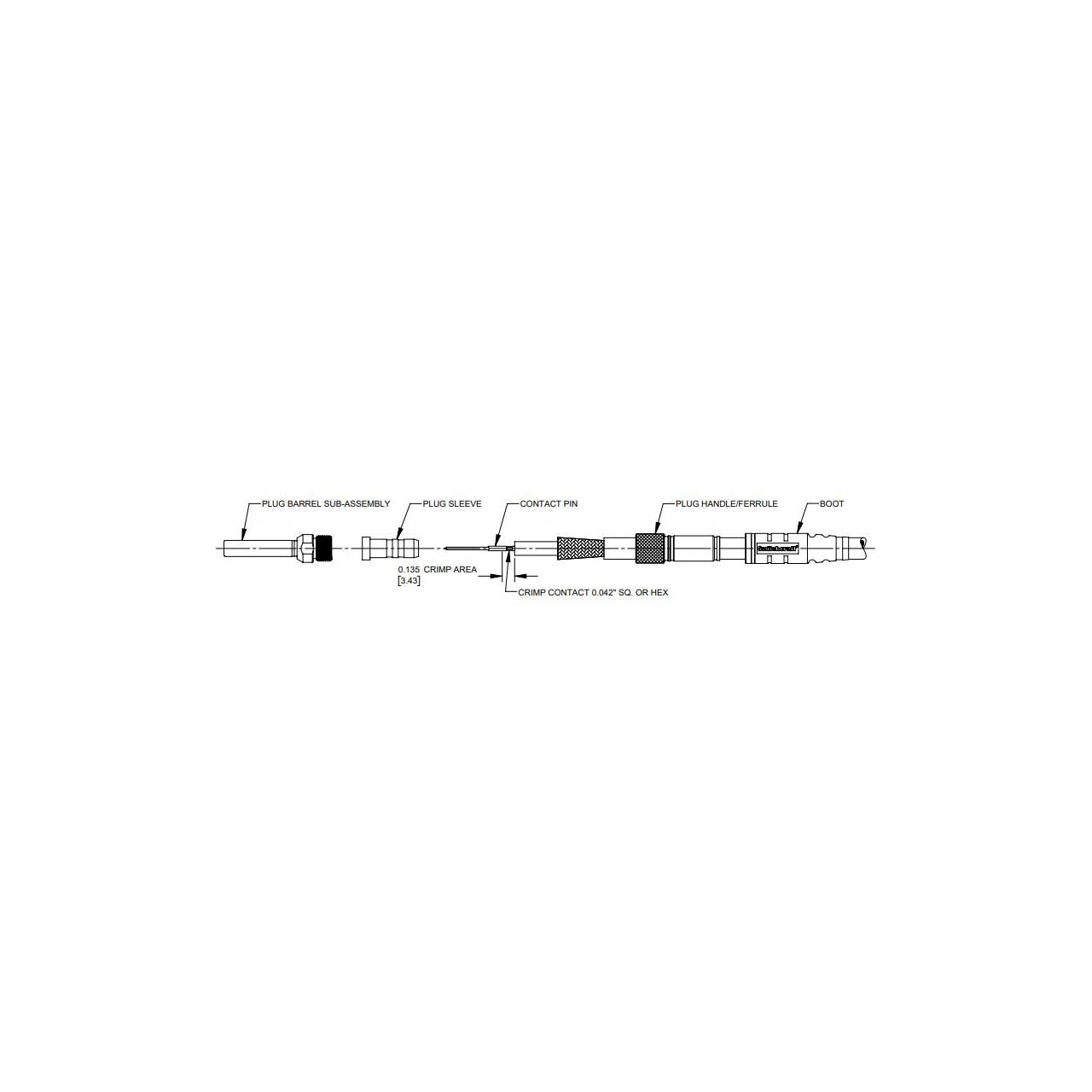

The Switchcraft 2P7032 is a Single UHD 75 Ohm Micro Video Patch Crimp Plug for Belden 4505R Cable that meets SMPTE 2082-1 and is RoHS compliant. It ships unassembled.

  • Specifications:

    • Electrical:
    • Meets SMPTE 2082-1
    • Characteristic Impedance: 75Ω
    • Contact Resistance: Less than 50 Milliohms
    • Wiring: Center contact to center contact - ground sleeve to ground sleeve

    • Mechanical:
    • Vibration: Per mil-STD 202, Method 201
    • Life Cycle: 5,000 min

      Material:
    • Plug Barrel: Copper Alloy/Nickel Plated
    • Sleeve and Ferrule: Copper Alloy/Nickel Plated
    • Contact Pin: Copper Alloy/Gold Plated
    • Insulators: Teflon
    • Boot: Thermoplastic Elastomer, UL94-VO, Gray

      This product is RoHS Compliant
