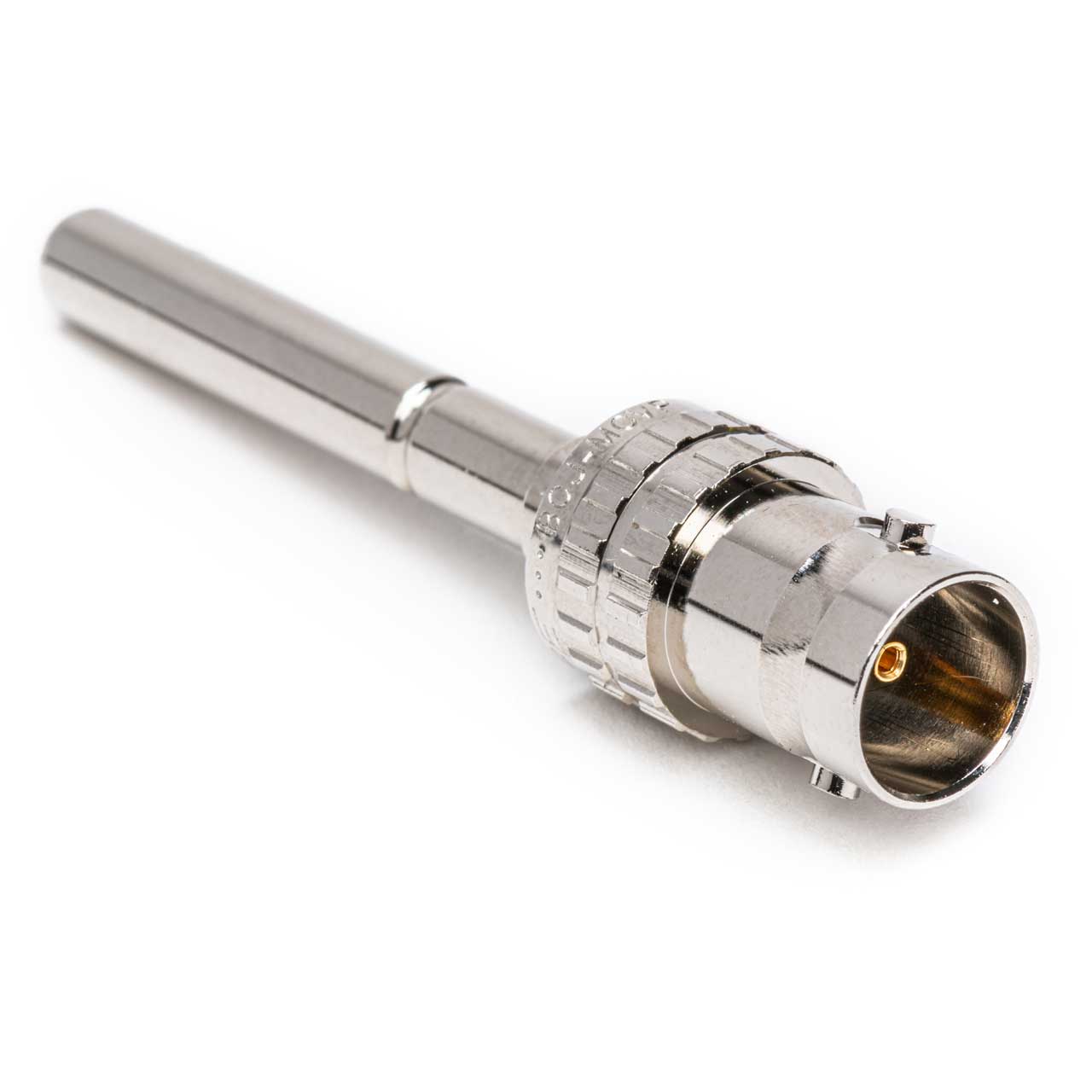

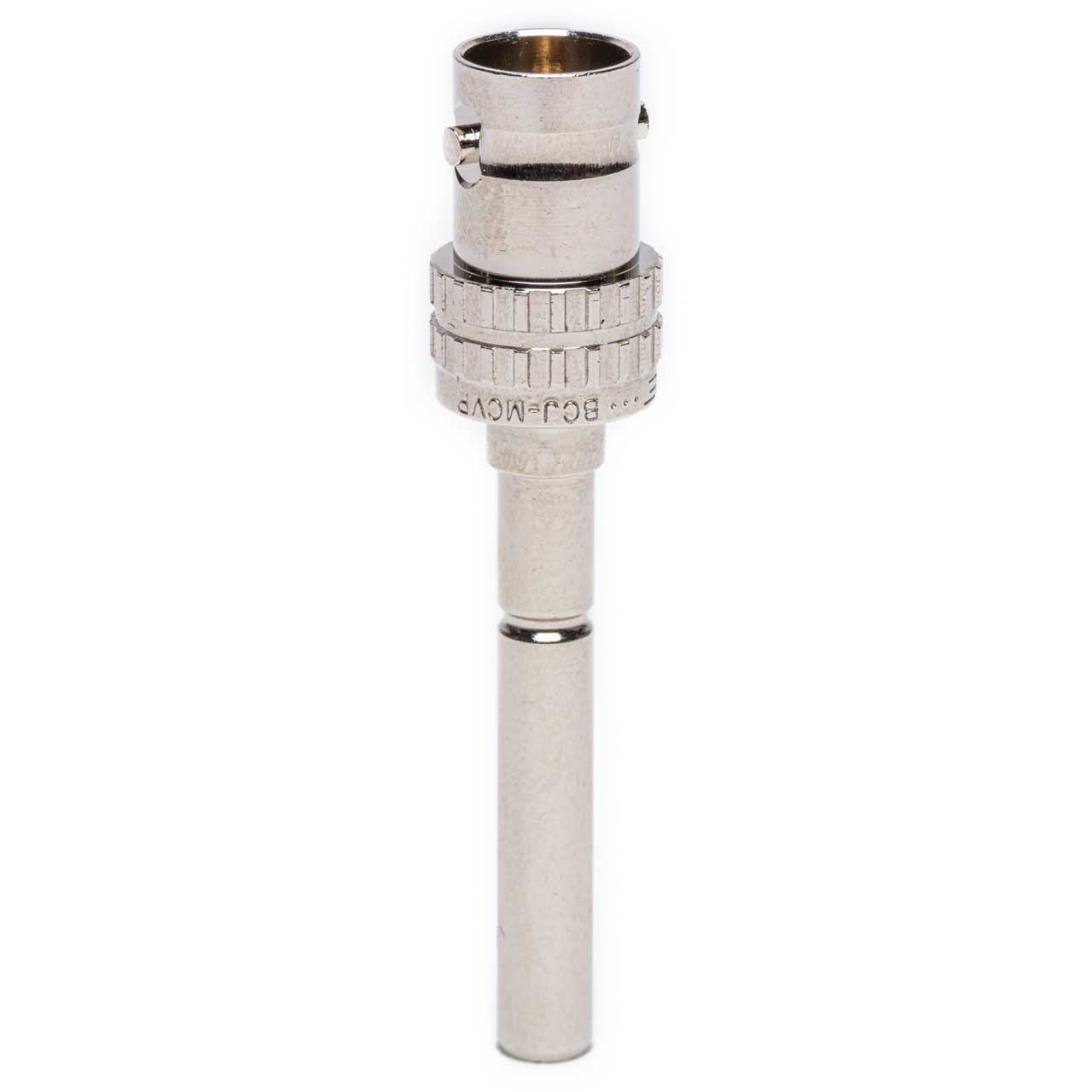

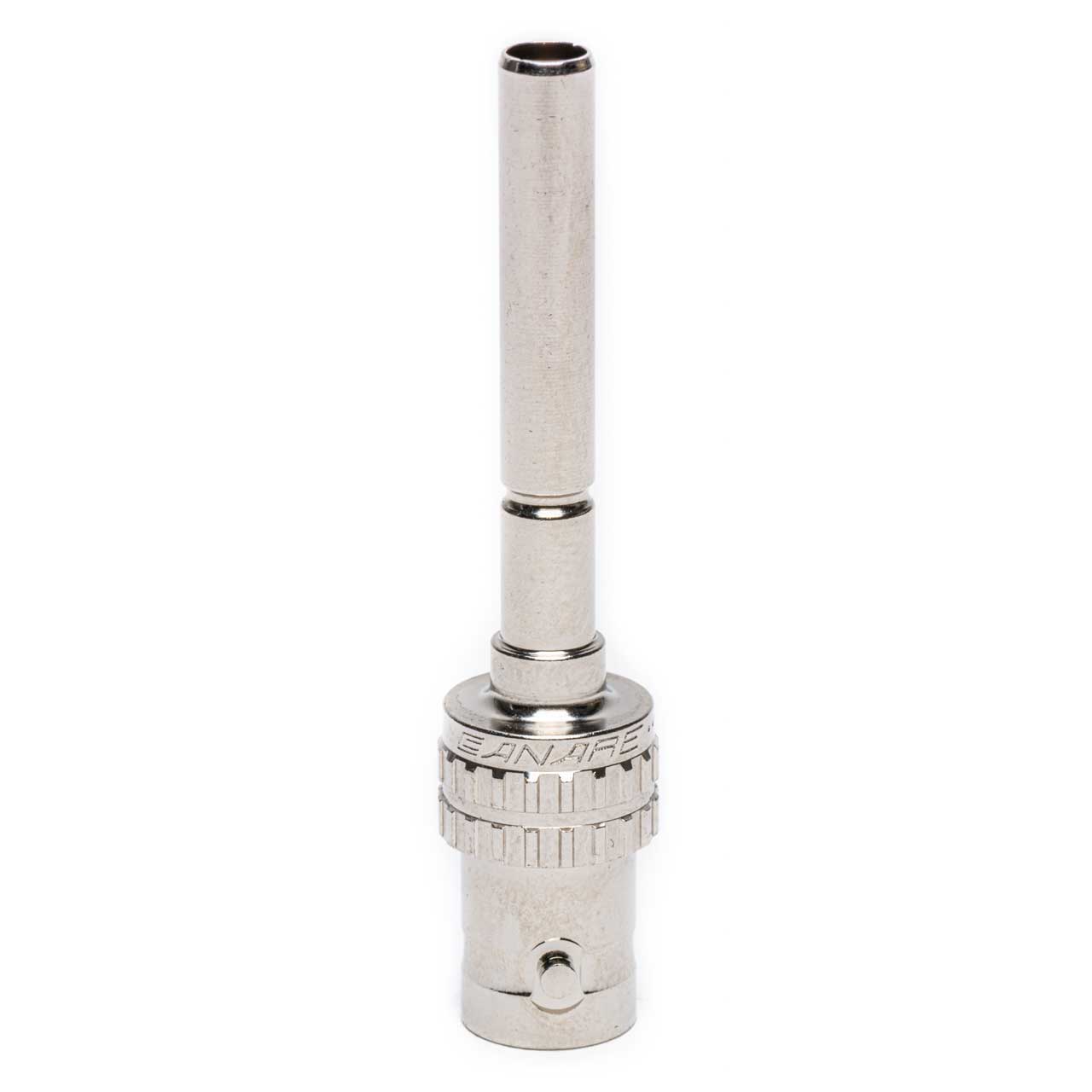

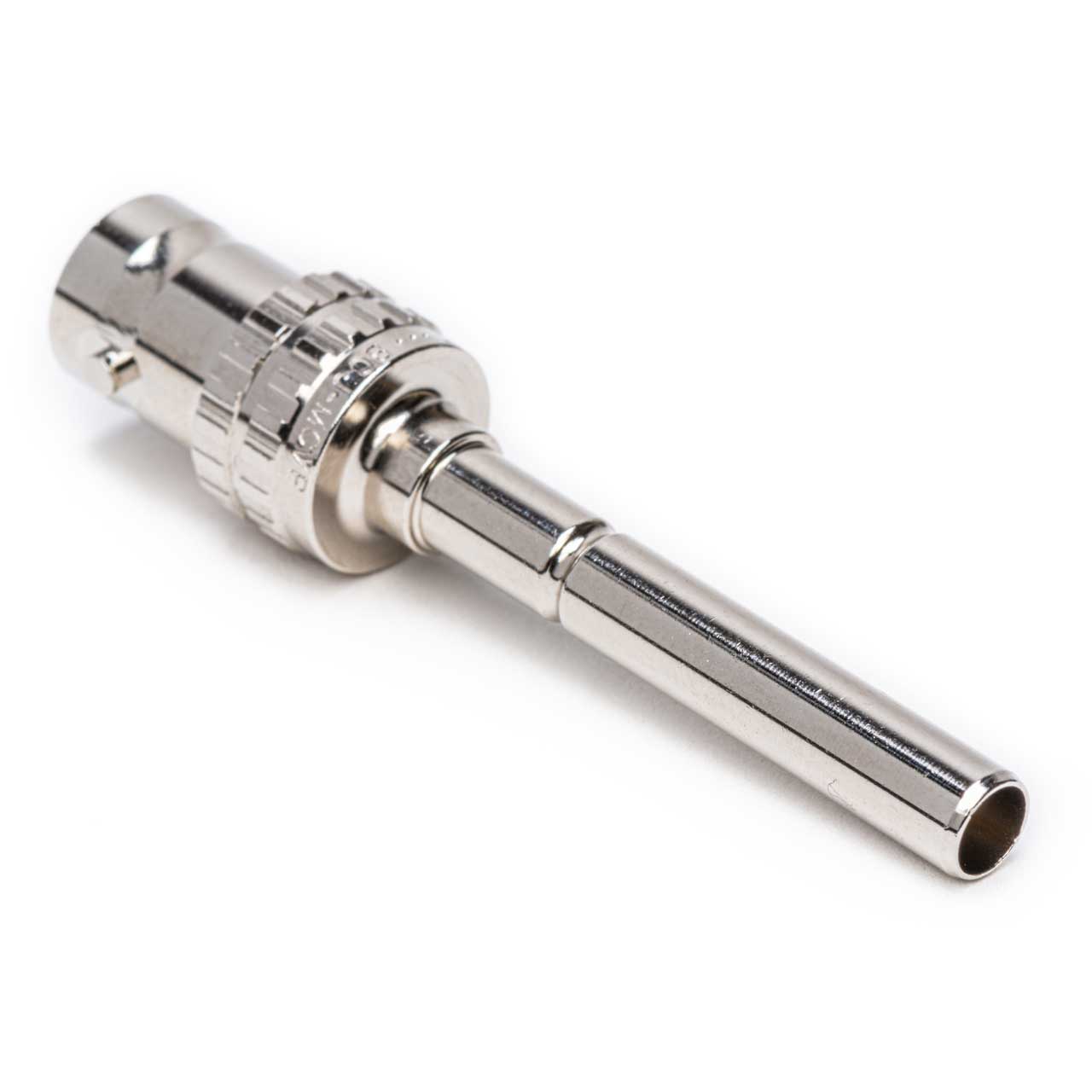

Canare BCJ-MCVP 75 Ohm Unbalanced BNC (Female) to Micro-Video Patch Plug Adapter suited for 12G-SDI

BCJ-MCVP - Overview

• Features:

  • Return Loss: 26dB or greater (~3Ghz), 15dB or great (~6GHz), 10dB or great (~12GHz)
  • Suited for 12G-SDI transmission
  • Applicable stand BNC: IEC 61
  • 32MCK-ST - 12-SDI Video Patchpay

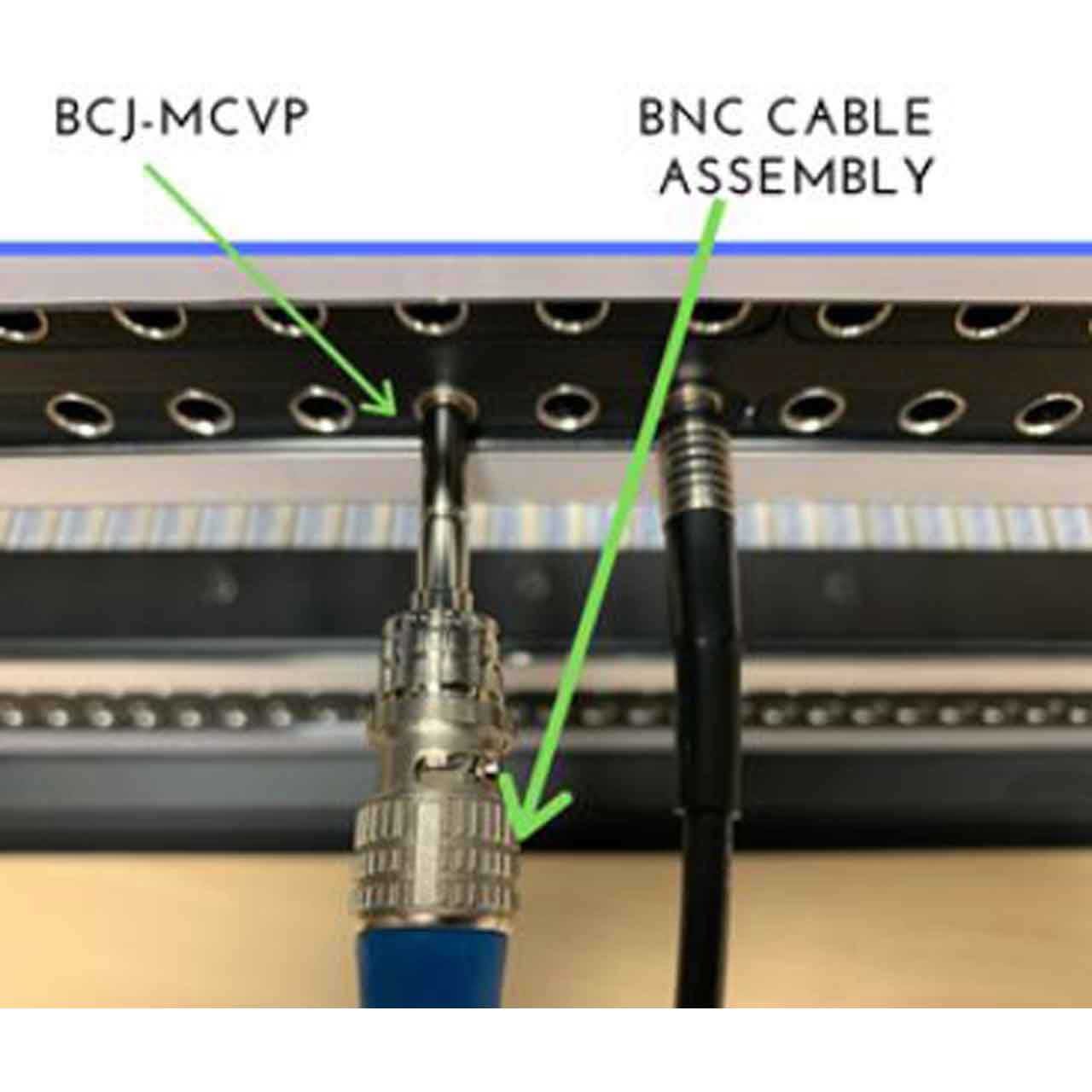

  • 48MC/S - Micro Video Patchbay.


• Specifications:

  • Operating Temperature: -40°C - +85°C
  • Operating Humidity: 90%
  • Return Loss: 26dB or greater (~3Ghz), 15dB or great (~6GHz), 10dB or great (~12GHz)
  • Port: BNC Port,IEC 61169-8,JIS C 5412
  • Insulation Resistance: 1000M Ω or more
  • Contact resistance: Between center contacts - 10mΩor less / Between external contacts - 5m Ω or less
  • Female Contact Retention Force: 1.5~3.9N
  • Weight: Approx 10g


• Item Includes:

  • 1x Canare BCJ-MCVP 75 Ohm Unbalanced BNC (Female) to Micro-Video Patch Plug Adaper suited for 12G-SDI
