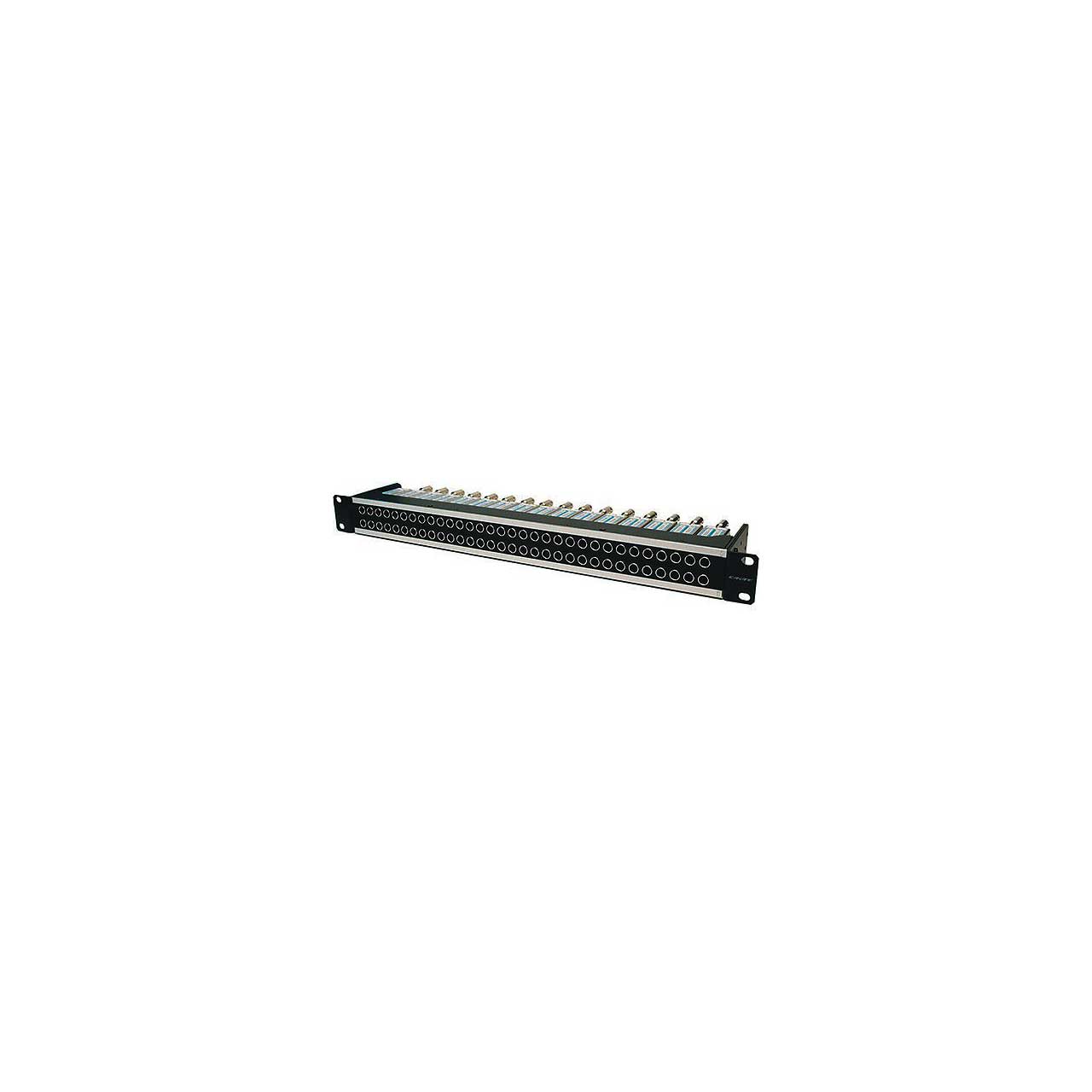

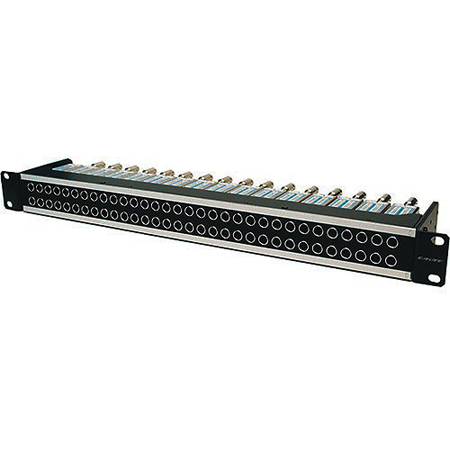

Canare 32MD-ST-15U-JN 32-Point 3G-SDI Mid-Sized (mini-WECO) Normalled Patchbay with 32 MDVJ-STW Loaded

ITEM #: 32MD-ST-15U-JN MFG #: 32MD-ST-15U-JN

Primary Image
Canare
Free Shipping with $49 Minimum Order

List Price:

$1,381.60

Our Price:

$1,133.88

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

32MD-ST-15U-JN - Overview

The Canare 32MD-ST-15U-JN is a 75Ω Mid Size Video Patchbay with 32 3G ready MDVJ-W-ST-SC Normal Through Video Jacks Loaded.

Applications:
Studio
OB Van
Broadband Telecom

  • Features:

    • 32 Channel Across
    • Serial Digital Video (3G-SDI,HD-SDI,SD-SDI)
    • DC to 3.0GHz greater than 10dB Return Loss
    • Canare Original "Rotary" Switch
    • Beryllium Copper, Gold Plated Center Contacts
    • Light Weight Alloy Body
    • Easy Maintenance with standard and Canare "Slim BNC"
    • Easy Front Mount Assembly


  • Specifications:

    • Model Number: 32MD-ST-15U-JN

      Return Loss:
    • 26dB or greater (~750 MHz)
    • 20dB or greater (~2.4 GHz)
    • 10dB or greater (~3.0 GHz)

    • Isolation:
    • 35dB or greater (~1.5 GHz)
    • 20dB or greater (~2.0 GH
