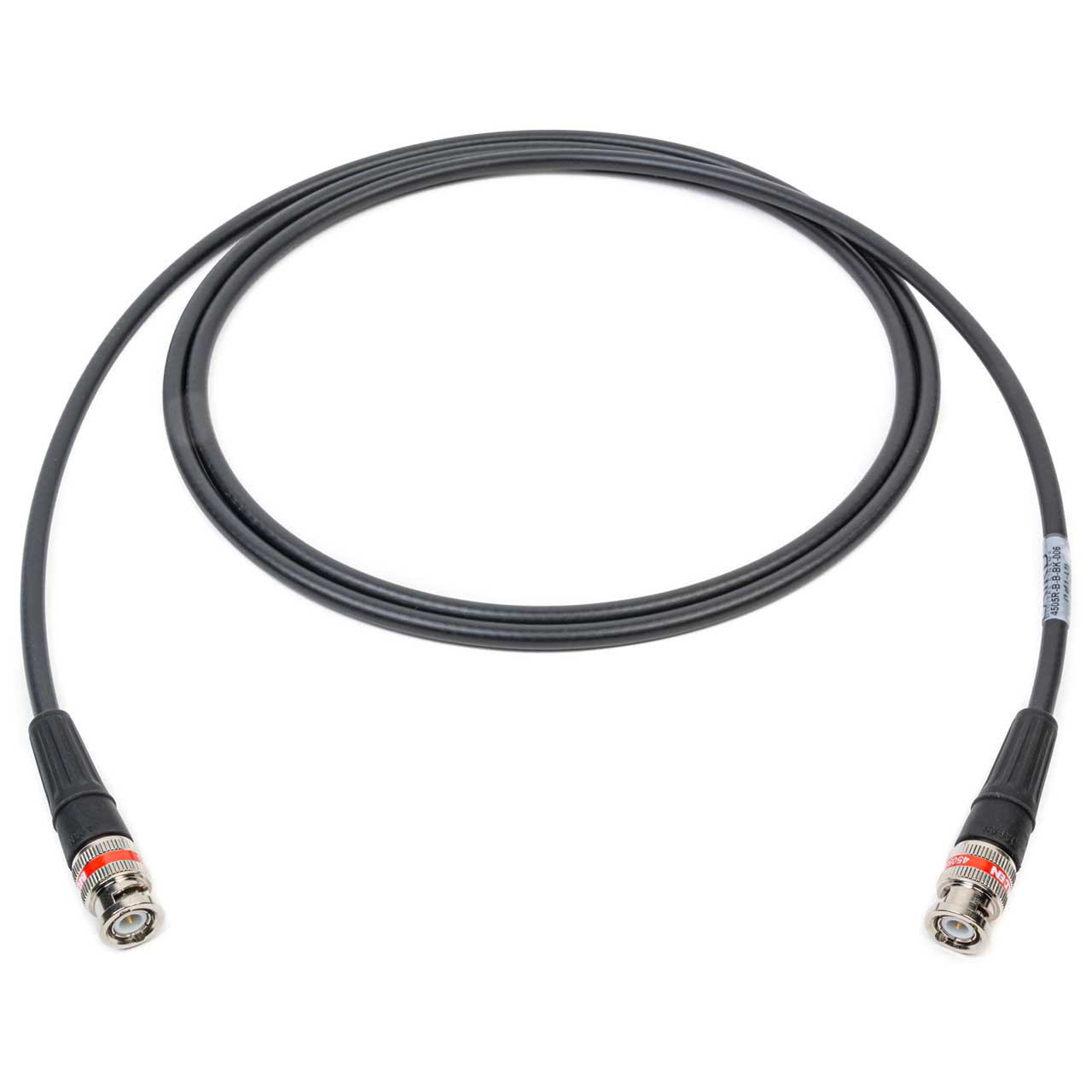

Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 433 feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4505R 4K Ultra-High-Definition RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4505 Series is the 12G-SDI equivalent of Belden's famous 1505 cable. It features a silver plated copper center conductor and a cable diameter of less than 1/4" making it the ideal choice for low profile cable runs. Custom lengths are always available.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 150 Feet for 12G-SDI even though Belden may show this distance as 208 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
