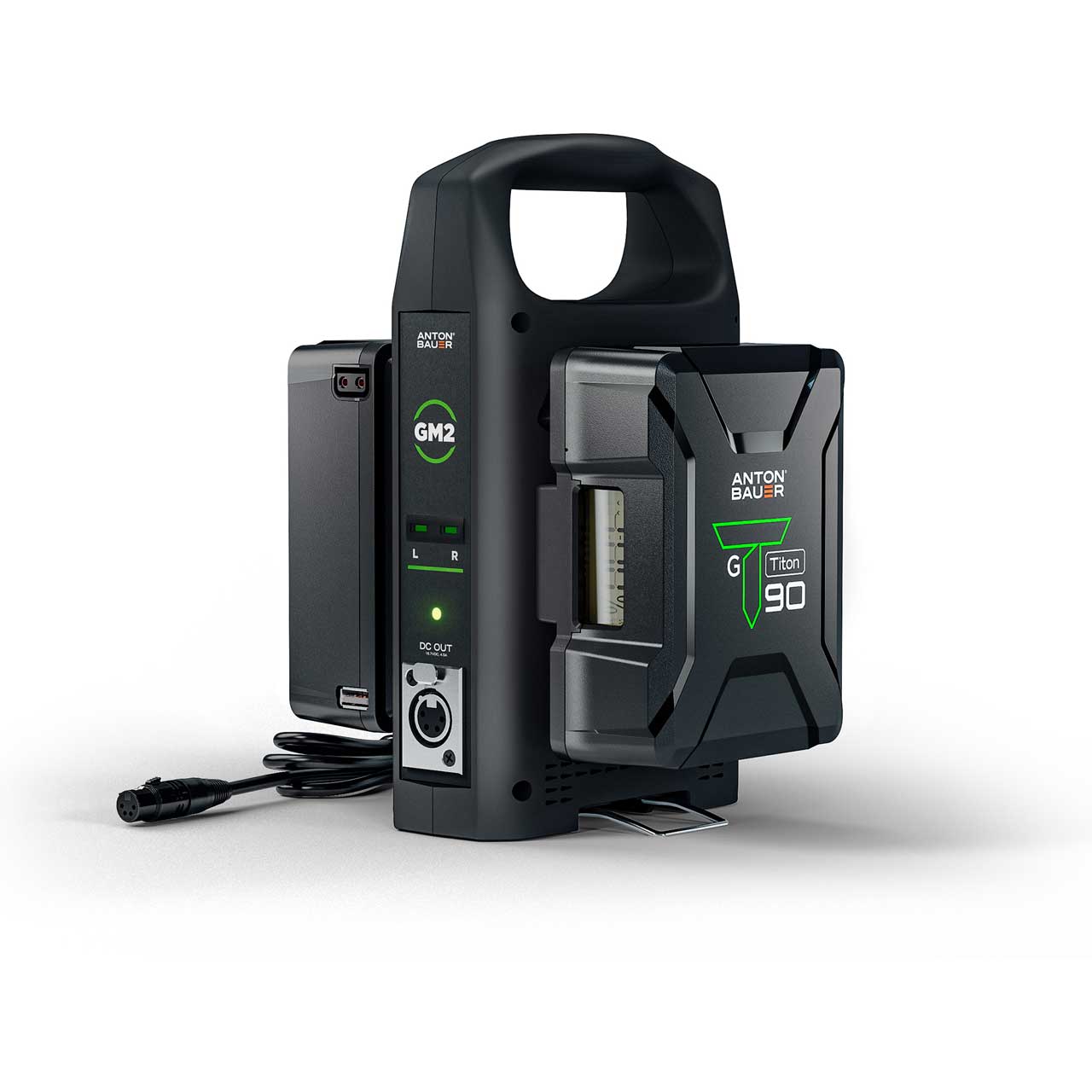

Anton Bauer 8275-0151 Titon 90 Gold Mount - Battery and Charger Kit

ITEM #: AB-8275-0151 MFG #: 8275-0151

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$999.00

Our Price:

$899.10

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


8275-0151 - Overview

Titon Gold Mount SL Battery
Run monitors, cameras, lights and more available in 90Wh or 150Wh capacity with V-Mount or Gold Mount options, Titon SL powers monitors, and more in a slimline form for greater agility. Titon SL 90 can run a Sony FX9 for over 2.5 hours or a Blackmagic Pocket 6K for over three hours - more than six times the power of standard LP batteries - in one lightweight, slimline battery just 1.5" thin and weighing only 1.35 lbs. When more power is required Titon SL 150 boosts runtimes in half the size and weight of a standard 150Wh battery.

Advanced onboard LCD fuel gauge.
Confirm remaining runtime to the minute at a glance. Use the onboard LCD or your camera viewfinder to see instantly - down to the minute - exactly how much runtime remains. Anton/Bauer's smart technology calculates everything being powered - even devices powered by the High-Speed USB and P-Tap - leaving you free to focus on the action in front of your camera

Anton/Bauer GM2 Dual Gold-Mount Battery Charger
Intelligent charging with power to spare. Charge two Gold-Mount batteries simultaneously while powering your camera accessories with the lightweight and portable Anton/Bauer GM2 battery charger. Lithium-ion batteries, like the Anton/Bauer GO 90 (98Wh 10A) charge in approximately 3 hours. The XLR4 output converts AC to DC power when charging or can be used to deliver battery power to devices that only have an XLR input.

Lightweight, compact dual battery charger.
The portable, packable charging solution A power-up wherever you need it. With two Gold-Mount battery mounts and an XLR4 DC output the Anton/Bauer GM2 charger is the ideal solution for roaming imagemakers. Simply connect to AC power and pop the integrated support stand to create a quick-to-set-up plug and play charging station for Gold-mount batteries, and a 15VDC 4A convertor for XLR power input devices. The slim profile is designed to stack and pack, perfect for transportation when space matters.

  • Specifications:

    • Battery
    • Mount: Gold Mount
    • LCD Screen: Shows Runtime to the Minute (w/load)
    • Power Ports: P-Tap & Smart USB
    • Nominal Voltage: 10V-16.8V or 14.4V Nominal Voltage
    • Capacity: 143Wh
    • Current: 10A Constant
    • Weight: 1.85Lbs (.8kg)
    • Extreme Temperatures: -4° to 140°F / -20° to 60°C
    • Dimensions (WxHxD): 3.9 X 5.2 X 2.3" ( 9.9 X 13.1 X 5.8cm)
    • Durable Design: ABS Polycarbonate Blend Case

      Charger
    • Mount: Gold Mount
    • Battery Bays: 2
    • Output Connector: 4-Pin XLR Female
    • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 1.5 A
    • Output Voltage (via AC power): 16.7 VDC at 4.5 A (4-Pin XLR Female)
    • Output Voltage (via battery / batteries): 15 VDC at 4 A (4-Pin XLR Female)
    • Multi-Bay Charging Modes: Simultaneous
    • Max. Wattage: 75W
    • Operating Temp: 14° to 95°F (-10° to 35°C)
    • Indicator: LED
    • Dimensions (HxWxD): 9.25 x 2.25 x 5.5" (23.5 x 5.7 x 14cm)
    • Weight: 2.2Lbs (1kg)

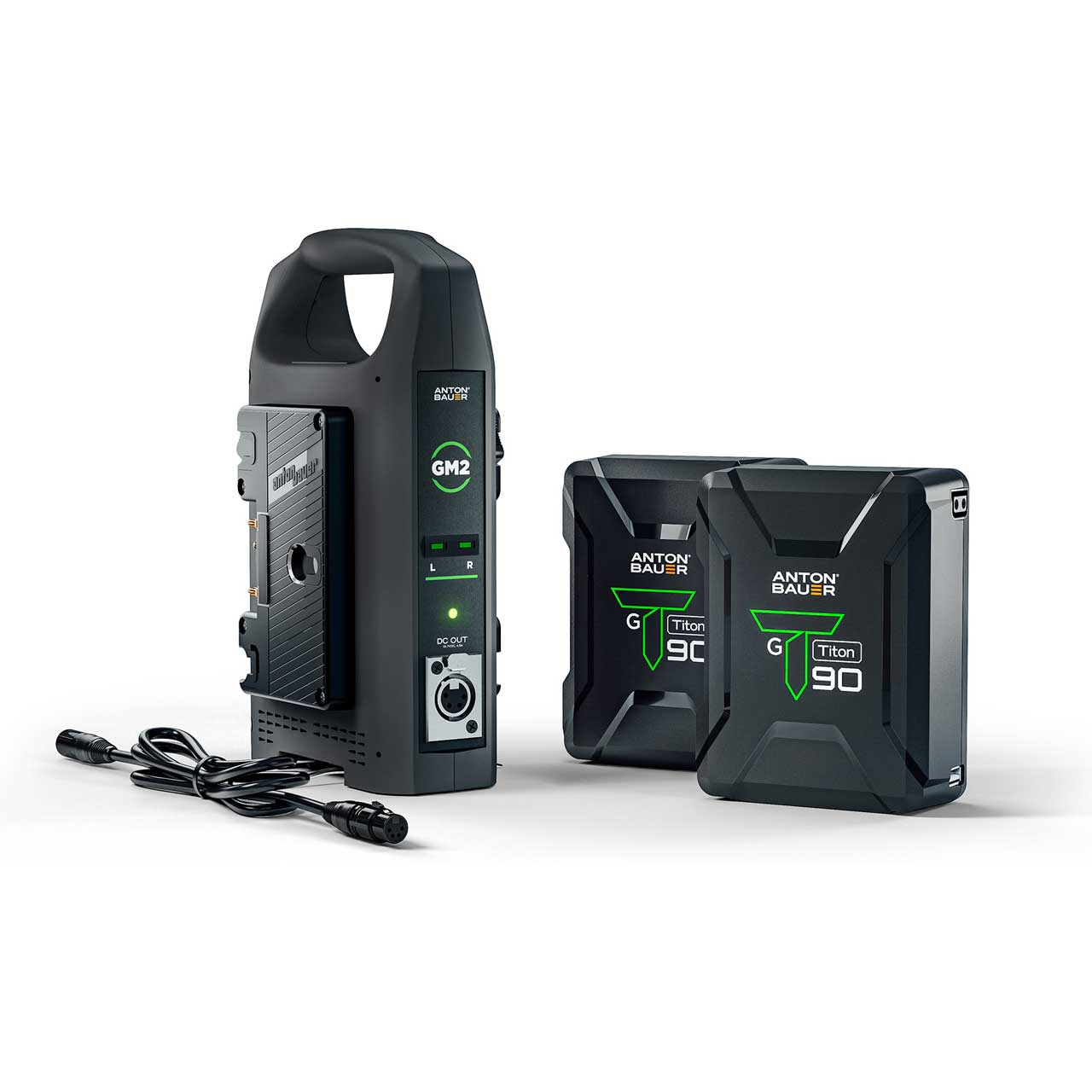

  • Item Includes:

    • 2x Titon 90 Gold Mount Batteries - 8675-0131
    • 1x GM2 dual Gold Mount charger - 8475-0141

  • Warranty:

    • 1 Year Warranty

  • GTIN:

    5060520688664
