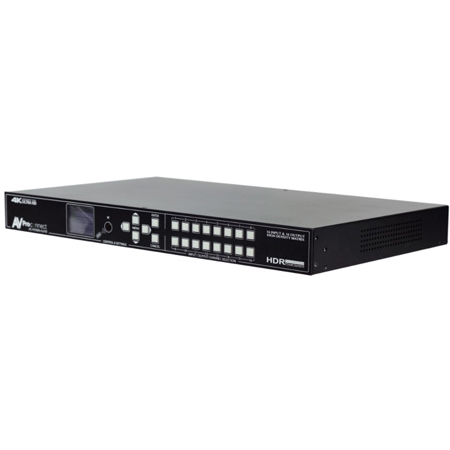

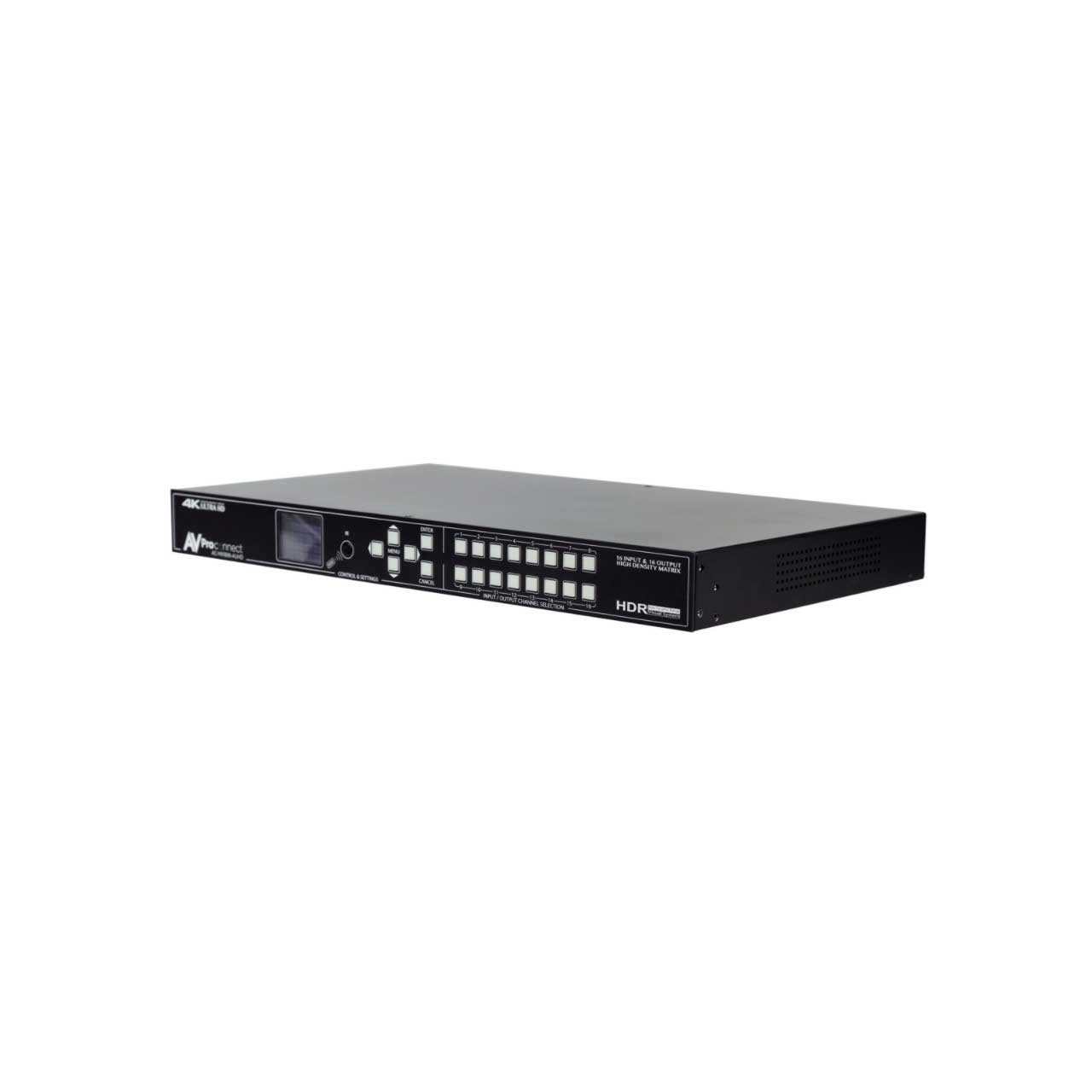

The AVPro Edge AC-MX-1616 is a true high bandwidth powerhouse. Supporting the full HDMI 2.0a/b specification and supporting every flavor of HDR, this matrix will ensure you can get the most out of the system. This unit supports uncompressed HDR formats Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC and NHK. All of them are supported in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compression is compatible.
Our unique design has allowed us to improve high bandwidth switching speeds. Average speeds of less than 3 seconds - this is an industry best for this advanced level of actual uncompressed, high bandwidth w/ HDR switching. Maximum compatibility and speed improve the customer experience immensely.
The sleek, low-profile and high-density design make for a sleek machine that saves you valuable space in the rack room. This combined with a OLED setup screen on the front that makes setup and management a breeze will make this a staple in your large demanding installations!
Key Benefits Include:
Uncompressed: Uncompressed base-band video means that what you put in it what comes out. This allows the integrator ultimate control to use any infrastructure they want. Use pure fiber like Cleerline, Bullet Train Cables (Long Haul, Shout Haul), or 18Gbps HDBaseT Extenders (AC-EX40-444) to get the full bandwidth and full picture!
Ultimate HDR Support: This matrix supports all flavors of HDR in all formats. Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC and NHK. All of them are supported in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compression are compatible.
Extreme EDID Management: With 29 on board EDID's, including HDR EDID’s, not getting a picture is simply a thing of the past. You can manage the input side of the switch by selecting a preloaded EDID. It also has the ability to INSTANTLY read an EDID from any connected display and apply it to the desired input, all with the push of a button. Goodbye EDID problems...
Front Panel Screen: Make setup a breeze! The front panel allows you to do basic setup including; EDID, Audio, Matrixing and network. All without connecting a PC or hooking anything up. This additional mode of control is a welcome resource on the job site.
WebOS: Full matrix control is available on the internal WebOS - Simply plug the matrix into the network and punch in the default IP (192.168.1.239) or use DHCP to connect to a full control system! The WebOS is designed with mobile devices in mind, so feel free to use you phone or tablet for real-time control.
Fast Switching: Our unique design has allowed us to improve high bandwidth switching speeds. Average speeds of less than 3 seconds - this is an industry best for this advanced level of actual uncompressed, high bandwidth w/ HDR switching.
