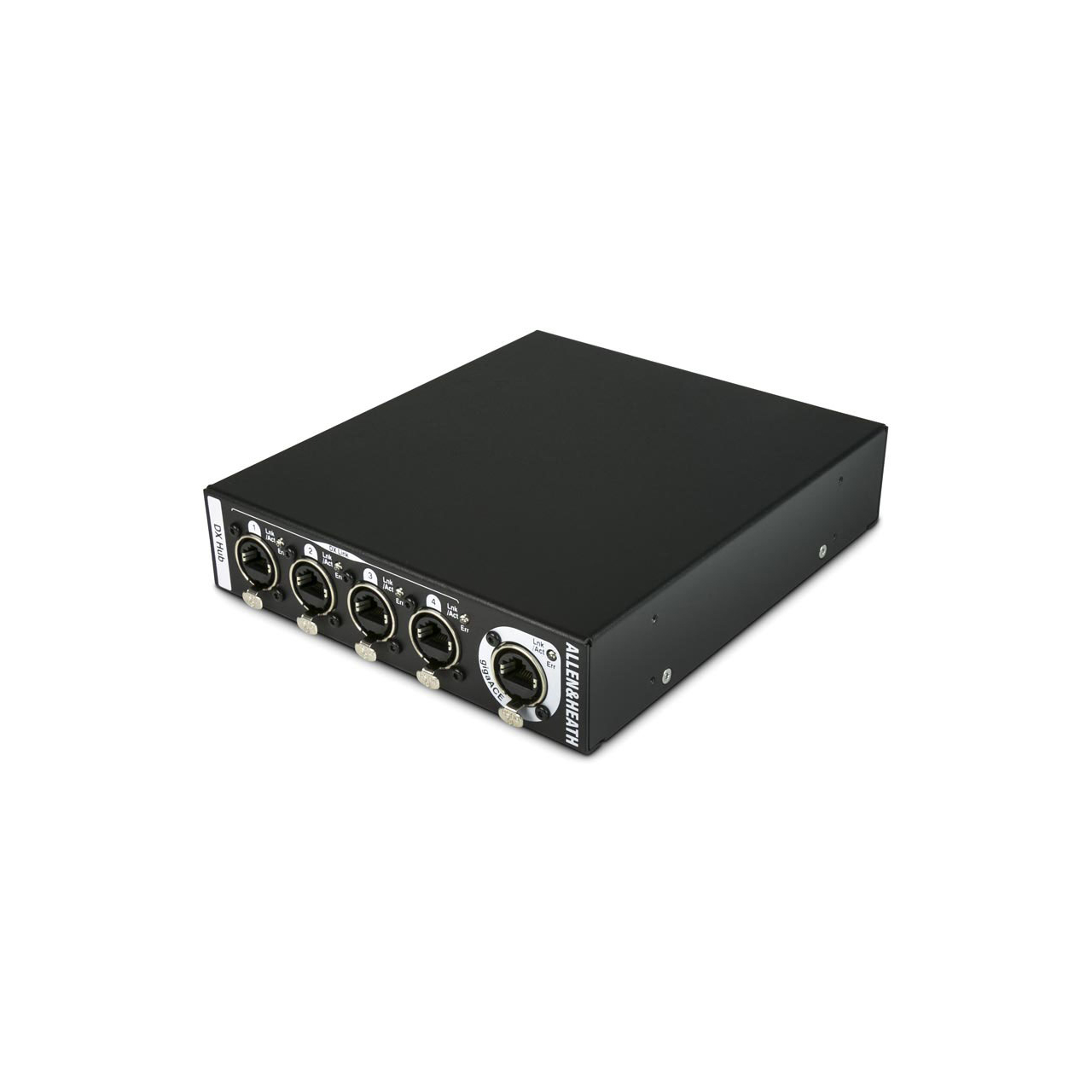

DX Hub provides 4 DX Link ports each carrying 32+32 channels of 96kHz audio, that can be used to connect up to 8 DX expander units.
Massively Expand I/O
Each of the 4 DX sockets can support up to 2 DX168/DX164-W/DX012 Expanders or 1 DX32 expander.
Rack Mountable
Optional 19-inch rackmount kit available for fixed installations or touring.
Redundant Mode
A pair of DX Hubs can be used for dual-cable connection to compatible dLive hardware.
Single Cable Trunk
A single CAT5 run from the DX Hub to your mixer reduces cabling requirements.
Your I/O Hub

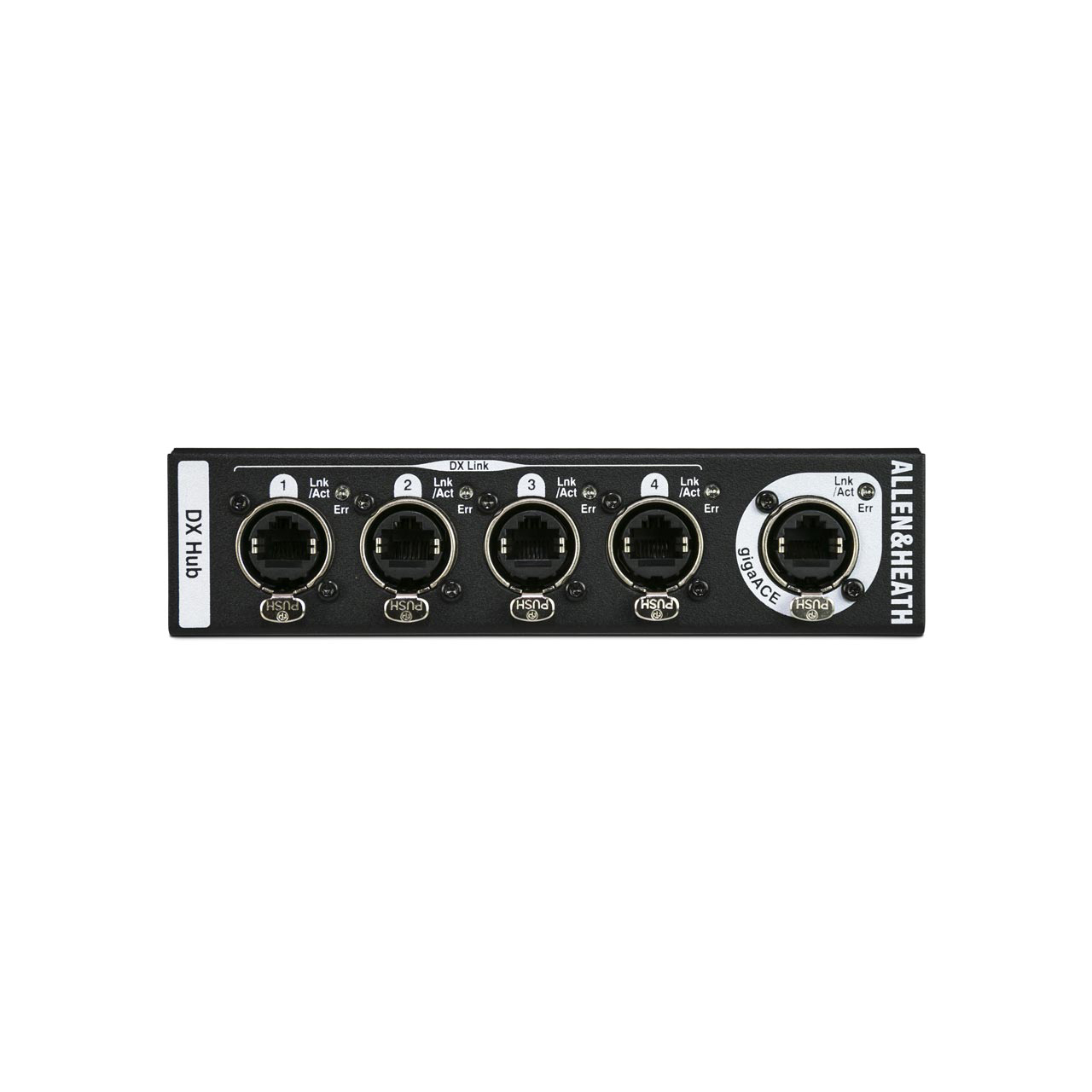

DX Hub provides 4 DX Link ports each carrying 32+32 channels of 96kHz audio, that can be used to connect to DX expander units.
Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)
Simplify Cable Runs
DX Hub is particularly suited to Install and Commercial Audio applications and any environment where it is desirable to run a single “trunk” CAT5e cable to the DX Hub from the AHM, dLive, Avantis or SQ system.
An optional rack mount kit is available for installation in a 1U 19" rack space.
DX Hub Compatibility
DX Hub can be connected to any AHM, SQ or Avantis mixer via SLink, or any Avantis mixer or dLive system fitted with a gigaACE I/O module.
