IP1 is a simple yet powerful programmable wallplate, giving the non-technical user convenient, easy control via a single push-and-turn rotary.
US and EU/UK Versions
Available in two form factors for the US and EU/UK markets, the IP1 is compatible with Decora and MK Elements faceplates.
Simple to Use

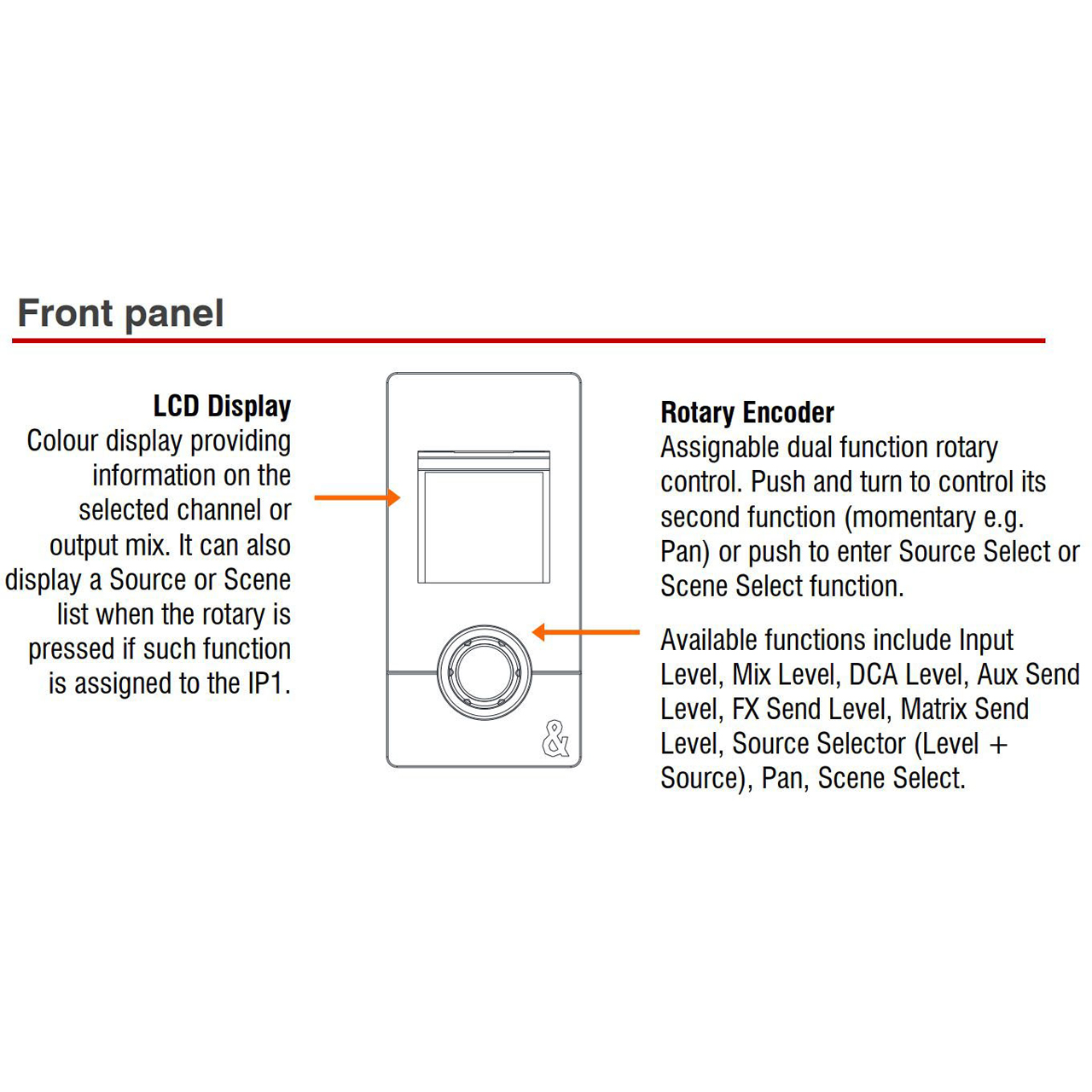

The IP1 is designed with the non-technical user in mind, and can control zone level, source selection or scene/preset recall via a single rotary control.
Visual Feedback
The color LCD screen gives the user a clear indication of the parameter they are controlling.
Low Maintenance
The IP1 automatically matches firmware with connected devices for easy install and system maintenance.
Mix and Match
Multiple IP Controllers can be connected to an AHM, dLive or Avantis system to provide control exactly where needed.
Simple to Set Up
Connect: IP1 interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.
Configure: The IP1’s controls and functions are configured using AHM System Manager, Avantis Director or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.
Please Note: The maximum cable length is 100m (328 feet). Use STP (shielded twisted pair) CAT5 or higher cables.

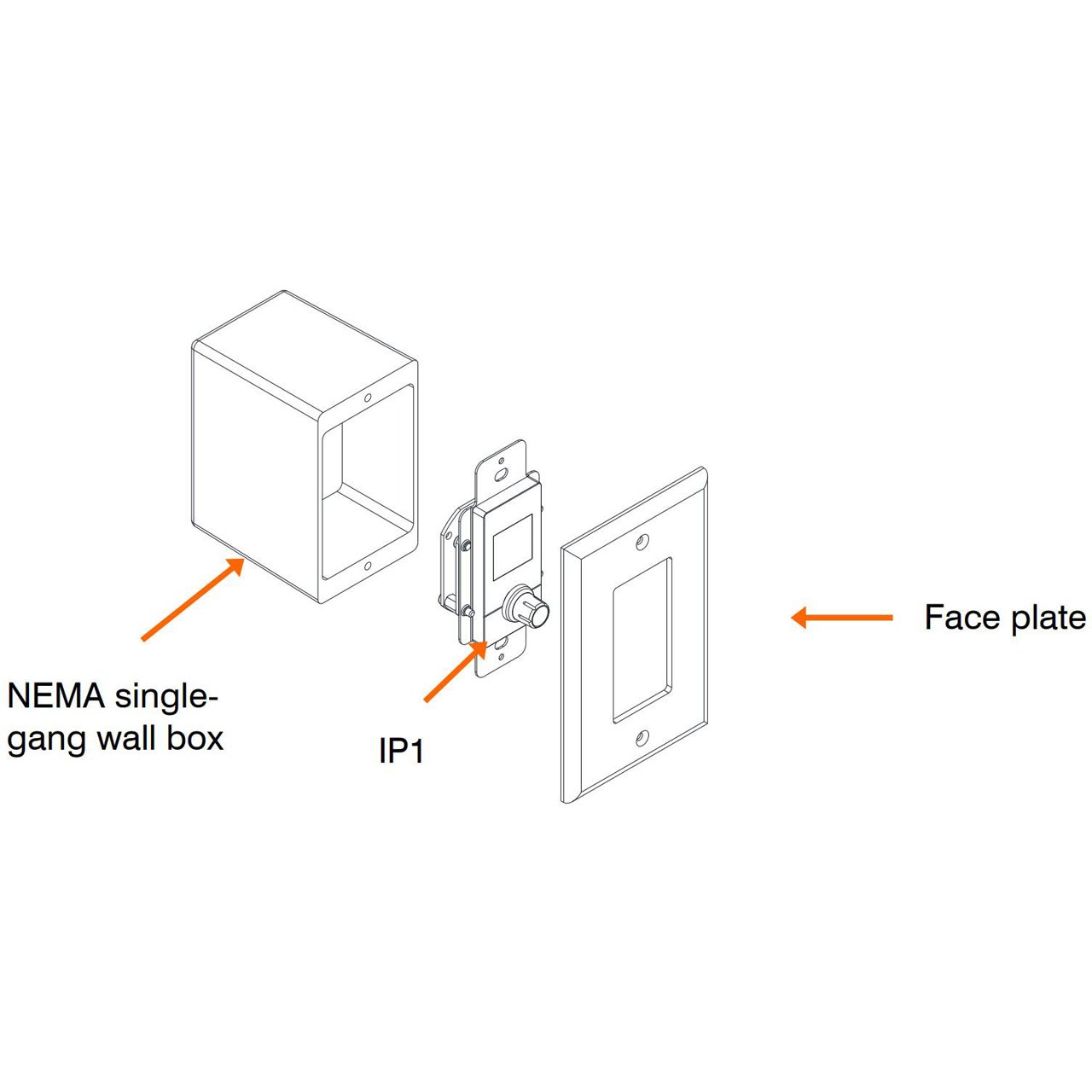

Decora faceplate & wall box sold seperately
