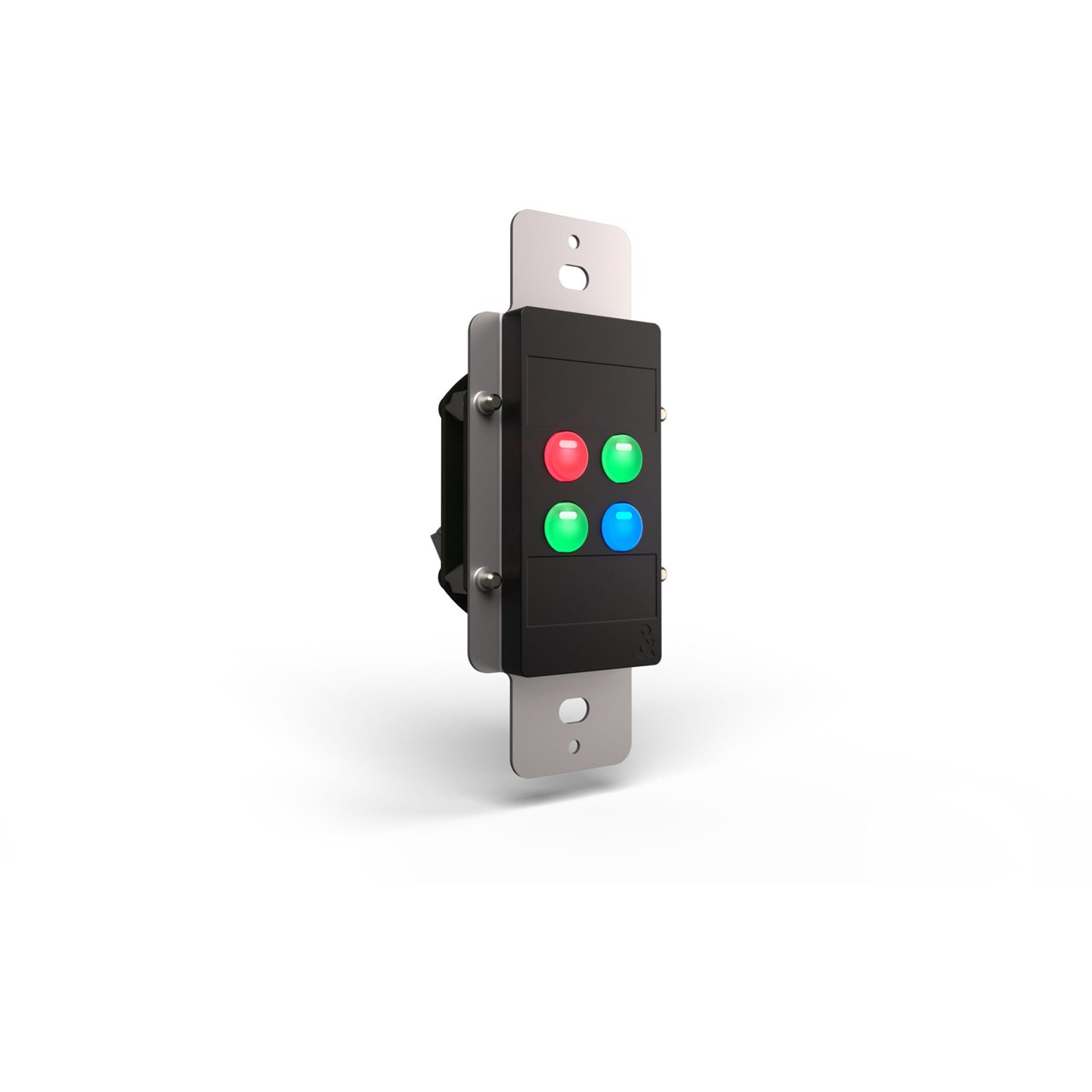

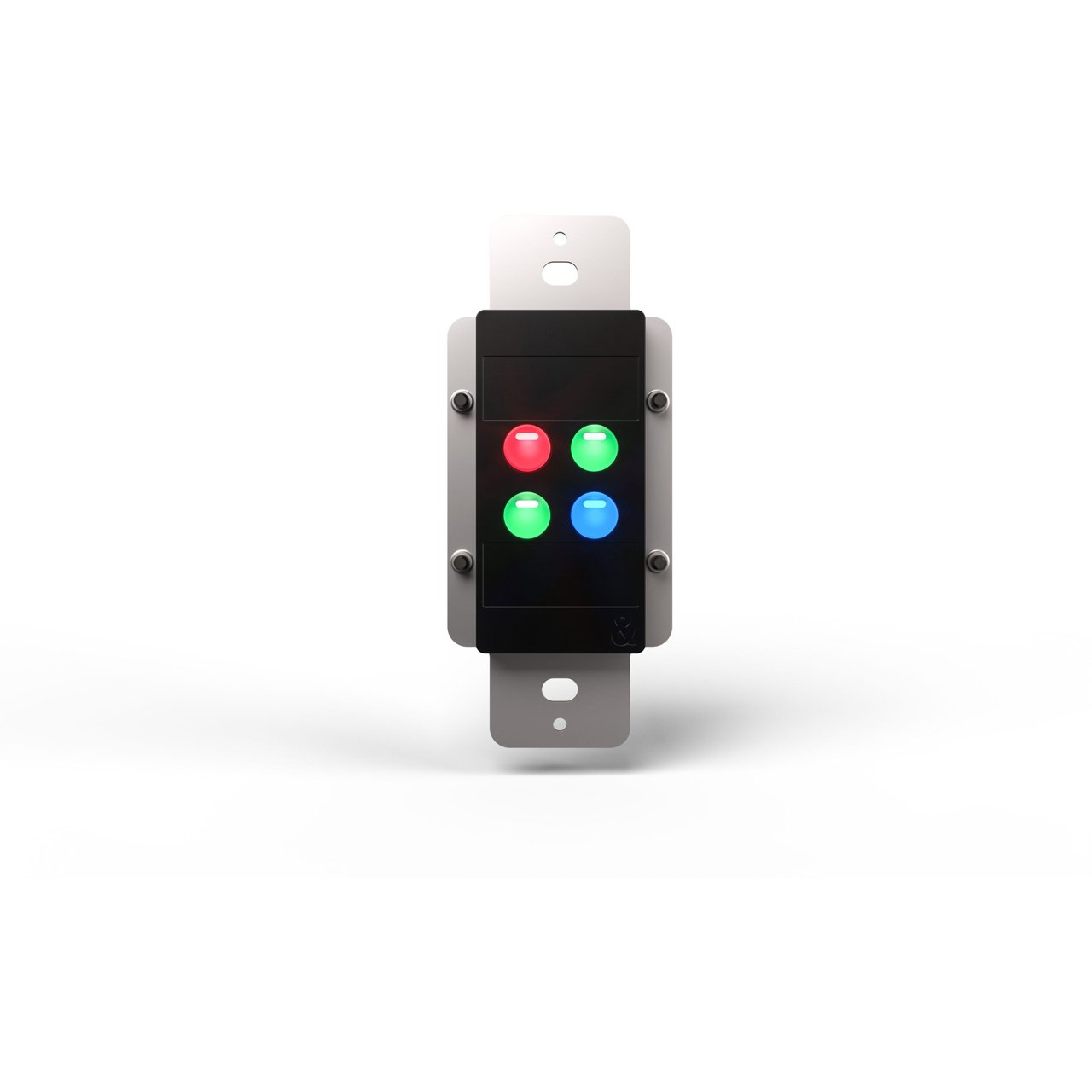

Allen & Heath IP4 Four Button Programmable Decora Wallplate Controller for AHM / Avantis & dLive - TCP/IP / PoE - Black

ITEM #: AH-IP-4B MFG #: AH-IP-4B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$449.00

Our Price:

$349.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


AH-IP-4B - Overview

The PoE-powered Allen & Heath IP4 controller features four programmable buttons - each configurable for mute toggling, preset recall, level adjustment, and source selection - with illuminated buttons ensuring clear visibility.

Configuration is managed via AHM System Manager, Avantis Director, or dLive Director software, allowing integrators to tailor functionality for specific installation environments. The IP4 connects via standard TCP/IP, enabling seamless integration with compatible Allen & Heath hardware and third-party devices. The IP4 fits Decora-style backboxes.

The IP4 adds to a range of networkable, PoE-powered remote controllers and GPIO interfaces including the 8-fader IP8, IP1 rotary wallplate, and 7"/10" touch panels for Custom Control.

Simple to Use
IP4 is designed with the non-technical user in mind, and can control zone level, source selection, mutes, level adjustment, scene/preset recall, and more.

Low Maintenance
The IP4 automatically matches firmware with connected devices for easy install and system maintenance.

Mix and Match
Multiple IP Controllers can be connected to an AHM, dLive or Avantis system to provide control exactly where needed.

Use IP controllers of different flavors to suit the needs of your end users, even letting one controller change what other controllers are doing to reflect changes in the space.

Simple to Set Up

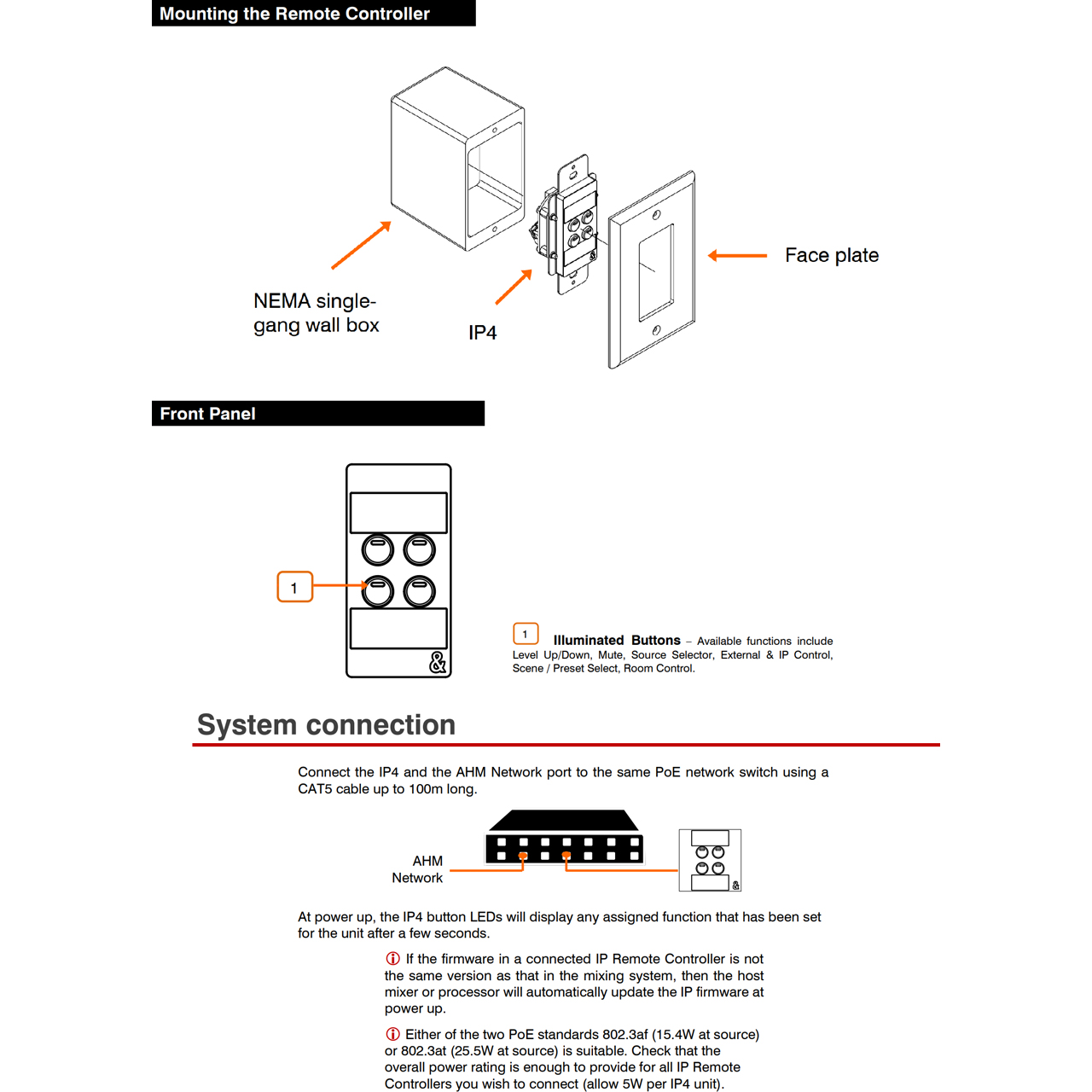

IP4 interfaces with the AHM, Avantis or dLive mixing system via standard TCP/IP Network connections and can be networked with other controllers, computers and third party devices using a standard Ethernet infrastructure.

IP4's controls and functions are configured using AHM System Manager, Avantis Director or dLive Director software (PC or Mac), or via an Avantis mixer or dLive Surface.

Compatible with:
- AHM Sound Management
- dLive Digital Mixers
- Avantis Digital Mixers

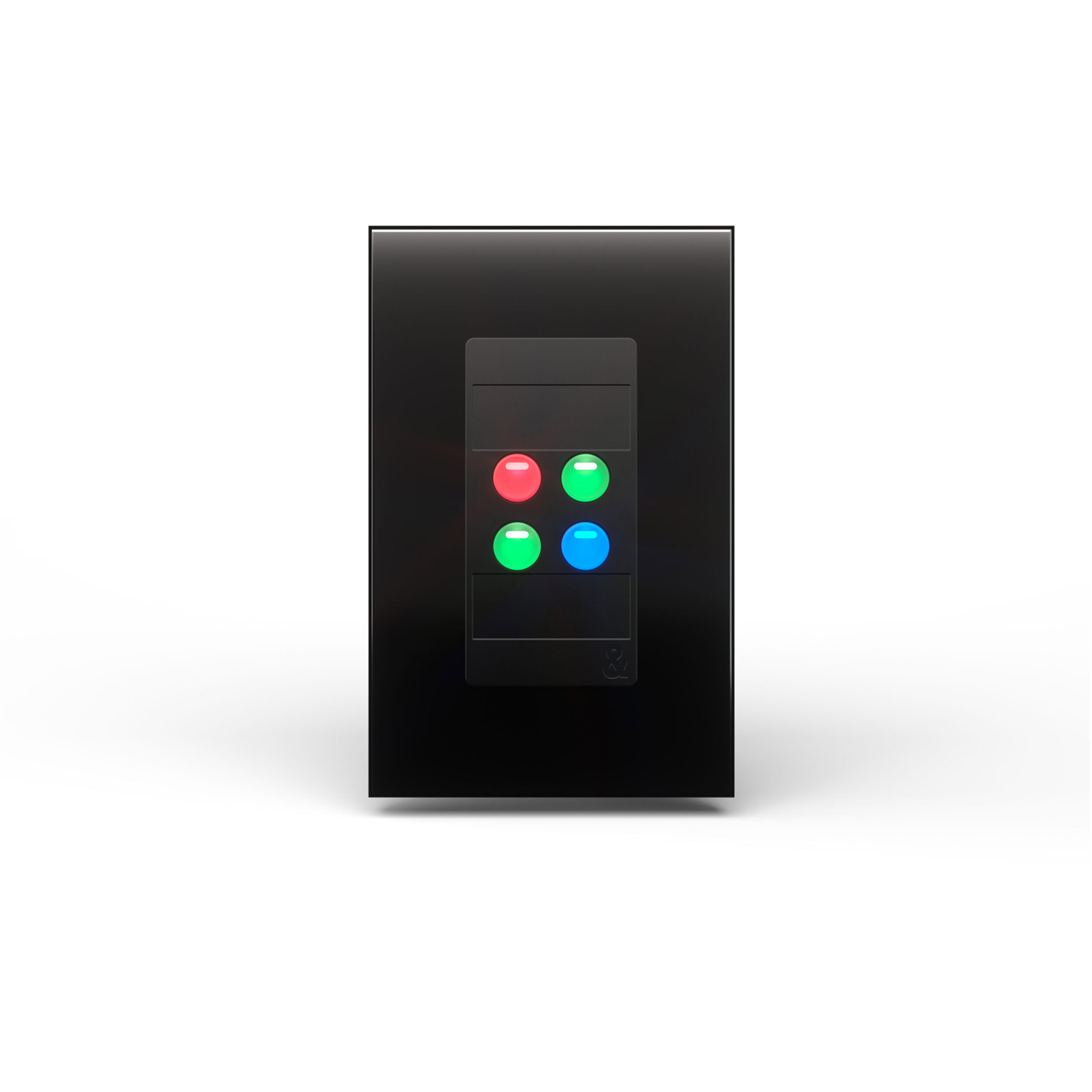

Please Note: Decora-style face plates are sold separately.

  • Features:

    • Four Illuminated Configurable Buttons
    • Control source selection, mutes, level control, or preset recall
    • TCP/IP & POE compliant
    • Simple to Use
    • Low Maintenance
    • Mix and Match
    • Simple to Set Up

  • Specifications:

      System
    • Network: Fast Ethernet 100MBps
    • Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
    • Power Supply: PoE
    • PoE Compatibility: 802.3af (15.4W at source) and 802.3at (30W at source)
    • Max Power Consumption: 2.5W

      Physical
    • Color: Black

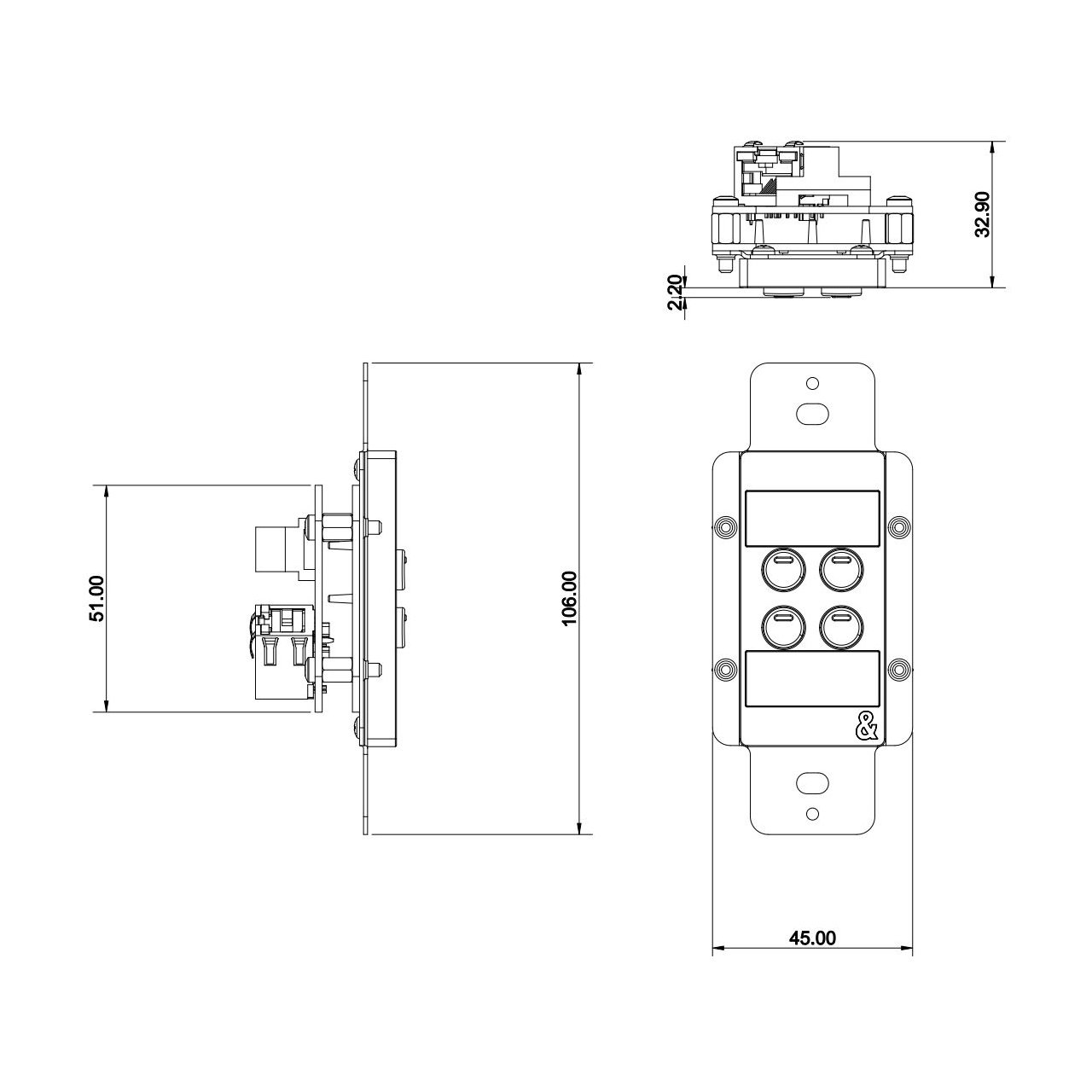

    • Dimensions: 1.8" x 1.3" x 4.2" (45mm x 33mm x 106mm)
    • Shipping Dimensions: 5.2" x 6.7" x 3.5" (131mm x 170mm x 90mm)
    • Weight: 0.21lbs
    • Shipping Weight: 0.43lbs

  • Item Includes:

    • 1x IP4 Remote Controller
    • 1x QR Code Card
    • 1x Safety Sheet
