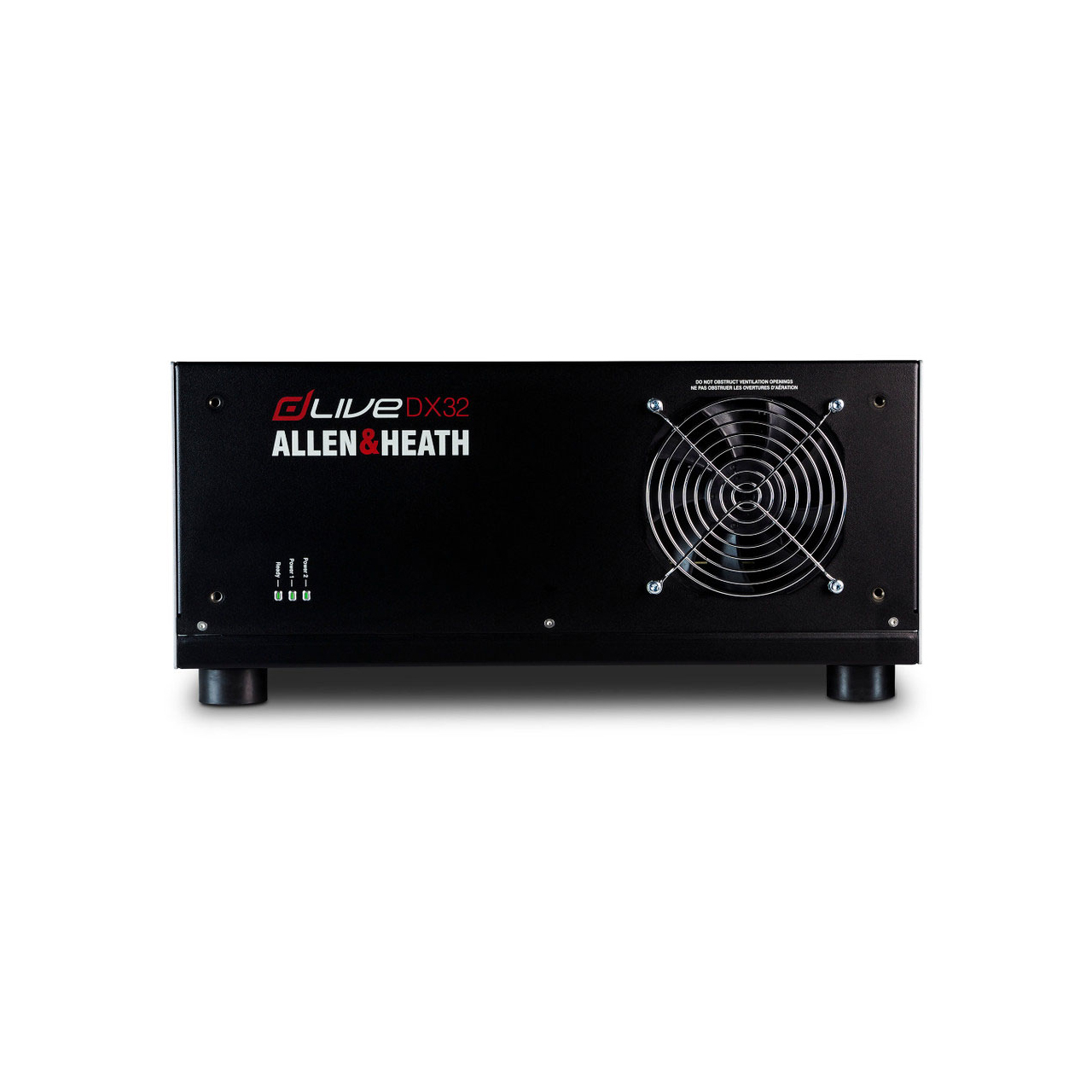

Allen & Heath DLIVE-DX32 4 x 8 Channel 96kHz Modular Expander for dLive/AHM Series/Avantis/SQ

AH-DLIVE-DX32 - Overview

• Features:

  • Configurable I/O - Mix and match I/O cards to meet your requirements.
  • Redundancy - Redundant connection and power options for critical applications.
  • PRIME Ready - DX32 supports our next-generation PRIME I/O modules.
  • Plug-and-Play - No configuration required, just connect to your mixer and you're ready to go. Firmware updates are handled automatically by the mixer.

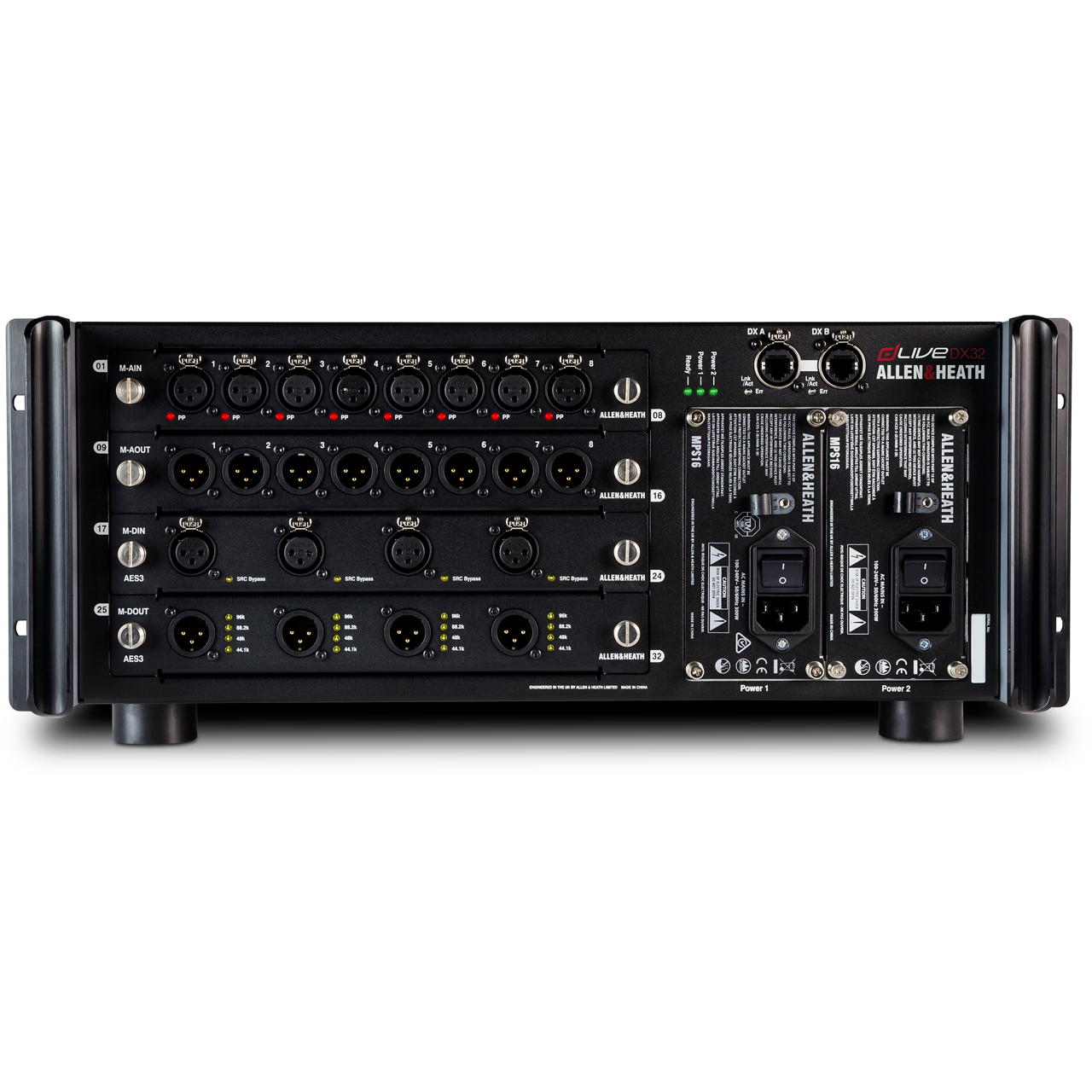

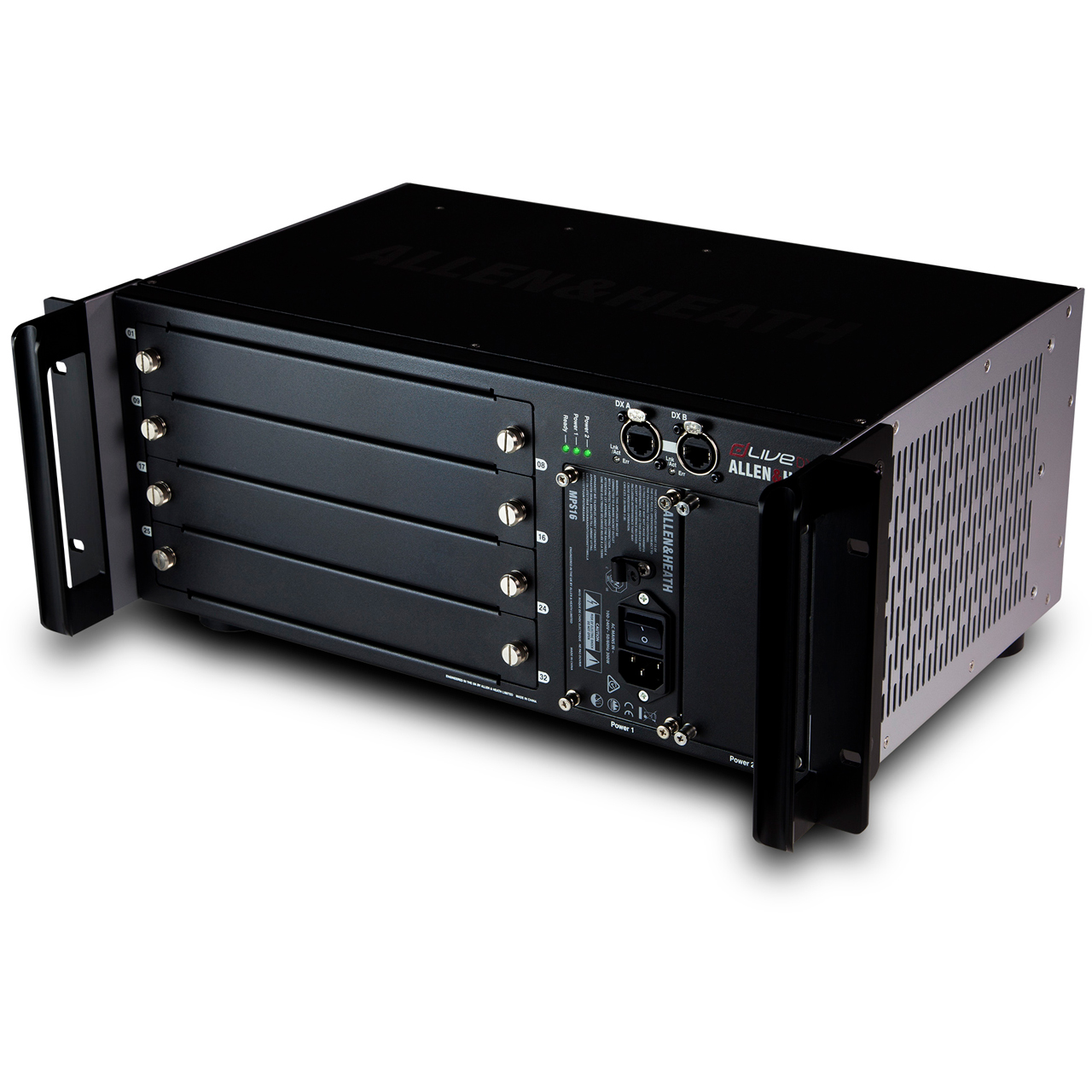

  • Build Your Own I/O - The modular design of the DX32 allows you to build your own expander with the I/O you need. Each of the 4 slots can hold an 8 channel input or output card with both analogue and AES digital options.


• Specifications:

  • Inputs
  • Mic/Line XLR Inputs: Balanced XLR, +48V phantom power
  • Mic/Line Preamp: Fully recallable
  • Input Sensitivity: -60dBu - 15dBu
  • Analog Gain: 5dB - 60dB, 1dB steps
  • Pad: -20dB Active PAD
  • Maximum Input Level: 30dBu (PAD in)
  • Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
  • Mic EIN: -127dB with 150Ω source
  • Phantom Power Indication: Per socket, internal or external phantom power sensing, triggered at 24V
  • Digital Inputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Ω; SRC on each pair, range 32k -192kHz, with bypass option

    Outputs
  • Analog XLR Outputs: Balanced, Relay protected
  • Output Impedance: <75Ω
  • Nominal Output: 4dBu = 0dB meter reading
  • Maximum Output Level: 22dBu
  • Residual Output Noise: -92dBu (muted, 20-20kHz). -90dBu (muted, 20-40kHz)
  • Digital Outputs: AES3 2 Ch XLR, 2.5Vpp balanced terminated 110Ω; 96kHz sampling rate, switchable to 48kHz, 44.1kHz

    System
  • ADC Sampling Rate: 24-bit Delta-Sigma
  • DAC Sampling Rate: 24-bit Delta-Sigma
  • Latency: + 8 samples, DX32 to Mixrack or DX32 to Surface (DX hop)
  • System Latency: 0.7 ms (MixRack XLR in to XLR out, Input to Mix); + 5 samples, Surface to Mixrack (GigaACE hop)
  • Operating Temperature Range: 32°F - 95°F (0°C - 35°C)

    Power
  • Mains Voltage Operating Range: 100-240V AC, 50/60Hz
  • Mains Power Consumption w/ MPS16 V1 300W: 300W max
  • Mains Power Consumption w/ MPS16 V2 250W: 250W max

    Temperature
  • Operating Temperature Range w/ MPS16 V1 300w: 32°F - 95°F (0°C - 35°C)
  • Operating Temperature Range w/ MPS16 V2 250w: 32°F - 104°F (0°C - 40°C)

    Physical
  • Dimensions: 17.05" x 11.42" x 6.97" (433mm x 290mm x 177mm)
  • Weight: 23lbs (10.5kg)


• GTIN:

  6938122242821
