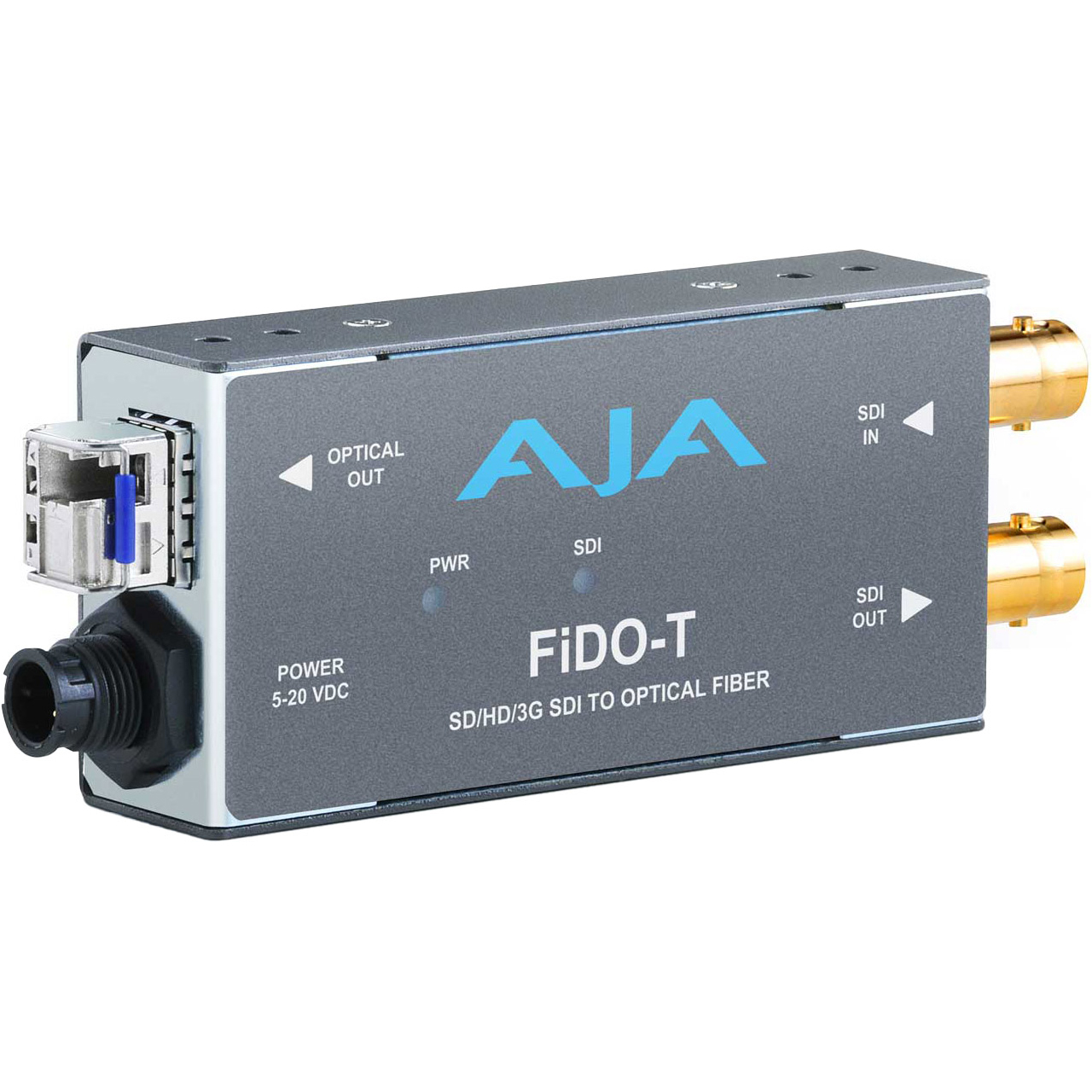

AJA FiDO-T 1-Channel 3G-SDI to Single-Mode LC Fiber Transmitter

FIDO-T - Overview

1-Channel 3G-SDI to Single-Mode LC Fiber Transmitter!

• Features:

  • 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter

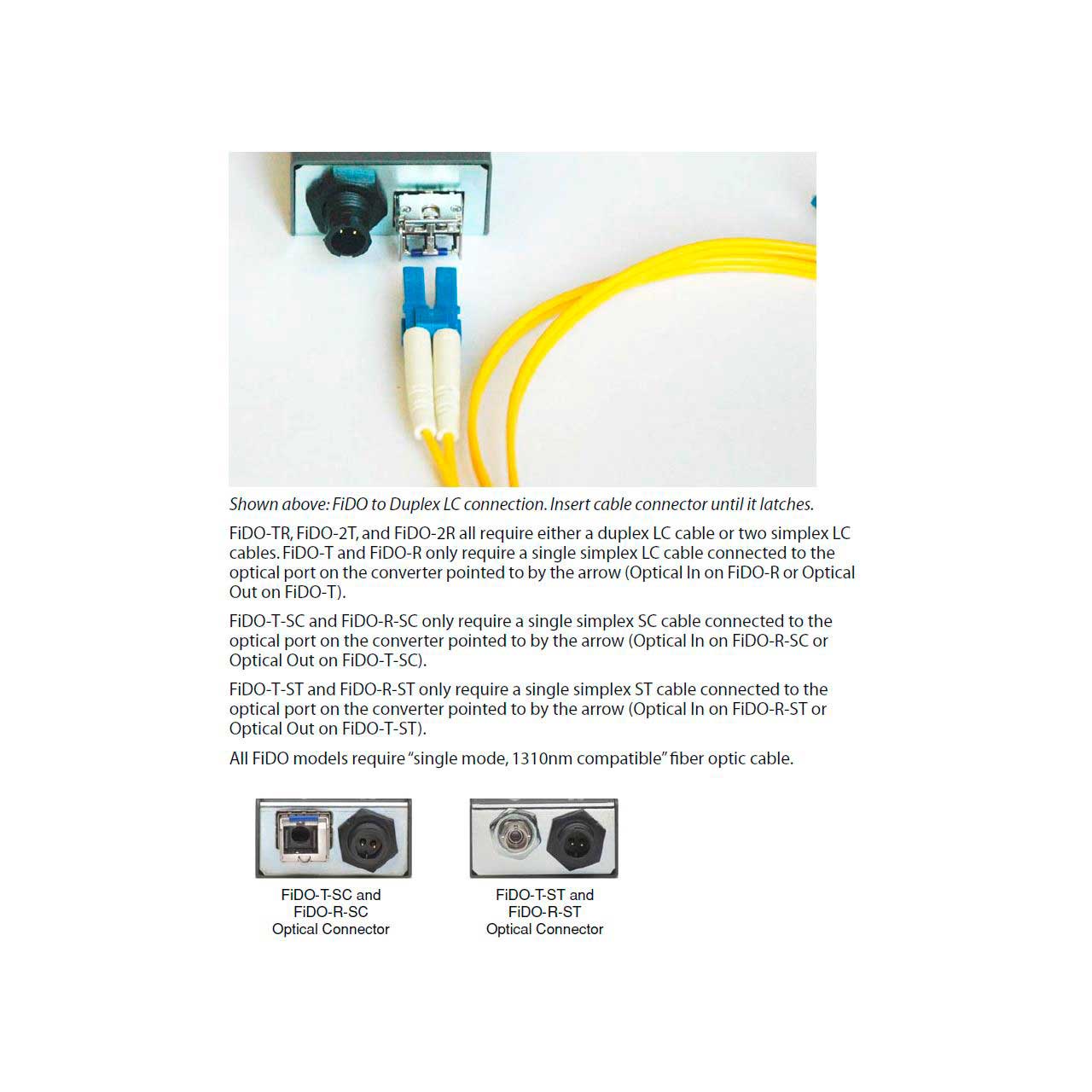

  • Simplex connection (LC connector)
  • 3G/HD/SD-SDI input
  • Looping SDI output
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Formats
  • 150 Mbps - 3 Gbps, format agnostic

    Video Input Digital
  • 1-channel independent 3G-SDI with SDI Loop out, SMPTE-259/292/424

    Video Output Digital
  • 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424
  • 1-channel Single Mode LC Fiber Output, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    Dimensions (WxDxH)
  • 4.6 x 1.71 x .85" (117 x 43.5 x 21.6mm)

    Weight
  • 0.5Lbs (0.3kg)

    Power
  • 2 watts max
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 Year


• GTIN:

  0892448000953
