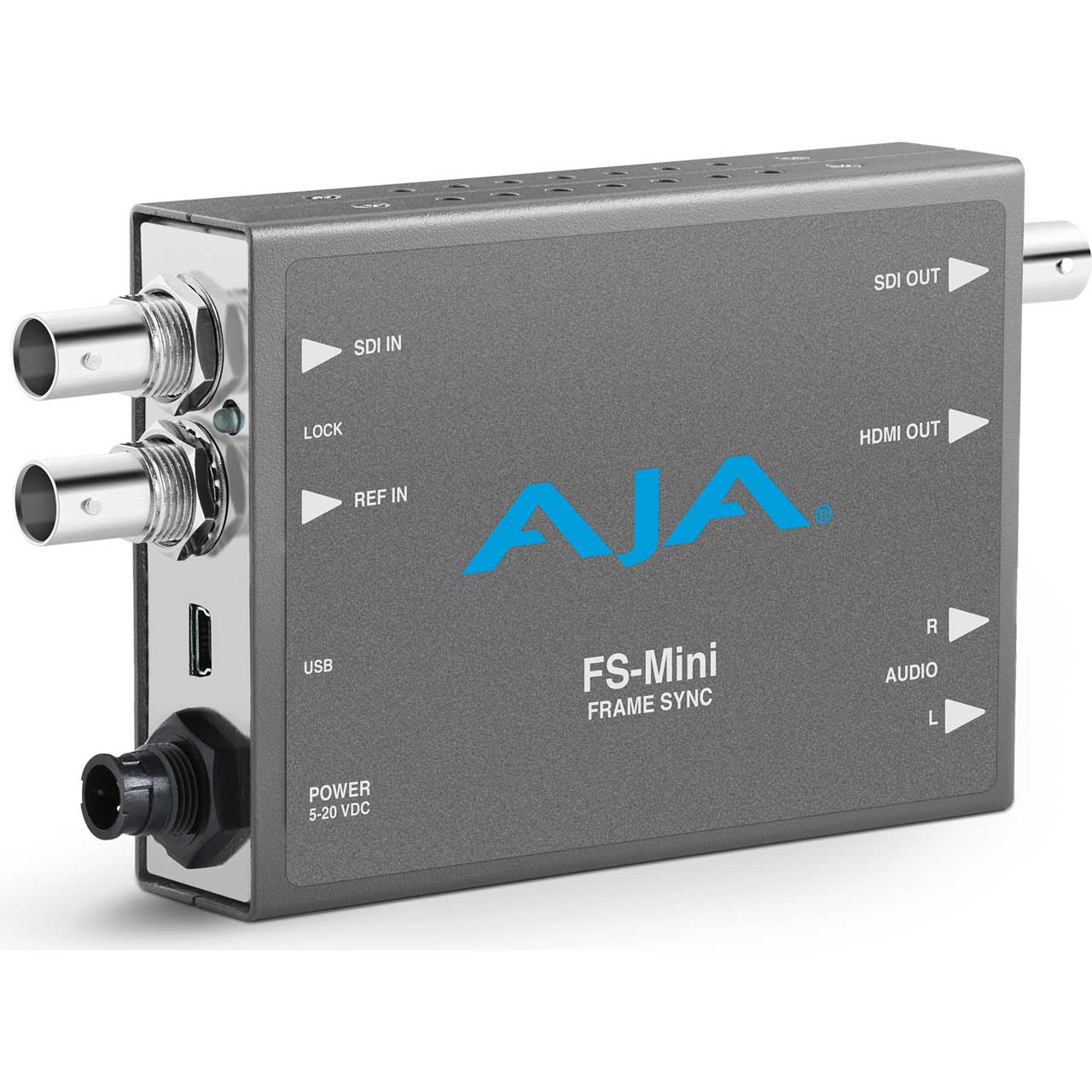

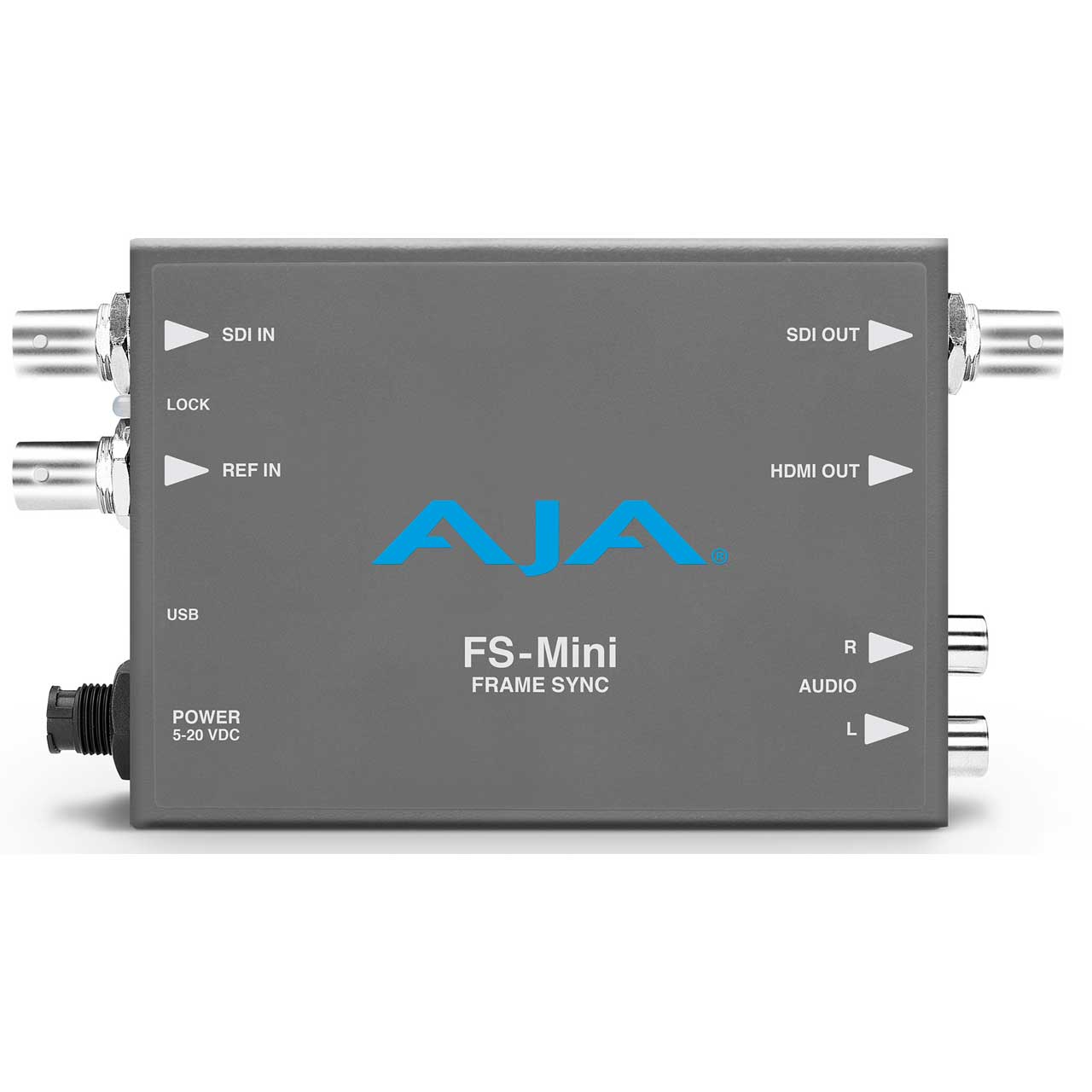

AJA FS-MINI Broadcast Frame Synchronizer for Untimed 3G-SDI/HD/SD Video Signals

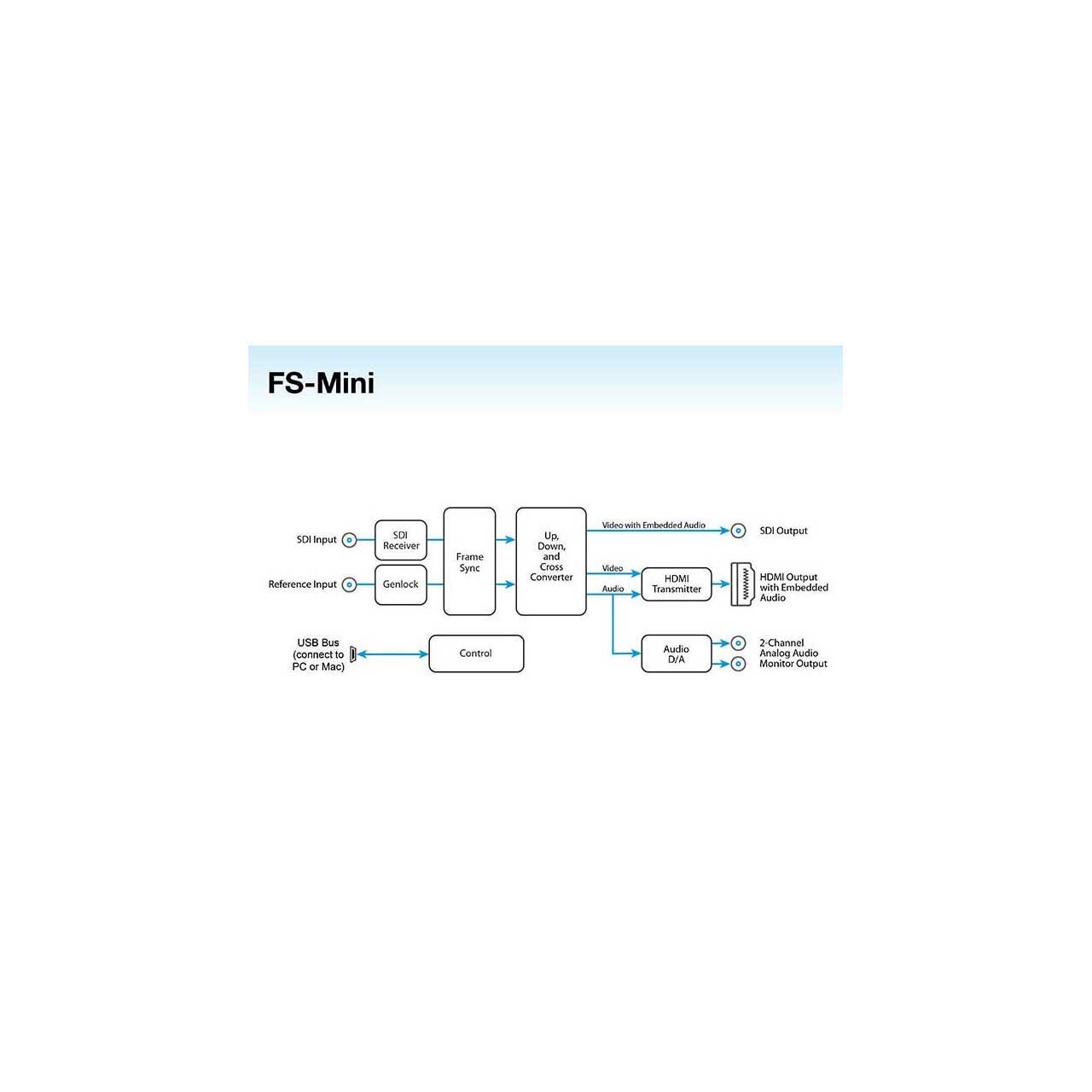

FS-MINI - Overview

• Features:

  • Utility frame sync function, times input signals to an external reference
  • Supports bi-level and tri-level references
  • High quality 10-bit video processing
  • Low latency processing, nominal video delay of 1 frame
  • Synchronizes 3G, HD and SD video formats
  • Loss of input management: Freeze, Black, or Mute
  • Simultaneous SDI and HDMI outputs
  • 16-channel embedded SDI audio I/O
  • 8-channel HDMI output audio
  • 2-channel RCA-style analog outputs at -10dBV (nominal)
  • Utility frame rate conversion
  • Supports 3:2 pulldown
  • Up, down, cross conversion between 3G, HD and SD video formats
  • AFD input detection, down-convert control
  • Simple configuration via a DIP switch or USB port and Mini-Config software on PC/Mac
  • Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
    Note: FS-Mini supports 3G-SDI Level A only. 3G-SDI Level B is not supported.
  • FS-Mini passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.


• Specifications:

  • Video Formats
  • (2K) 2048 x 1080P
  • (2K) 2048 x 1080PsF
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080Psf
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 625i
  • (SD) 525i
  • YCbCr, 4:2:2, 10-bit

    Video Input Digital
  • 1x 3G-SDI input, 1x BNC
  • 3G/HD/SD, SMPTE-259/292/424
  • Single Link 3G-SDI Level A, SMPTE-425-1
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

    Video Output Digital
  • 1x 3G-SDI outputs, 1x BNC
  • 3G/HD/SD, SMPTE-259/292/424
  • Single Link 3G-SDI Level A, SMPTE-425-1
  • (HD) 1080p 23.98 (for 23.98 video inputs)
  • (HD) 1080p 24 (for 24 video inputs)
  • (HD) 1080p 25 (for 50 video inputs)
  • (HD) 1080p 29.97 (for 59.94 video inputs)
  • (HD) 1080p 30 (for 60 video inputs)
  • (HD) 1080p 50 (for 50 video inputs)
  • (HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 1080p 60 (for 24, 30 or 60 video inputs)
  • (HD) 1080PsF 23.98 (for 23.98 video inputs)
  • (HD) 1080PsF 24 (for 24 video inputs)
  • (HD) 1080PsF 25 (for 50 video inputs)
  • (HD) 1080PsF 29.97 (for 59.94 video inputs)
  • (HD) 1080Psf 30 (for 30 or 60 video inputs)
  • (HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
  • (HD) 1080i 60 (for 24, 30, or 60 video inputs)
  • (HD) 1080i 50 (for 25 or 50 video inputs)
  • (HD) 720p 50 (for 50 video inputs)
  • (HD) 720p 59.94 (for 23.98, 59.94 video inputs)
  • (HD) 720p 60 (for 24, 30, or 60 video inputs)
  • (SD) 625i 50 (for 25 or 50 fps video inputs)
  • (SD) 525i 59.94 (for 23.98 or 59.94 video inputs)

    Monitor Output Digital
  • 1x HDMI standard type A connector
  • HD/SD
  • Color space, YCbCr or RGB
  • Bit depth, 8 or 10
  • RGB Range, SMPTE or Full Range

    Video Processing
  • Frame rate conversion/film cadence removal/insertion (3:2)
  • Loss of input management: Freeze, Black, or Mute
  • AFD input detection, down-convert control
  • Nominal video delay HD/SD, 1 frame

    Up-Conversion
  • Hardware 10-bit
  • 4x3 Pillar: results in a 4x3 image at center screen with black sidebars
  • 14x9 Pillar: results in a 4x3 image zoomed slightly to fill a 14x9 image with black side bars
  • Full Screen: results in a 4x3 image stretched horizontally to fill in a 16x9 screen
  • Letterbox to Full: results in image zoomed to fill fullscreen
  • Wide Zoom: results in a combination of zoom and horizontal stretch to fill a 16x9 screen; this setting will introduce a small aspect ratio change

    Down-Conversion
  • Hardware 10-bit
  • Crop: image is cropped to fit new screen size
  • Anamorphic: HD image is converted to full-screen SD with a 16x9 aspect ratio
  • 14x9: image is reduced slightly with aspect ratio preserved, black is added top and bottom, and the left and right sides are cropped
  • Auto AFD: automatically selects the best down-convert mode based on the input video's Active Format Description (AFD) code
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved

    Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720p
  • 720p to 1080i
  • 720p to 1080PsF

    Aspect Ratio Conversion for SD to SD
  • Letterbox: transforms SD anamorphic material to a letterboxed image
  • H Crop: produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: transforms SD letterbox material to an anamorphic image
  • 14x9: anamorphic to 14x9 conversion


• Warranty:

  • 5 Year Warranty


• GTIN:

  0812321031973
