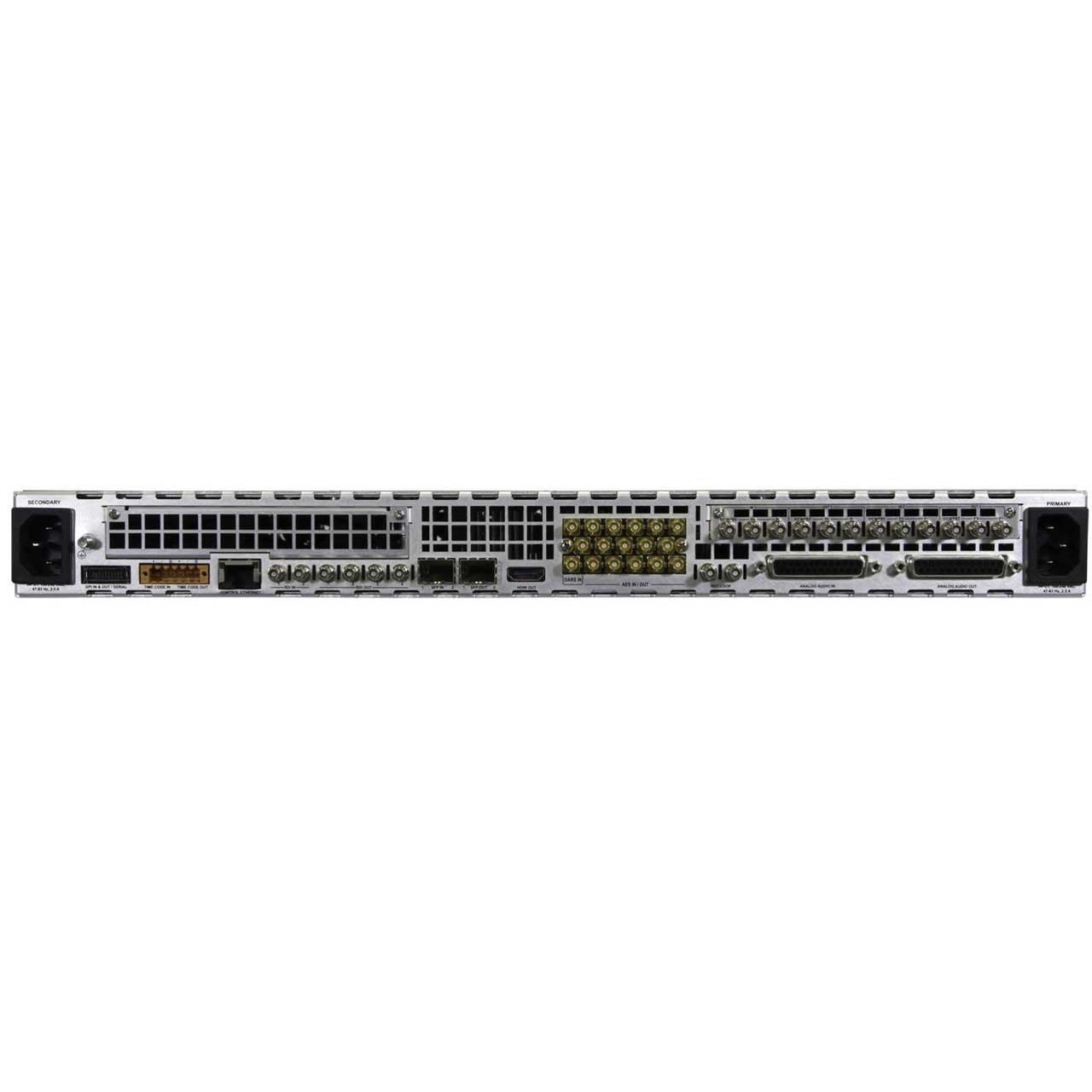

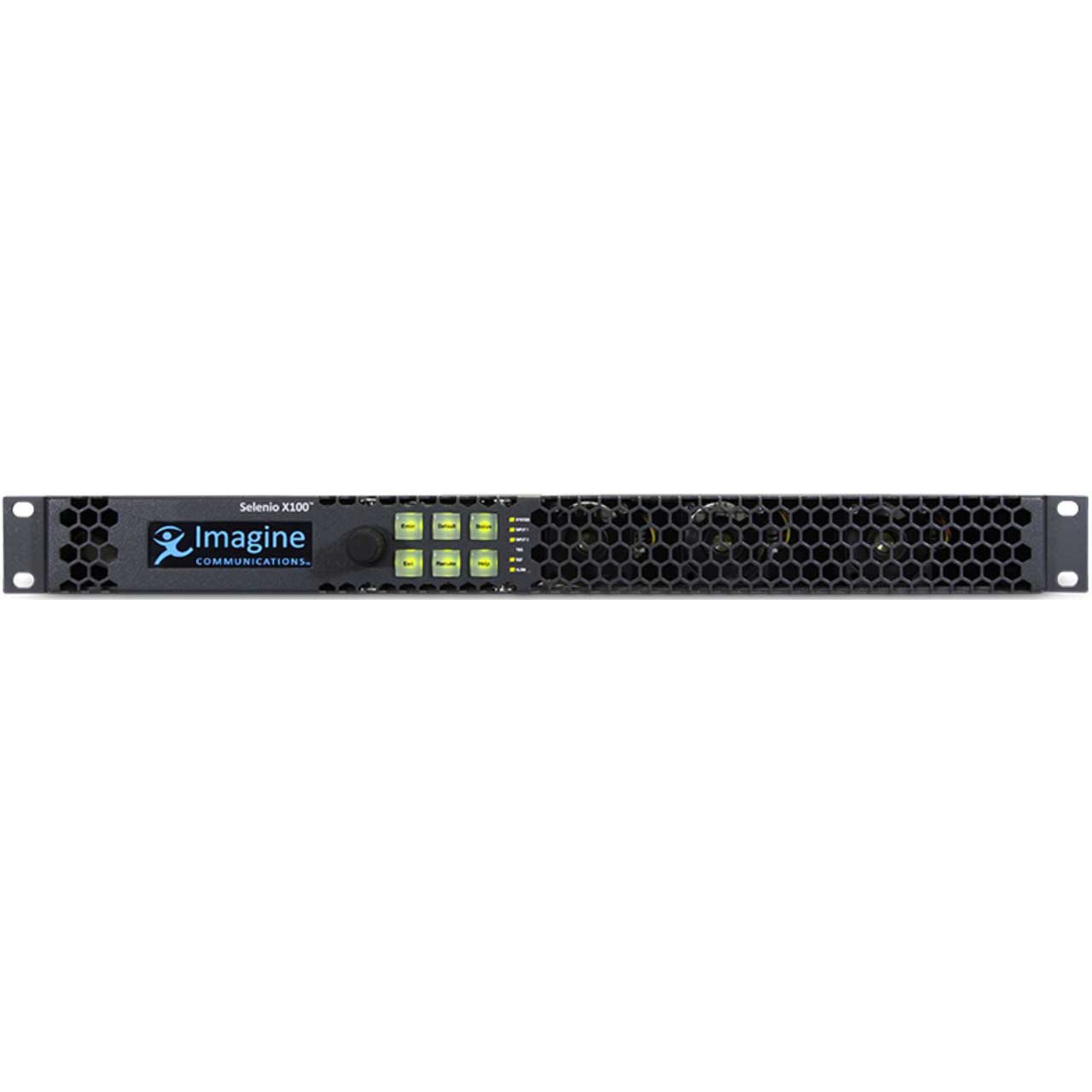

Imagine Selenio X100-1RU-2P Intelligent Dual-Channel Frame Synchronizer / Converter with Advanced Audio

X100-1RU-2PS - Overview

• Features:

  • Animated logo generator/inserter (1/9th screen size) with up to 80 seconds for 1080p, 160 seconds for 1080i/720p, 900 seconds for 480i/576i)
  • Program delay with up to 20 seconds for 1080p, 40 seconds for 1080i/720p, 220 seconds for 480i/576i
  • Dolby Digital Plus codecs and RTLL Real Time Loudness Control
  • Video thumbnails support for the input and output of the 2 processing channels
  • Insertion of closed captioning data from serial port
  • Support continuous numbering of SCTE-104 messages (remap mode) when mixing messages from GPI trigger and embedded SCTE-104 packets
  • Support for more SFPs (Dual channel HD-BNC inputs and outputs, combination of HD-BNC and optical Input and output, SD/HD to DVI Converter, SD/HD to HDMI Converter)
  • Intelligent dual-channel frame sync/delay, proc amp, noise reduction, clipping and color correction
  • Support for all 1080p/psf production formats (23.98, 24, 25, 29.97, 30)
  • True optional dual-channel processing for analog video
  • Data Wrangler VANC processing for known and unknown data types
  • Rules Engine for custom signal flow management
  • Fast frame sync, fast conversion, delay (lock to one input), program delay and time base corrector (TBC) modes
  • Advanced 3D adaptive 10-bit motion detection for up/down/cross/aspect ratio conversion
  • Basic frame rate conversion built-in and optional single-channel linear frame rate conversion
  • Two switchable auto-sensing 3G/HD/SD inputs
  • Dual up/down/cross/aspect/basic ratio conversion
  • Noise reduction (mosquito and block), sharpness and texture controls
  • Two aspect ratio converters with full control over H/V size and position with AFD support
  • Built-in video test and audio tone generators
  • Redundant power supplies
  • Dual logo generator/inserters
  • Static built-in, can be used for a trouble slide
  • Optional 1/9 screen animated logos
  • I-Wings side bar insertion when upconverting
  • Audio de-embed/embed, sync, delay, gain, invert and delay with 32 channels (eight groups) processing
  • PCM and non-PCM (Dolbyr Digital Plus, Dolbyr Digital, Dolbyr E) passthrough
  • Options for Dolbyr Digital Plus, Dolbyr Digital, Dolbyr E decode and encode (up to 2 Dolby decoders and encoders)
  • Options for DTS Neural Surround Upmix, Downmix, Multimerge and DTS Neural Loudness Control
  • Video Interfaces:
  • Auto-sensing for SD-SDI, HD-SDI, 3G-SDI
  • Two SDI inputs (2 HD-BNC, Dual SFP)
  • Four SDI Outputs (4 HD-BNC, Dual SFP)
  • EDH/CRC error monitoring and insertion
  • HDMI output
  • Optional dual channel composite and component analog video
  • Audio Interfaces
  • Eight-channel analog audio
  • 2 x 4 groups embedded audio
  • 16 AES (75 ohms) configurable ports (16 in, 14 in/2 out, 12 in/4 out .. 16 out)
  • Data and Metadata
  • Up to 16 services including:
  • CC (CEA608/708), Teletext (OP47) captions
  • ARC data (WSS/VI/AFD)
  • Audio metadata (Dolby)
  • User cue data GPI trigger insertion/extraction using SCTE-104 or BT-1865
  • BrandNet
  • LIDIA
  • Timecode
  • ARIB audio mode
  • Pass up to 10 user DID/SDID when converting video
  • Control and Monitoring
  • 100/100BT Ethernet connectivity
  • SNMP compliant
  • Built-in web control and monitoring
  • Local control panel
  • CCST compliant
  • Selenio X50T and X85T control panels
  • MagellanT network control panels
  • Magellan CCST Navigator
  • Four customizable GPI inputs and outputs


• Specifications:

  • Composite Video Input (X100 OPT AVIO Required)
  • Standard NTSC (SMPTE170M) PAL-B (ITU624-2) PAL-M
  • Connector HD-BNC
  • Quantization 12 bits (NTSC, PAL-B, PAL-M)
  • TBC mode: 8 bits (all standards)
  • Input level 1 V pk-pk
  • Impedance 75 ohms
  • Return Loss >40 dB, 0.1 to 6 MHz
  • Common Mode Range 5 V
  • CMRR 60 dB @ 50/60 Hz, 5 V pk--pk
  • Setup Level Range ±7.5 IRE
  • Frequency Response ±0.1 dB, 0.1 to 6 MHz
  • SNR 62 dB, typical
  • Y/C Gain Error <0.1 dB
  • Y/C Delay Error <10 ns

    Component Video Input (X100 Optavio Required)
  • Format YPbPr (Betacam/SMPTE), RGB
  • Connector Amphenol HD-BNC
  • Quantization 12 bits
  • Input level 1 V pk--pk
  • Impedance 75 ohms
  • Return Loss >40 dB, 1 kHz to 6 MHz
  • SNR >60 dB

    3G/HD/SD-SDI Video Input
  • Number of inputs 2
  • Standard
  • 3G: SMPTE 424M (2.97, 2.97/1.001 Gb/s)
  • HD: SMPTE 274M, SMPTE 292M (1.485, 1.485/1.001 Gb/s)
  • SD: SMPTE 259M-C (270 Mb/s, 525/625 component video)
  • Connector HD-BNC
  • Impedance 75 ohms
  • Return Loss
    >10 dB, typical, from 1485 to 2970 MHz
    >15 dB, typical, from 5 to 1485 MHz
    >20 dB, typical, from 5 to 270 MHz
  • Equalization
    3G: Adaptive cable equalization for up to 492 ft (150 m), typical, of Belden 1694A coaxial cable
    HD-SDI: Adaptive cable equalization for up to 607 ft (185 m) typical, of Belden 1694A coaxial cable
    SD-SDI: Adaptive cable equalization for up to 1310 ft (400 m) typical, of Belden 8281 coaxial cable

    Fiber Video In (Via SFP Port)
  • Number of Inputs 2
  • Standard
  • 3G: SMPTE 424M
  • HD-SDI: SMPTE 292M
  • SD-SDI: SMPTE 259M
  • Connector LC
  • Laser Safety Level Class 1

    Audio Input
  • Unbalanced AES Input
  • Number of Inputs 16, 14, 12 . 2 (shared with AES outputs, software configurable)
  • Connector HD-BNC
  • Impedance 75 ohms
  • Return Loss >25 dB, 0.1 to 6.0 MHz
  • Sensitivity <100 mV
  • Input Audio Sampling Rate 32 to 108 kHz

    Balanced AES Input (with External Balun)
  • Number of Inputs 16, 14, 12 . 2 (shared with AES outputs, software configurable)
  • Connector XLR with external balun
  • Sensitivity <200 mV
  • Impedance 110 ohms ±20% (0.1 to 6 MHz)
  • Maximum Input Signal 10 V pk-pk
  • Common Mode Rejection 0 V to 7 V (0 to 20 kHz)
  • Input Audio Rate 32 to 108 kHz
    NOTE: When Linear Frame Sync option is added to the item this will turn into a single channel unit.
