Imagine X100OPT-1PD-8GB Single Channel Program Delay one X100OPT-SK-PD Software License X100OPT-MEMMOD-8GB Memory Module

ITEM #: X100OPT-1PD-8GB MFG #: X100OPT-1PD-8GB

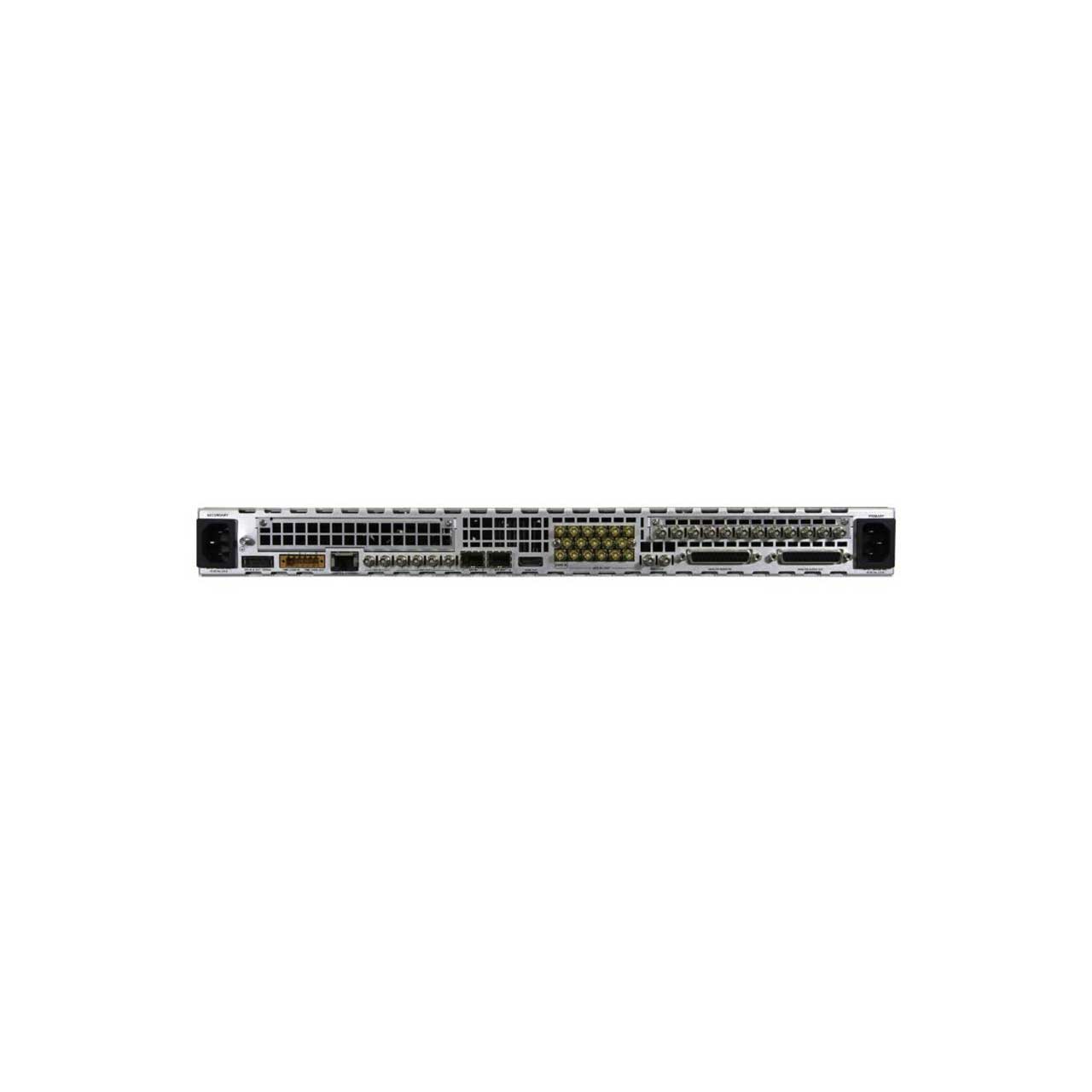

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Imagine Communications
Free Shipping with $49 Minimum Order

List Price:

$2,400.00

Our Price:

$2,010.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

X100OPT-1PD-8GB - Overview

Imagine Communications X100OPT-1PD-8GB is a single-channel Program Delay option for the Selenio X100™ and includes one X100OPT-SK-PD software license, and an X100OPT-MEMMOD8GB Memory Module (20 seconds for 1080p, 40 seconds for 1080i/720p, 220 seconds for 480i/576i)

Selenio X100 offers a wide array of analog and digital real time baseband video and audio processing capabilities. Standard features in this versatile 1RU include dual-channel frame sync/delay and up/down/cross-conversion, color correction and clipping, dual logo generation/insertion, VANC data and metadata processing, and time code insertion and extraction. For audio functionality, Selenio X100 provides two 16-channel SDI de-embedders and embedders, 16 AES input or output ports, 8-channel input and output analog audio interfaces, and 32-channel internal audio processing. From ingest to outbound processing and tape archive to production and post production applications, the compact, energy-efficient Selenio X100 processor easily integrates into the signal workflow of any broadcast environment, including OB trucks, small stations, production studios, control rooms, and networks.

It delivers a wide array of analog and digital real-time baseband video and audio processing capabilities, along with the exceptional quality and dependability that have been the hallmark of the popular, award-winning Imagine Communications series of 1RU processors.

Supporting SD (optional dual channel analog video) and HD formats, including built-in 3 Gb/s 1080p Level A and Level B-DL processing, Selenio X100 is equipped with easy-to-use control and monitoring via a built-in web server. It offers a multitude of standard features such as video processing, color correction and clipping, dual logo generation/insertion, an expanded data wrangler for VANC data and metadata processing for up to 16 services including SCTE-104 GPI, and time code insertion and extraction.

  • Features:

    • Animated logo generator/inserter (1/9 screen size) with up to 80 seconds for 1080p, 160 seconds for 1080i/720p, 900 seconds for 480i/576i)
    • Program delay with up to 20 seconds for 1080p, 40 seconds for 1080i/720p, 220 seconds for 480i/576i
    • Dolby Digital Plus codecs and RTLL Real Time Loudness Control
    • Video thumbnails support for the input and output of the 2 processing channels
    • Insertion of closed captioning data from serial port
    • Intelligent dual-channel frame sync/delay, proc amp, noise reduction, clipping and color correction
    • Support for all 1080p/psf production formats (23.98, 24, 25, 29.97, 30)


  • Specifications:

    • Composite Video Input (X100 Optavio Required)
    • Standard: NTSC (SMPTE170M) PAL-B (ITU624-2) PAL-M
    • Connector: HD-BNC
    • Quantization: 12 bits (NTSC, PAL-B, PAL-M); TBC mode: 8 bits (all standards)
    • Input level: 1 V pk-pk
    • Impedance: 75Ω
    • Return Loss: >40 dB, 0.1 to 6 MHz
    • Common Mode Range: 5 V
    • CMRR: 60 dB @ 50/60 Hz, 5 V pk--pk
    • Setup Level Range: ±7.5 IRE
    • Frequency Response: ±0.1 dB, 0.1 to 6 MHz
    • SNR: 62 dB, typical
    • Y/C Gain Error: <0.1 dB
    • Y/C Delay Error: <10 ns

      Component Video Input (X100 Optavio Required)
    • Format: YPbPr (Betacam/SMPTE), RGB
    • Connector Amphenol: HD-BNC
    • Quantization: 12 bits
    • Input level: 1 V pk--pk
    • Impedance: 75Ω
    • Return Loss: >40 dB, 1 kHz to 6 MHz
    • SNR: >60 dB

      Fiber Video In (Via SFP Port)
    • # of Inputs: 2
    • Standard: 3G: SMPTE 424M; HD-SDI: SMPTE 292M; SD-SDI: SMPTE 259M
    • Connector: LC
    • Laser: Safety Level Class 1

      Audio Input - Unbalanced AES Input
    • # of Inputs: 16, 14, 12 … 2 (shared with AES outputs, software configurable)
    • Connector: HD-BNC
    • Impedance: 75Ω
    • Return Loss: >25 dB, 0.1 to 6.0 MHz
    • Sensitivity: <100 mV
    • Input Audio Sampling Rate: 32 to 108 kHz

      Balanced AES Input (With External Balun)
    • # of Inputs: 16, 14, 12 , 2
    • Connector: XLR with external balun
    • Sensitivity: <200 mV
    • Impedance: 110Ω ±20% (0.1 to 6 MHz)
    • Maximum Input Signal: 10 V pk-pk
    • Common Mode Rejection: 0 V to 7 V (0 to 20 kHz)
    • Input Audio Rate: 32 to 108 kHz

      Analog Audio Input
    • # of Inputs: 8 mono channels
    • Type: Balanced
    • Connector: DB-25, Tascam-style cable snake for balanced 8-channel audio
    • Input Audio Level: 28 dBu to 12 dBu
    • Input Impedance: High-Impedance or 600Ω, jumper selectable
    • CMRR: >80 dB @ 60 Hz, typical
    • Linearity: <±0.5 dB, typical
    • Frequency Response: <±0.1 dB (20 Hz to 20 kHz), typical
    • THD: >90 dB (20 Hz to 20 KHz), typical
    • SNR: >100 dB, typical

      Video Output
    • Fiber Video Output: (Via SFP Port)
    • # of Outputs: 2
    • Standard: 3G: SMPTE 424M; HD-SDI: SMPTE 292M; SD-SDI: SMPTE 259M
    • Connector: LC
    • Output Wavelength: 1310 ±30 nm
    • Output Power: -7 dBm (typical) to 0 dBm
    • Rise/fall Time: 3G: <105 ps/120 ps, typical
    • Jitter: 3G: <45 ps, typical; HD-SDI: <60 ps, typical; SD-SDI: <110 ps, typical
    • Laser: Safety Level Class 1

      HDMI Output
    • # of outputs: 1
    • Standards: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.98; 1080i/60, 1080i/59.94, 1080i/50, 1080psf/24, 1080psf/23 720p/60, 720p/59.94, 720p/50 525, 625,; 640 x 480p
    • Compliance: HDMI 1.4a
    • Connector: HDMI type A

      Component Video Output (X100 Optavio Required)
    • Format: YPbPr (Betacam/SMPTE)
    • Connector: HD-BNC
    • Quantization: 12 bits
    • Impedance: 75Ω
    • Return Loss: >40 dB, 1 kHz to 6 MHz
    • DC offset: <0.5 mV
    • SNR: >60 dB, typical

      3G/HD/SD-SDI Output Video
    • # of outputs: 2
    • Standard: 3G: SMPTE 424M (2.97, 2.97/1.001 Gb/s); HD: SMPTE 274M, SMPTE 292M (1.485, 1.485/1.001 Gb/s); SD: SMPTE 259M-C (270 Mb/s, 525/625 component video)
    • Connector: HD-BNC
    • Impedance: 75Ω
    • Return Loss: >10 dB, typical, from 1485 to 2970 MHz; >15 dB, typical, from 5 to 1485 MHz; >20 dB, typical, from 5 to 270 MHz
    • Signal Level: 800 mV ±10%

      Audio Output - Unbalanced AES Output
    • # of outputs: 16, 14, 12-2 (shared with AES outputs, software configurable)
    • Standard: AES 3, SMPTE 276M
    • Type: Unbalanced, AC coupled
    • Connector: HD-BNC
    • Impedance: 75Ω
    • Return Loss: >25 dB, 0.1 to 6 MHz
    • Signal Amplitude: 1.0 V pk-pk, 10% into 75Ω load
    • Audio Sampling Rate: 48 kHz
    • Rise/Fall Time: 30 ns to 44 ns (10 to 90%)
    • Bits: 24, 20, or 16
    • Channel Status and User Bit: Maintained, but professional mode, 48 kHz
