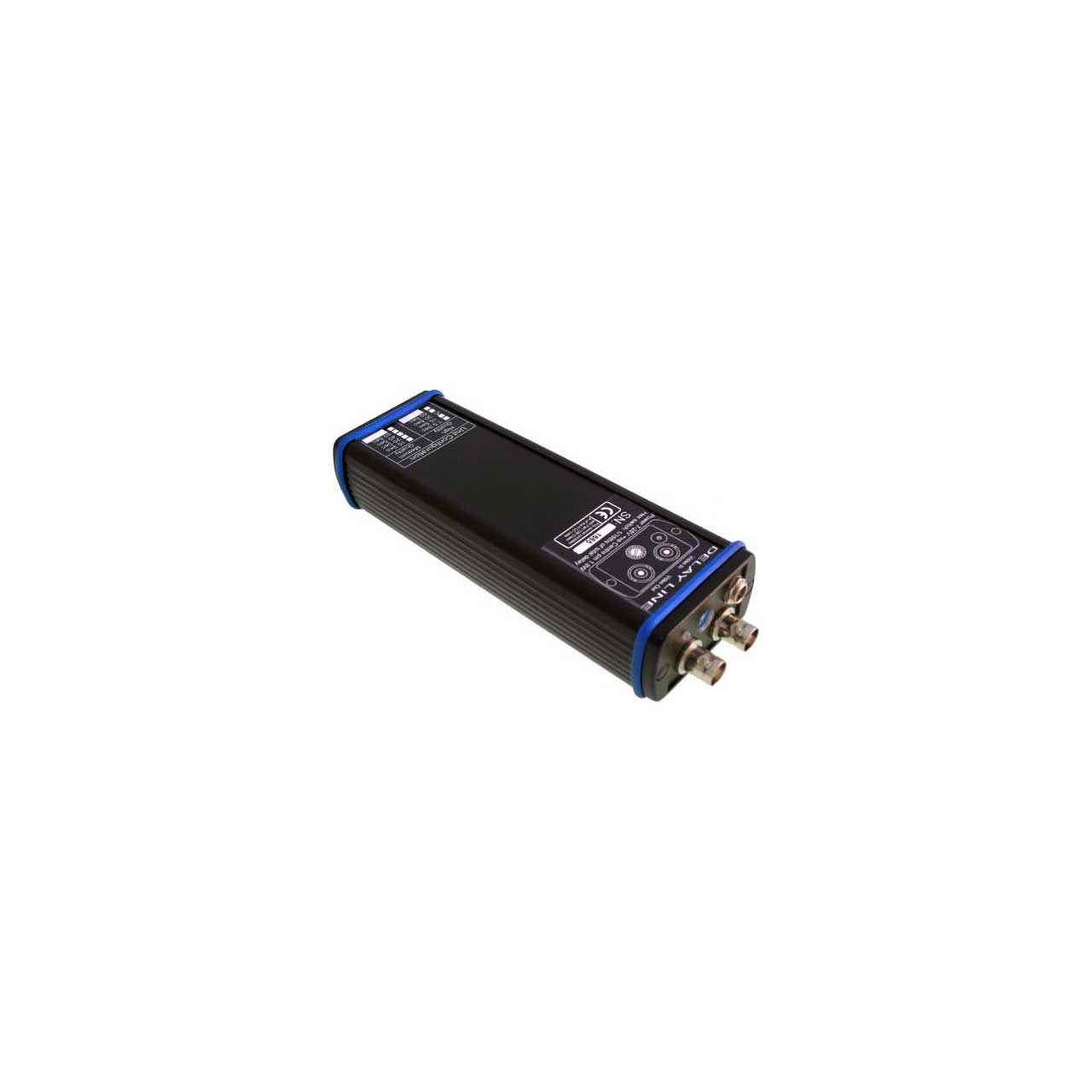

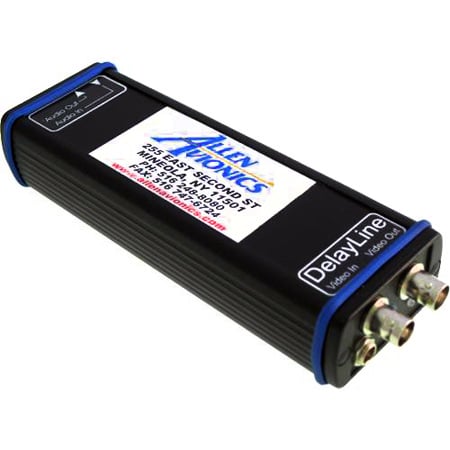

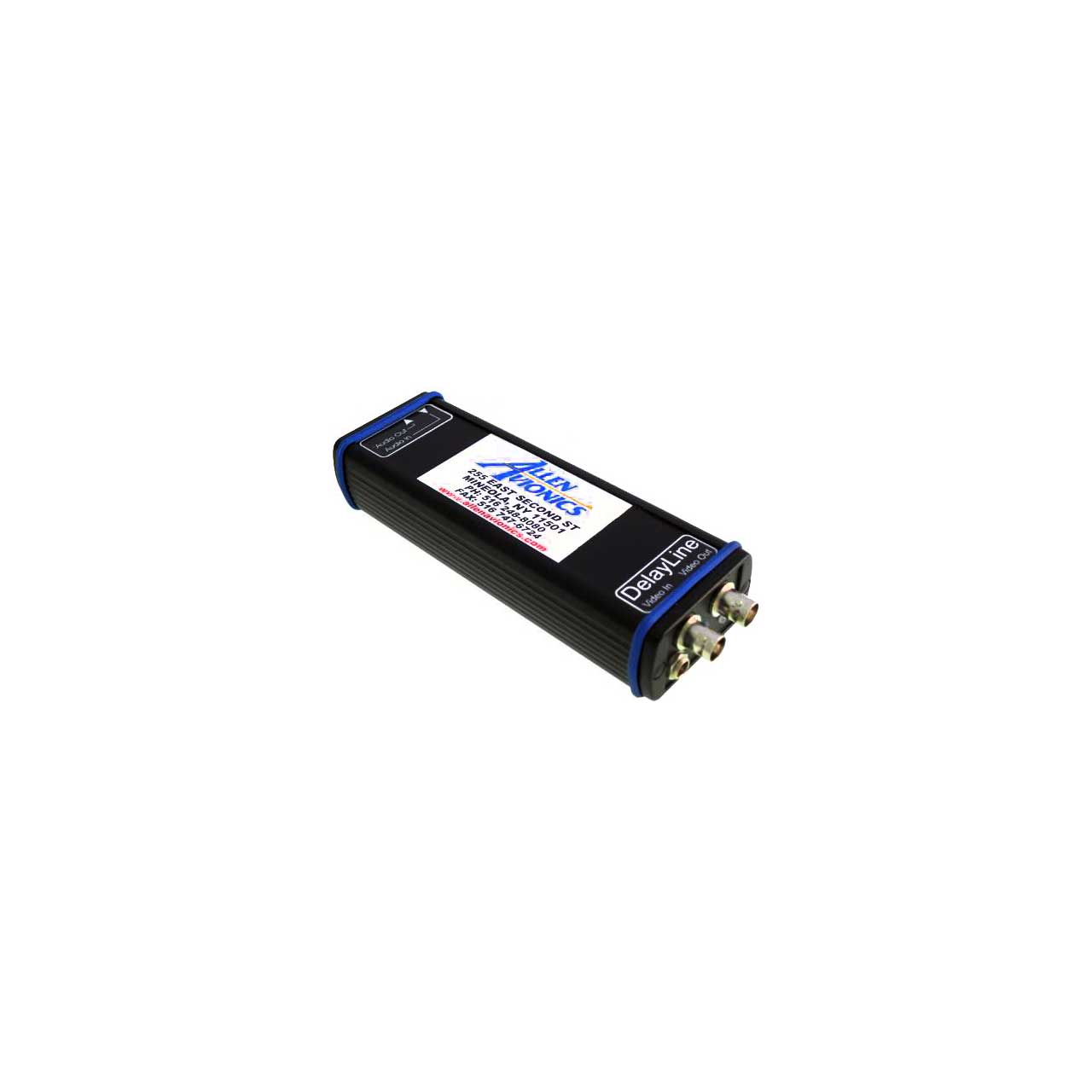

Allen Avionics DLS-5117-15s Video Delay System 16 Step Delay of 0.94ms - 15 Second

Name: Allen Avionics DLS-5117-15s Video Delay System 16 Step Delay of 0.94ms - 15 Second
Brand: Allen Avionics
SKU: AAV-DLS-5117-15S
Price: 1153.00 USD
Availability: PreSale

ITEM #: AAV-DLS-5117-15S MFG #: DLS-5117-15S

Allen Avionics

Our Price:

$1,153.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

DLS-5117-15S - Overview

The Allen Avionics DLS-5117-15S is a simple and cost-effective Video Delay Line for applications requiring long video delays. The DelaySystem can be used in any applications where constantly rewriting video storage is required. Example applications include any video storing/delay requirement, synchronizing video and audio feeds in a studio, at sporting events, and for the action replay of any live video feed.

Specifications:
- Input: Composite Video, @ 75 ohms, PAL and NTSC, on a BNC connector
- Output: Composite Video, @ 75 ohms, PAL and NTSC, on a BNC connector
- Delay Range: 0 to 15 Second; 16 Increments of 0.94 Milliseconds
- Control: 16-Way Hex Switch
- Power Source: 7-32VDC from Separate Power Source
- Dimensions (WxDxH): 1.26 inch x 2.28 inch x 6.6 inch (32 x 58 x 168mm)
- Weight: 7.9 oz (225g)
