Kramer 1x4 Composite Video Differential Line Amplifier with Level and EQ Control

Name: Kramer 1x4 Composite Video Differential Line Amplifier with Level and EQ Control
Brand: Kramer
SKU: KR-104LN
Price: 144.00 USD
Availability: PreSale

ITEM #: KR-104LN MFG #: 104LN

Kramer

List Price:

$180.00

Our Price:

$144.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

104LN - Overview

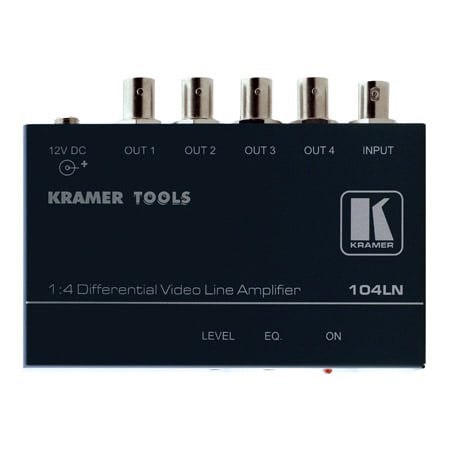

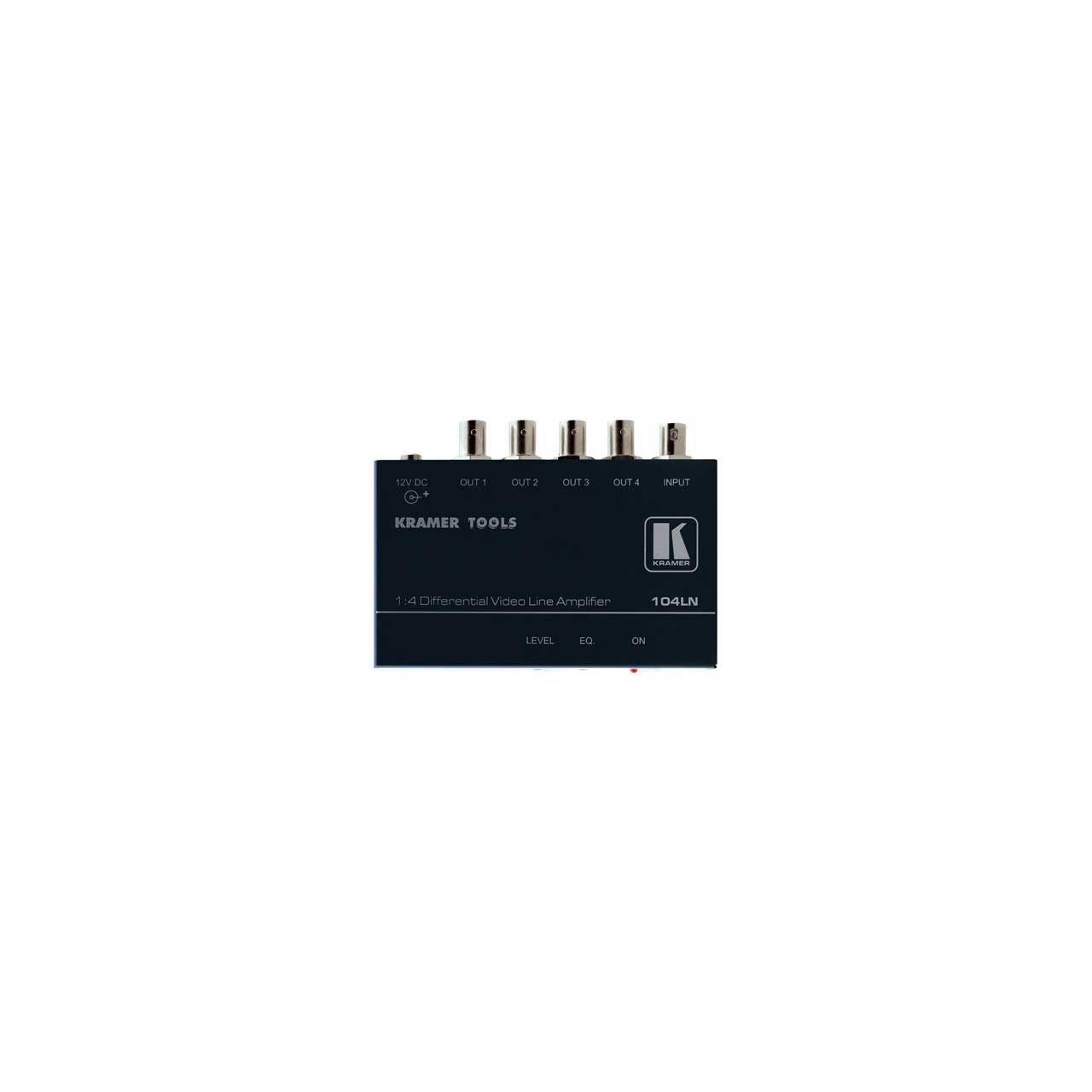

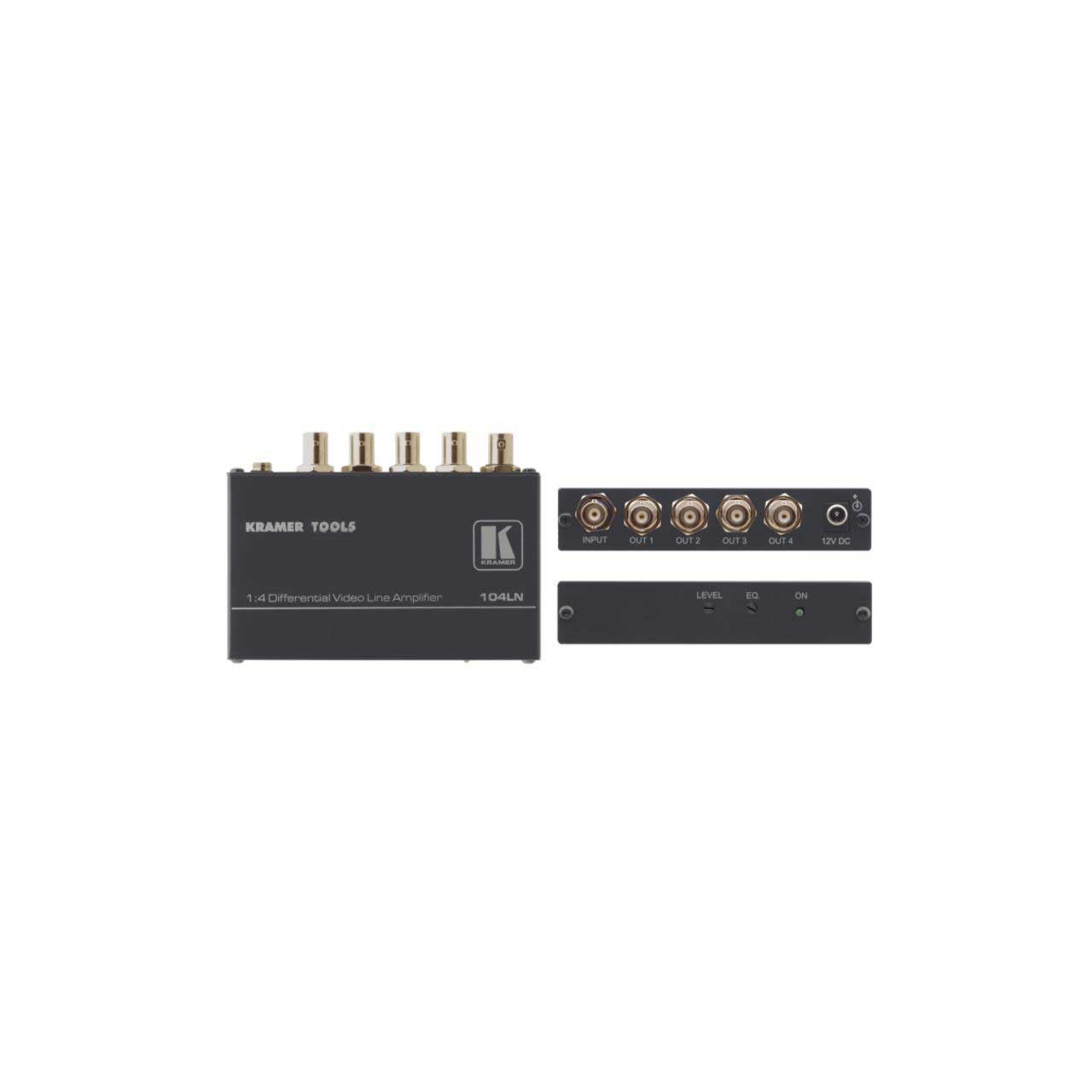

The Kramer 104LN is a high-performance line amplifier for composite or SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run.

Perfect for:

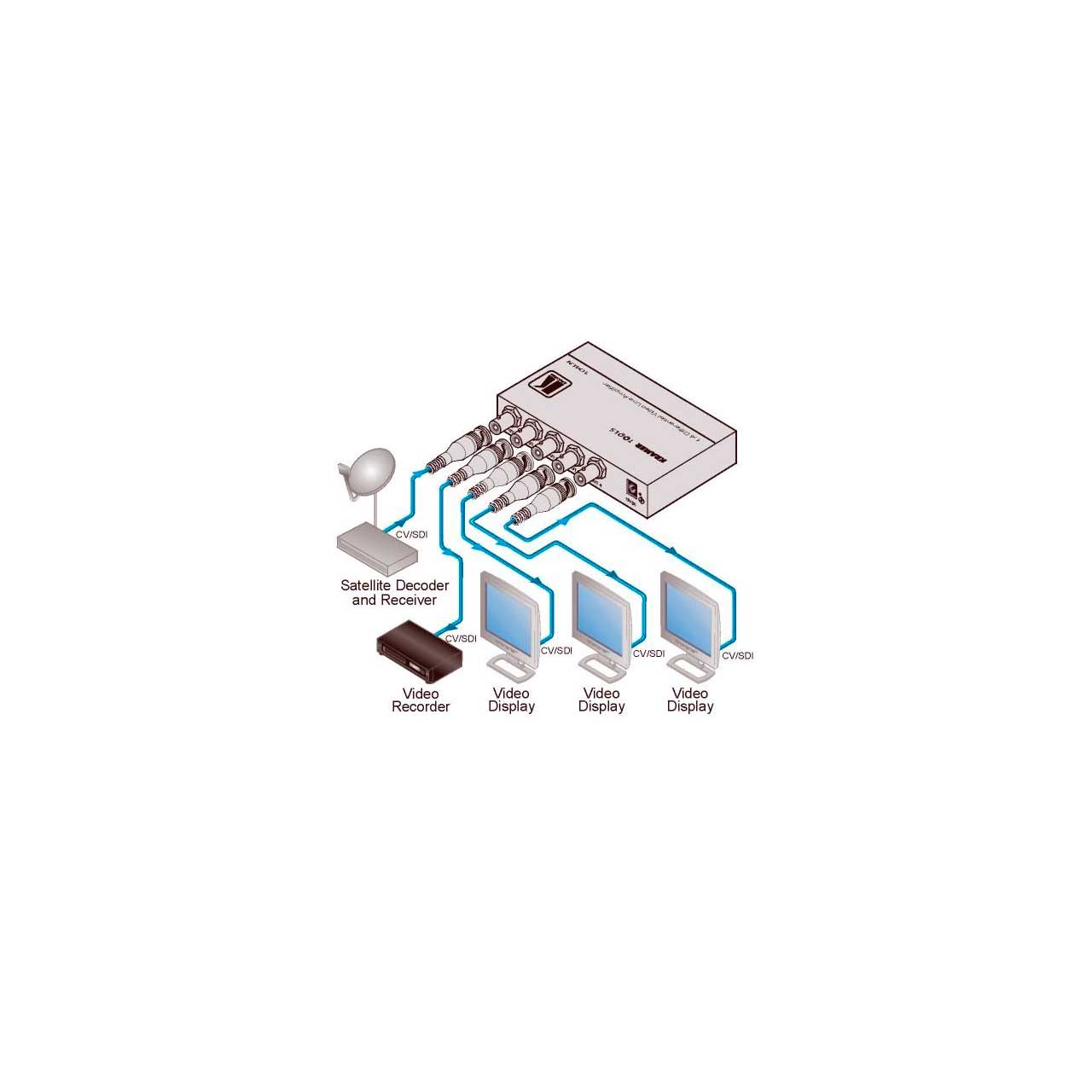

Any system requiring a compact distribution amplifier and line driver.
Auditoriums, churches, schools, home theater systems.
Rental and staging applications.

Features:
- High Bandwidth - 423MHz (-3dB).
- Differential Circuitry - Reduces noise & hum found in long cable runs.
- Level (Gain) and EQ (Peaking) Controls.
- Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
Specifications:
- INPUT
- 1 composite/SDI video, differential, 1Vpp/75Ω on a BNC connector

  OUTPUTS
- 4 composite/SDI video, 1Vpp/75Ω on BNC connectors

  MAX. OUTPUT LEVEL
- 1.6Vpp

  BANDWIDTH (-3DB)
- 423MHz

  DIFF. GAIN
- 0.22%

  DIFF. PHASE
- 0.1Deg

  K-FACTOR
- <0.05%

  S/N RATIO
- 73.3dB

  CONTROL
- Level: - 1.3 to 6dB
- EQ. 0 to 10.2dB

  COUPLING
- DC

  POWER CONSUMPTION
- 12V DC, 95mA
Item Includes:
- 104LN Amp
- Power supply
- Mounting bracket
Warranty:
- Limited 7 Year Warranty
GTIN:
7290012307089
