Gra-Vue MVIO-Delay Half 1 RU Chassis HD/SD-SDI Delay

ITEM #: GFE-VDELAYHD20SS MFG #: VIO DELAY-HD-20S-S

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Gra-Vue Co., Ltd.
Free Shipping with $49 Minimum Order

List Price:

$3,148.95

Our Price:

$2,975.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VIO DELAY-HD-20S-S - Overview

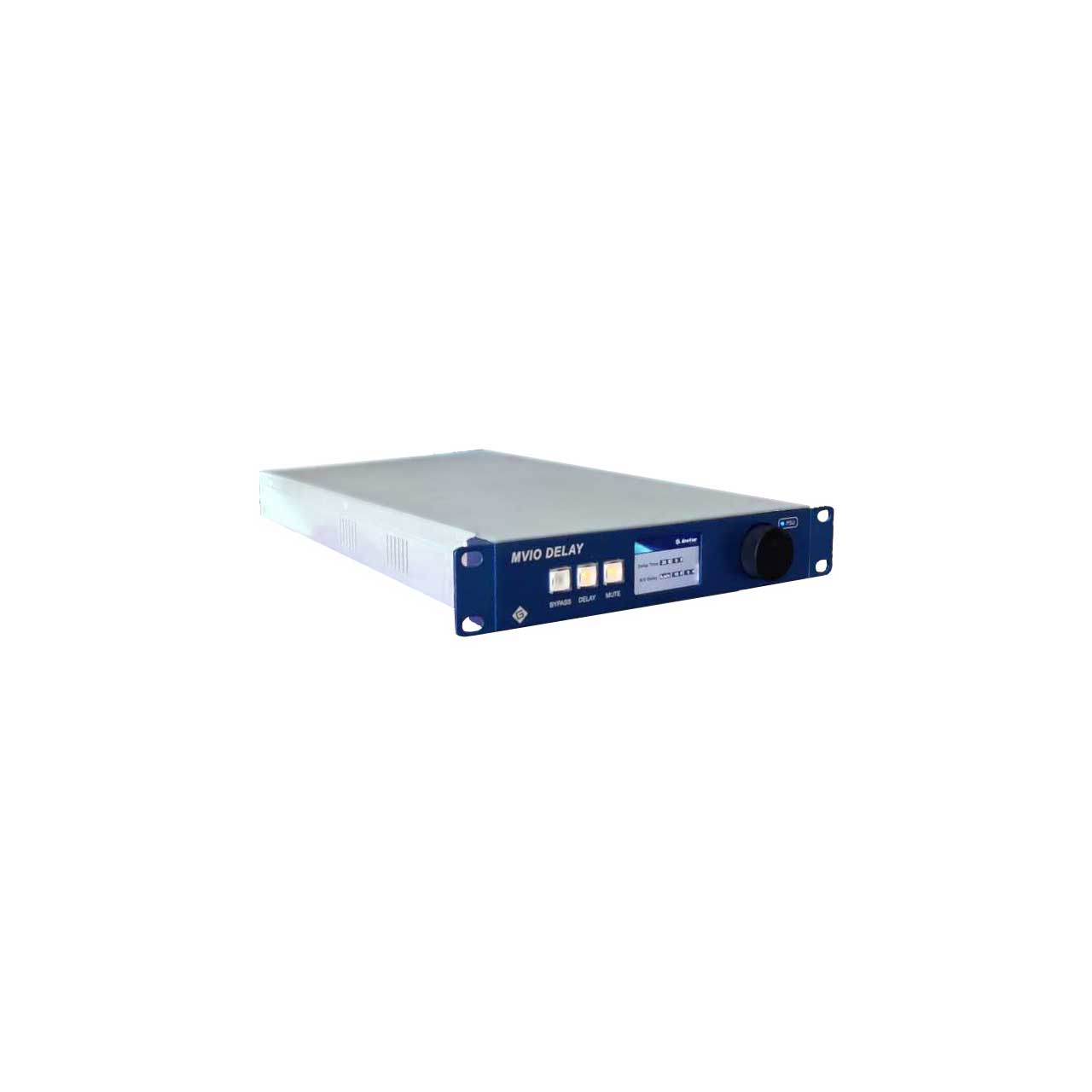

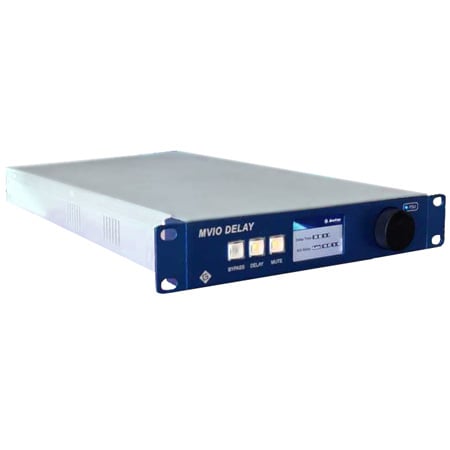

The Gra-Vue MVIO-Delay is a super effective video and audio delay for HD or SD signals housed in a rugged 1U half rack chassis. The MVIO delay-HD20s supports a self-adaptive HD/SD input signal. The delay time is up to 20 seconds and minimum is frame.

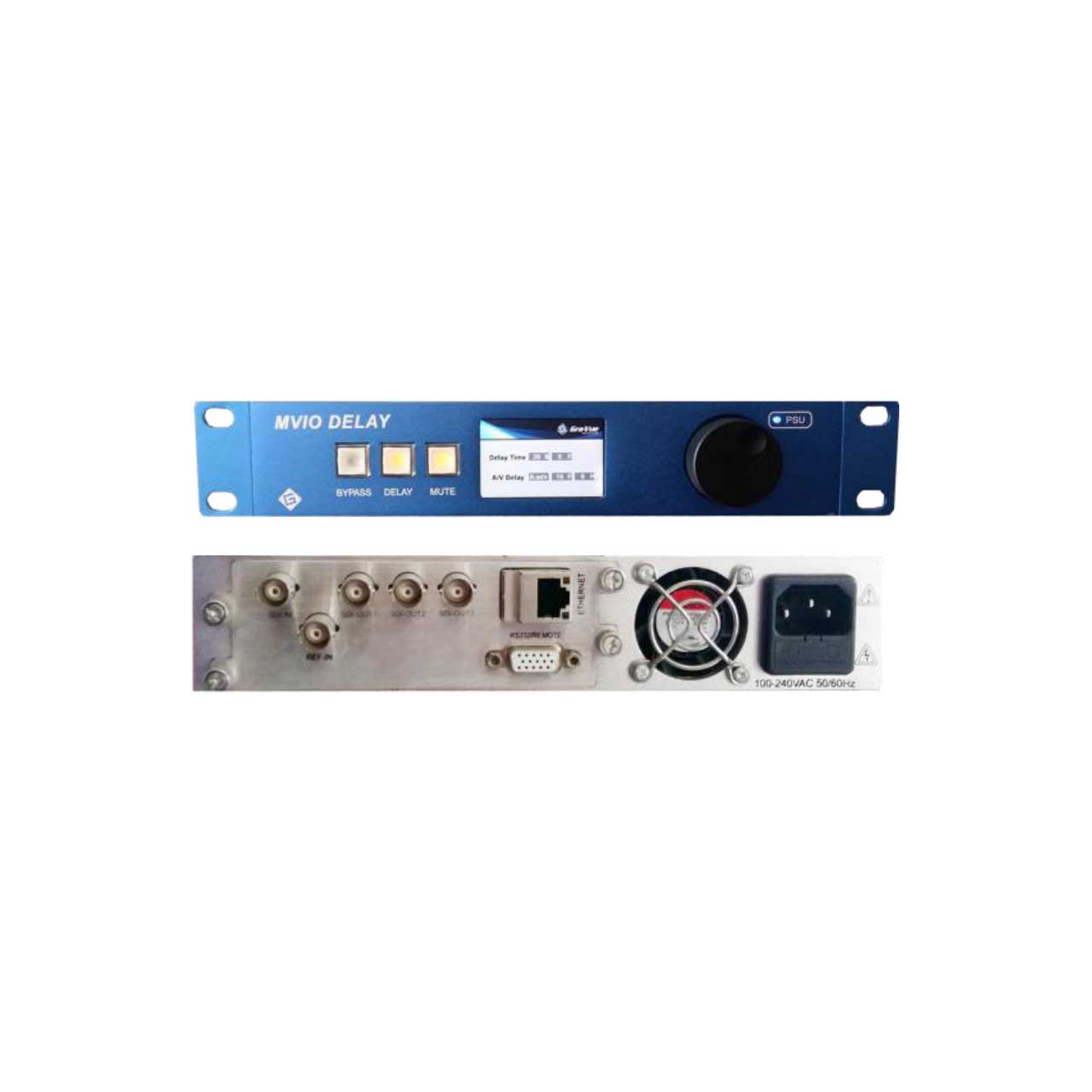

The Gra-Vue MVIO-Delay has built-in frame synchronization and supporting H-phase adjustment. It also supports lip sync adjust with an adjustment range of ±15 frames. The front is configured with three buttons ,delay, bypass and mute. Through the wheel the user can easy see and easily adjust working parameters. With the built-in webserver you can also remote control and adjust via web page

  • Features:

    • 1U half chassis structure, compact, easy to install.
      Support self-adaptive HD/SD input signal, the delay time is up to 20 second, minimum is 1 frame.
      Built-in frame synchronization, support H phase adjustment.
      Support relative delay of video/audio (lip sync), adjustment range is ±15 frames.
      Supply delay/bypass/mute control button
      Build-in Web server, user can remote control via web page easily
      High cost performance.


  • Specifications:

    • Digital Video Input
    • Input interface 1-SD/HDSDI, 75 ohm BNC
    • FormatsSD-SDI 625i50/525i59.94,SMPTE 259M-C 270Mb/s HD-SDI 720p50,720p59.94,720p60',1080p25,1080p29.97,1080p30, 1080i50,1080i59.94,1080i60 SMPTE 292M 1.485Gbps
    • Maximum cable length SD greater than 150M (Belden1694A), HD greater than100M (Belden1694A)
    • Reference Input Signal type PAL/NTSC/Tri-level Input interface 1 BNC Impedance 75 Ohm
    • Digital Video Output Output interface 3 SD/HDSDI, 75 Ohm, BNC
    • Format SMPTE 292M; 1.485Gbps ,SMPTE 259M-C; 270Mb/s
    • Control interface Interface type 1-RS232,1-Rj45 10/100/1000Mbit/s
    • Equipment Consumption 60W
    • Size 220mmx430mmx44mm (8.66 inches x16.92 inches x1.75 inches)
