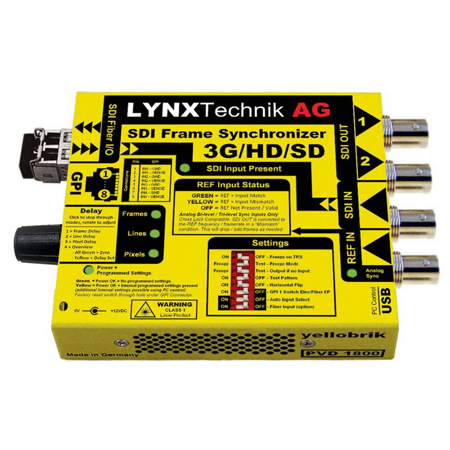

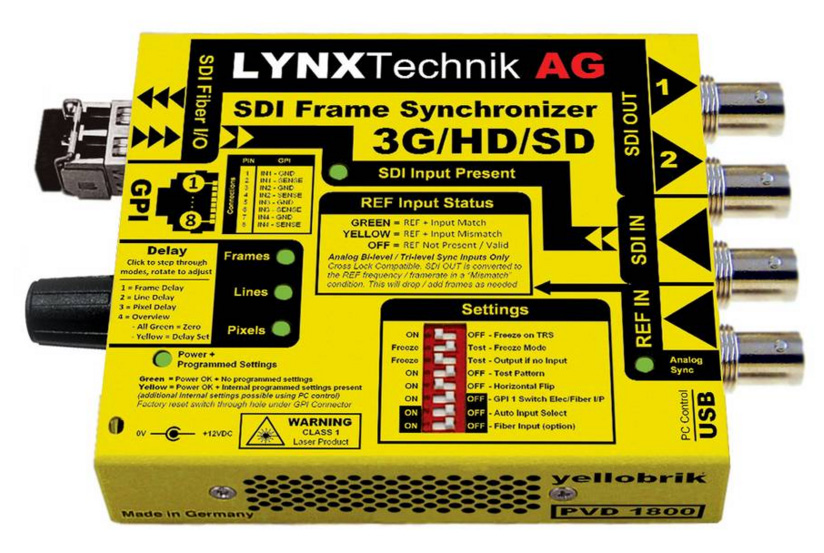

LYNX Technik PVD 1800 SD/HD/3G SDI Frame Synchronizer - Optional Fiber I/O (Not Included)

PVD 1800 - Overview

• Features:

  • Supports SDI 3G (level A+B)/HD/SD formats (auto-detect)
  • Up/Down/Cross Converter with selectable fast scale mode
  • Converter automated by AFD, WSS or VI mode
  • Region of Interest scaler
  • Converts between 3G Level A and B Dual Link or vice versa
  • Optional fiber I/O
  • Auto changeover or GPI switch between electrical and optical input
  • Robust "flywheel" synchronization for problematic sources
  • "Cross lock" compatible reference input
  • All 16 channels of audio de-embedded from SDI input
  • Audio delayed to match video processing delay and re-embedded
  • Integrated test pattern generator
  • Up to 30 frames of programmable delay (for timing)


• Specifications:

  • SDI Input
  • 1x 75Ω BNC electrical SDI input + 1x optional fiber SDI input
  • Serial digital video SMPTE, 292M, 424M, 259M with automatic video
  • format and standard detection
  • SMPTE 424M, SMPTE 292M, SMPTE 259M
  • 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 with image formats
  • 1280 x 720 and 1920 x 1080
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

    SDI Outputs
  • 2x 75 Ohm BNC electrical SDI outputs. SMPTE, 292M, 424M, 259M
  • 1x optional fiber SDI output
  • SDI output follows input format
  • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
  • Timing Jitter: <0.2 UI @ 270Mbit/s, <1.0 UI @ 1.5Gbit/s, <2.0 UI @ 3Gbit/s
  • Alignment Jitter: <0.2 UI @ 270Mbit/s, <0.2 UI @ 1.5Gbit/s, <0.3 UI @ 3Gbit/s
  • Automatic cable EQ (Belden 1694A cable)
  • 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 110m @ 3Gbit/s

    Fiber I/O
  • Optional plug in SFP for optical SDI I/O (see fiber options table)
  • SMPTE 297M - 2006

    Reference Input
  • SDTV: Analog 525 or 625 bi-level sync
  • HDTV: All tri-level sync standards (exceptions 1080p 50/59.94/60Hz)
  • Cross lock compatible
  • SMPTE 274M, SMPTE 296M - 75Ω BNC connector

    Video Delay
  • Timing Adjustment: Up to 30 frames.
  • Manually Adjustable In Frame/Line/Pixel Increments

    GPI
  • Connector: RJ45 with 4x External GPI inputs:
  • GPI 1: used for Electrical/Optical SDI changeover
  • GPI 2: used to "freeze" the SDI output
  • GPI 3: (low) enable "latch" mode
  • GPI 4: (low) disables "latch" mode
  • USB Mini "Type B" connection used for yelloGUI PC control and firmware updates

    Physical
  • Power: +12VDC @ 5.8W nominal (without SFP) (supports 7 - 24VDC input range)
  • Size: 5.43" x 3.54" x 0.86" (138mm x 90mm x 22mm) including connectors
  • Weight: 8.11oz (230g)
  • Ambient: 41° - 104°F, 90% Humidity (non condensing)


• Item Includes:

  • Module
  • AC power supply
  • USB cable


• Warranty:

  • 3 Years


• GTIN:

  4250479324596
