AJA Hi5 HD-SDI/SDI to HDMI Video and Audio Converter - B-Stock (Cosmetic Damage/No EU Adapters)

ITEM #: AJA-HI5-BSTK MFG #: AJA-HI5-BSTK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-HI5-BSTK

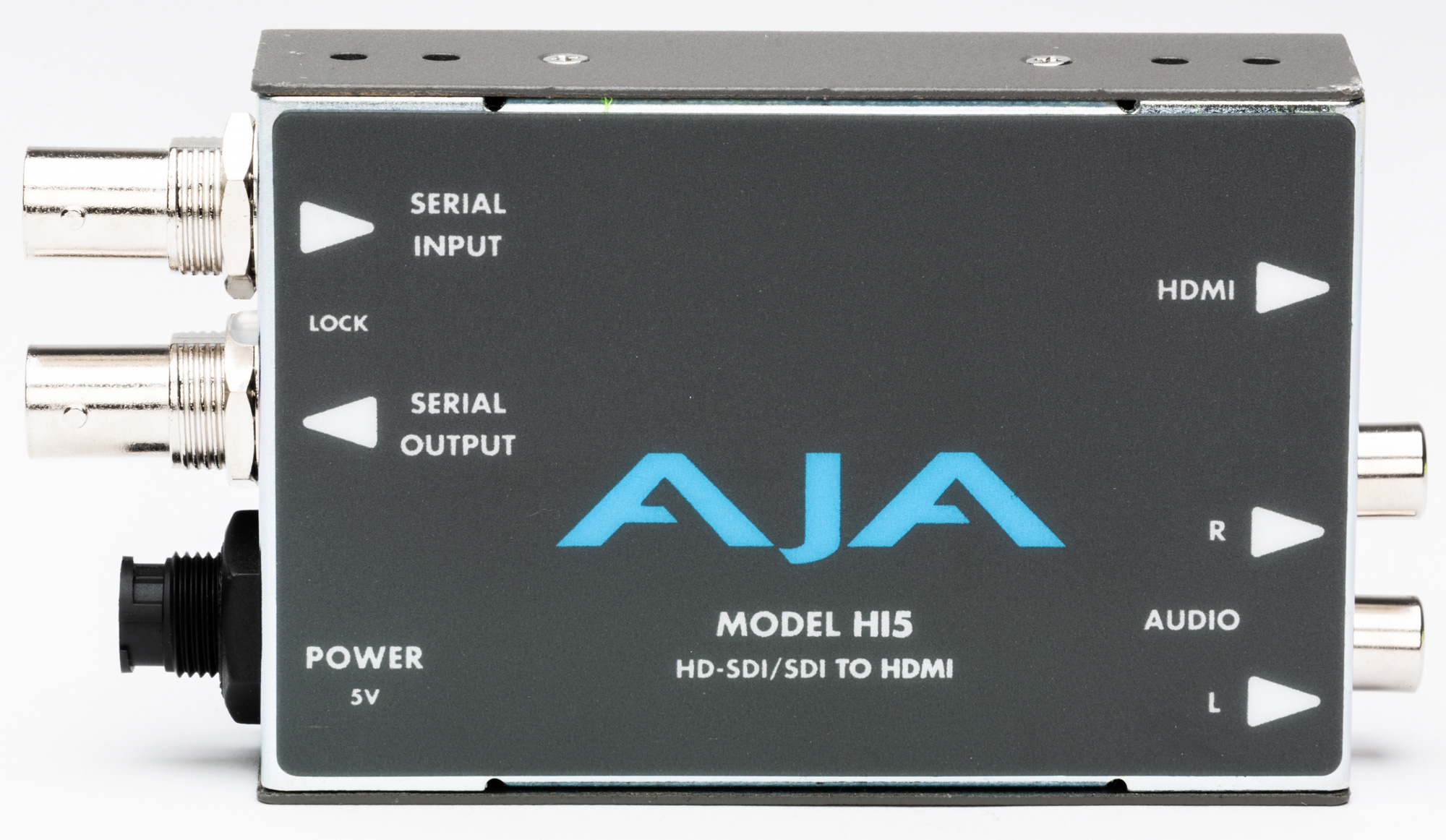

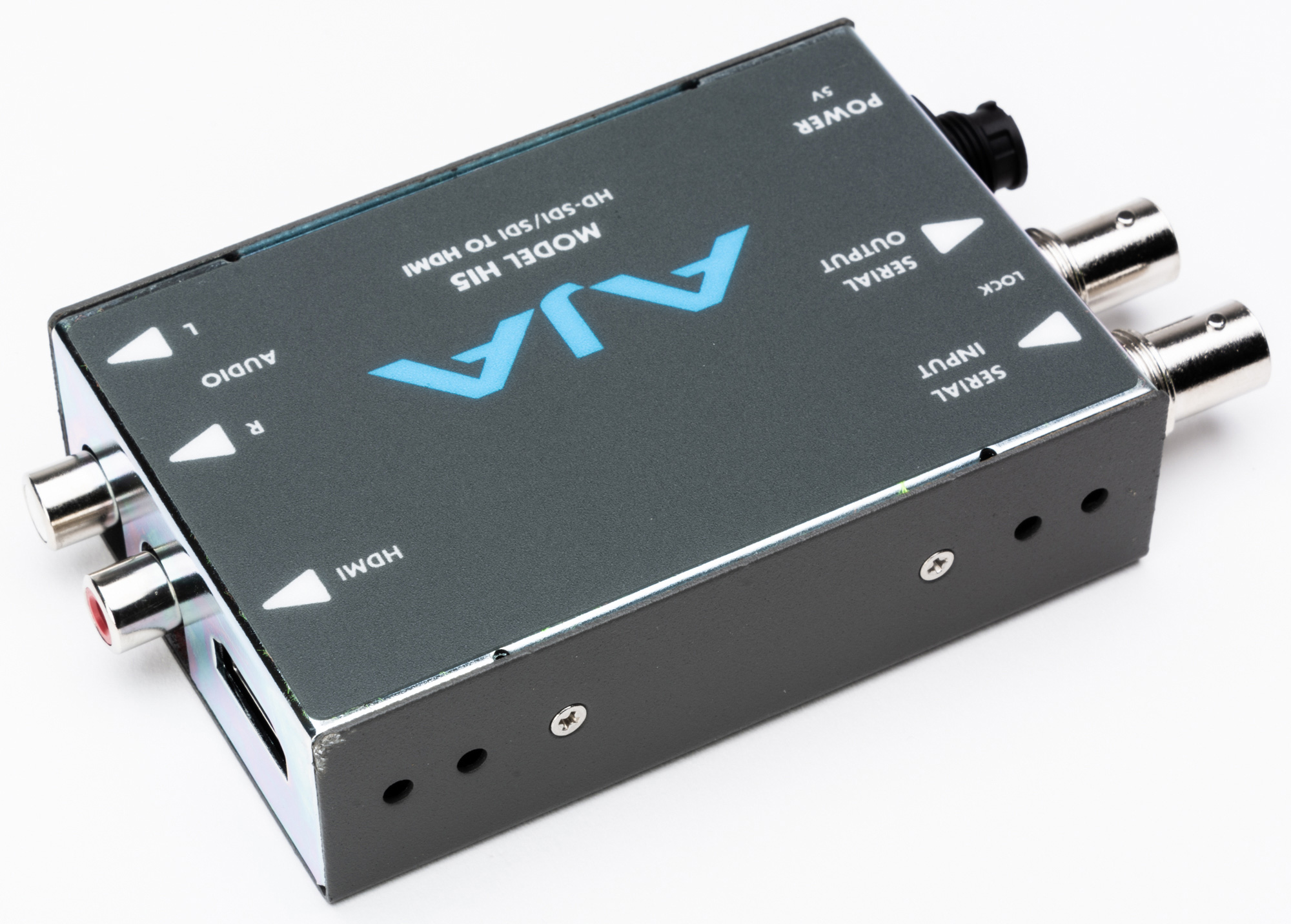

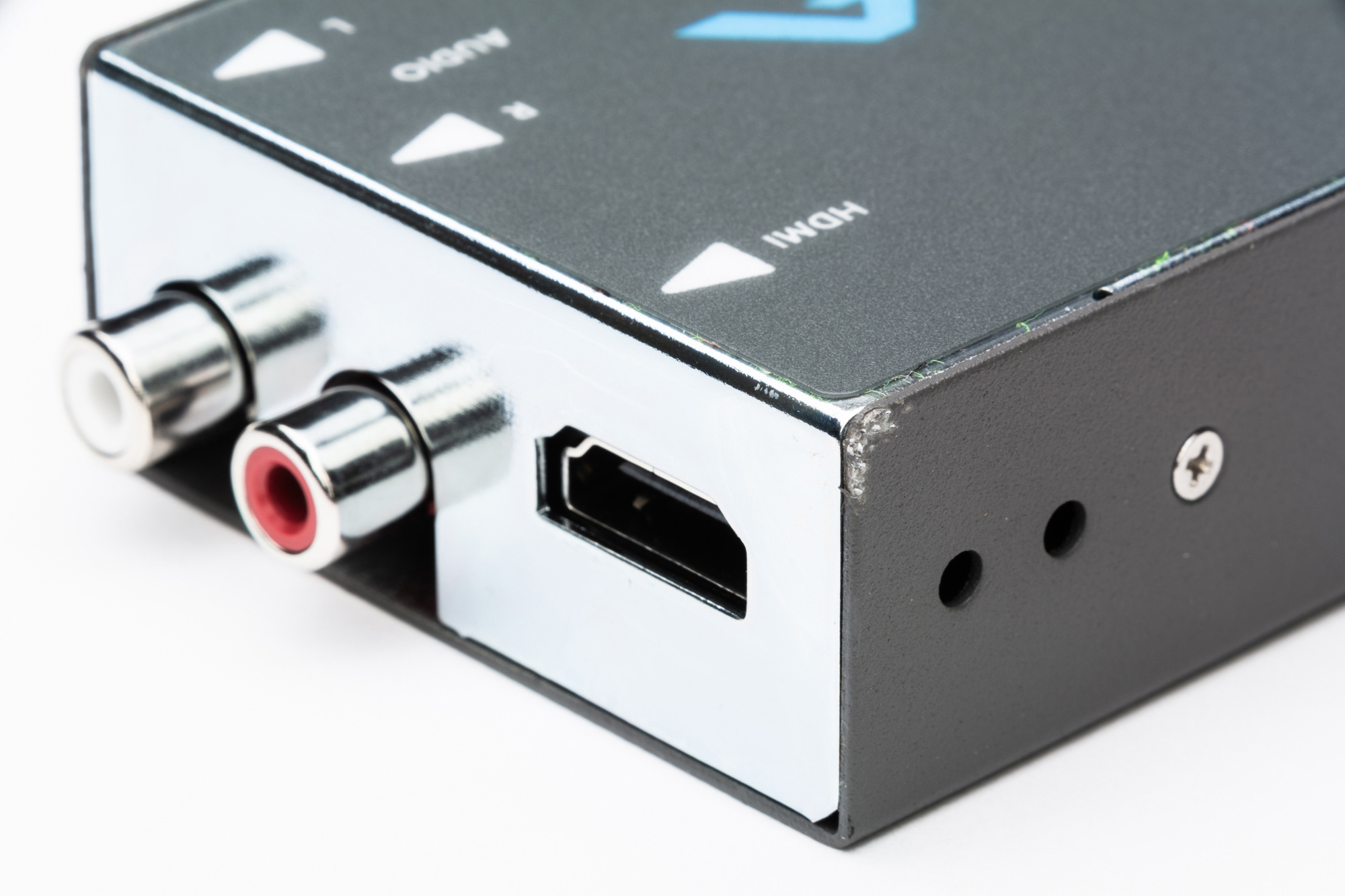

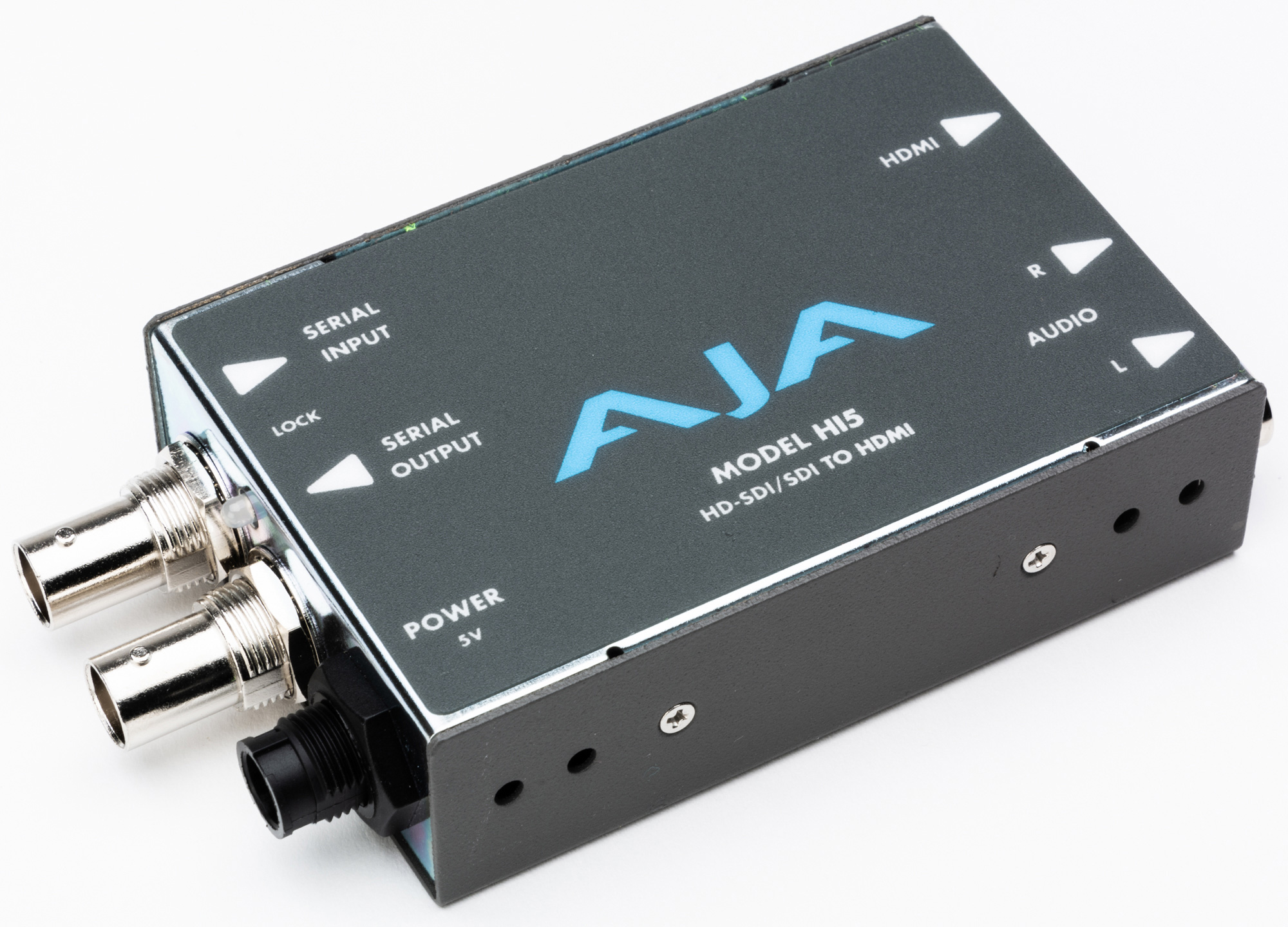

AJA-HI5-BSTK - Overview

The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SDI/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SDI-HD-SDI source.

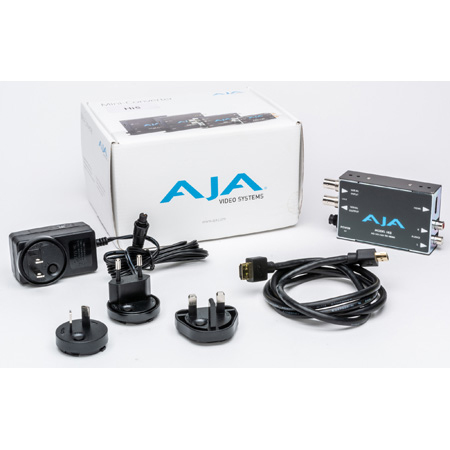

Includes Power Supply & HDMI cable.

Note: This is a Bstock item. It is fully functional, but has cosmetic damage.

  • Features:

    • SDI/HD-SDI to HDMI
    • Full HDMI support including embedded audio
    • Additional 2 Channel RCA jack audio output
    • Equalized looping SDI/HD-SDI output
    • HDMI cable included
    • Note: This is a Bstock item. It is fully functional, but has cosmetic damage.


  • Specifications:

    • Input
    • SMPTE-259/292/296 SDI/HD-SDI, 1 x BNC

      Input Formats
    • 525i, 625i
    • 720p 50/59.94/60
    • 1080i 50/59.94/60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30

      Outputs
    • HDMI with embedded audio
    • Audio, 2 channel RCA-style
    • 1 equalized looping SDI/HD-SDI output, 1 BNC

      Power
    • 5VDC Regulated, 3 Watts

      Size
    • 4.6" x 2.4" x 1" (117 x 61 x 25mm)


  • Item Includes:

    • Power Supply Included


  • GTIN:

    0892448000380
