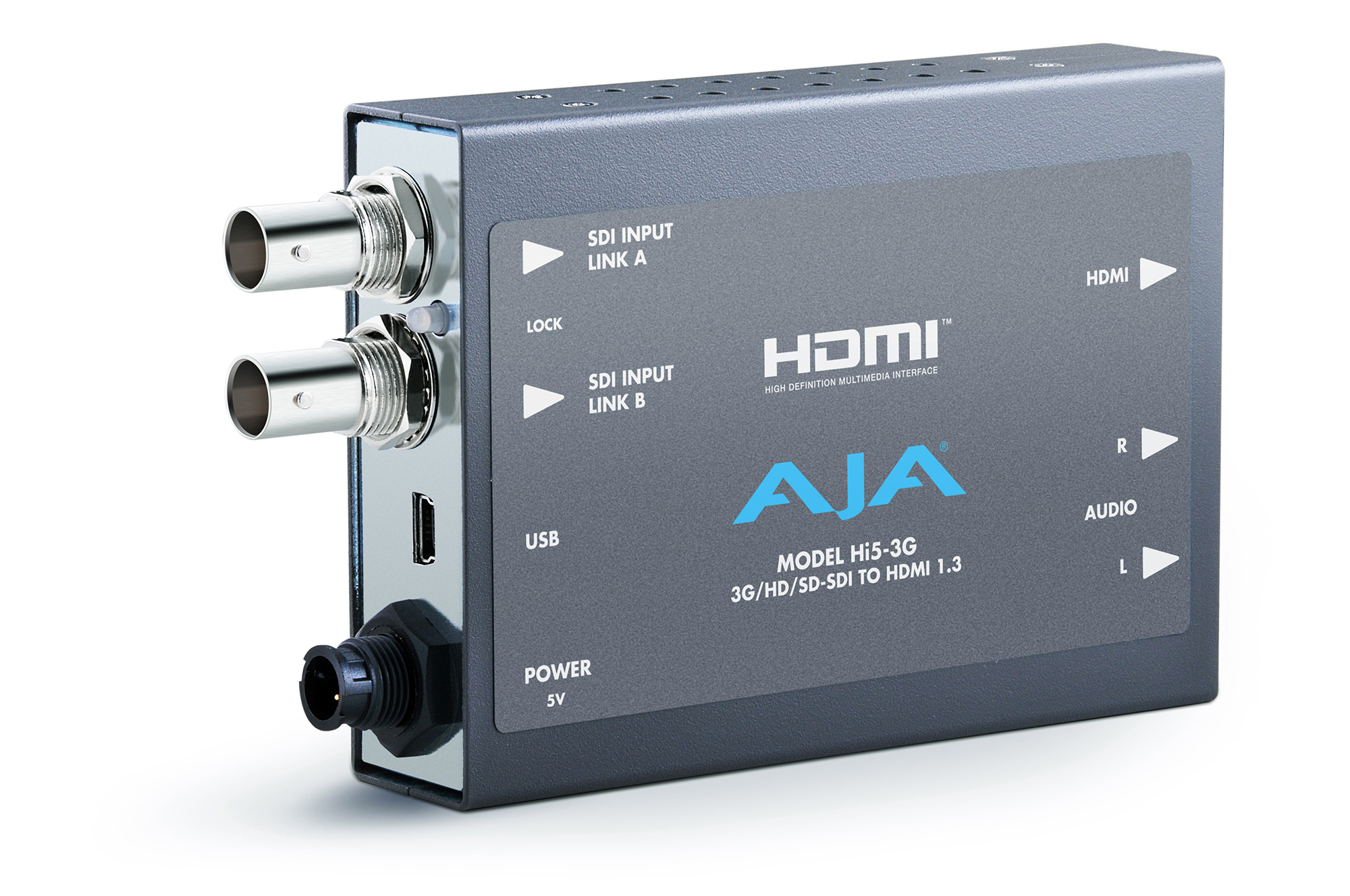

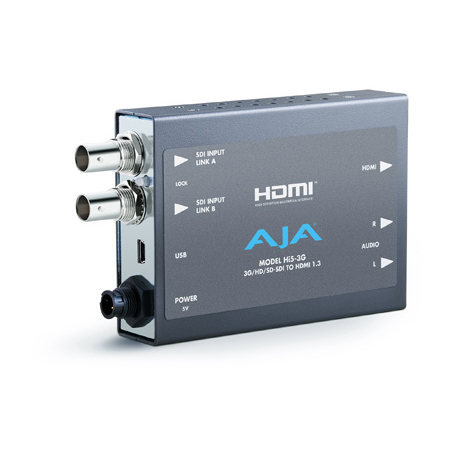

AJA Hi5-3G 3G/Dual-link/HD/SD-SDI to HDMI Video & Audio Converter

ITEM #: AJA-HI53G MFG #: HI5 3G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-HI53G

HI5 3G - Overview

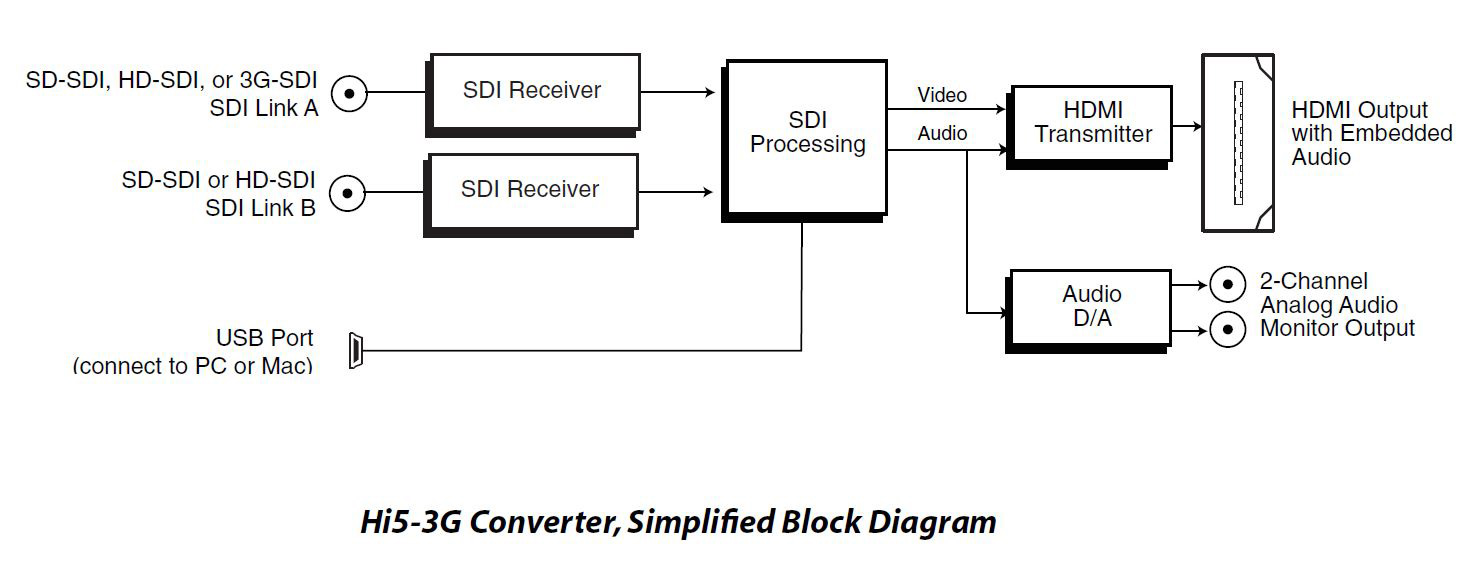

The Hi5-3G converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows full support of the latest 10 bit monitors. Audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5-3G provides 2 Channel RCA style audio outputs for separate audio monitoring if needed. USB connectivity allows for easy PC/Mac setup and field upgrades.

  • Features:

    • 3G/HD/SD-SDI to HDMI
    • SMPTE425M-AB input
    • Full HDMI 1.3a support including: - Deep Color 30- and 36-bit video per pixel (24-bit also supported) - 2 or 8 channels of embedded audio
    • Additional 2-channel RCA analog audio output (User assignable channels)
    • Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
    • 1m HDMI cable supplied
    • Uses 5-20V power supply (included with purchase)
    • Five year warranty


  • Specifications:

    • Video Formats
    • (HD) 1080i 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.9, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i
    • (SD) 525i
    • YCbCr/RGB/XYZ 10 or 12-bit

      Video Inputs
    • 3G, HD, and SD-SDI (auto selected)
    • SMPTE-259/274/292/296/372/424/425
    • 2x BNC

      Video Outputs
    • HDMI v1.3a, 30/36 bits per pixel
    • RGB or YUV
    • SD, HD
    • (HD) 1080i 50, 59.94, 60
    • (HD) 1080p 23.98, 24, 25, 29.9, 30, 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i
    • (SD) 525i
    • HDMI Standard Type A connector

      Audio Outputs
    • HDMI embedded audio
    • 24-bit, 2 or 8-Channels
    • 2-Channel RCA style analog outputs at -10dBu (nominal)
    • User assignable channels

      Size (w x d x h)
    • 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

      Power
    • +5VDC Regulated, 3 Watts, power supply required, included with purchase

      Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)


  • GTIN:

    0812321030372
