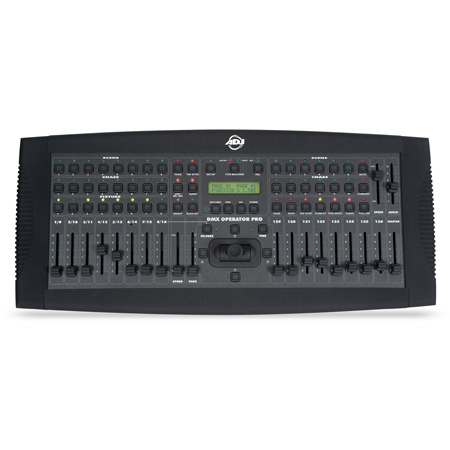

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMDJ-DMXOPTRPRO

DMX OPERATOR PRO - Overview

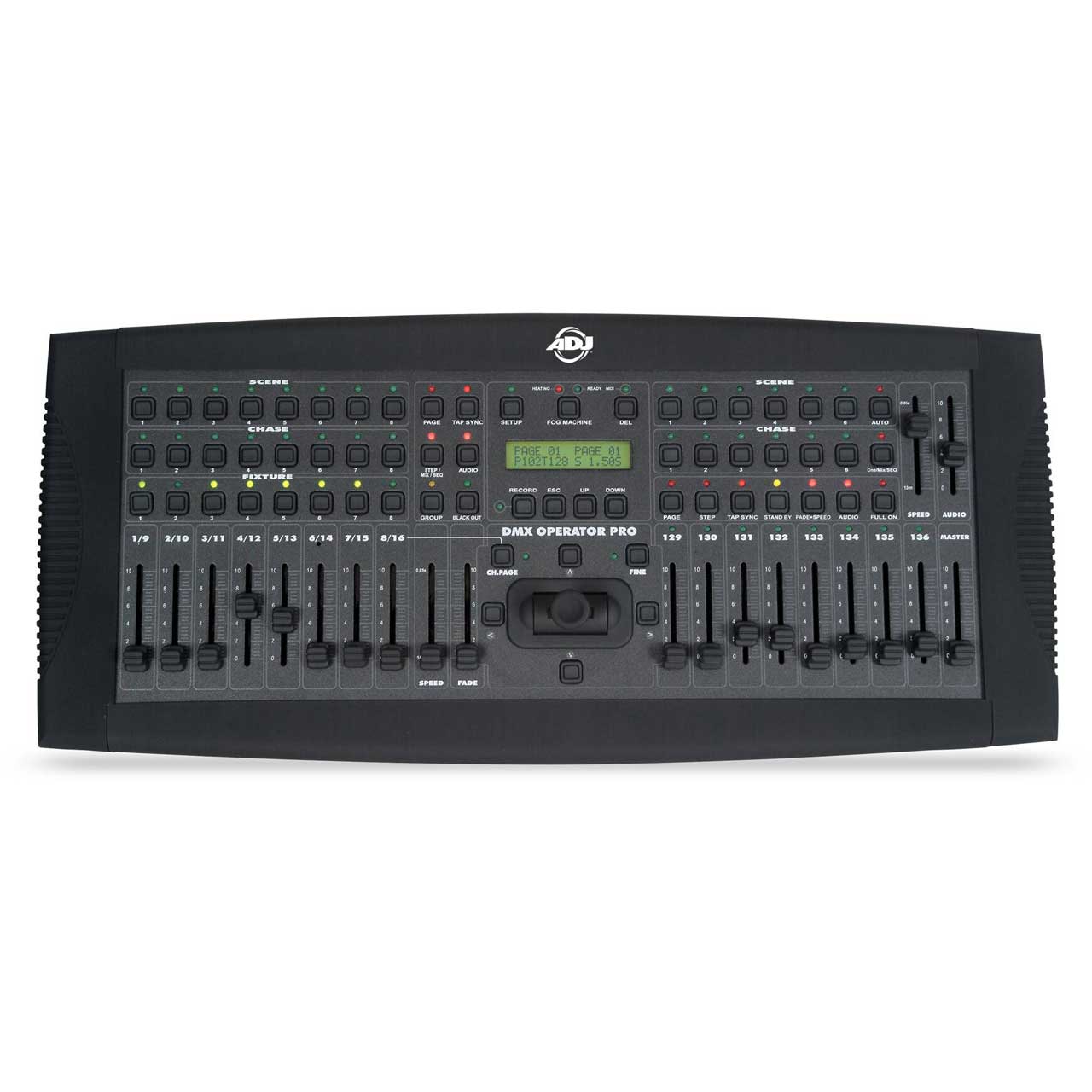

ADJ's DMX Operator Pro is a 136 channel hybrid lighting control device designed for DJ's, clubs and small touring applications. This controller allows operators to easily manipulate conventional and moving lights via simple to use buttons and faders. The DMX Operator Pro puts programming, playback and live manipulation of Scenes and Chases at your fingertips

The DMX Operator Pro can control up to 8 moving lights, each consisting up to 16 channels- max 128 channels. Up to 96 programmable Scenes and 8 programmable Chases can be recorded for the moving light section. Other features include a Tap Sync button for manual Chase override, Step/Mix/Sequence button for Chase playback, Audio button for music trigger (via internal microphone or line level input), Group button to control more than 1 fixture at a time and four speed and fade faders for manual override of Chases.

  • Features:

    • 8 individual channels
    • 96 programmable scenes
    • 6 programmable chases with fade and speed control
    • Back-up memory using a 32 MB Compact Flash Card
    • Fog Machine trigger button
    • DMX Patching
    • Tap Sync
    • Fixture Group function
    • Step/Mix Sequence function: automatically sequences your chases

  • Specifications:

    • Power Input: DC 9~15V, 600 mA min.
    • LCD: 2+16 characters
    • Audio Trigger: Built-in microphone or line in
    • DMX Output: 3 PIN female DMX connector
    • Dimensions: 7" (L) + 3.15" (H) + 19" (W)
    • Weight: 14 lbs.
    • REAR PANEL
    • POWER ON / OFF :The Power switch is used to turn the console ON and OFF.
    • DC INPUT :DC 9 ~15V, 500mA min. Power Supply (Included).
    • AUDIO LINE INPUT :0.1V~1Vp-p. RCA line level input.
    • DMX polarity select: Use this switch to select desired DMX polarity (2-,3+ / 2+,3-).
    • DMX OUT :3 pin XLR output to send DMX data to fixtures.
    • MIDI IN :This input receives MIDI information from a MIDI device.
    • FOG MACHINE INPUT : Connect a compatible fog machine for on board monitoring and triggering.
    • CF CARD socket:The CF card socket is for our optional compact flash card used to store and exchange information. The model number for the optional CF card is "32MB/CARD". (It is only available through Elation Professional).
    • EXT STEP CONTROL INPUT :This input is for an optional external foot controller.

  • Item Includes:

    • 1x DMX Operator Pro
    • 1x Power Cable

  • Warranty:

    • 2 Year Warranty

  • GTIN:

    0819730011992
