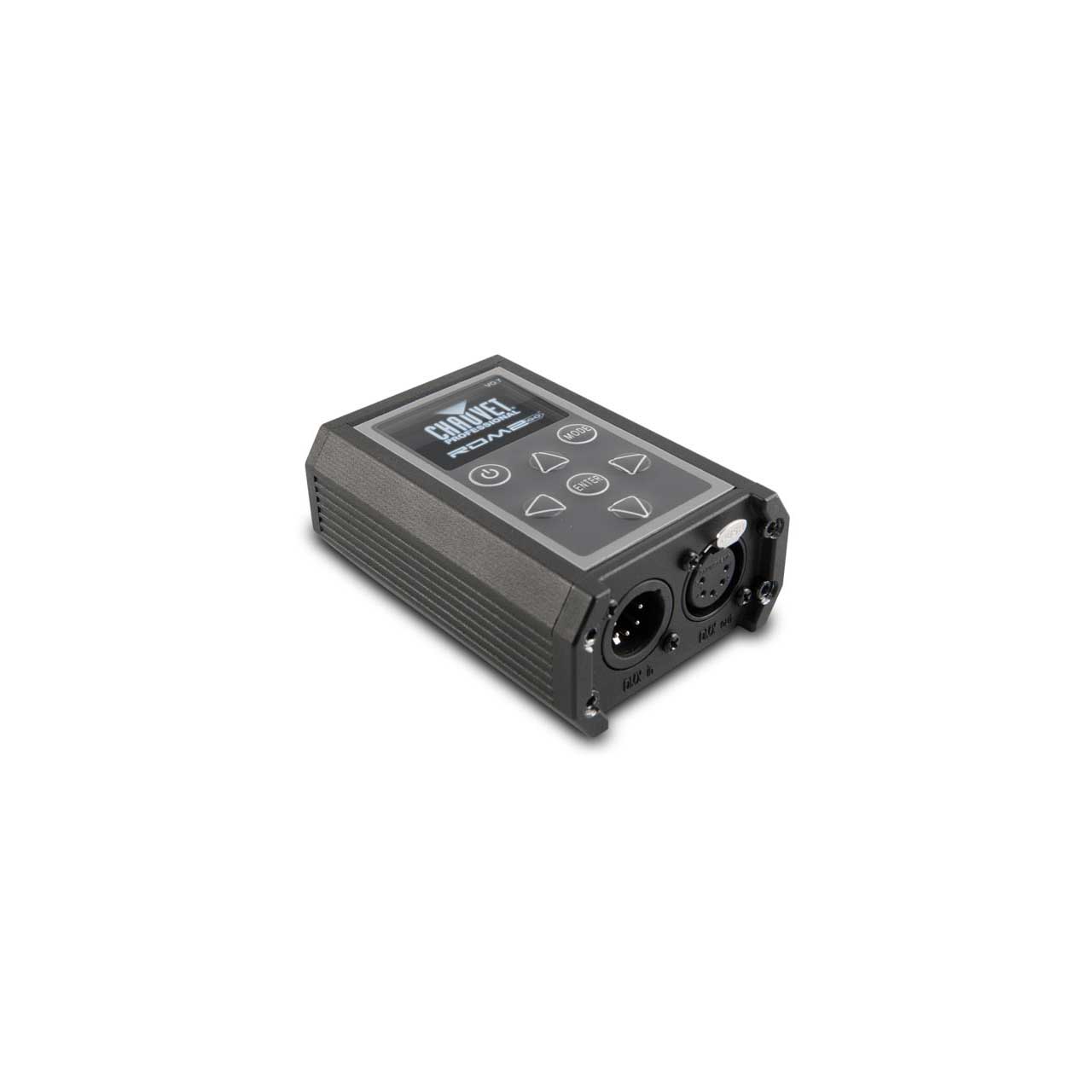

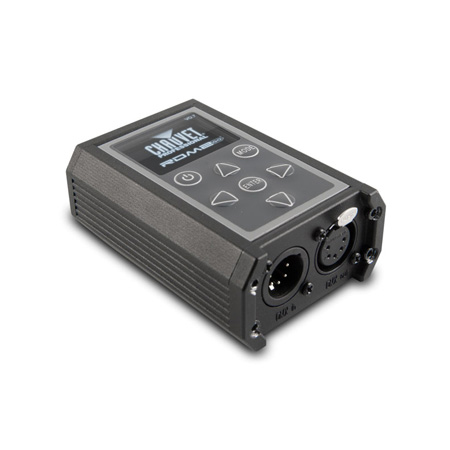

Chauvet RDM2GO RDM Configuration and Testing Tool with Li-Ion battery

RDM2GO - Overview

• Features:

  • Handheld tool for managing fixtures and systems with DMX, RDM, and Ilumicode based control
  • Easily address, locate and monitor RDM capable fixtures
  • Check DMX addressing, cabling, and store/playback basic snapshots
  • Address and set personalities of Ilumicode based architectural fixtures
  • Address and set personalities of Ilumicode based architectural fixtures
  • Comes with connector adaptors, USB charging cord and belt clip pouch


• Specifications:

  • Dynamic Effects
  • Standalone Color Mixing: Yes
  • Color Temperature Presets (Ilumicode): Yes
  • Dim Modes (Ilumicode): 5
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes


  • Construction / Physical
  • Dimensions: 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm)
  • Weight: 0.77 lb (0.35 kg)
  • Exterior Color: Black
  • Exterior Color: Black


  • Connections
  • Power Input: Micro USB-B Male
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 3 ft (0.91 m)


  • Control
  • Protocol(s): DMX, RDM, Ilumicode
  • DMX Channels: 1, 2, 3, 4, 5, 6 or 7
  • Modes/Personalities (Ilumicode): 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D)


  • Electrical
  • Power and Current: 18 W, 0.15 A @ 120 V, 60 Hz
  • Power and Current: 18 W, 0.09 A @ 208 V, 60 Hz
  • Power and Current: 18 W, 0.08 A @ 230 V, 50 Hz


  • Battery
  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Life: 8 hours
  • Battery Power: 3.7 V, 1,200 mAh


  • Certifications / Qualifications
  • CE
  • IP Rating: IP20, dry location


• Item Includes:

  • RDM2go
  • Carry Pouch
  • 2 pc, 3- to 5-pin converters
  • 5-pin male to bare wire adaptor
  • USB-A Male to Micro USB-B Male (3 ft)


• GTIN:

  0781462214418
