Obsidian Control Systems NETRON RDM 6XL 5-Pin DMX/RDM Splitter - 6 Port

RDM 6XL - Overview

• Features:

  • 6 XLR 5pin outputs
  • DMX and RDM compliant
  • Optically isolated ports
  • Power / DMX Through connectors
  • Powder-coated aluminum 1/2 rack housing


• Specifications:

  • Standalone:

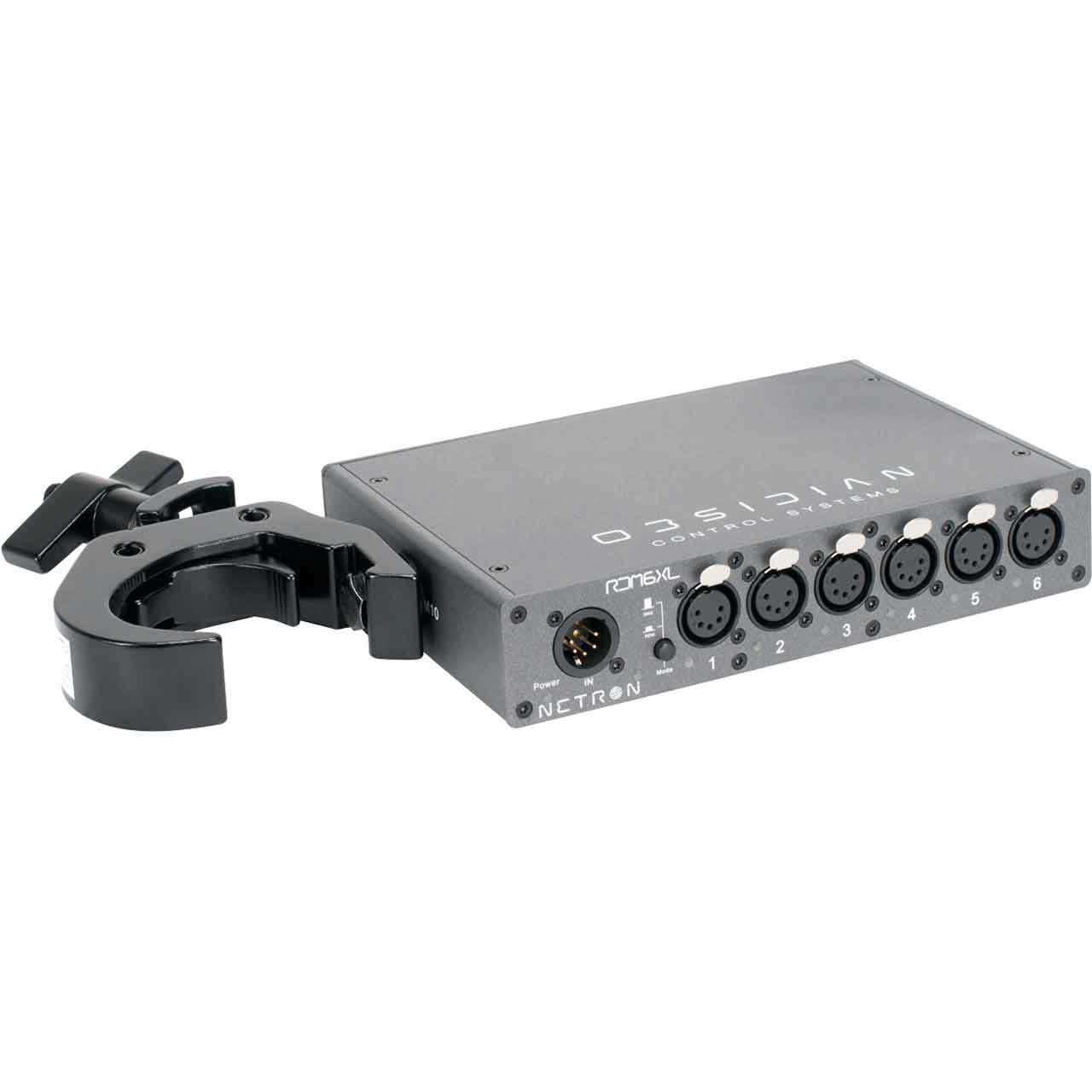

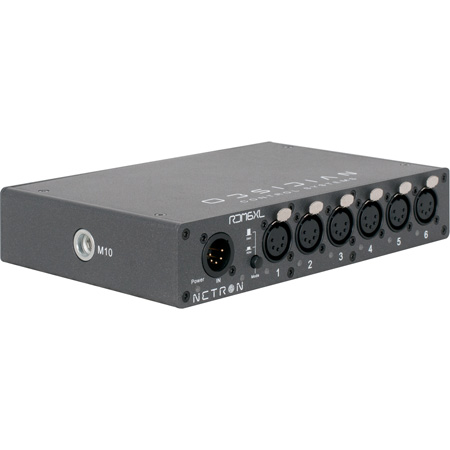

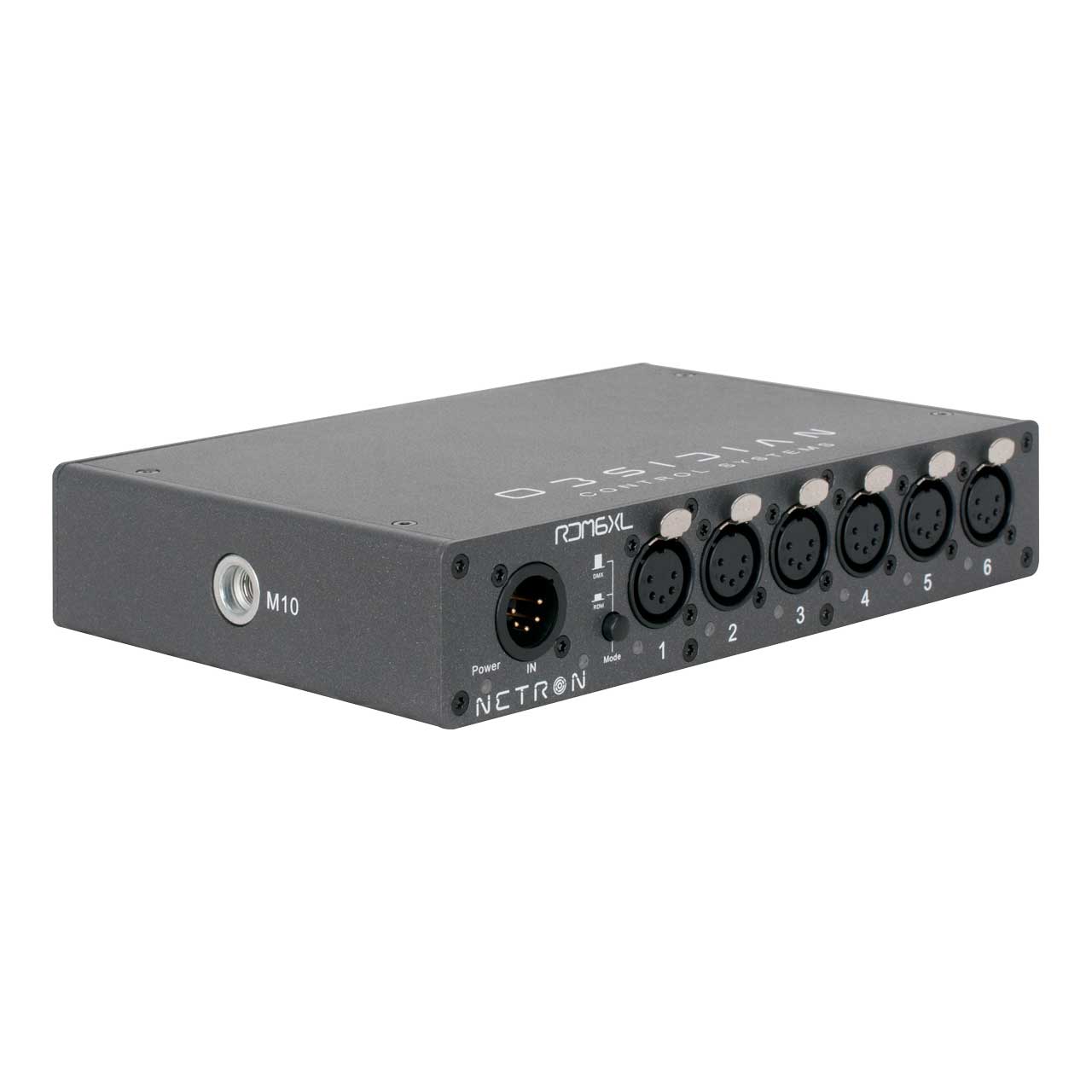

  • Truss-mount (M10 or M12 mounting hole)
  • Wall-mount horizontal or vertical (included)
  • DIN Rail horizontal or vertical (included)

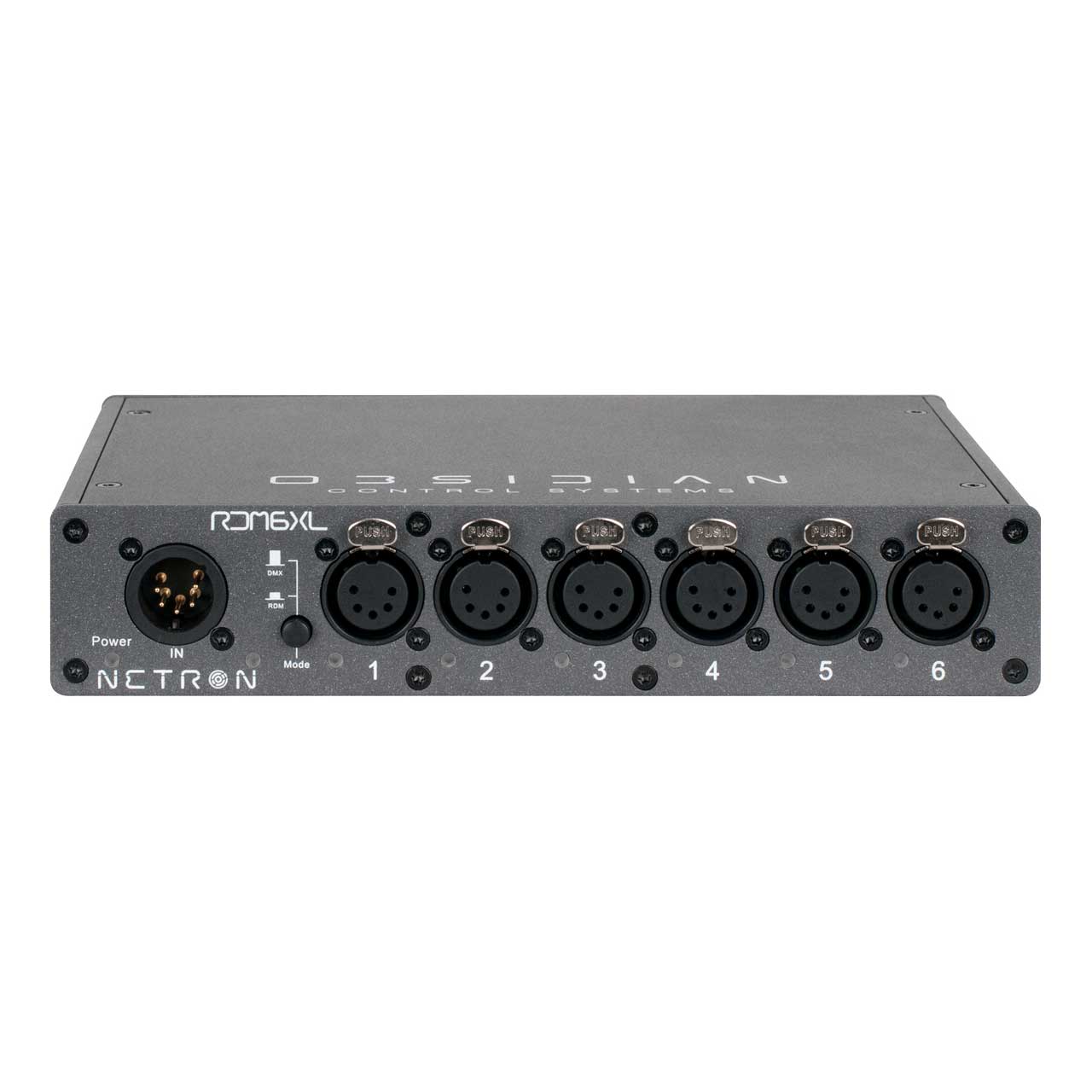

  • Rack-mount option (requires NET Shelf)Front
  • 5pin DMX Input
  • (6) 5pin Opto-Isolated DMX Outputs
  • RDM Enable

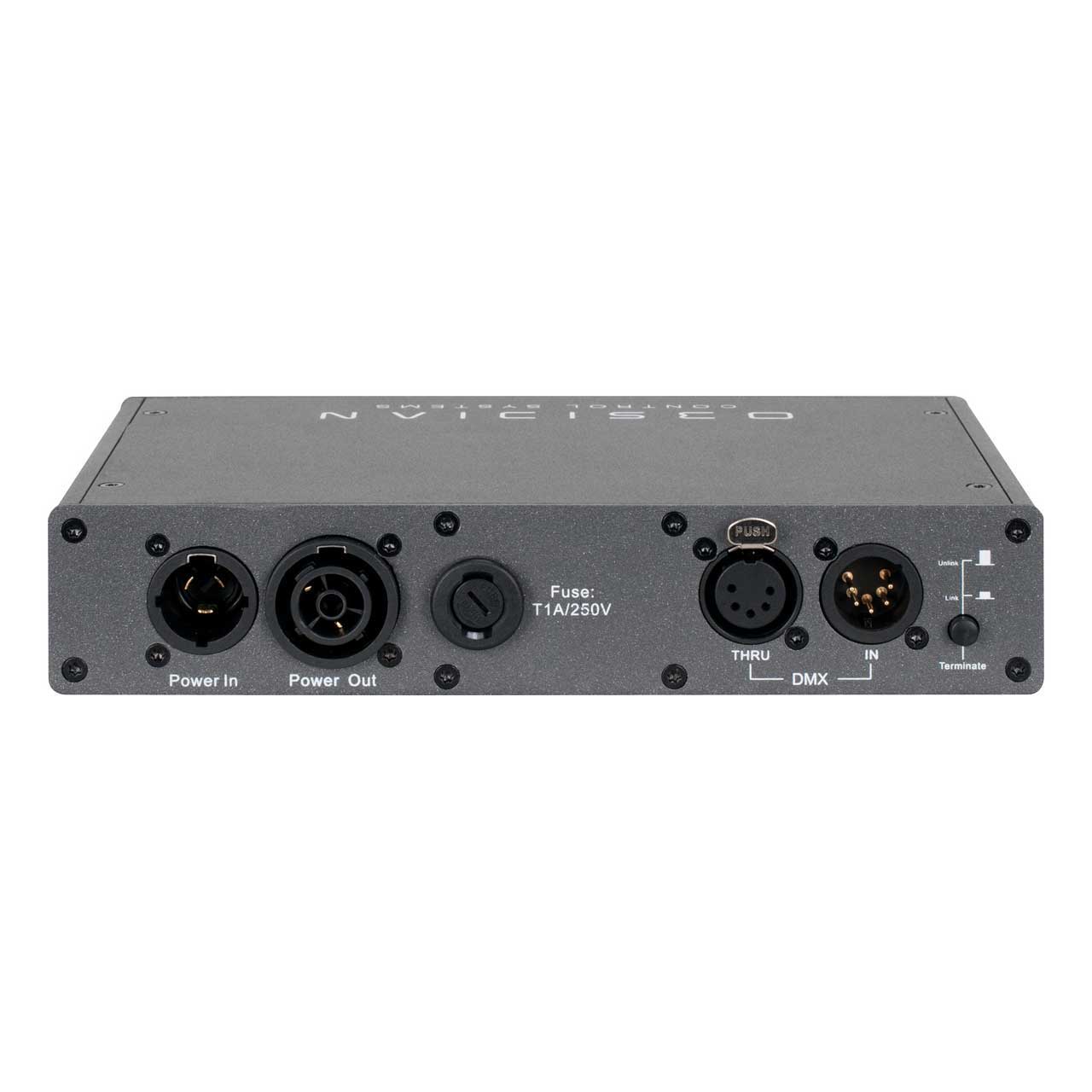

    Back:
  • 5pin DMX Input (parallel with front)
  • 5pin DMX Through
  • Terminate
  • Locking Power In/Thru

    Physical:
  • Length: 215 mm (8.5 in.)
  • Width: 139 mm (5.5 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 1 kg (2.2 lbs)

    Electrical:
  • 100-240 V nominal, 50/60 Hz, 10W

    Approvals / Ratings:
  • cETLus
  • CE
  • IP20


• Item Includes:

  • 1x NRD123 RDM 6XL DMX/RDM Splitter
  • 1x 1.5m Locking power cable (EU or US version)
  • 2x Wallmount plates
  • 2x DIN-Rail clamps


• Warranty:

  • 2 Year


• GTIN:

  0810008260630
