Elation Professional EFL001 E-Fly Transceiver

ITEM #: ELAT-EFL001 MFG #: EFL001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$250.00

Our Price:

$200.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


EFL001 - Overview

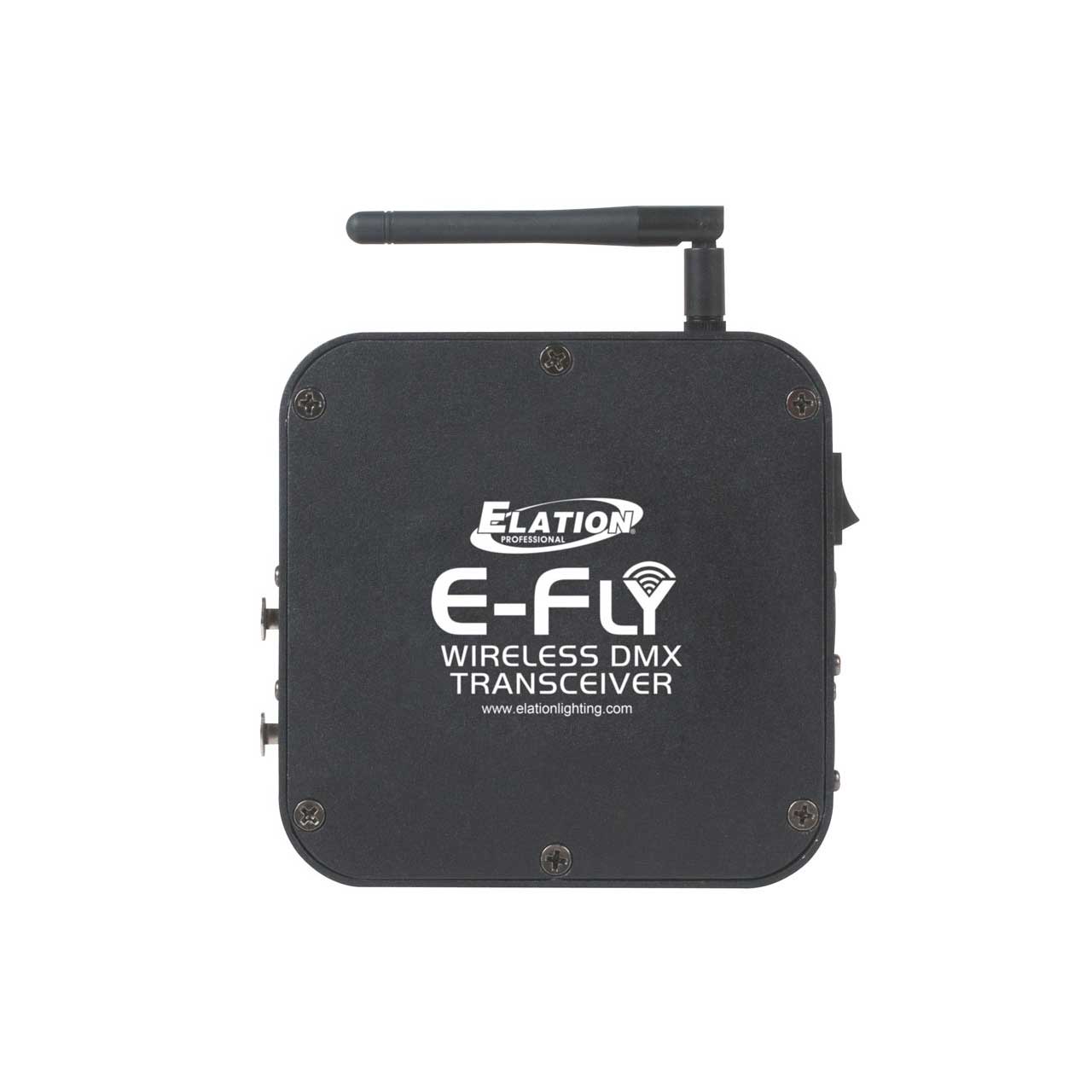

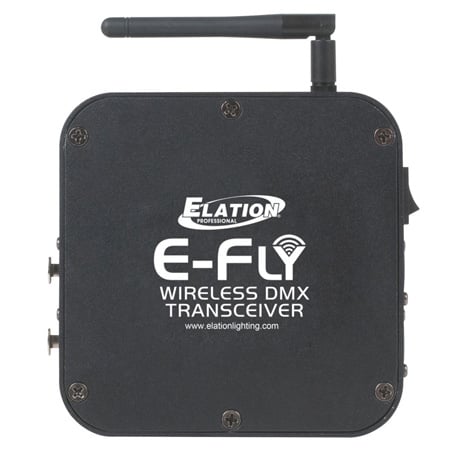

The E-FLY Transceiver is a high-powered wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY and products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.

  • Features:

    • Wireless DMX Transceiver (Transmitter/Receiver In One)
    • Rechargeable Battery Life Up To 20-25 Hours From a 4 Hour Charge

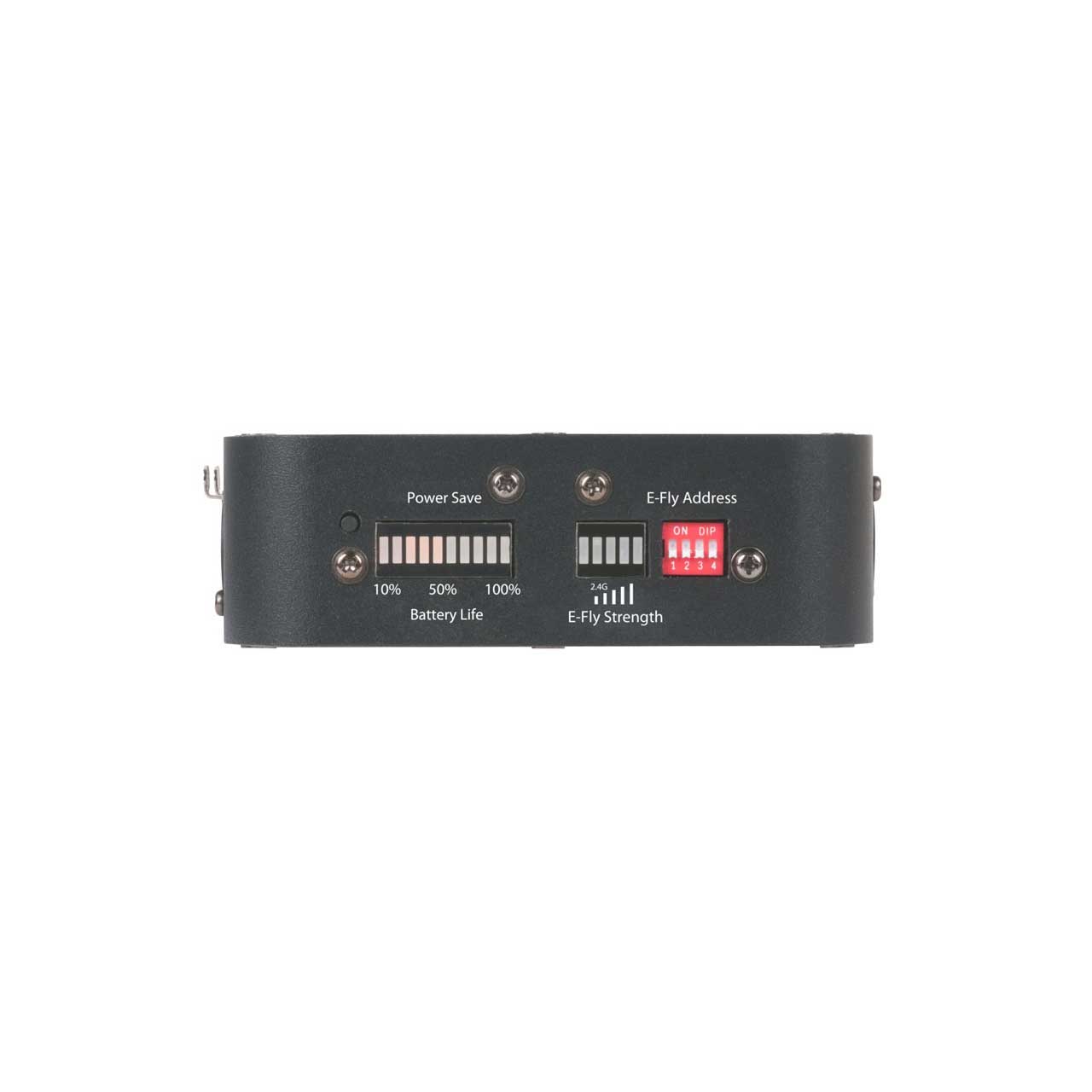

    • Battery Life and Signal Strength Indicator Display
    • Wireless Range Up to 2,500 ft (762m) Open Line of Sight
    • Transmit To Multiple Receivers On Same Radio Channel
    • Supports Up To (15) DMX-512 Universes
    • (15) Radio Channels (1 DMX universe per channel)
    • Auto Pairing Feature

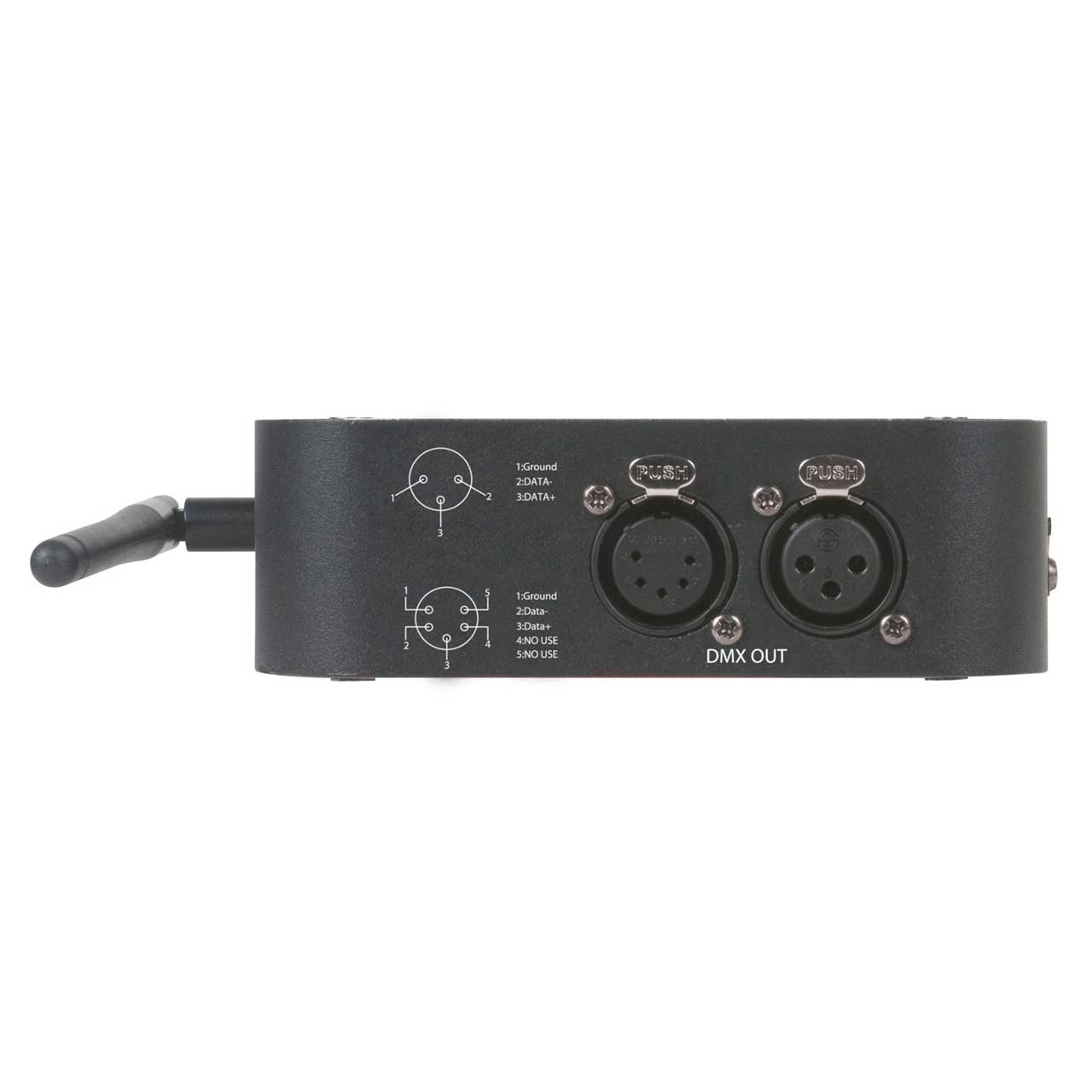

    • 3pin & 5pin DMX In/Out
    • Wireless Frequency: 2.4 GHz ISM

  • Specifications:

    • CONTROL / CONNECTIONS

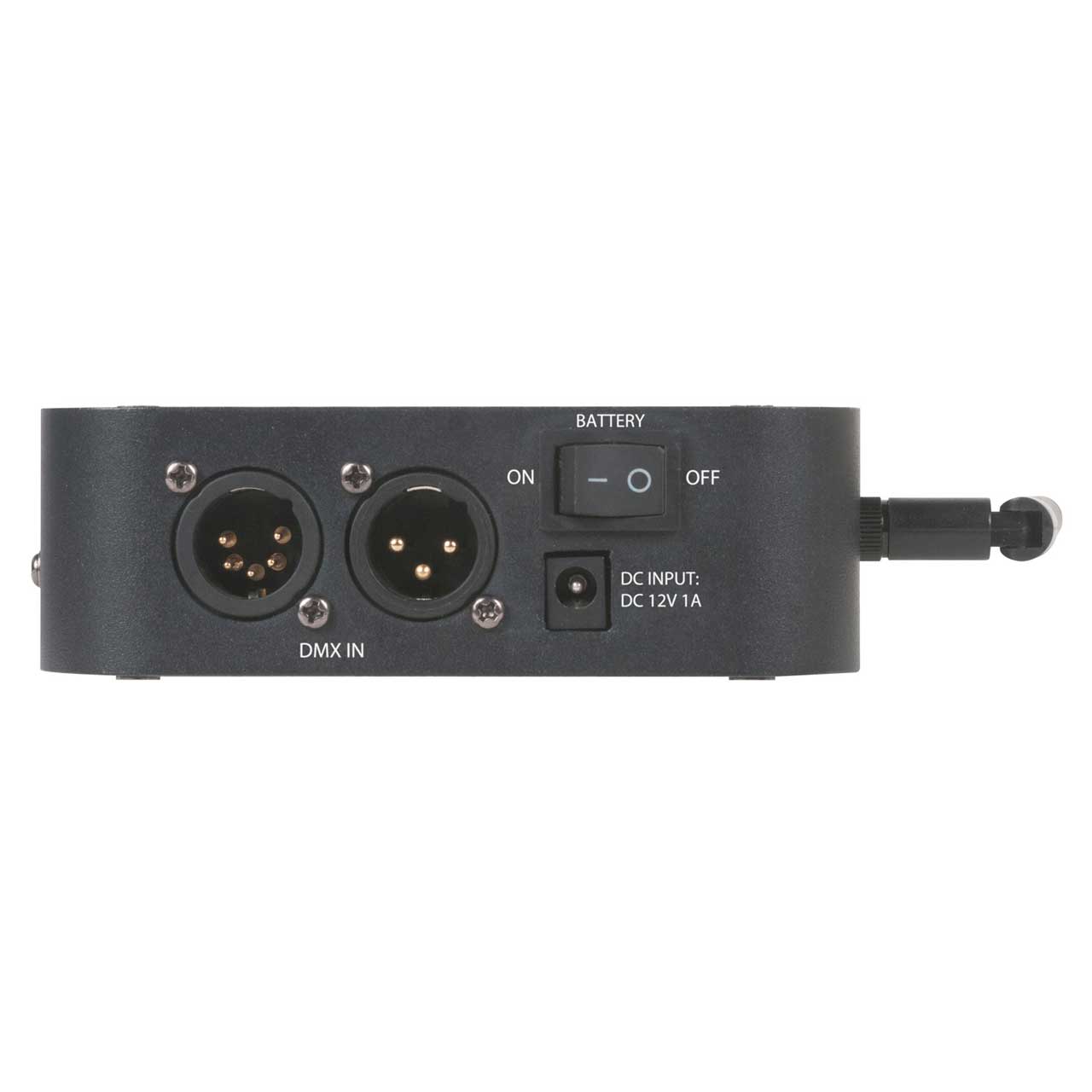

    • Battery Switch
    • Power Save Button
    • 3pin and 5pin DMX In/Out
    • 12VDC Power Supply Input

    • SIZE / WEIGHT
    • Length: 6.0” (152.7mm)
    • Width: 5.3” (134.4mm)
    • Vertical Height: 1.6” (62mm)
    • Weight: 1.3 lbs. (0.6kg)

    • ELECTRICAL / THERMAL
    • 12VDC, 1A (AC or DC powered)

  • Item Includes:

    • 12VDC Power Supply
    • Back Panel Magnet for Easy Metal Surface Mounting

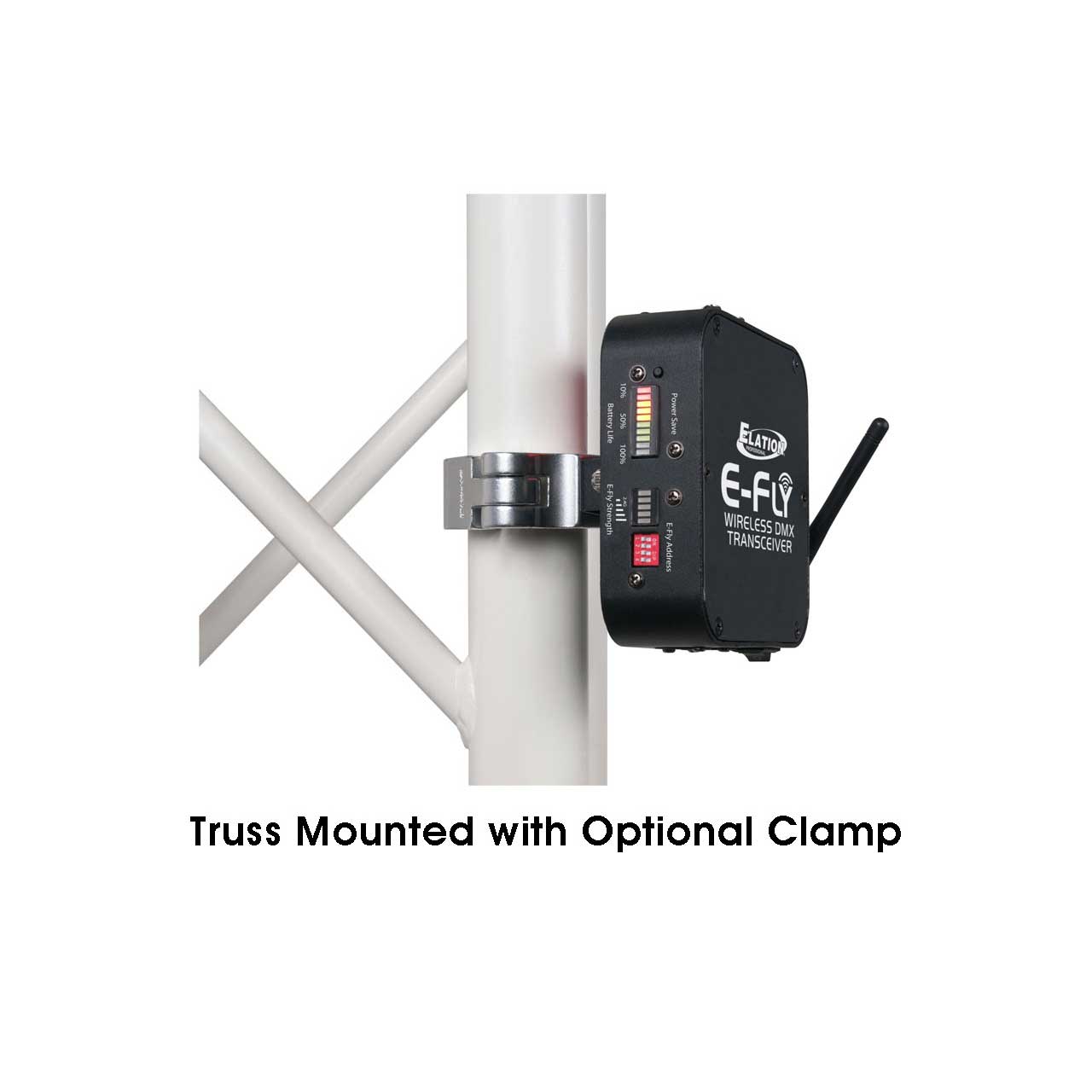

    • Mini Omega Bracket For Clamp/Truss Mounting (Clamp not included)

  • Warranty:

    • 2 Years

  • GTIN:

    0837874018714
