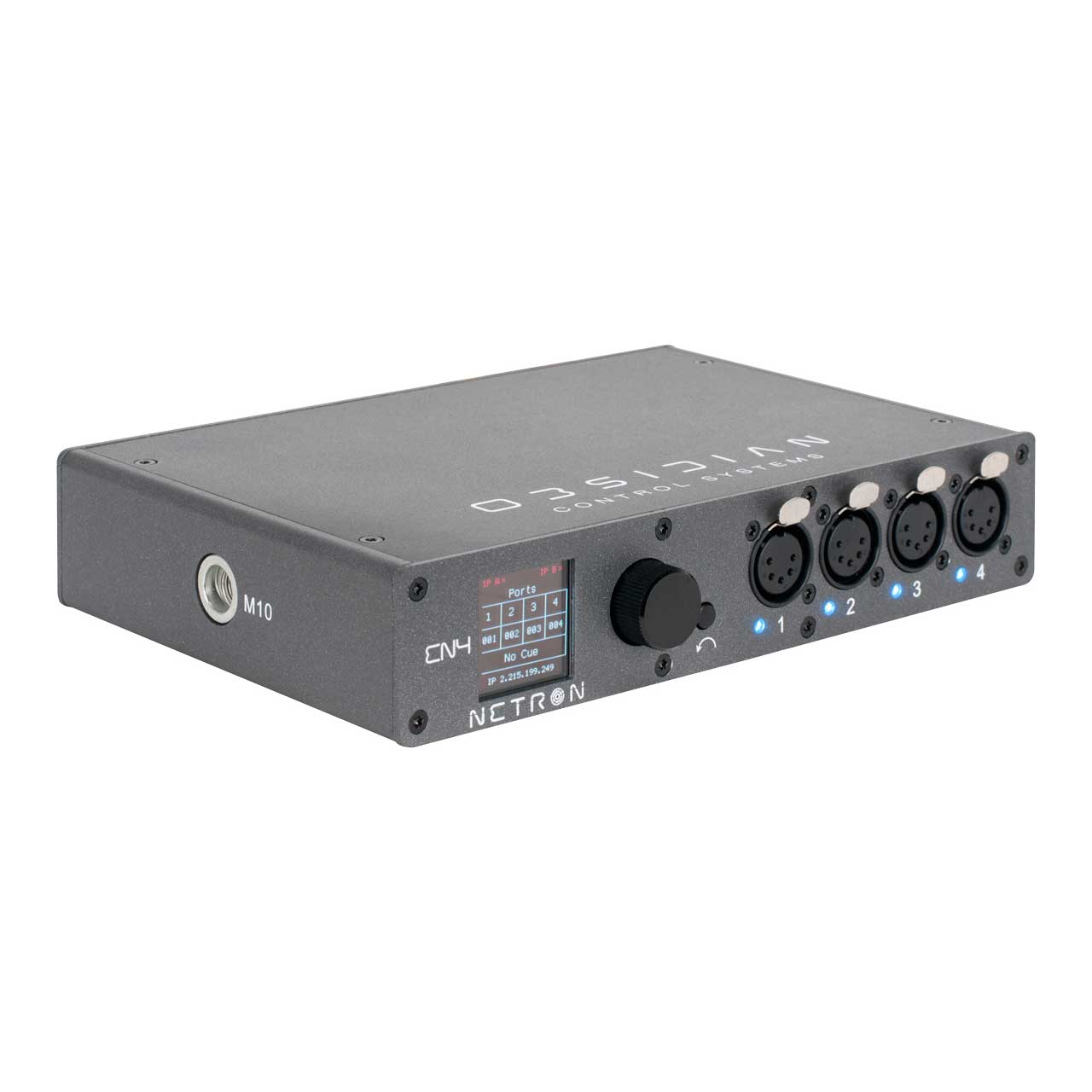

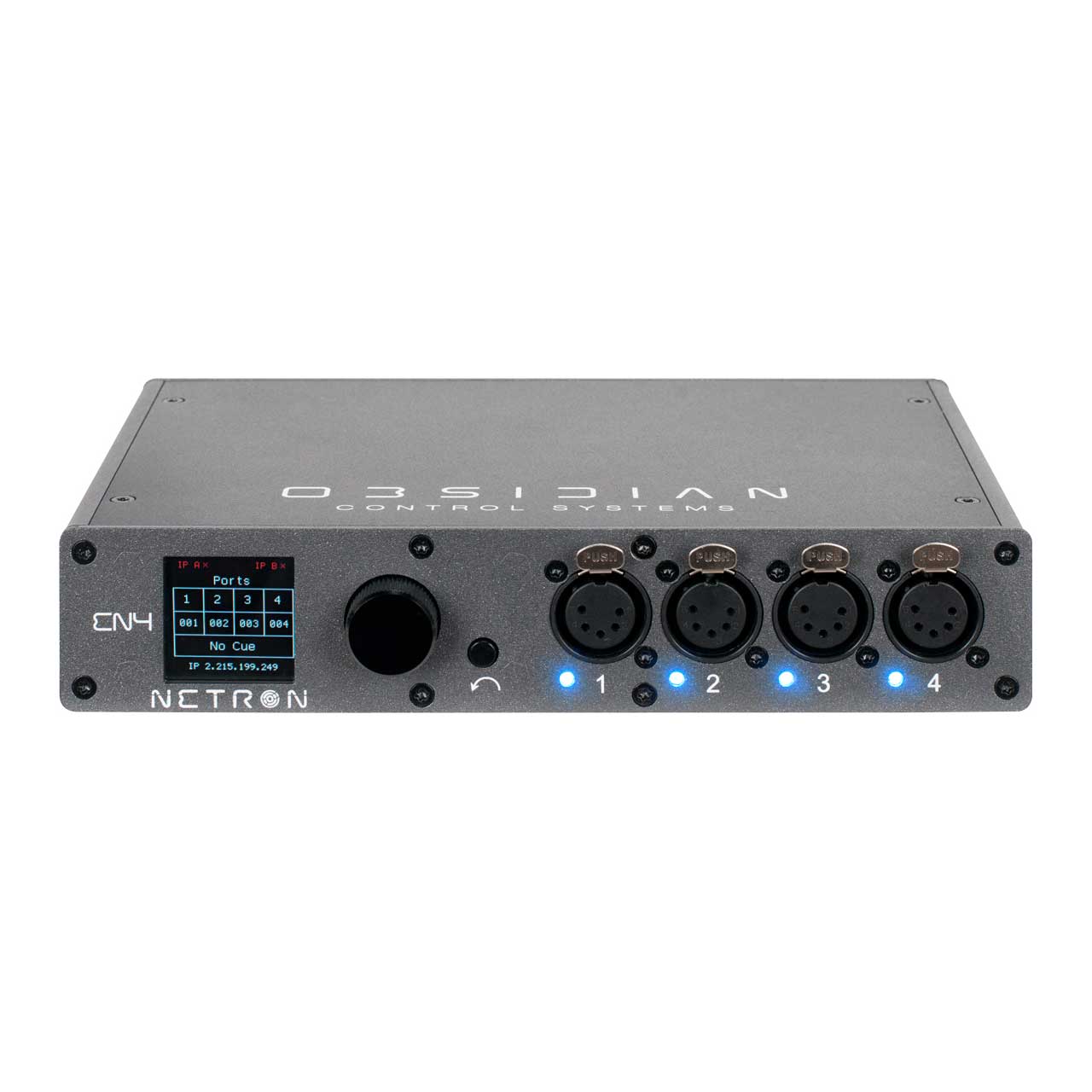

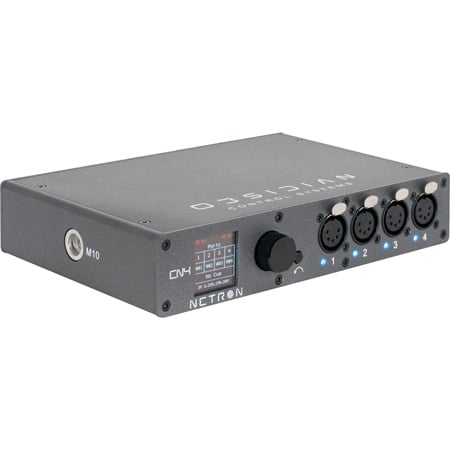

Obsidian Control Systems NETRON EN4 Ethernet to DMX Gateway - 4 Port

NETRON EN 4 - Overview

• Features:

  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setups
  • Line Voltage or POE powered
  • 1.8” OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Remote configuration via internal webpage
  • Powder-coated aluminum + rack housing
  • Connect to ONYX PC for a full four Universe Solution


• Specifications:

  • Standalone:

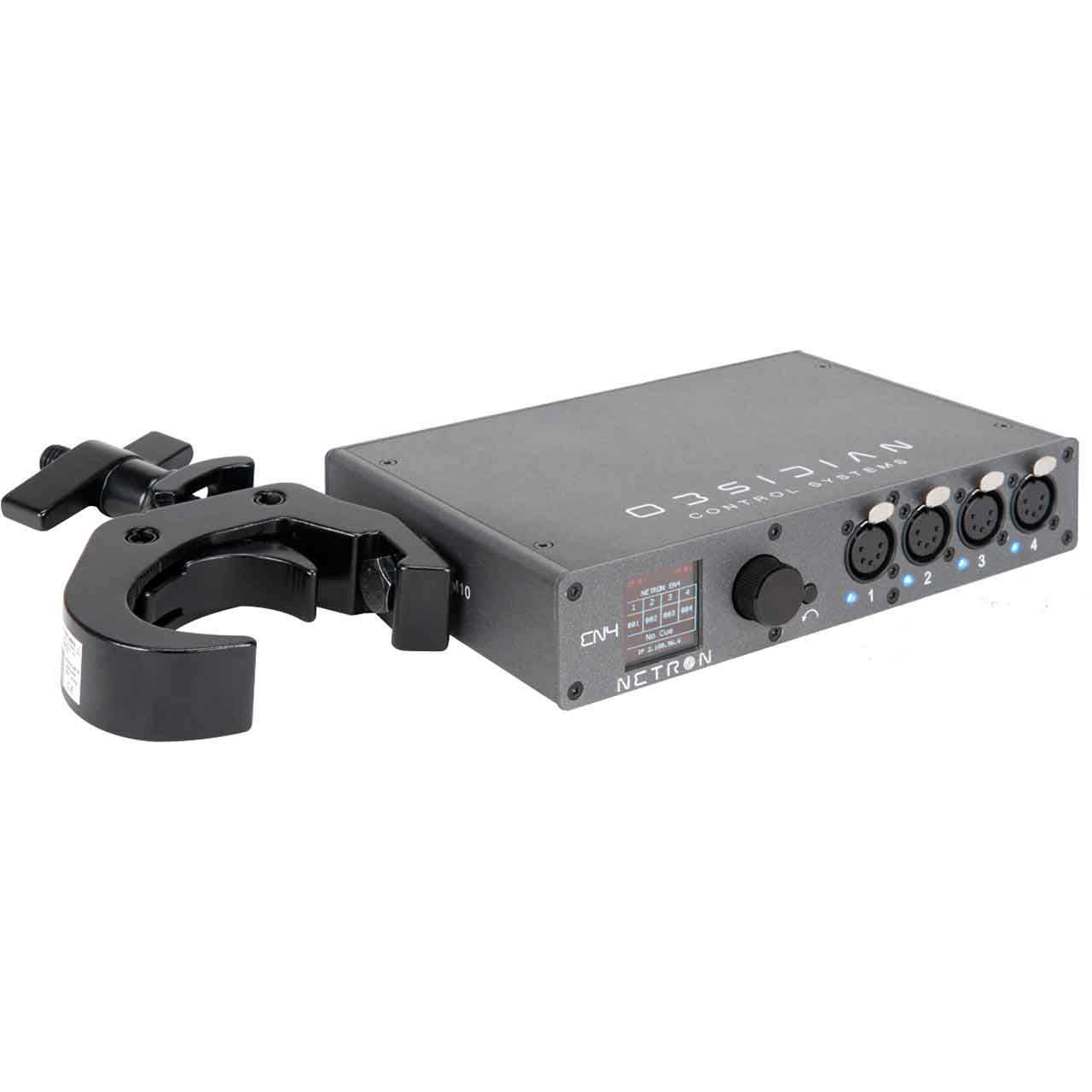

  • Truss-mount (M10 or M12 mounting hole)
  • Wall-mount horizontal or vertical (included)
  • DIN Rail horizontal or vertical (included)
  • Rack-mount option (requires NET Shelf)Front
  • (4) 5pin DMX/RDM optically isolated ports
  • Ports are bidirectional for DMX In and Output
  • Full color OLED display
  • Encoder w. Push to Select / Exit Button

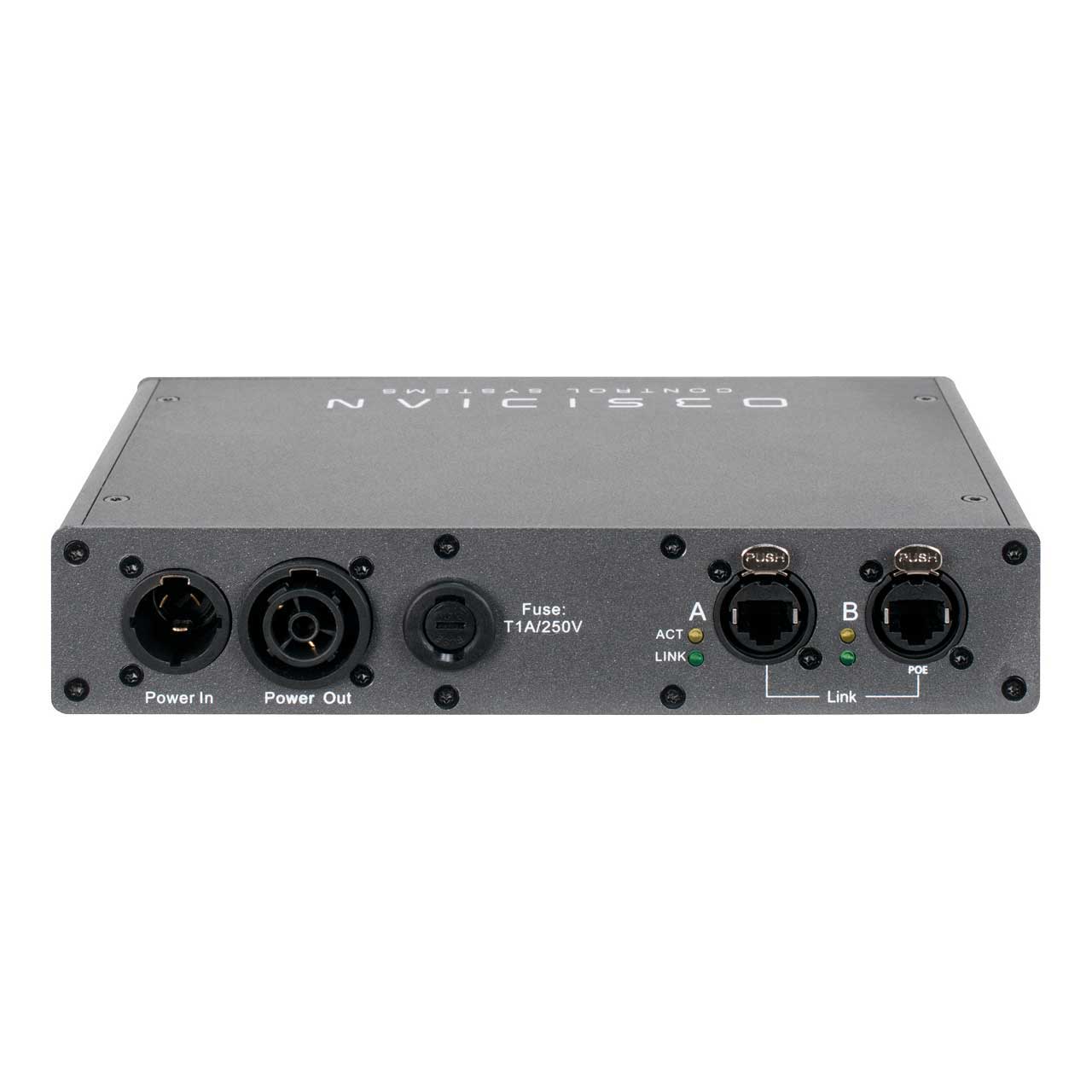

    Back:
  • Locking Power In/Thru
  • (2) Locking RJ45 Ethernet network connections (1x POE)

    Physical:
  • Length: 215 mm (8.5 in.)
  • Width: 139 mm (5.5 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 1 kg (2.2 lbs)

    Electrical:
  • 100-240 V nominal, 50/60 Hz, 10W
  • POE 802.3af

    Approvals / Ratings:
  • cETLus
  • CE
  • IP20


• Item Includes:

  • 1x NETRON EN4 Ethernet to DMX Gateway
  • 1x Seetronic power cable (EU or US version)
  • 2x Wallmount plates
  • 2x DIN-Rail clamps


• Warranty:

  • 2 Year


• GTIN:

  0810008260661
