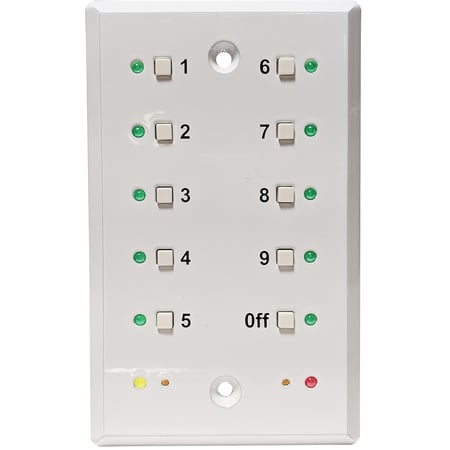

The Doug Fleenor Design PRE10-A-WHT Preset 10 Architectural is a lighting control station capable of storing up to ten presets. These presets are recorded by capturing the output of a DMX512 console. Each preset can then be assigned a unique fade time, from 0 to 999 seconds. Presets are recalled by pressing one of the buttons. Systems can be created by using one or more stations and a power supply. The solid aluminum faceplate is designed to install over a standard single gang electrical box. Connections to the Preset 10 Architectural are power (2 wires) and DMX512 (3 wires). Power for the Preset 10 can be supplied from a variety of sources, including a 10V class 2 "doorbell" transformer. The Preset 10 Architectural system can work in conjunction with a lighting console, automatically switching between preset and console control. When the console generates DMX the Preset 10 Architectural goes off-line. The console then operates normally. Upon loss of DMX from the console, the Preset 10 Architectural either returns to its previous preset or holds the last look (jumper selectable).
