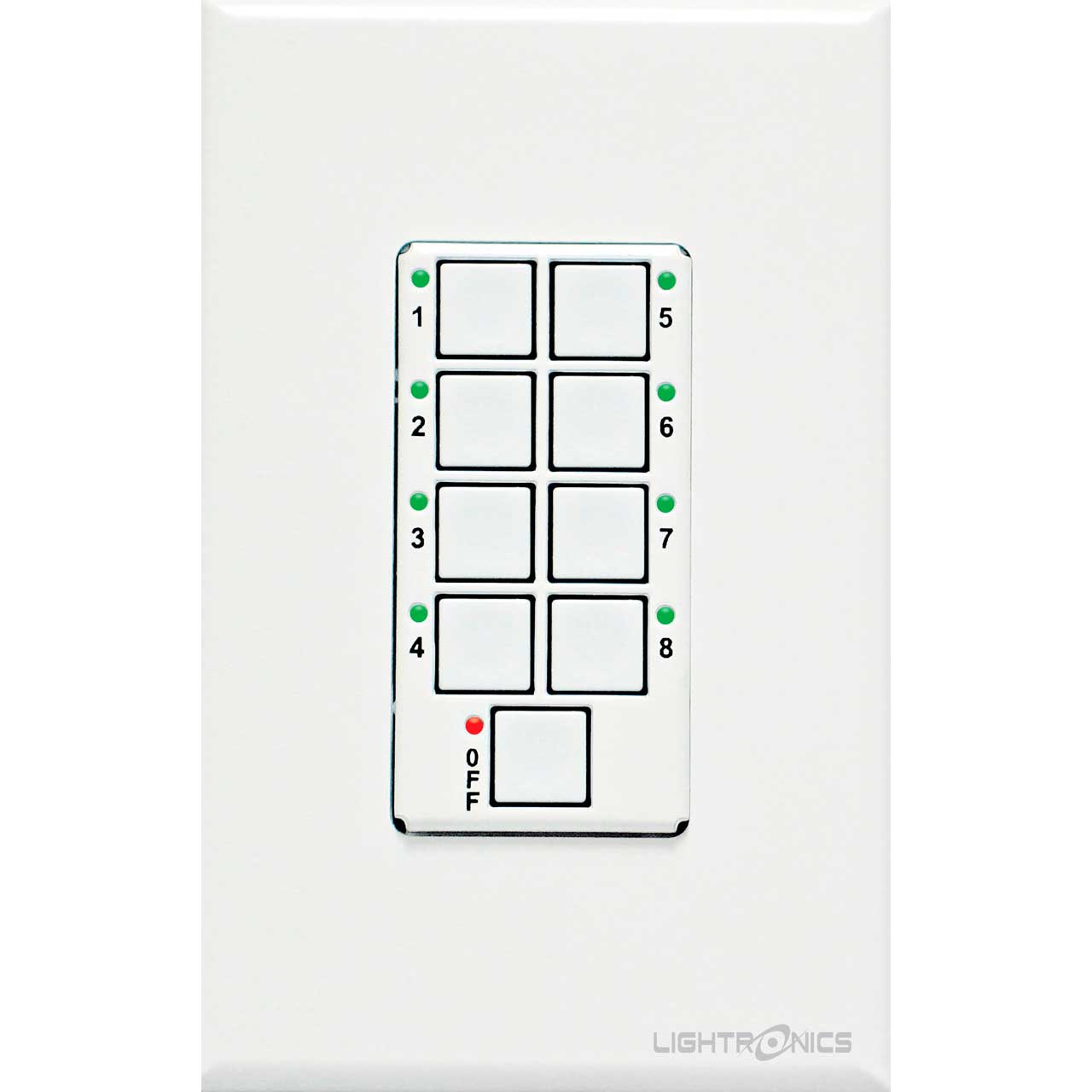

The AC1109 is a wall mounted, eight scene, remote station for use with the Lightronics AR1202 architectural dimmer. User
operation is as simple as it can get (eight numbered scene buttons and an “OFF” control). LED scene indicators always display
the active scene number. The unit fits into a standard single gang wall switch box. The unit communicates with the AR1202 via a
four wire bus which will accommodate multiple AC1109 units and other wall station controls. All AC1109 wiring is low voltage.
The unit basically operates in an exclusive mode where one scene may be activated at a time. When a scene is selected, the
AR1202 fades at a user controlled rate to that scene. A blackout button is also provided to shut all scenes. Scenes activated by
the AC1109 are actually set up and stored in the AR1202 dimmer. The AC1109 only tells the AR-1202 which scene to activate.
The AR1202 dimmer can be programmed to respond to the AC1109 in various ways to create zone controls. The AC1109 is
normally factory set to operate with scenes 1 - 8 (block 1) of the AR1202 dimmer. It can be factory set to operate with other
blocks of 8 scenes as follows. Multiple AC1109 units using different scene blocks can be used together to create zone control.
