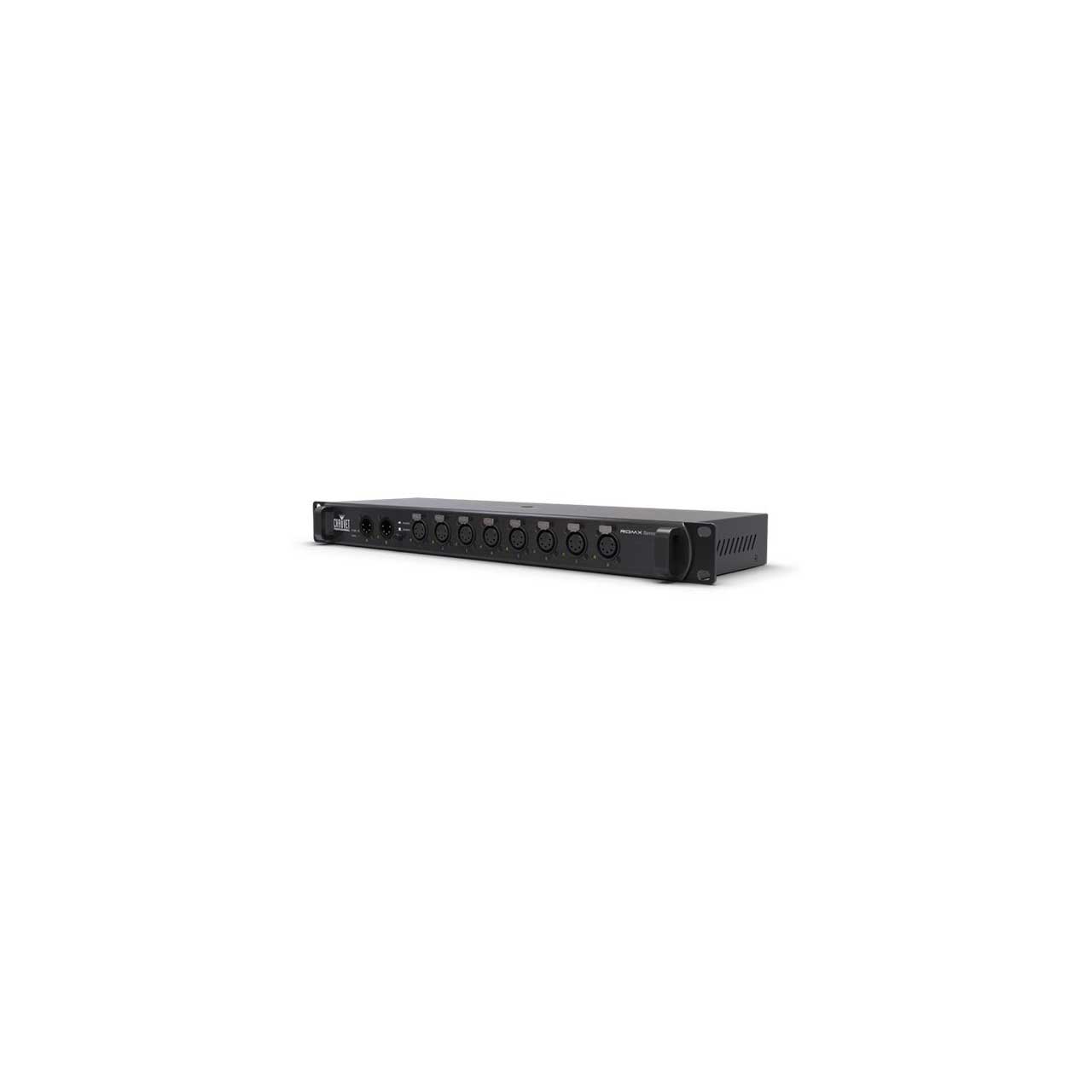

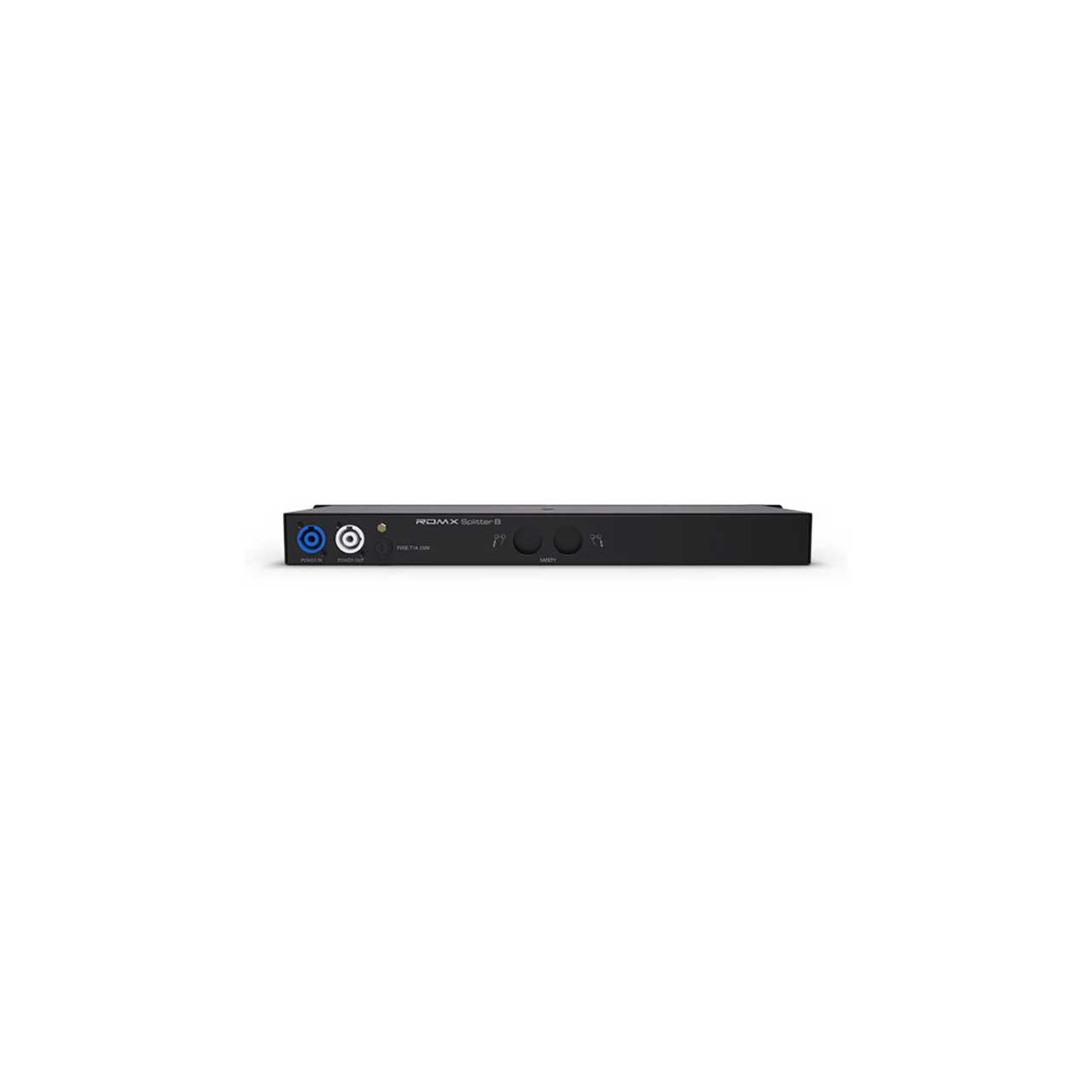

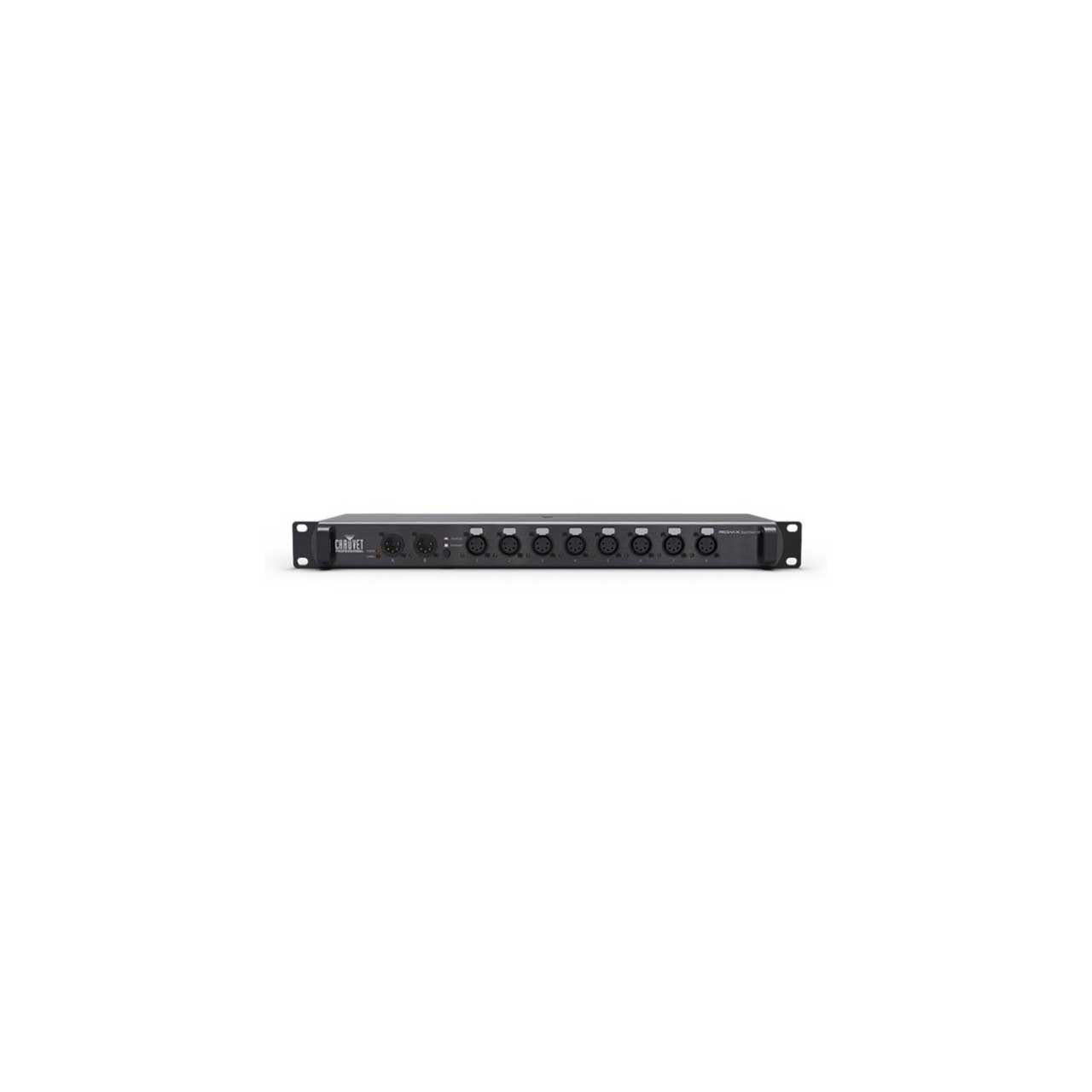

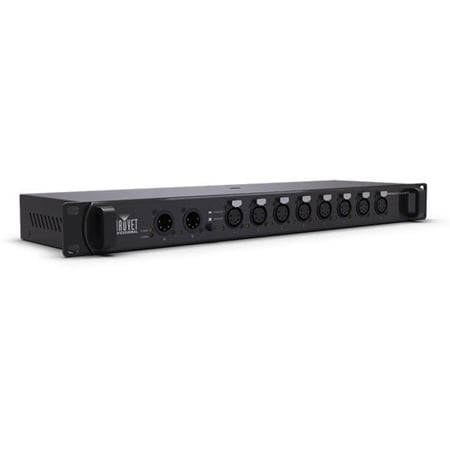

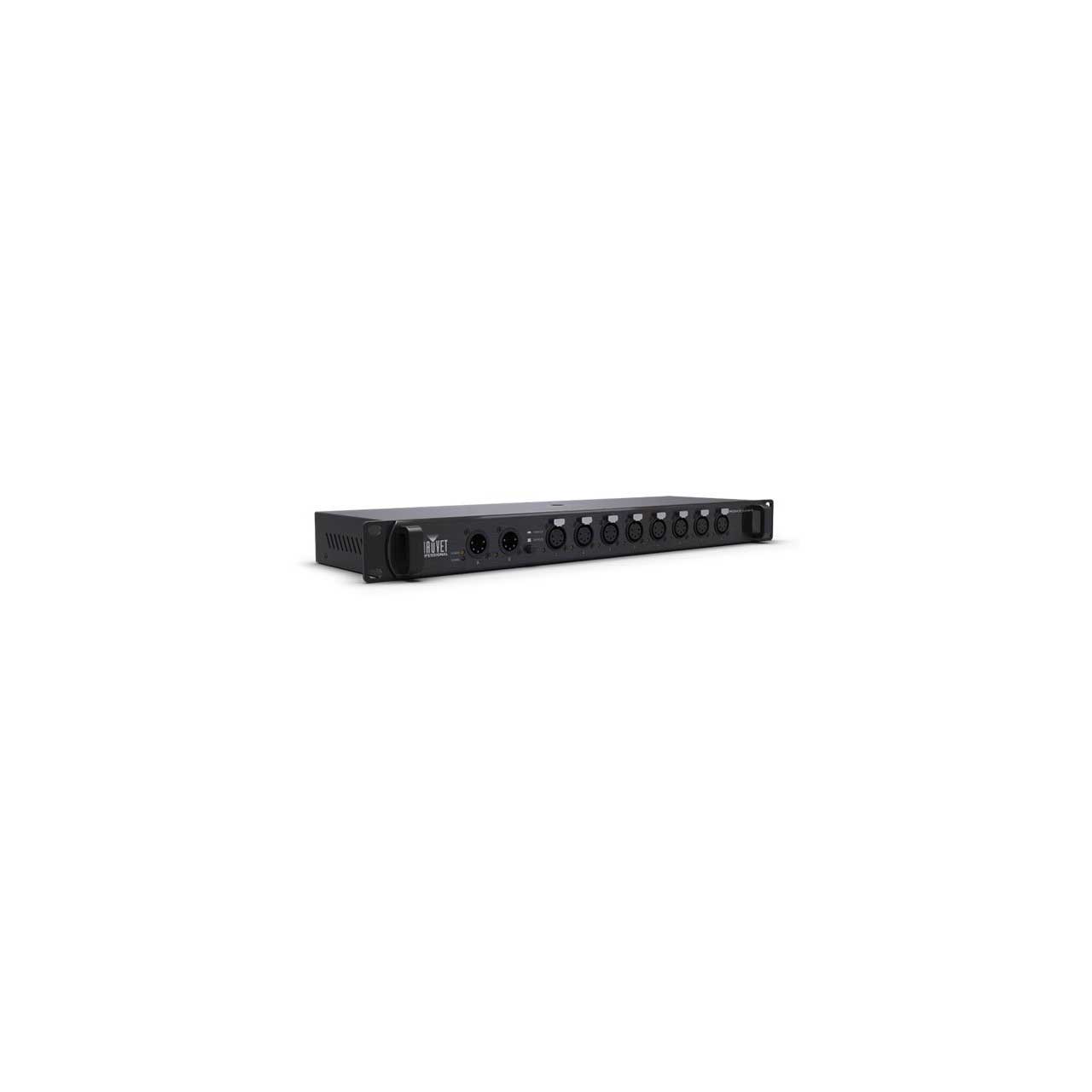

Chauvet RDMXSPLITTER8 RDM and 5-pin DMX Opto-splitter with Rugged Housing

RDMXSPLITTER8 - Overview

• Features:

  • Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter
  • Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever
  • Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories
  • Electrical isolation between inputs and outputs up to 1,000 V between ports
  • PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present


• Specifications:

  • Optical
  • Dimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)
  • Weight: 4.2 lb (1.9 kg)
  • Exterior Color: Black
  • Housing Material: Steel and aluminum
  • Rackmount: 1U

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Device Data Inputs: 5-pin XLR (2 total)
  • Device Data Outputs: 5-pin XLR (8 total)
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM Pass-thru
  • Modes: 2 (1x8, 2x4)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 15A
  • Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
  • Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
  • Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


• Item Includes:

  • 1x RDMX Splitter 8
  • 1x Neutrik® powerCON® power cord
  • 1x Quick reference guide


• GTIN:

  0781462218119
