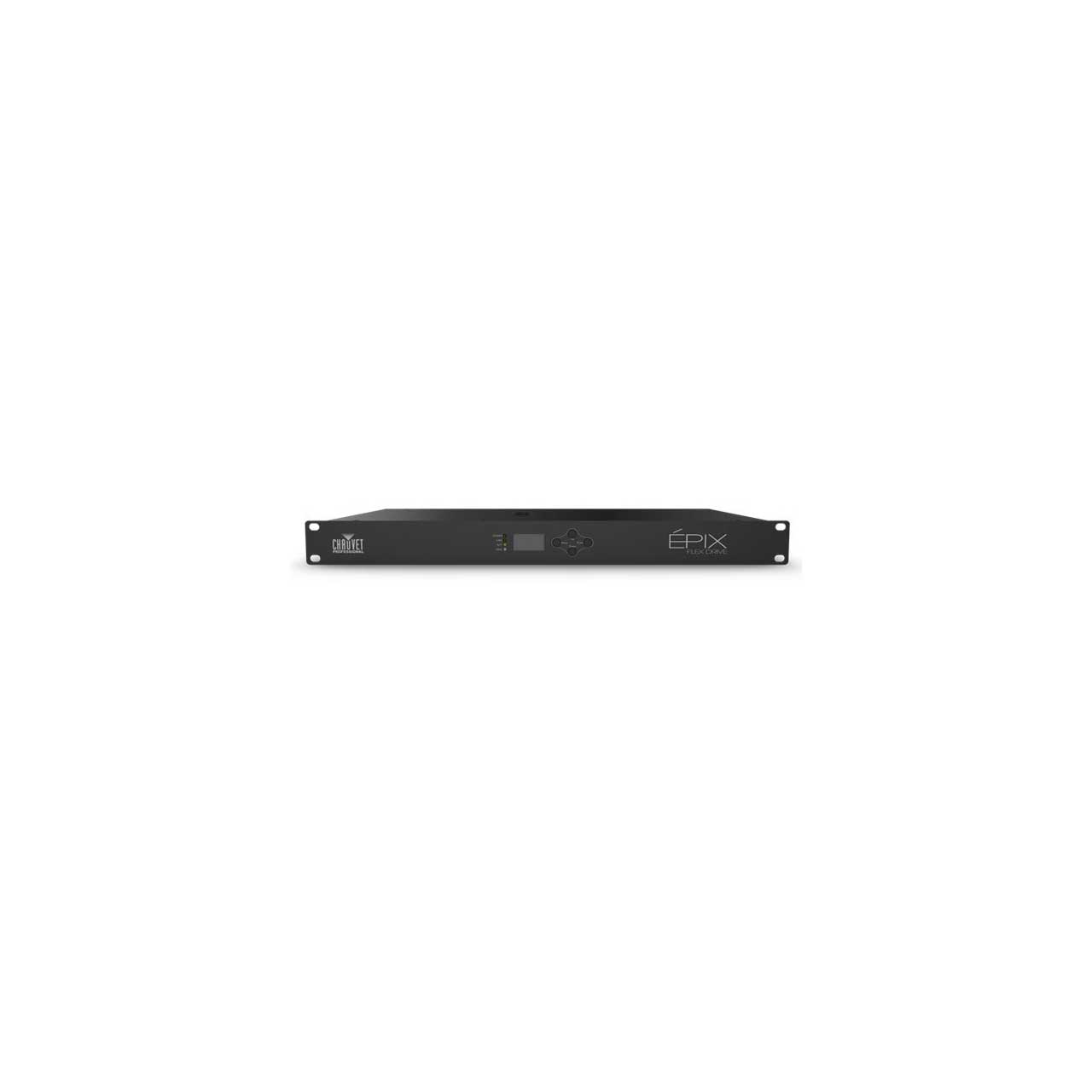

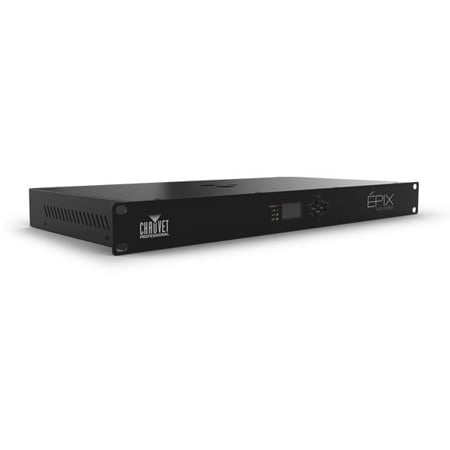

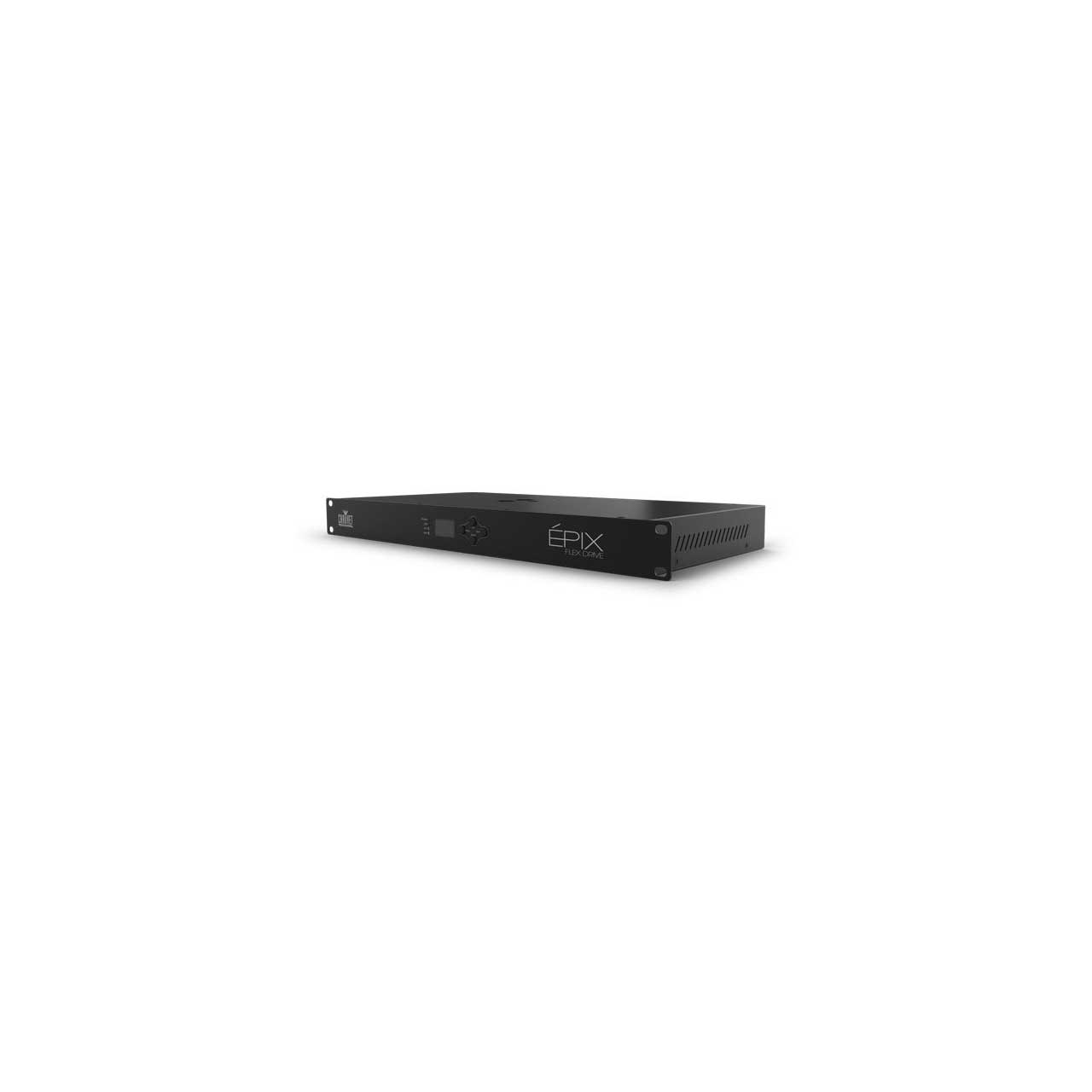

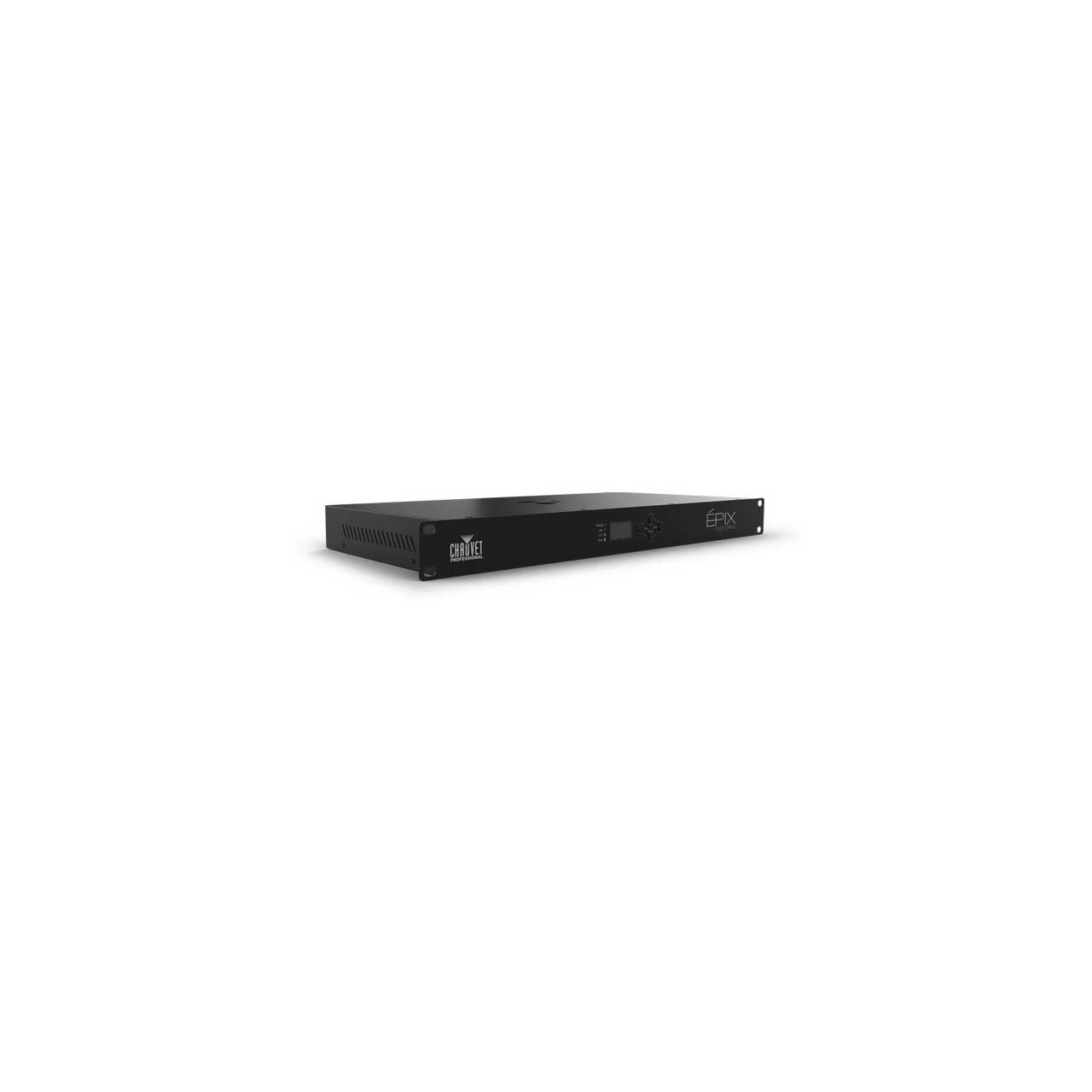

Chauvet EPIX Flex Drive for EPIX Flex 20 with 2 Plug and Play Outputs that drive up to 4 EPIX Flex 20s at 960 LEDs Each

EPIX FLEX DRIVE - Overview

• Features:

  • The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
  • Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring/rental/installation markets
  • Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
  • Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
  • Supports up to 4 ÉPIX Flex 20 5 meter rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
  • Easily daisy chain fixtures directly from the 2 outputs of the Flex Drive
  • Advanced power management design allows you to position the Flex Drive up to 50 ft away from your first Flex 20
  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
  • Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
  • Multiple control personalities offers flexibility for detailed pixel-level control or simplified plug and play options using the 17/34 channel modes


• Specifications:

  • Dynamic Effects
  • Standalone Color Mixing: Yes
  • Built-in Automated Programs: Yes

    Construction / Physical
  • Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
  • Weight: 6 lb (2.7 kg)
  • Exterior Color: Black
  • Housing Material: Steel
  • Rackmount: 1U

    Connections
  • Power Connection: Edison (local) plug to IEC
  • Power Input: IEC
  • Cable Length (power): 5 ft (1.5 m)
  • Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
  • Device Outputs (3-pin IP65 ports): 2

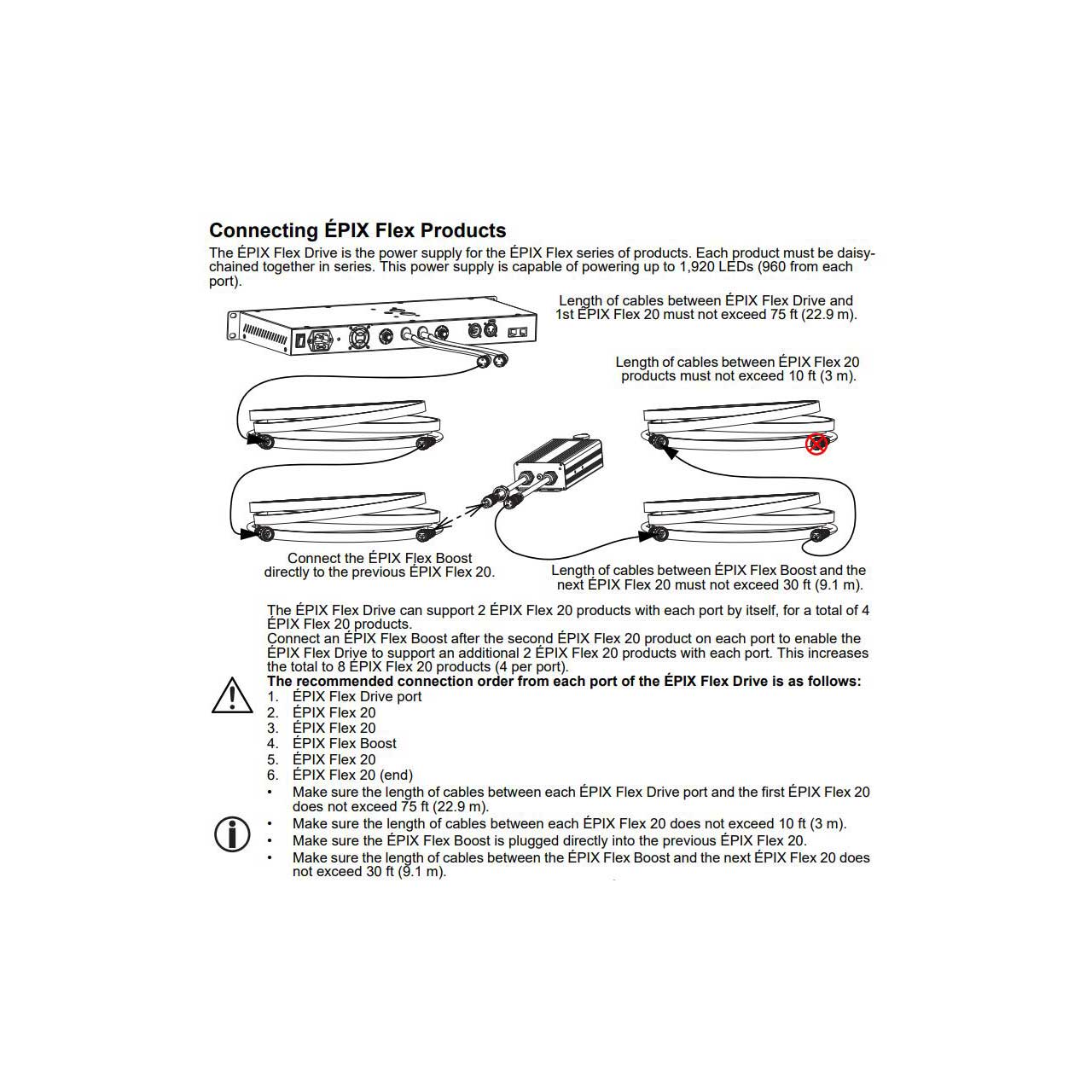

  • Physical Linking per port (without Flex Boost): 2 inline ÉPIX Flex 20
  • (with Flex Boost): 4 inline ÉPIX Flex 20
  • Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20: 75 ft (22.9 m)
  • (with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20: 10 ft (3 m)
  • Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20: 30 ft (9.1 m)

    Control
  • Control Protocol: Art-Net, sACN, DMX
  • DMX Channels: 17, 34 or PIXEL
  • Art-Net Channels: 17, 34 or PIXEL
  • Modes/Personalities: 3 personalities (17ch, 34ch, PIXEL)
  • Maximum Supported LEDs (per port): 960
  • Maximum Supported LEDs (total): 1920

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz
  • 314 W, 1.64 A @ 208 V, 60 Hz
  • 312 W, 1.50 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET
  • IP Rating: IP20, dry
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    Optional Accessories
  • ArKaos Media Master Express + KN software


• Item Includes:

  • 1x ÉPIX Flex Drive
  • 1x IEC power cord


• GTIN:

  0781462217914
