Chauvet IPFLEXEXT50FT IP Rated Power and Data Extension for Epix Flex Series - 50 Foot

IPFLEXEXT50FT - Overview

• Specifications:

  • Available Lengths
    5 feet (1.5m)
    15 feet (4.57m)
    25 feet (7.62m)
    50 feet (15.24m) Note: dimensions are rounded

    Cable Interal Conductors
  • Cable Size: (3) (SJTW) 16AWG stranded
  • DC+ Wire Color: Black
  • DC- Wire Color: White
  • Data Wire Color: Green
  • Conductor Quanity: 3 twisted
  • Internal Conudctor Insulation Thickness: 0.69mm
  • Wire Impedance: 0.762 MΩ/Km

    Cable Outer Insulation
  • Outer Jacket Thickness: 0.61mm
  • Jacket Materal: PVC
  • Jacket Type: Flexible Rubber (Black)
  • Shielded: No
  • Outer JAcket Diameter: 8.15mm to 8.45mm

    Connections

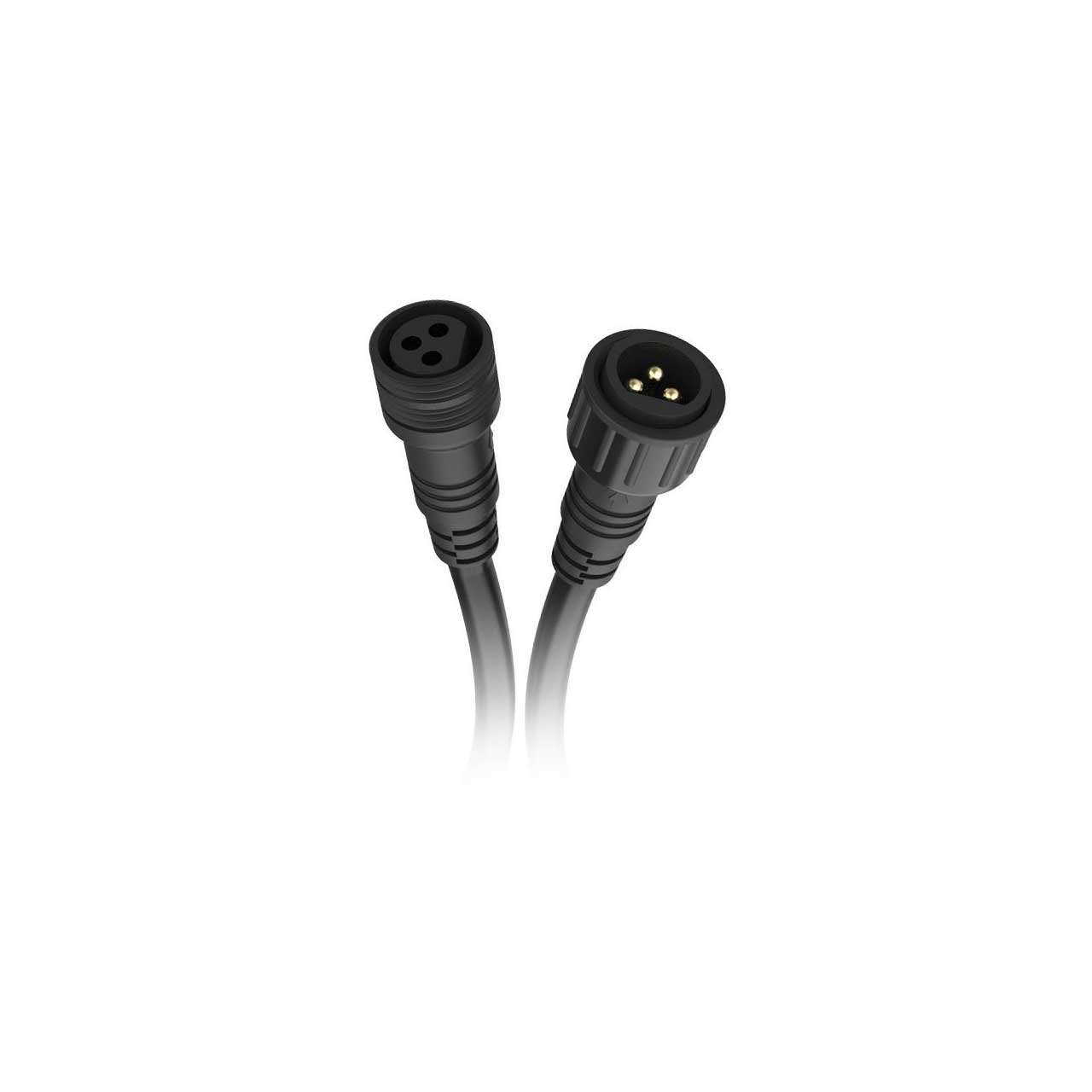

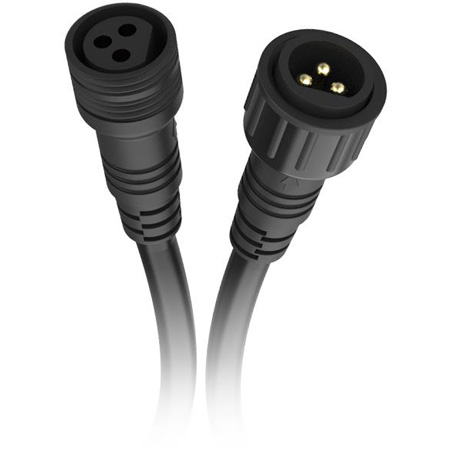

  • Connector Type: 3-pin IP Flex
  • Connector Quantity: 2

    Ratings
  • IP67
  • UL-MET

    Thermal
  • Minimum External Temperature: -40°F (-40°C)
  • Maximum External Temperature: 221°F (105°C)


• Item Includes:

  • Cable packed in bag with header card


• GTIN:

  0781462218751
