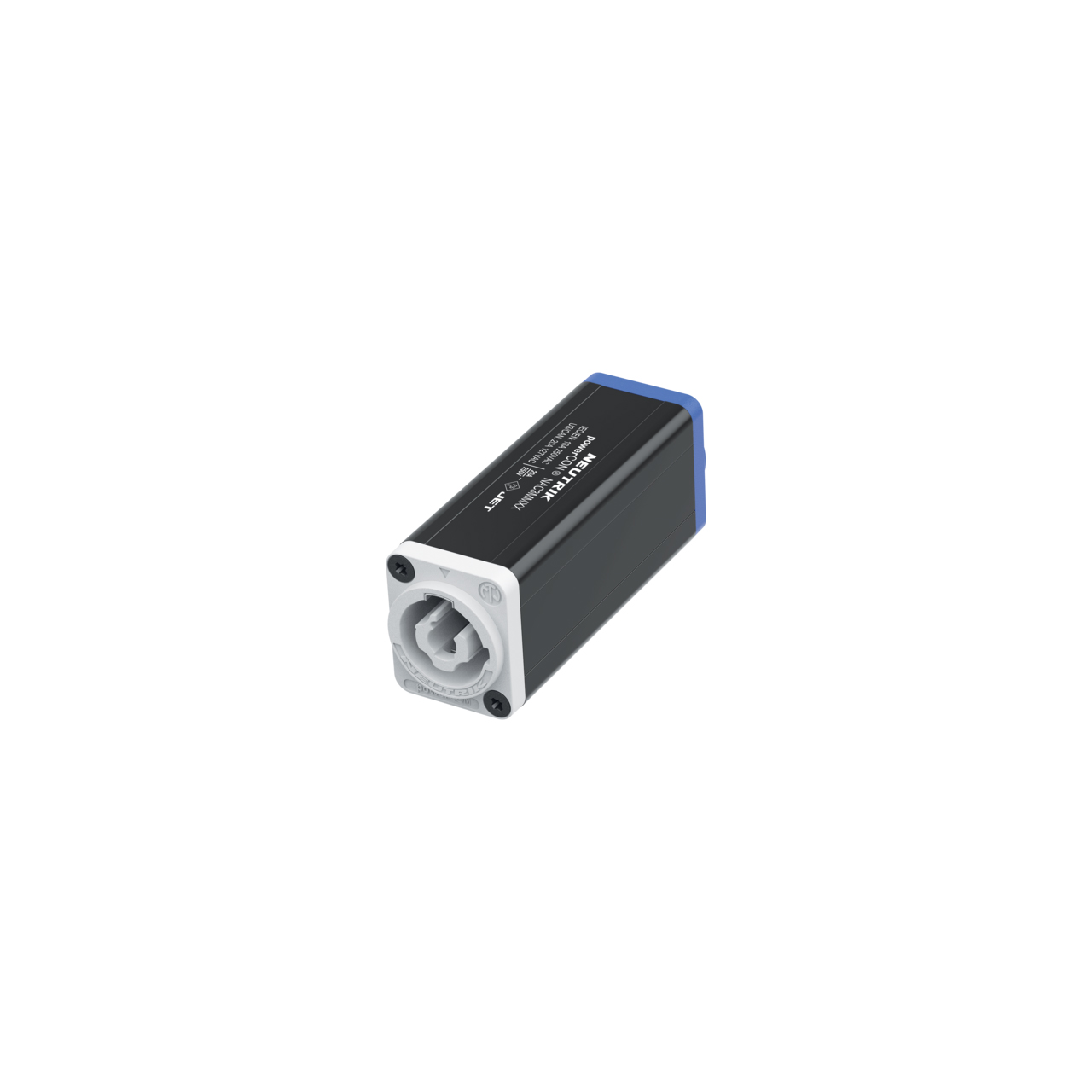

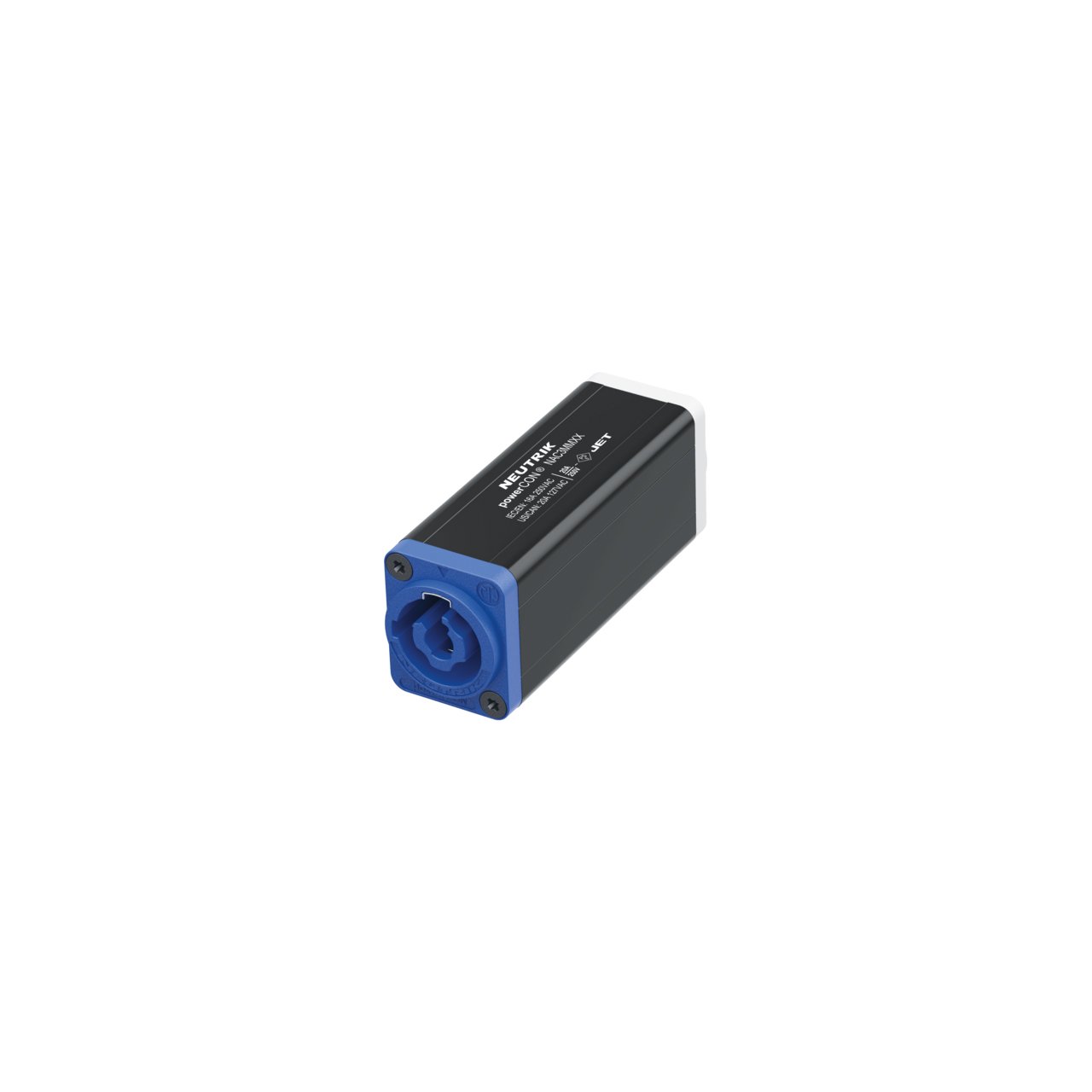

Neutrik NAC3MMXX powerCON Coupler for IEC 60320-1 Power Cables - NAC3FXXA-W to NAC3FXXB-W - Blue/Gray

Name: Neutrik NAC3MMXX powerCON Coupler for IEC 60320-1 Power Cables - NAC3FXXA-W to NAC3FXXB-W - Blue/Gray
Brand: Neutrik Americas
SKU: NAC3MMXX
Price: 20.51 USD
Availability: InStock

ITEM #: NAC3MMXX MFG #: NAC3MMXX

Neutrik Americas

List Price:

$23.93

Our Price:

$20.51

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NAC3MMXX - Overview

Neutrik NAC3MMXX CBC powerCON coupler for linking powercables using IEC 60320-1 compliant NEUTRIK powerCON XX series receptacles for power in (NAC3MPXXA) and power out (NAC3MPXXB).

The powerCON XX series receptacles (NAC3MPXXA, NAC3MPXXB) are connectors with breaking capacity (CBC) certified according to IEC 60320-1.

They are fully compliant to the device standard IEC 62368-1, due to its component.

Please Note: CBC stands for breaking capacity, which is the maximum current that a circuit breaker can interrupt without damage or causing an unacceptable electric arc.

Features:
- Breaking capacity (CBC)
- Twist lock system
- Rugged design
Specifications:
- Connection Type: Adapter
- Gender: Male
- Contact Resistance: = 3 mΩ
- Dielectric Strength: 4 kVdc
- Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Rating Europe: EN 60320-1 : 16 A 250 V AC
- Rating USA: UL 60320-1 : 20 A 127 V AC
- Lifetime: > 1000 mating cycles
- Locking Device: Twist Lock
- Contact Plating: Ag
- Locking Element: Stainless steel
- Shell: Aluminum
- Contacts: Copper Alloy
- Flammability: UL 94 V-0
- Protection Class: IP 20 (mated)
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
Item Includes:
- 1x Neutrik NAC3MMXX powerCON Coupler - NAC3FXXA-W to NAC3FXXB-W - Blue/Gray
