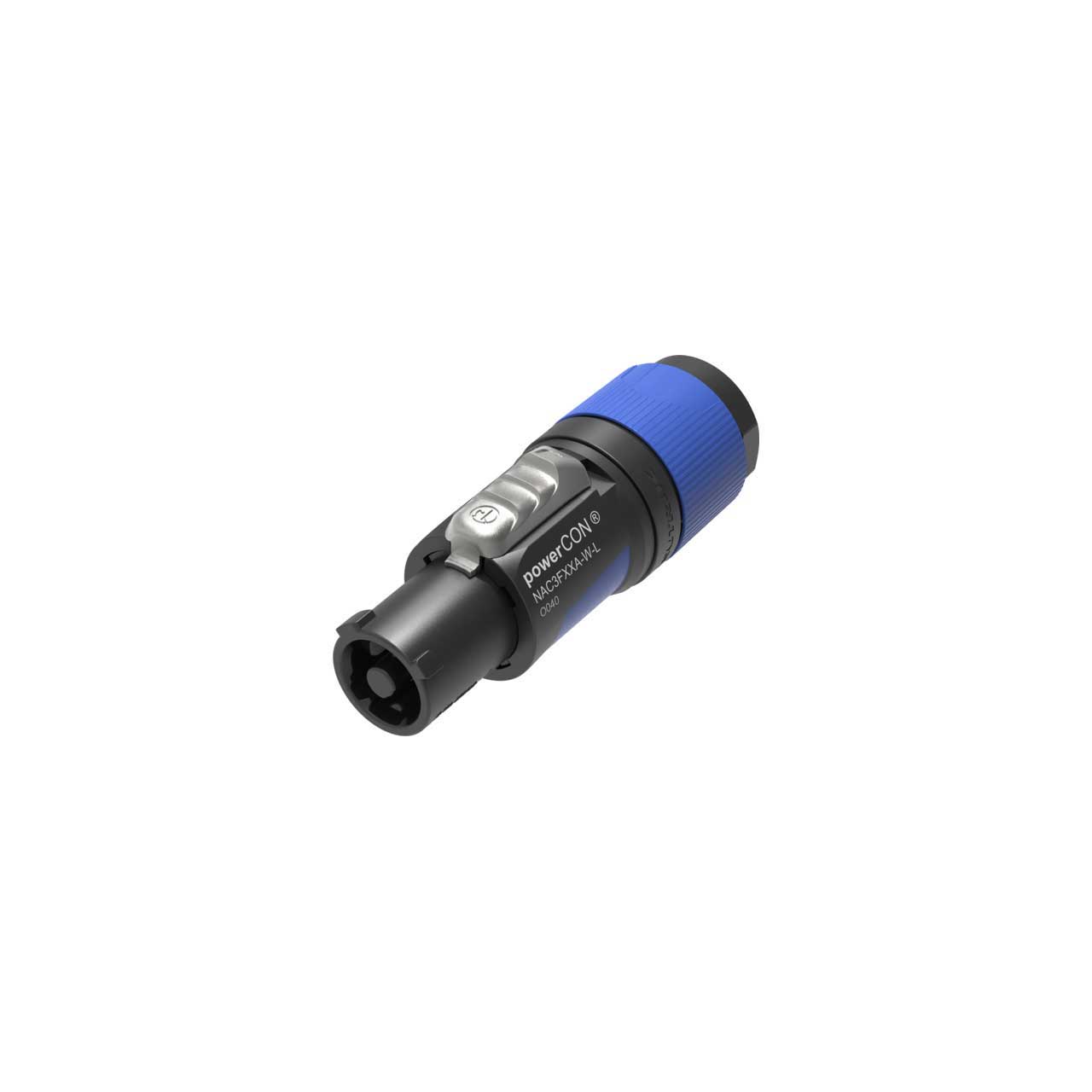

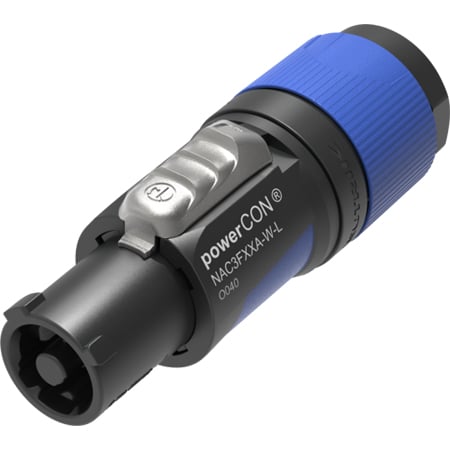

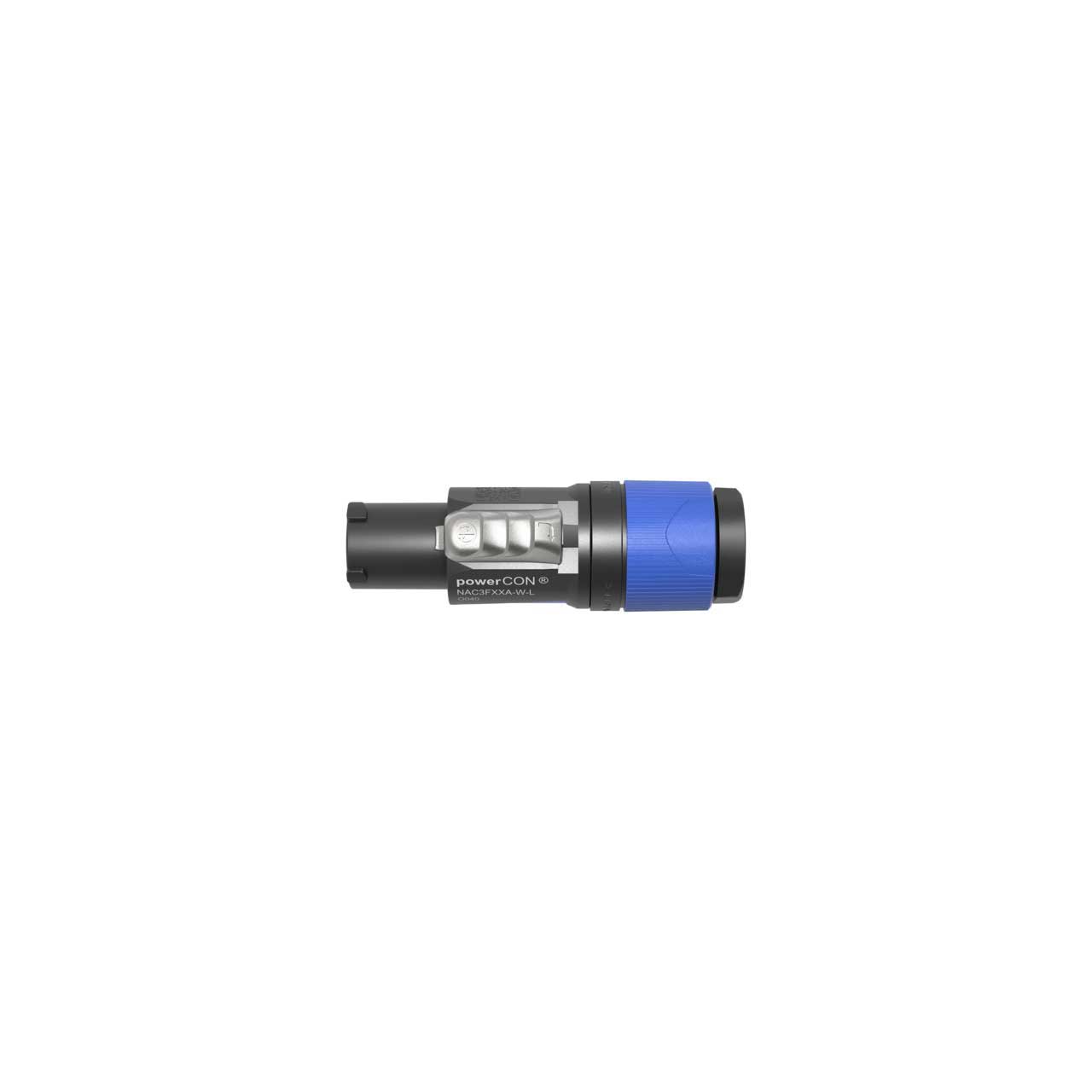

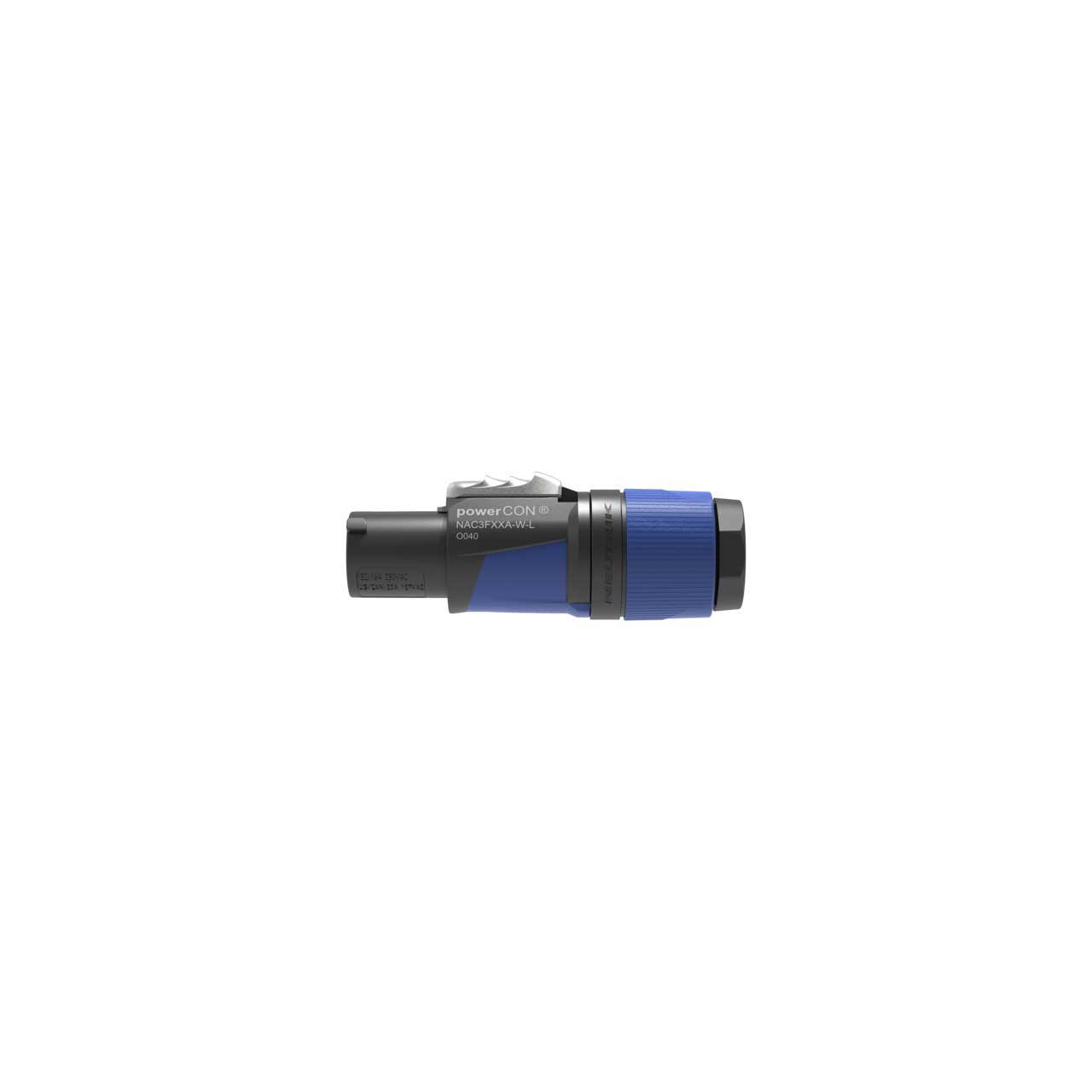

Neutrik NAC3FXXA-W-L PowerCON Blue/Gray XX Series Cable End - Power In Blue - 60320-1 - Large Chuck - Each

NAC3FXXA-W-L - Overview

• Features:

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Ergonomic design with slip-proof two-component molded housing
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing


• Specifications:

  • Electrical
  • Contact resistance: ≤ 2 mΩ
  • Dielectric strength: > 3 kVac (after mating cycles)
  • Insulation resistance: > 10 GΩ (initially)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC, CBC
  • Rating USA / Canada: cUL 60320-1: 20 A 127 V AC, CBC

    Mechanical
  • Cable O.D.: 10 - 16 mm
  • Lifetime: Typically 5’000 mating cycles
  • Wiresize (mm²): 1.5 - 2.5 mm²
  • Wiresize (AWG): 14 - 12 AWG
  • Locking device: Twist lock
  • Termination: Screw type terminals

    Material
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Insert: Polyamide (PA6.6)
  • Locking element: Zinc diecast
  • Shell: Polyamide (PA6) / TPE
  • Strain relief: Polyketone
  • Bushing: Polypropylene / TPE

    Environmental
  • Temperature range: -33 °C to +80 °C
  • Protection class: IP20
  • Flammability acc. to UL94: V-0


• Item Includes:

  • 1x Neutrik NAC3FXXA-W-L PowerCON Blue/Gray XX Series Cable End - Power In Blue - 60320-1 - Large Chuck for Cable 10-16mm
