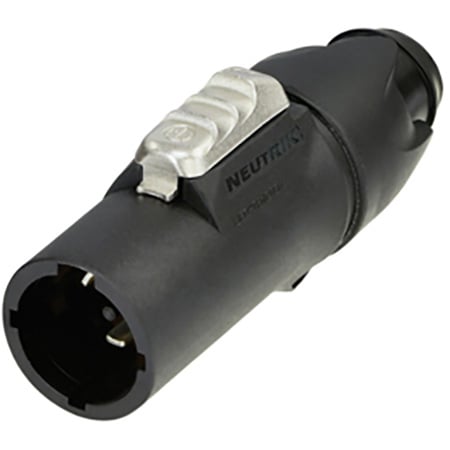

Neutrik NAC3MX-W-TOP 20 amp Cable End Connector powerCON TRUE1 True Outdoor Protection (TOP) - Male - Power in

NAC3MX-W-TOP - Overview

• Features:

  • Heavy duty sealed power connector for harsch and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable 20 A (16A VDE) single phase connector
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique Neutrik cable retention
  • UL498 certified


• Specifications:

  • Contact resistance: ≥ 3 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: 0,1 GΩ (after damp heat test IEC 68-2-30)
  • Number of electronical contacts: 2 + PE
  • Rated current per contact: 20 A (16A VDE)
  • Rated voltage: 250 V ac
  • Cable O.D.: 6 - 12 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 1.0 - 2.5 mm
  • Wiresize: 12 AWG
  • Contact plating: 2 &Micro;m Ag
  • Contacts: CuNi1Si0.2
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: ZuAl4Cu1
  • Shell: Polyamide (PA 6.6 30 % GR)
  • Strain relief: Polyacetal (POM)
  • Flammability: UL 94 V-0
  • Protection class: IP65, UL50E enclosure type 4 (mated)
  • Temperature range: -30 °C to +80 °C
