ADJ Par Z100 3K2 Lighting Par - 100-Watt 3000K Warm White Chip on Board LED - DMX In/Out

ITEM #: AMDJ-PAR321 MFG #: PAR321

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$529.95

Our Price:

$379.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PAR321 - Overview

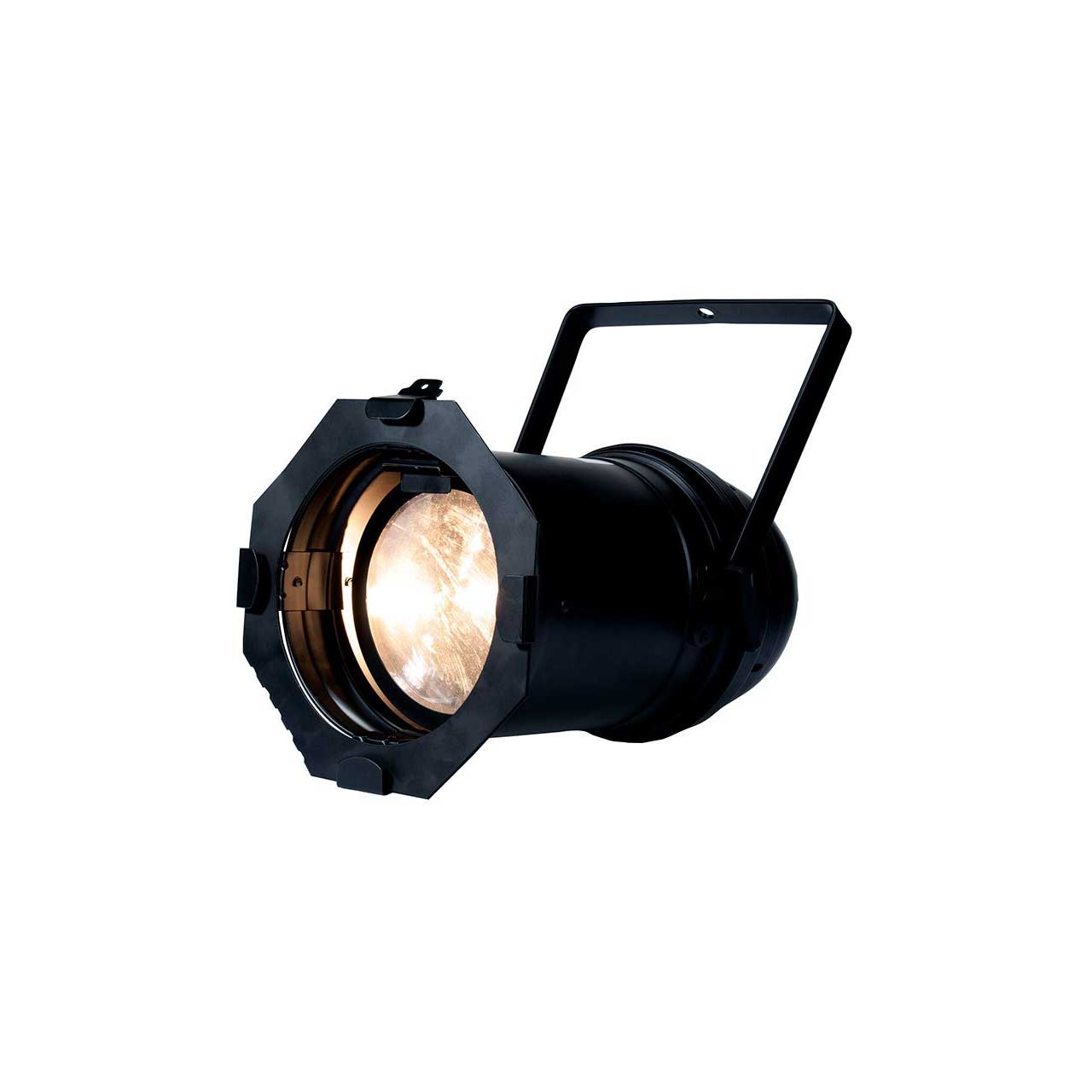

The American DJ PAR321 Par Z100 5K2 offers the classic par can look with the modern benefits of LED. The PAR Z100 5K2, looks exactly the same as a regular black Par can, but inside its casing is housed a powerful LED light source. Offering output comparable to a 1000W sealed beam Par, but producing a fraction of the excess heat, making it ideal for illuminating stages while ensuring that performers won't get too hot.

The Par Z100 5K2 is powered by a 100-Watt, 5700K Cool White C.O.B. LED engine with a CRI greater that 90. The 3000K color temperature offers a good approximation to the output of a traditional lamp. There are 5 manual zoom beam angles to choose from: 9°, 15°, 20°, 25° or 30°. A traditional par can gel frame is included so that designers can diffusion filter for even more control of the fixture's output.

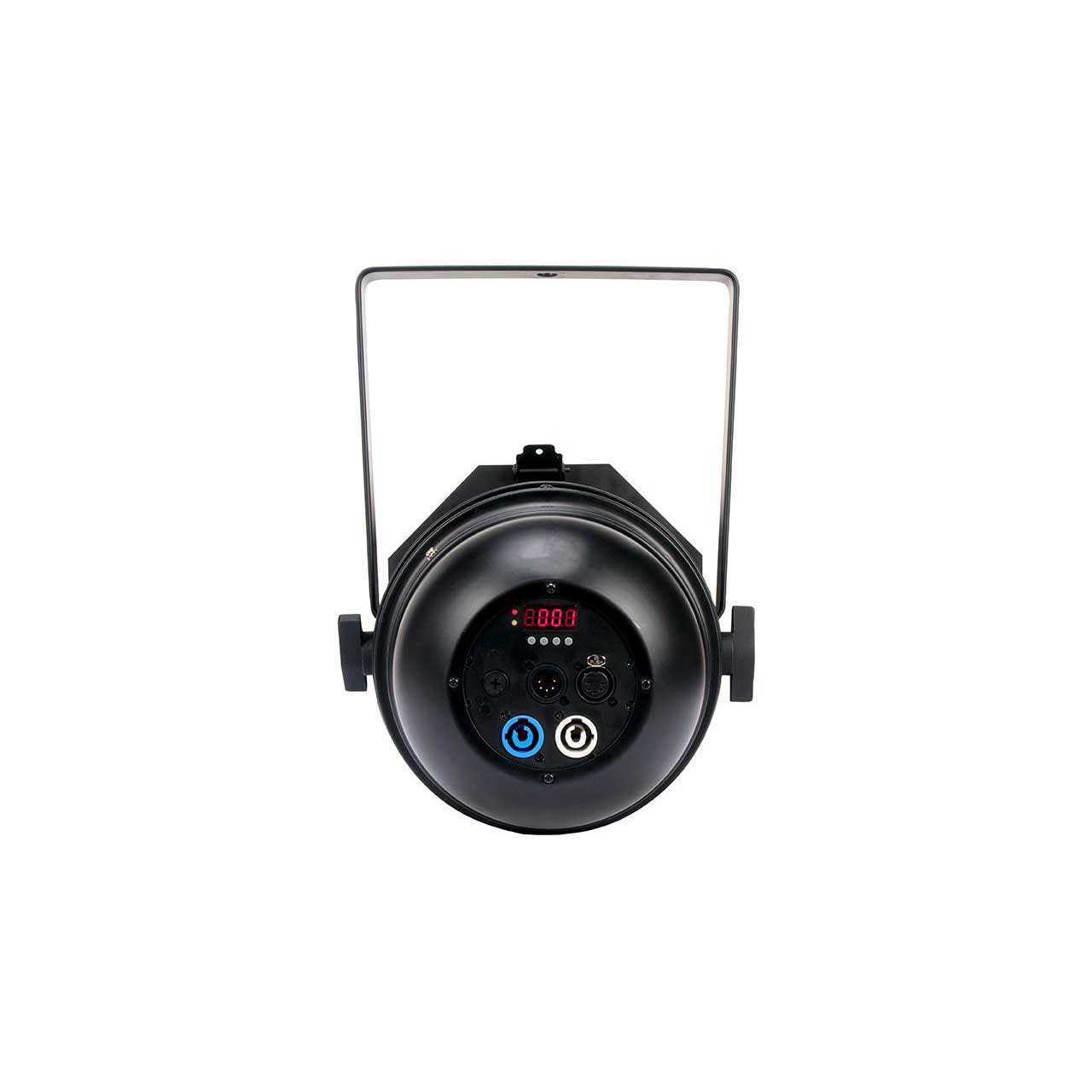

Advanced features include a 4-button DMX OLED display menu, adjustable strobe rates, 6 dim modes and electronic dimming form 1-100%. The fixture is RDM and RDM Net compatible. On the back of the fixture there are locking power In/Out sockets to daisy chain power, plus 5-pin DMX data In/Out sockets.

  • Features:

    • 4-button DMX menu display on rear panel
    • OLED display

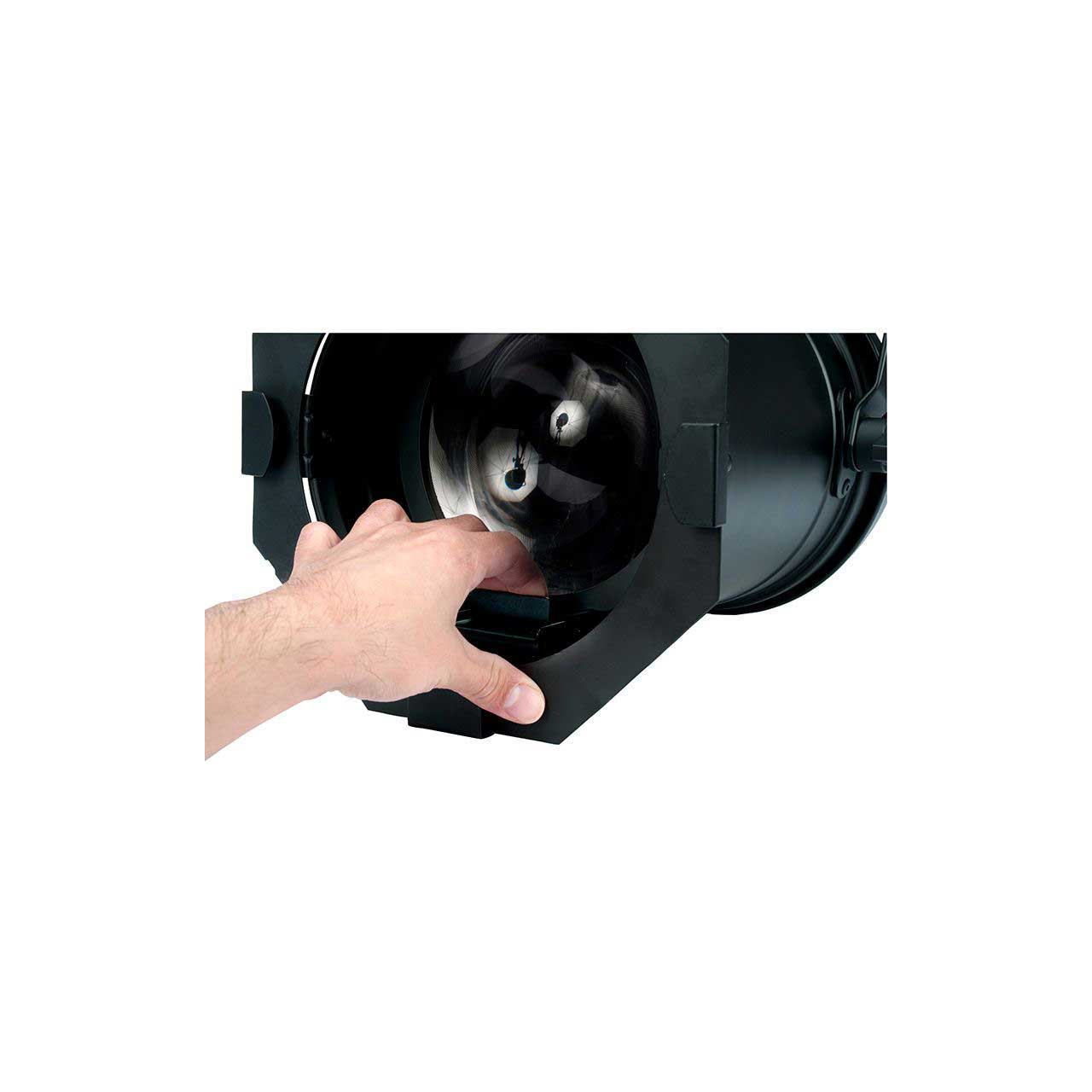

    • Adjustable latch to manually change beam angle
    • Includes gel frame for diffusion filters (Diffusion filter sold separately)
    • Strobe Rate: 0.6Hz to 7.5Hz
    • Refresh Rate: 1.2KHz
    • Electronic Dimming: 0 - 100%
    • 6 Dim Modes
    • DMX-512
    • 3 DMX control modes: (1, 3 & 4 Ch. modes)
    • RDM and RDM Net Compatible
    • Primary/Secondary, stand-alone mode
    • On-board manual control mode
    • 5-pin DMX In/Out
    • Wired Digital Communication Network
    • Locking power In/Out connections
    • 100 Watt, 3000k Warm White C.O.B. LED (Chip On Board)
    • Life expectancy rated at 50,000 hrs.
    • 9°, 15°, 20°, 25° or 30° Manual Zoom
    • 3.3:1 Zoom Rotation

  • Specifications:

    • Electrical
    • Power Draw Total (@ Full On): 115W
    • Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
    • Multi-voltage operation: AC 100-240V, 50/60Hz
    • Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
    • Fuse protected: 3A/250V

      Environmental
    • Ambient Temperature Range (For Use): -4°F ~ 113°F (-20°C ~ 45°C)
    • Storage Temperature Range: -22°F ~ 113°F (-30°C ~ 45°C)

      Dimensions / Weight:
    • Dimensions (LxWxH): 19.25" x 10.94" x 10.68" (489mm x 277.7mm x 271.1mm)
    • Weight: 7.94lbs. / 3.6kg.

  • Item Includes:

    • 1x American DJ Lighting Par Z100 3K2
    • 1x PowerCON Power Cord

  • Warranty:

    • 2-Year Warranty

  • GTIN:

    0810087372798
