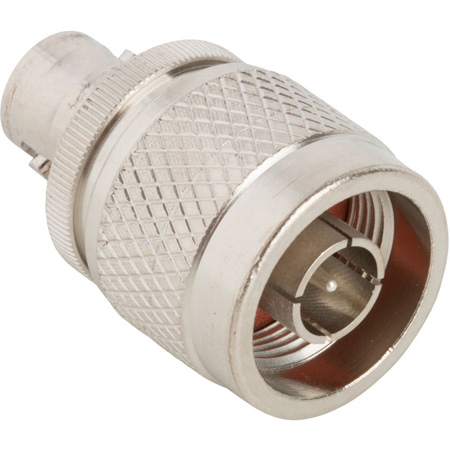

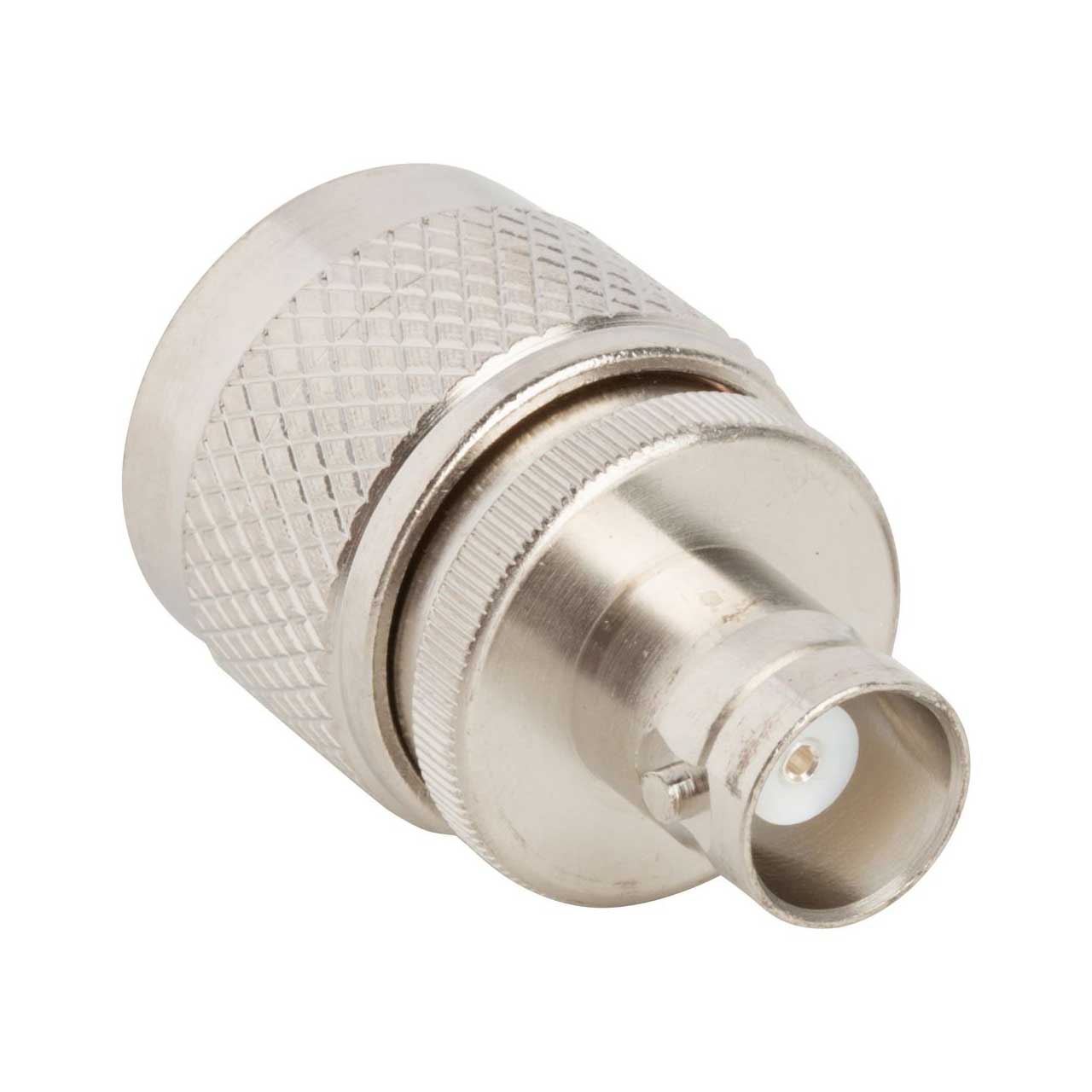

Amphenol 031-216-RFX N-Type PI to BNC Jack 50 Ohm Straight Adapter

ITEM #: AMPH-031-216-RFX MFG #: 031-216-RFX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

031-216-RFX - Overview

Amphenol 031-216-RFX is an N-Type PI to BNC 50 Ohm straight jack adapter.

  • Specifications:

    • Adapter Side 1 Series: BNC
    • Adapter Side 1 Style: Jack
    • Adapter Side 2 Series: N-Type
    • Adapter Side 2 Style: Plug
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Silver
    • Contact Material: Beryllium Copper
    • Export Control Classification Number: EAR99
    • Frequency (Max GHz): 4
    • IP Rating: Not Rated
    • Impedance (Ohms): 50
    • Insulator Material: PTFE
    • Isolated: No
    • Low PIM: No
    • Mil Qualified: No
    • Non Magnetic: No
    • Orientation: Straight
    • Panel Mounting Feature: Not Applicable
    • Temp (Max Degrees Celsius): 165
    • Temp (Min Degrees Celsius): -65


  • Item Includes:

    • 1x Amphenol 031-216-RFX N-Type PI to BNC Jack 50 Ohm Straight Adapter
