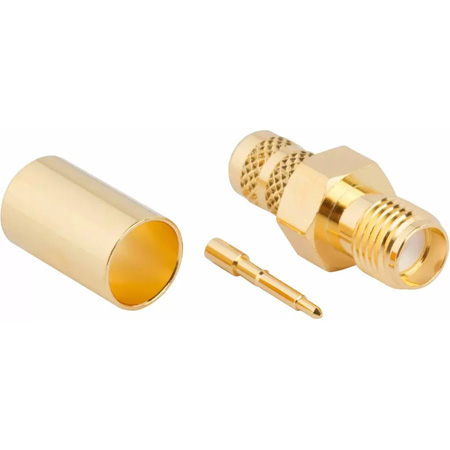

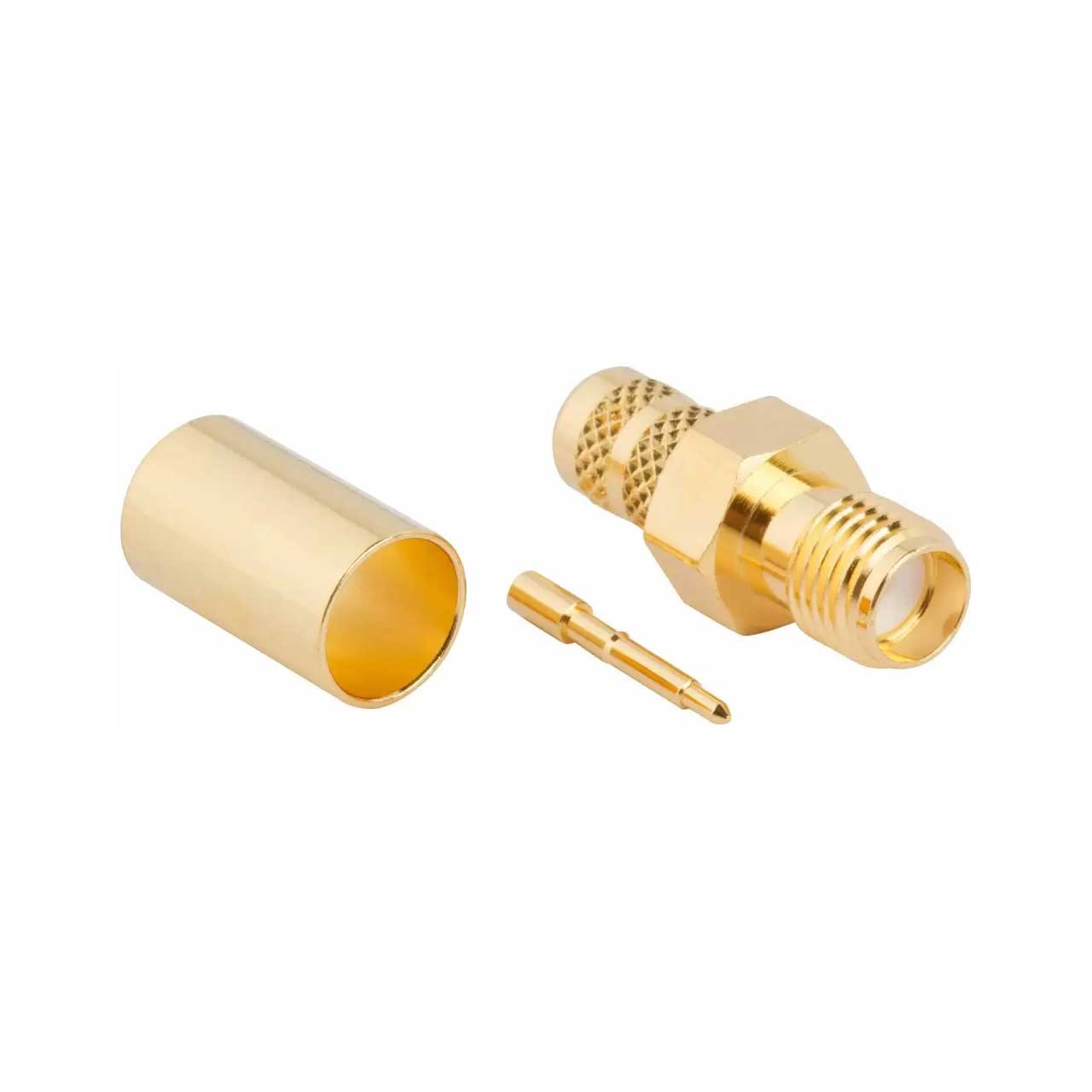

Amphenol 132240RP RF Connector RP-SMA Straight Crimp Jack RG-8X Times LMR-240 Optimized 50 Ohm

ITEM #: AMPH-132240RP MFG #: 132240RP

Primary Image
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

132240RP - Overview

Amphenol 132240RP RF Connector RP-SMA Straight Crimp Jack RG-8X Times LMR-240 Optimized 50 Ohm. Terminates to RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258.

  • Specifications:

    • Body Finish: Gold
    • Body Material: Brass
    • Cable Type (Terminates to): RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258
    • Contact Finish: Gold
    • Contact Material: Beryllium Copper
    • Contact Termination: Solder
    • Coupling Mechanism: Threaded
    • Crimp Tool: 47-10070
    • Export Control Classification Number: EAR99
    • Frequency (Max GHz): 12.4
    • Gender: Jack
    • IP Rating: Not Rated
    • Impedance (Ohms): 50
    • Insulator Material: PTFE
    • Isolated: No
    • Low PIM: No
    • Mil Qualified: No
    • Non Magnetic: No
    • Orientation: Straight
    • Panel Mounting Feature: Not Applicable
    • Size Category: Subminiature
    • Temp (Max Degrees Celsius): 165
    • Temp (Min Degrees Celsius): -65
    • Termination Style: Cable - Crimp
    • Thread Direction: Standard


  • Item Includes:

    • 1x Amphenol 132240RP RF Connector RP-SMA Straight Crimp Jack RG-8X Times LMR-240 Optimized 50 Ohm
